RASO AND RASI SERIES SPEEDDOME OPTIMA 8000-2692-13, REV. B1

QUICK REFERENCE GUIDE 1 of 6

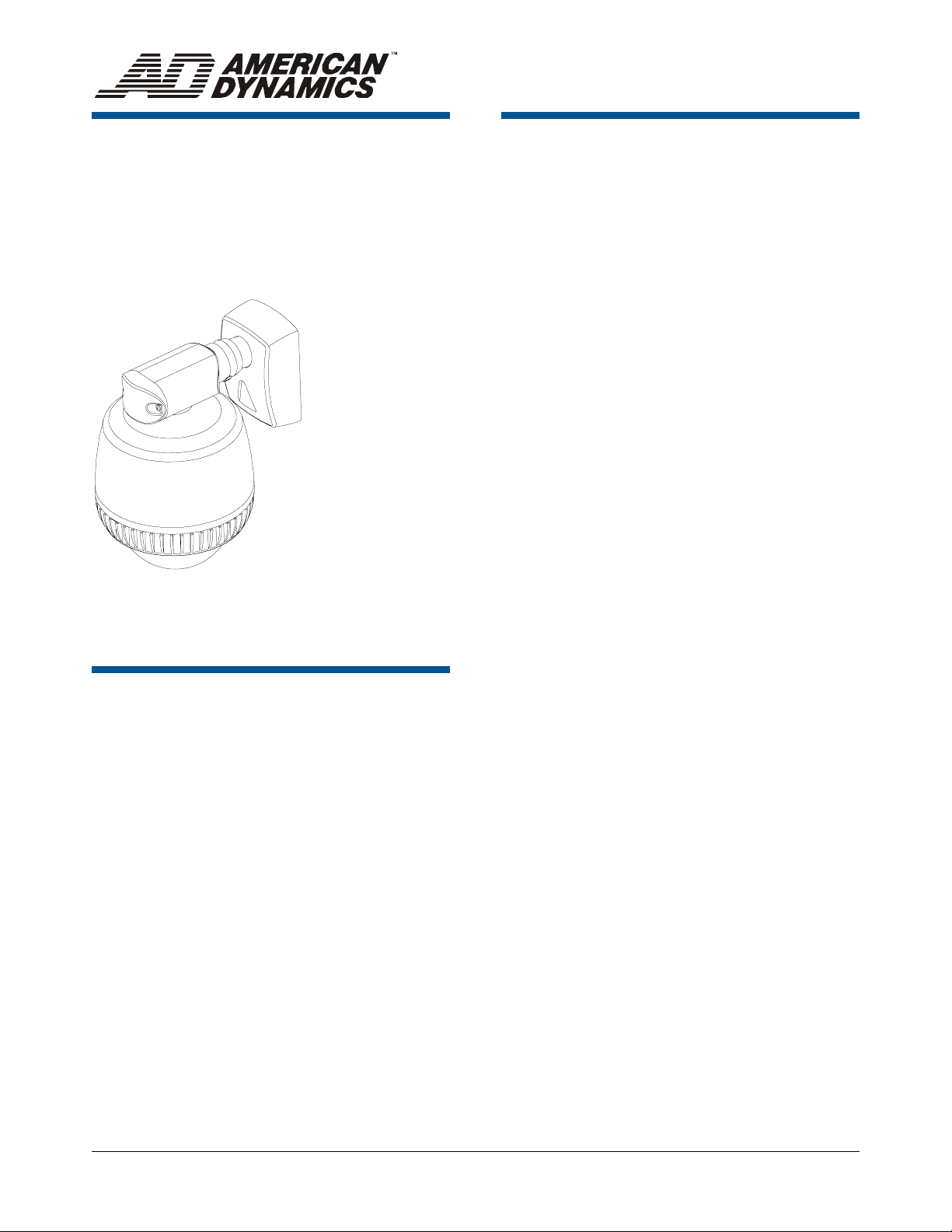

SpeedDome®Optima

Programmable Dome

Camera

Quick Reference Guide

RASO and RASI Series

Contents

About this Guide.................................................... 1

Dome Features...................................................... 2

Controlling the Zoom Setting................................. 2

Supported Controllers and Matrix Switching

Systems............................................................ 3

Supported Dome Commands................................ 4

Declarations .......................................................... 6

About this Guide

This Quick Reference Guide explains the functions

supported by the SpeedDome Optima

programmable dome camera. It is intended to

supplement information included in the operator's

manual for your video controller or matrix switching

system.

If you need assistance...

Contact your American Dynamics representative.

RASO AND RASI SERIES SPEEDDOME OPTIMA 8000-2692-13, REV. B1

QUICK REFERENCE GUIDE 2 of 6

Dome Features

The SpeedDome Optima programmable dome

camera provides the following features:

• 22X optical zoom/4X digital zoom

(88X maximum total zoom).

• >450 lines horizontal resolution

• Zoom Adjusted Programming (ZAP)

• Auto Focus / Auto Iris

• Auto White Balance

• Automatic Gain Control (AGC)

• Line-lock

• Up to 96 presets (system dependent)

• Three patterns

• Apple Peel

• Dome Flip (rotate 180°)

• One alarm input

• One auxiliary output

• Power-on functional tests

• LED diagnostics

In addition, the dome may be used with the

Manchester, RS-422, RS-485, or SensorNet

protocols.

Although SpeedDome Optima does not provide

on-screen programming via the dome firmware, the

connected controller may be used to configure

many settings. These settings include:

• Programming presets and patterns

• Vertical phase adjustment (V-phase)

• Auxiliary output control

The following table provides additional information

about the supported controller functions with the

protocol used. The actual features supported may

differ for your controller.

Table 1: Protocols and supported features

Feature SensorNet RS-422 Manchester

Maximum

Presets 96 (a) 96 (a) 64

Maximum

Patterns 3 3 3

Resume

Auto Focus

/ Auto Iris

(b)

Yes Yes Yes

Dome

Reset Yes Yes Yes

V-Phase

adjustment Yes Yes Yes

Auxiliary

output

control

Yes Yes Yes

(a) The actual number of available presets may

differ based on the controller used.

(b) Pressing the Iris Open and Iris Close buttons

simultaneously returns to auto focus and auto

iris mode.

For specific information about the features

supported, see the operator's manual for your

controller.

Controlling the Zoom

Setting

Zoom stop settings define how the zoom function is

partitioned. Depending on the current zoom level,

the camera will either stop at the first zoom stop

setting or continue to the maximum zoom setting.

For SpeedDome Optima, the first zoom stop

setting is 22X (maximum optical zoom). The

maximum zoom is 88X (maximum digital zoom).

To switch between optical and digital zoom levels,

press the Zoom In (Zoom Tele) button until the first

zoom stop is reached. Release the button for at

least one second and press Zoom In again to

continue into the digital zoom range. Zooming

stops when the maximum zoom is reached.

Refer to your controller instructions for information

about the location of the zoom control buttons.

RASO AND RASI SERIES SPEEDDOME OPTIMA 8000-2692-13, REV. B1

QUICK REFERENCE GUIDE 3 of 6

Supported Controllers and Matrix Switching Systems

SpeedDome Optima may be used with the following controllers and matrix switching systems. See notes below for specific limitations or restrictions.

Feature

VM16 /

ADTT16

Series

VM32 / AD32

Series VM96 Series

AD2150 /

AD2350

(1, 2)

MegaPower

48 (1, 2)

AD1650

(1, 2)

AD168

(1, 2) AD2050

(1, 2)

MegaPower

1024 (1, 2)

Supported

Protocols SensorNet SensorNet RS-422

SensorNet

Manchester

RS-422

Manchester

RS-422

SensorNet

Manchester

RS-422

Manchester

RS-422

SensorNet

Manchester

RS-422

Manchester

RS-422

Maximum

Available

Presets

96 96

Unlimited (3) 64 Manchester

16 RS-422

64 Manchester

96 RS-422 (5)

96 SensorNet

64 Manchester

16 RS-422

64 Manchester

64 RS-422 (5)

64 SensorNet

64 Manchester

16 RS-422

64 Manchester

16 RS-422

Maximum

Available

Patterns (4)

3 3 3 3 3 3 3 3 3

NOTES:

(1) For the list of compatible keyboards, see Supported AD Keyboards on page 4.

(2) RS-422 is supported with the appropriate code converter.

(3) Preset information is stored at the host, not the dome.

(4) Patterns are limited by time and the number of available dome commands. Total time for the patterns cannot exceed 6 minutes 50 seconds.

Total number of dome commands used in the patterns cannot exceed 99.

(5) If the RS-422 Code Converter is used, only 16 presets are supported.

RASO AND RASI SERIES SPEEDDOME OPTIMA 8000-2692-13, REV. B1

QUICK REFERENCE GUIDE 4 of 6

Supported AD Keyboards

For systems using AD keyboards, the following

keys are used when Set Preset or Call Preset is

referenced:

Keyboard

Model

Call

Function

Set (Define)

Function (1)

AD1678C/M Shot Set Shot

(2)

AD2078 Call Set

AD2078A Call Set

AD2079 Shot Shot

AD2088 Shot Shot

ADTTE Shot Shot

ADTT Call Set

NOTES:

(1) Keyboard must be in programming mode to

use the set functions. See the keyboard

operation manual for information.

(2) Recessed pushbutton switch.

Supported Dome

Commands

Some dome commands are supported through

special keystroke combinations. This section

summarizes those commands for specific

controllers.

AD2083-02A/02B Code Converter

See Supported AD Keyboards for button names

used on specific keyboards.

Verified with AD168 (v. 3.01) and AD2083-02A (v. 11Y9).

Dome Function Keyboard Command

Define Preset 1 - 16 1 - 16 Set Shot

Recall Preset 1 - 16 1 - 16 Call Shot

Define Pattern #1 17 Set Shot

Define Pattern #2 18 Set Shot

Define Pattern #3 19 Set Shot

End Pattern Definition 33 Set Shot

Accept (save) New Pattern 34 Set Shot

Go to Pattern #1 17 Call Shot

Dome Function Keyboard Command

Go to Pattern #2 18 Call Shot

Go to Pattern #3 19 Call Shot

Run Pattern #1 21 Call Shot

Run Pattern #2 22 Call Shot

Run Pattern #3 23 Call Shot

Review Temporary Pattern 24 Call Shot

Auto Repeat Pattern #1 25 Call Shot

Auto Repeat Pattern #2 26 Call Shot

Auto Repeat Pattern #3 27 Call Shot

Flip (rotate dome 180°) 40 Call Shot

Clear Pattern #1 41 Set Shot

Clear Pattern #2 42 Set Shot

Clear Pattern #3 43 Set Shot

Reset Dome 66 Set Shot

Enter V-Phase Adjust

Mode

67 Set Shot followed by

multiple Iris Open or

Iris Close

Exit V-Phase Adjust Mode 68 Set Shot

Return to Auto-Iris/Auto

Focus

69 Call Shot

Reset Iris 69 Set Shot

In addition, the following commands are not

supported.

• Set Switch 1 Normal Closed (51 Set Shot)

• Set Switch 1 Normal Open (52 Set Shot)

• Set Switch 2 Normal Closed (53 Set Shot)

• Set Switch 2 Normal Open (54 Set Shot)

• Set Switch 3 Normal Closed (61 Set Shot)

• Set Switch 3 Normal Open (62 Set Shot)

• Set Switch 4 Normal Closed (63 Set Shot)

• Set Switch 4 Normal Open (64 Set Shot)

RASO AND RASI SERIES SPEEDDOME OPTIMA 8000-2692-13, REV. B1

QUICK REFERENCE GUIDE 5 of 6

MegaPower 48 Matrix Switcher/

Controller System

See Supported AD Keyboards for button names

used on specific keyboards.

Dome Function Keyboard Command

Define Pattern # 1 121 - F2

Define Pattern # 2 122 - F2

Define Pattern # 3 123 - F2

End Pattern Definition 120 - F2

Save New Pattern 130 - F2

Go to Pattern # 1 31 - F1

Go to Pattern # 2 32 - F1

Go to Pattern # 3 33 - F1

Run Pattern # 1 21 - F1

Run Pattern # 2 22 - F1

Run Pattern # 3 23 - F1

Auto Repeat Pattern # 1 41 - F1

Auto Repeat Pattern # 2 42 - F1

Auto Repeat Pattern # 3 43 - F1

Clear Pattern # 1

(SpeedDome RS-422)

131 - F2

Clear Pattern # 2

(SpeedDome RS-422)

132 - F2

Clear Pattern # 3

(SpeedDome RS-422)

133 - F2

Flip (Rotate dome 180º) 19 - F1

Reset Iris 20 - F1

Return to Auto Iris / Auto

Focus

69 - F1

Reset Dome 30 - F1

Enter Vertical Phase

Adjust Mode

38 - F2

Exit Vertical Phase Adjust

Mode

39 - F2

In addition, the following commands are not

supported:

• Set Auxiliary 4 OFF (70-F1)

• Set Auxiliary 4 ON (71-F1)

AD168 Matrix Switcher/

Controller System

See Supported AD Keyboards for button names

used on specific keyboards.

Dome Function Keyboard Command

Define Pattern # 1 121 - F2

Define Pattern # 2 122 - F2

Define Pattern # 3 123 - F2

End Pattern Definition 120 - F2

Save New Pattern 130 - F2

Go to Pattern # 1 31 - F1

Go to Pattern # 2 32 - F1

Go to Pattern # 3 33 - F1

Run Pattern # 1 21 - F1

Run Pattern # 2 22 - F1

Run Pattern # 3 23 - F1

Auto Repeat Pattern # 1 41 - F1

Auto Repeat Pattern # 2 42 - F1

Auto Repeat Pattern # 3 43 - F1

Clear Pattern # 1

(SpeedDome RS-422)

131 - F2

Clear Pattern # 2

(SpeedDome RS-422)

132 - F2

Clear Pattern # 3

(SpeedDome RS-422)

133 - F2

Flip (Rotate dome 180º) 19 - F1

Reset Iris 20 - F1

Return to Auto Iris / Auto

Focus

69 - F1

Reset Dome 30 - F1

Enter Vertical Phase

Adjust Mode

38 - F2

Exit Vertical Phase Adjust

Mode

39 - F2

In addition, the following commands are not

supported:

• Set Auxiliary 4 OFF (70-F1)

• Set Auxiliary 4 ON (71-F1)

RASO AND RASI SERIES SPEEDDOME OPTIMA 8000-2692-13, REV. B1

QUICK REFERENCE GUIDE 6 of 6

Manchester Commands

These commands are supported by systems using

the Manchester protocol.

See Supported AD Keyboards for button names

used on specific keyboards.

Verified with AD2050, AD2091, and AD168 with CCM

(v. 3.01)

Dome Function Keyboard Command

Program Presets 1 - 64 1- 64 Set Preset

Call Presets 1 - 64 1- 64 Call Preset

Program Pattern 1 70 Set Preset

Program Pattern 2 71 Set Preset

Program Pattern 3 72 Set Preset

Save Pattern

Programming

69 Set Preset

Cancel Pattern

Programming

68 Set Preset

Repeats following pattern 69 Call Preset

Run Pattern 1 70 Call Preset

Run Pattern 2 71 Call Preset

Run Pattern 3 72 Call Preset

Reset Dome 65 Set Preset

Resume Auto Focus / Auto

Iris

66 Call Preset

Flip (Rotate dome 180º) 67 Call Preset

Activate / Deactivate

V-phase delay setting

adjustment

67 Set Preset

Declarations

Regulatory Compliance

Emissions .....................................47 CFR, Part 15

ICES-003

EN55022 Class A (CE)

Immunity ...................................... EN50130-4 (CE)

Safety ......................................................... UL1950

CSA C22.2 No 950

EN 60 950

Outdoor model meets NEMA 5 and IP-66

FCC COMPLIANCE: This equipment complies with Part 15 of the

FCC rules for intentional radiators and Class A digital devices when

installed and used in accordance with the instruction manual. Following

these rules provides reasonable protection against harmful interference

from equipment operated in a commercial area. This equipment should

not be installed in a residential area as it can radiate radio frequency

energy that could interfere with radio communications, a situation the

user would have to fix at their own expense.

EQUIPMENT MODIFICATION CAUTION: Equipment changes or

modifications not expressly approved by Sensormatic Electronics

Corporation, the party responsible for FCC compliance, could void the

user's authority to operate the equipment and could create a hazardous

condition.

Other Declarations

Thank you for using American Dynamics products. We support our

products through an extensive and worldwide network of dealers. The

dealer, through whom you originally purchased this product, is your

point of contact if you have a need for service or support. Our dealers

are fully empowered to provide the very best in customer service and

support. Dealers should contact American Dynamics at (800) 507-6268

or (561) 912-6259 or on the web at www.americandynamics.net.

NOTICE: The information in this manual was current when published.

The manufacturer reserves the right to revise and improve its products.

All specifications are therefore subject to change without notice.

LIMITED RIGHTS NOTICE: For units of the Department of

Defense, all documentation and manuals were developed at private

expense and no part of it was developed using Government Funds. The

restrictions governing the use and disclosure of technical data marked

with this legend are set forth in the definition of “limited rights” in

paragraph (a) (15) of the clause of DFARS 252.227.7013. Unpublished -

rights reserved under the Copyright Laws of the United States.

TRADEMARK NOTICE: SpeedDome, American Dynamics, and

the American Dynamics logo are trademarks or registered

trademarks of Sensormatic Electronics Corporation. Other product

names (if any) mentioned herein may be trademarks or registered

trademarks of other companies.

not be copied, photocopied, reproduced, translated or reduced to any

electronic medium or machine-readable form, in whole or in part,

without prior written consent of Sensormatic Electronics.

BSL 4/2004

www.americandynamics.ne

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere American Dynamics Sicherheitskamera Handbücher

American Dynamics

American Dynamics RT3300MC Bedienungsanleitung

American Dynamics

American Dynamics ADC520D Bedienungsanleitung

American Dynamics

American Dynamics ADC523PIR Bedienungsanleitung

American Dynamics

American Dynamics IP speedDome Ultra 8 Montage- und Wartungsanleitung

American Dynamics

American Dynamics SpeedDome Optima LT Bedienungsanleitung

American Dynamics

American Dynamics Discover Indoor Bedienungsanleitung

American Dynamics

American Dynamics IP speedDome Ultra 8 Bedienungsanleitung

American Dynamics

American Dynamics RASIPPS-1 Bedienungsanleitung

American Dynamics

American Dynamics Illustra Flex Series Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra Handbuch

American Dynamics

American Dynamics DeltaDome II Montage- und Bedienungsanleitung

American Dynamics

American Dynamics illustra 600 Bedienungsanleitung

American Dynamics

American Dynamics VideoEdge IP Indoor Mini-dome 8200-2646-02... Original Betriebsanleitung

American Dynamics

American Dynamics ADSDUHOC Bedienungsanleitung

American Dynamics

American Dynamics IP speedDome Ultra 8 Handbuch

American Dynamics

American Dynamics SpeedDome Ultra VIIE Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra VII Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Optima LT Handbuch

American Dynamics

American Dynamics ADC 660P Bedienungsanleitung

American Dynamics

American Dynamics IP speedDome Ultra 8 Montage- und Wartungsanleitung

American Dynamics

American Dynamics SpeedDome RASEL Series Montage- und Wartungsanleitung

American Dynamics

American Dynamics ADC722WP Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Optima LT Bedienungsanleitung

American Dynamics

American Dynamics Illustra Flex Series Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
