Ameriwood HOME 1125335WCOM Bedienungsanleitung

1125335WCOM

TV STAND

B341125335WCOM0

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

0 29986 11245 3

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

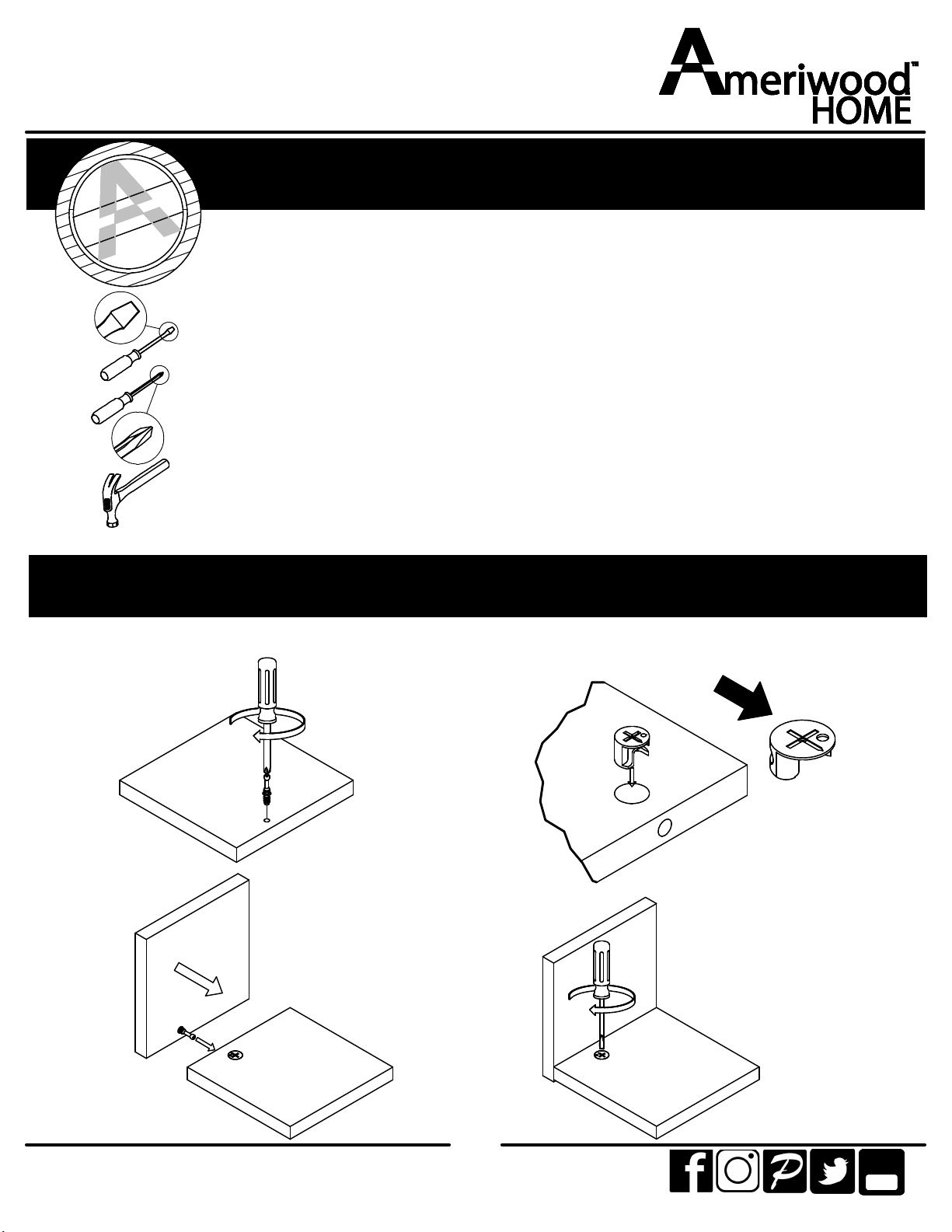

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

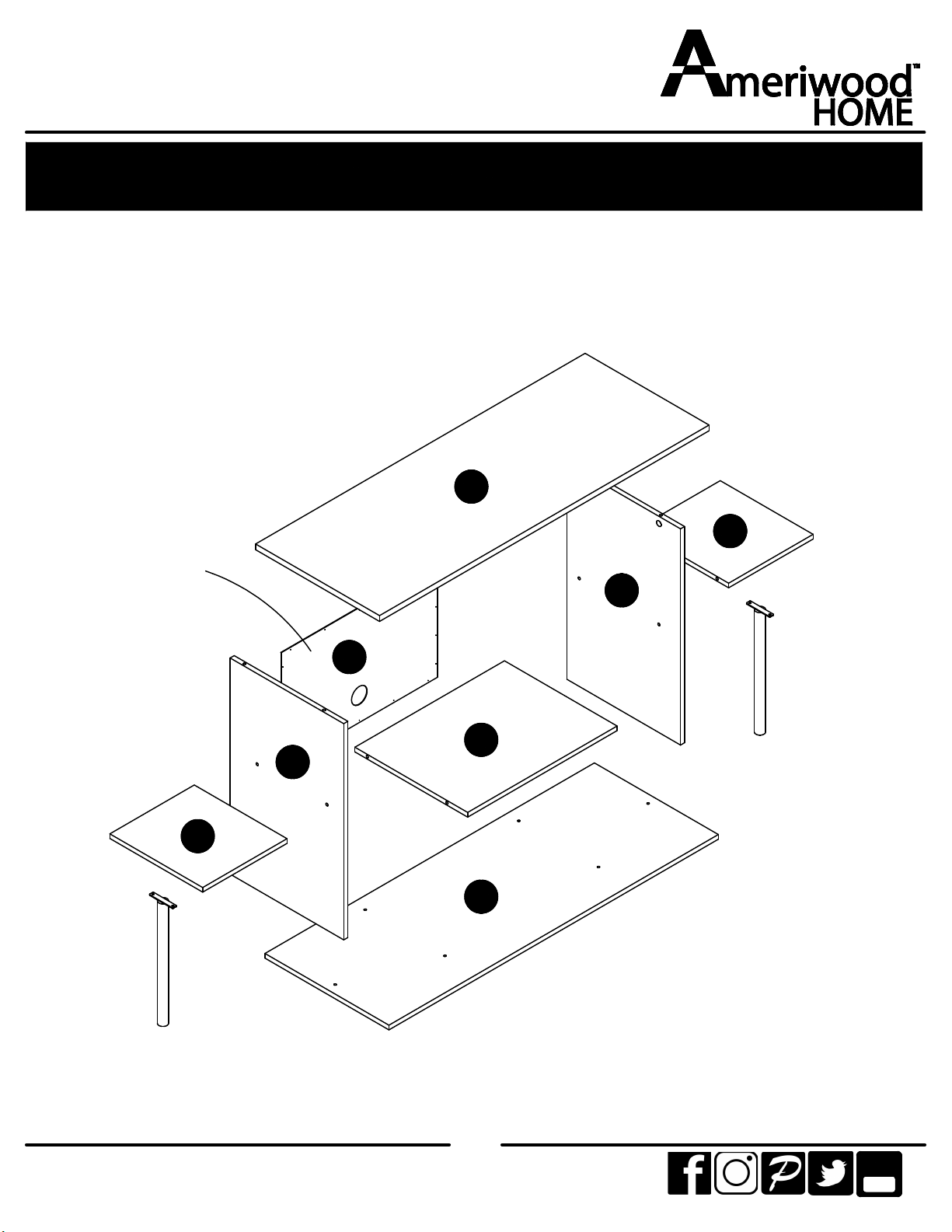

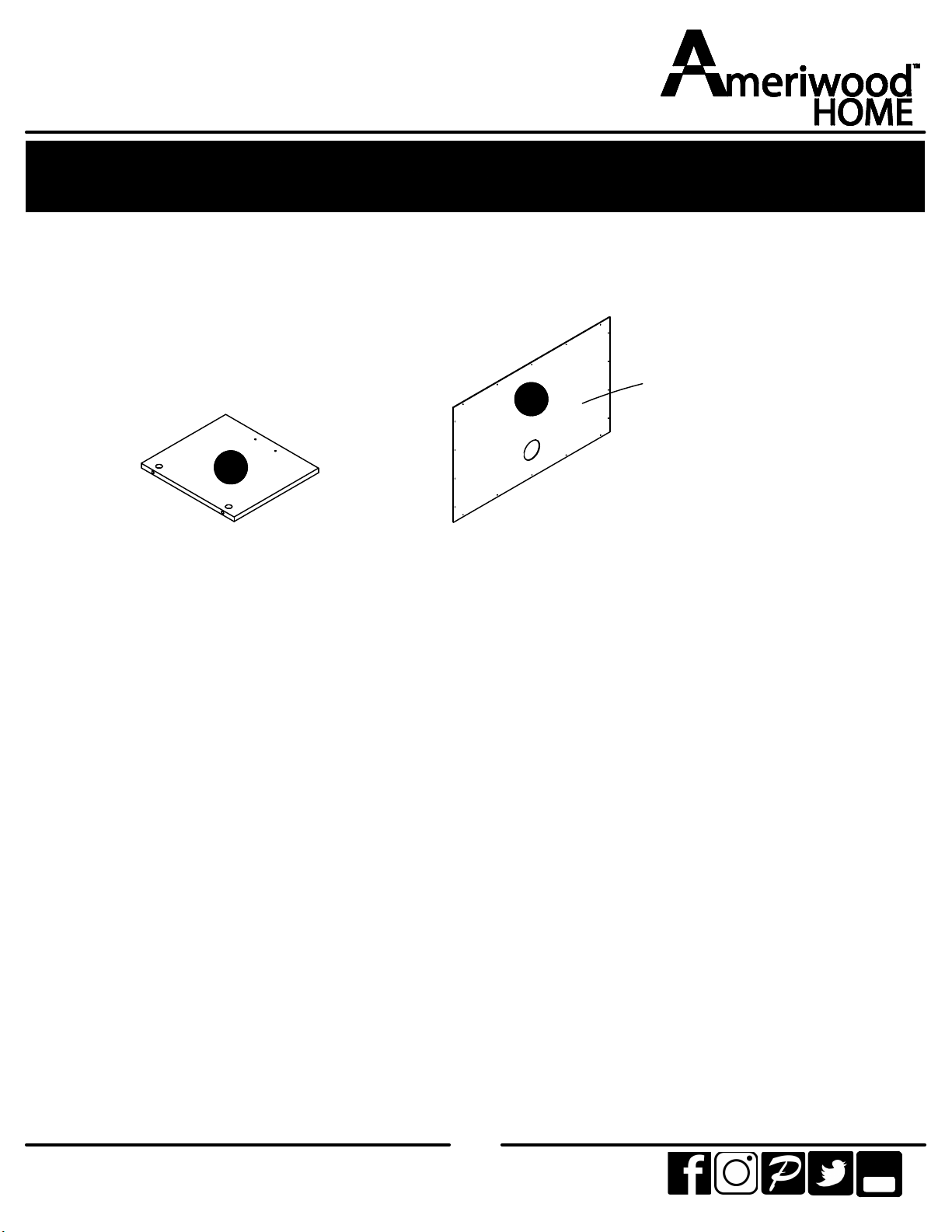

Board Identification

Not actual size

Tube

You

Left Panel

31125335012

Right Panel

31125335022

Top

31125335031

Bottom

31125335041

Center Shelf

31125335052

Left Shelf

31125335061

ABC

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Right Shelf

31125335071

Back Panel

K112500000

This piece is

paperboard

construction.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

This piece is

paper board

construction.

ameriwoodhome.com

Part List

Actual Size

Tube

You

Not Actual Size

(x2)

#I35140

post

(x12)

#A22570

cam lock

(x12)

#A22510

cam bolt

(x4)

#A13410

" flat head

(x8)

#A11130

#6 x

" pan head

(x4)

#A12210

#8 x

" pan head

(x18)

#A21110

nail

(x8)

#A43320

plastic foot

(x2)

#A17750

#8-32 x 1-

" truss head

No usar nunca este mueble con una TV que es demasiado larga o

demasiado pesada. Podría producir la lesión severa o la muerte. La TV y

el mueble podrían ser instables y podrín inclinar.

* La TV debe pesar menos de 50 lbs. (22.7 kg)

* La base de la TV debe ser capaz de sentarse por completo sobre esta

superficie.

NO CRT (TIPO DE TUBO) TV PERMITIDO.

Esta pieza está diseñado para la mayoría de las TVs de PANEL PLANA

que tienen pantallas diagonales de hasta 42 pulgadas (106 cm).

Refiérase al libro de instrucciones para información completa de seguridad.

ADVERTENCIA

WARNING

Never use this furniture with a TV that is too large or too heavy. Severe injury or

death can occur. The TV and furniture can be unstable and may tip.

* The TV must weigh less than 50 lbs. (22.7 kg)

* The base of the TV must be able to sit completely on this surface.

NO CRT (TUBE TYPE) TV PERMITTED. This item is designed for most FLAT

PANEL TV's having up to a 42 in. (106 cm) diagonal screen measurement.

Refer to instruction book for complete safety information.

B64354

Ne jamais utiliser ce mobilier avec un téléviseur trop grand ou trop lourd.

Des blessures graves ou la mort peuvent survenir. Le téléviseur et le

meuble peuvent devenir instable et renverser.

Le téléviseur doit peser moins de 22.7 kg (50 lb).

La base du téléviseur doit être capable de reposer complètement sur cette

surface.

AUCUN TÉLÉVISEUR TRC (TYPE TUBE) PERMIS. Ce produit est conçu

pour la plupart des TÉLÉVISEURS À ÉCRAN PLAT avec un écran

mesurant 106 cm (42 po) diagonalement.

Veuillez vous reporter au manuel d'instruction pour de l'information

complète sur la sécurité.

ADVERTISSEMENT

(x1)

#B64354

warning label

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

(x4)

#A22570

* raw edges are shaded

(x4)

#A22510

Insert four cam locks into panel (E) and screw four cam bolts into panel (C) as shown.

ameriwoodhome.com

STEP2

Tube

You

(x8)

#A11130

(x8)

#A43320

Notice: Do not get the #6 x

" screw mixed up with the #8 x

" screw.

The #6 is smaller diameter than the #8 screw.

ameriwoodhome.com

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x8)

#A22510

(x4)

#A22570

* raw edges are shaded

Tube

You

Insert two cam locks and screw four cam bolts into each panel as shown.

finished edge
