Ameriwood HOME 1819196COM0 Bedienungsanleitung

1819196COM

Fireplace / TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B341819196COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

All manuals and user guides at all-guides.com

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

All manuals and user guides at all-guides.com

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

All manuals and user guides at all-guides.com

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Left Panel

31819323010

ABCD

EFG

Right Panel

31819323020

Left Partition

31819323030

Right Partition

31819323040

Top

31819323050

Bottom

31819323060 Adjustable Shelf (x2)

31819323070

Back (x2)

31819323080

End Panel Rail (x2)

31819323090

Partition Rail (x2)

31819323100

Top Rail

31819323110 Kick (x2)

31819323120

Side Kick (x2)

31819323130

All manuals and user guides at all-guides.com

ameriwoodhome.com

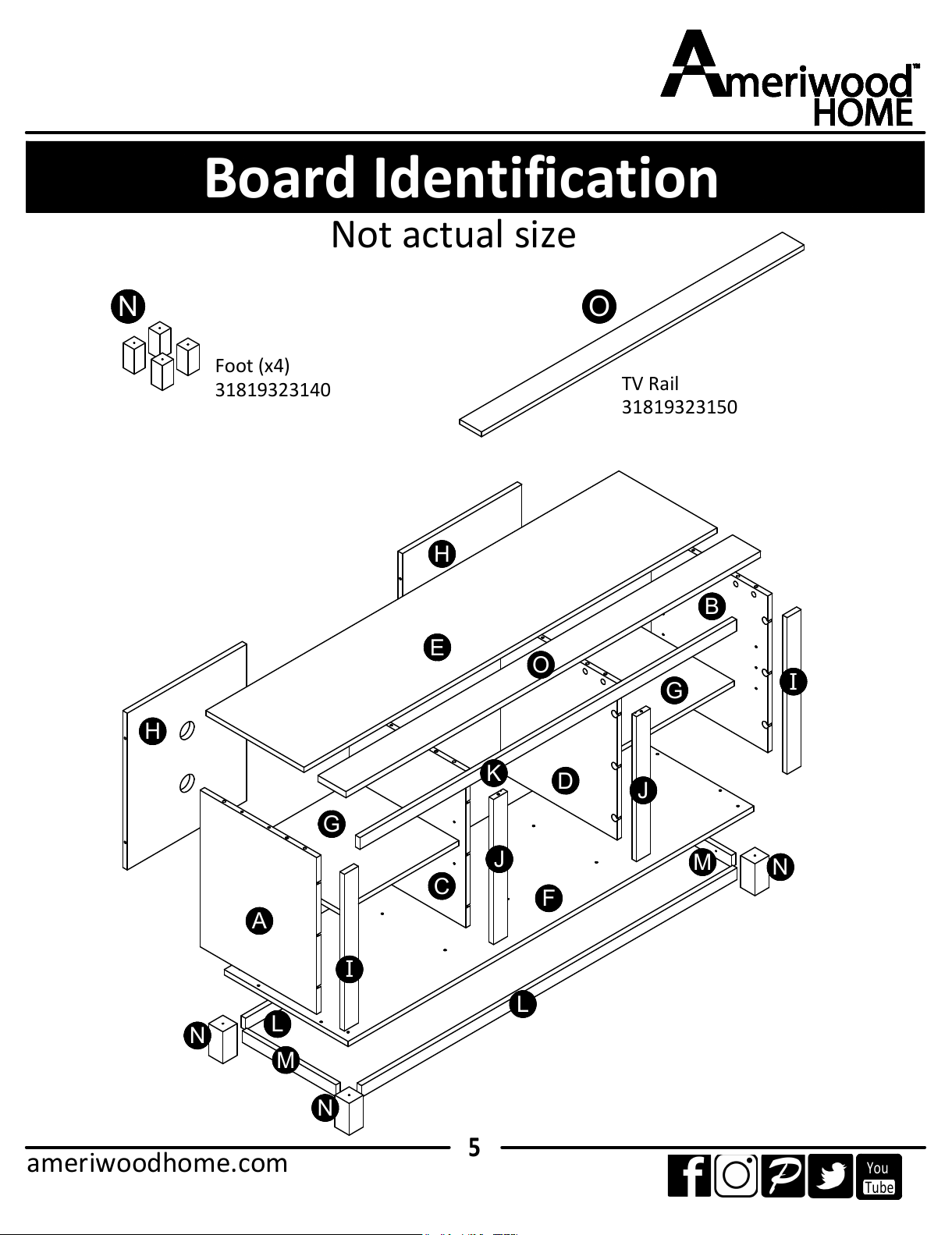

Board Identification

Not actual size

Tube

You

TV Rail

31819323150

Foot (x4)

31819323140

N O

All manuals and user guides at all-guides.com

ameriwoodhome.com

Part List

Actual Size

Tube

You

Not Actual Size

(x12)

#A22620

cam lock

(x12)

#A22610

cam bolt

(x18)

#A21660

wood dowel

(x12)

#A22920

connector

(x12)

#A22910

connector bolt

(x16)

#A53510

angle bracket

(x39)

#A12120

7/16" screw

(x8)

#A80250

shelf support

(x12)

#A23030

confirmat screw

123456

789

(x2)

#A43100

plastic foot

(x6)

#A43490

spacer

(x1)

#A53655

bracket

10 11 12

(x1)

#A95020

fireplace insert

(x1)

#B64357

TV warning label

All manuals and user guides at all-guides.com

ameriwoodhome.com

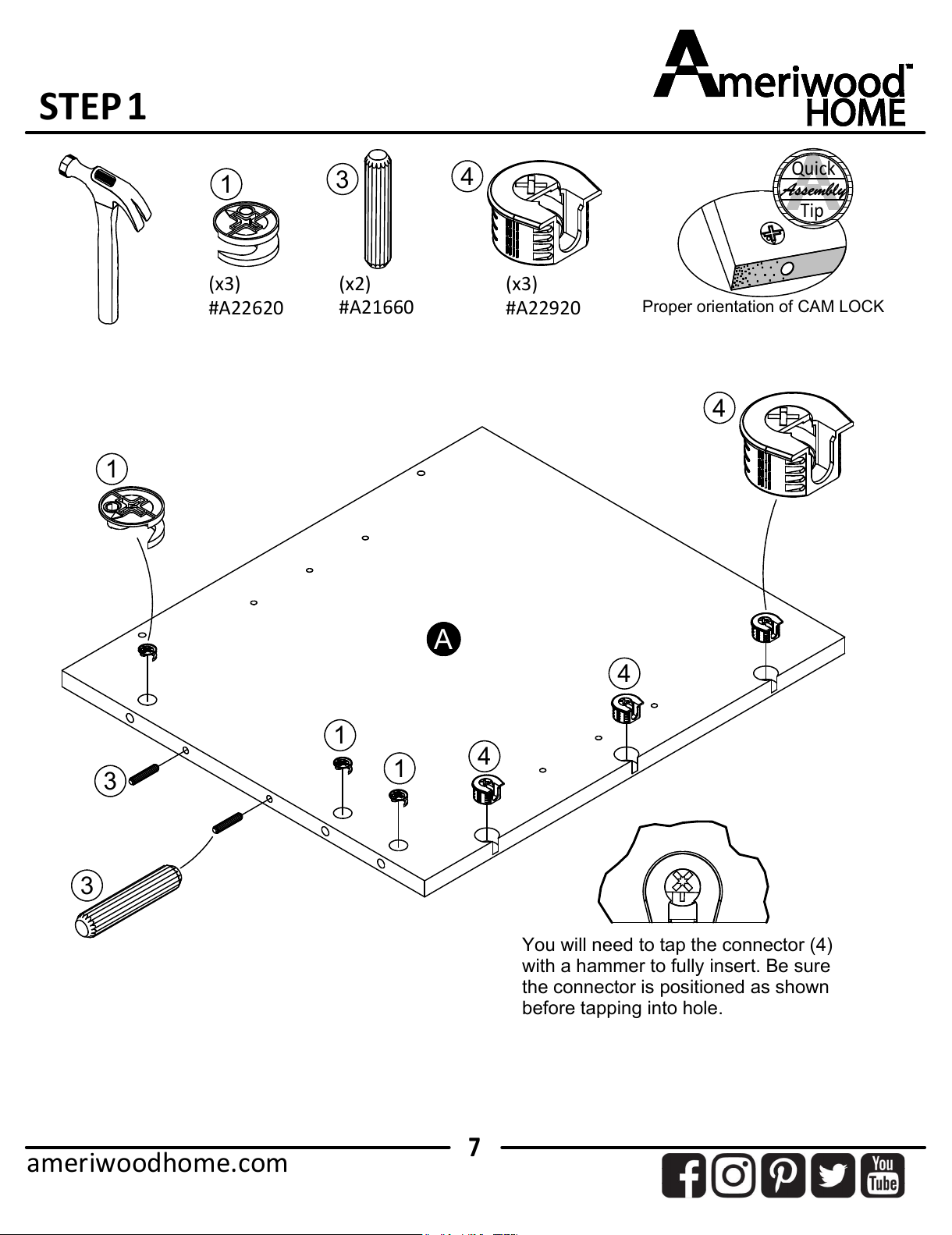

STEP1

134

(x3)

#A22620

(x2)

#A21660

(x3)

#A22920

You will need to tap the connector (4)

with a hammer to fully insert. Be sure

the connector is positioned as shown

before tapping into hole.

Proper orientation of CAM LOCK

Tip

Assembly

Quick

All manuals and user guides at all-guides.com

ameriwoodhome.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

134

(x3)

#A22620

(x2)

#A21660

(x3)

#A22920

You will need to tap the connector (4)

with a hammer to fully insert. Be sure

the connector is positioned as shown

before tapping into hole.

All manuals and user guides at all-guides.com

ameriwoodhome.com

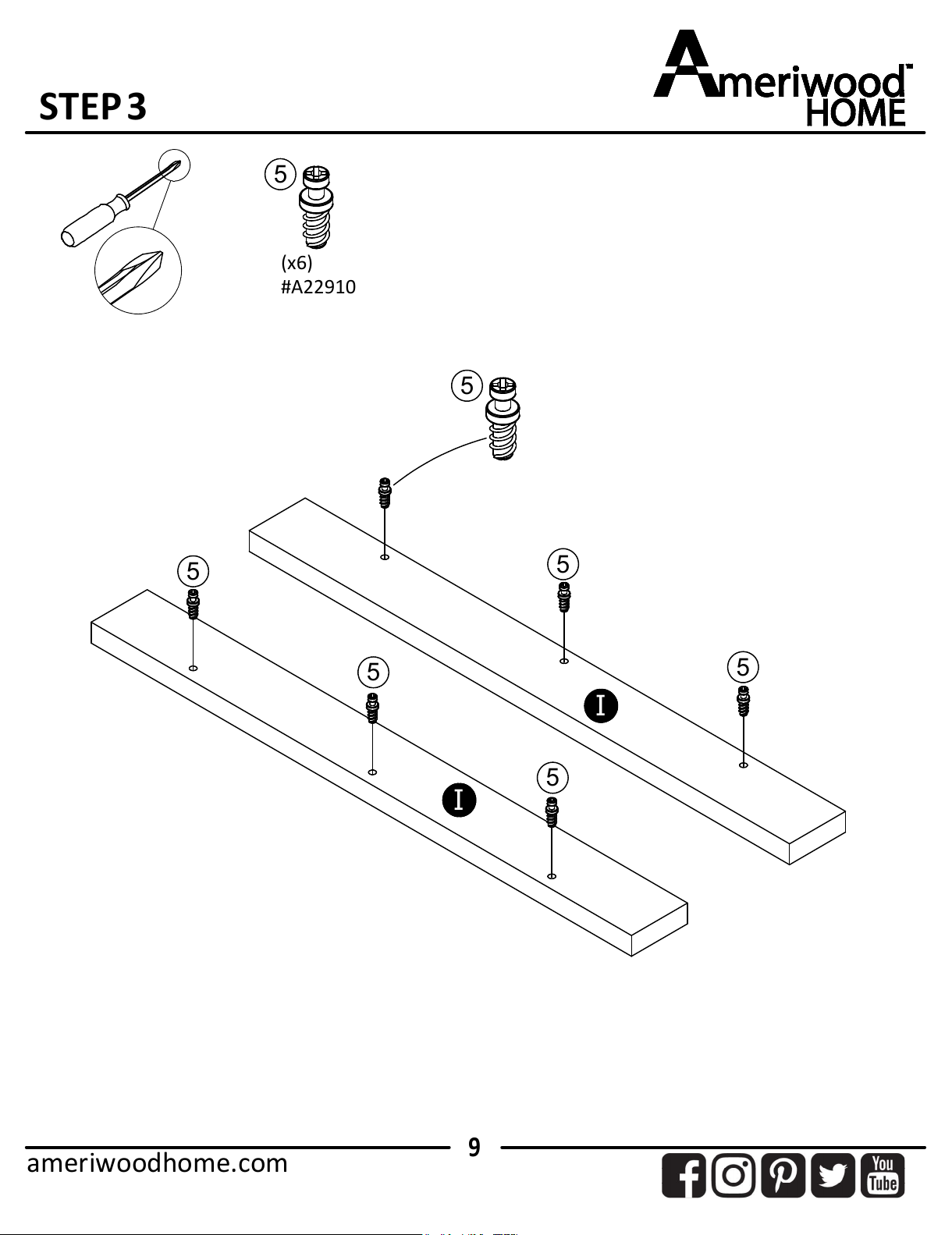

STEP3

(x6)

#A22910

All manuals and user guides at all-guides.com

ameriwoodhome.com

STEP4

end view

Turn screw clockwise

to lock in place.

All manuals and user guides at all-guides.com
