Ameriwood HOME 4566850COM Bedienungsanleitung

4566850COM

Media Dresser

B344566850COM00MP

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help rst.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Di culty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from g furniture.

WARNING: Manufacturer assumes no liability

for improper on or excessive loads

placed on screws or bracket. This wall anchor

is not a subs tute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team t for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

- Compression dowels are lightly tapped in with a hammer.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

ameriwoodhome.com

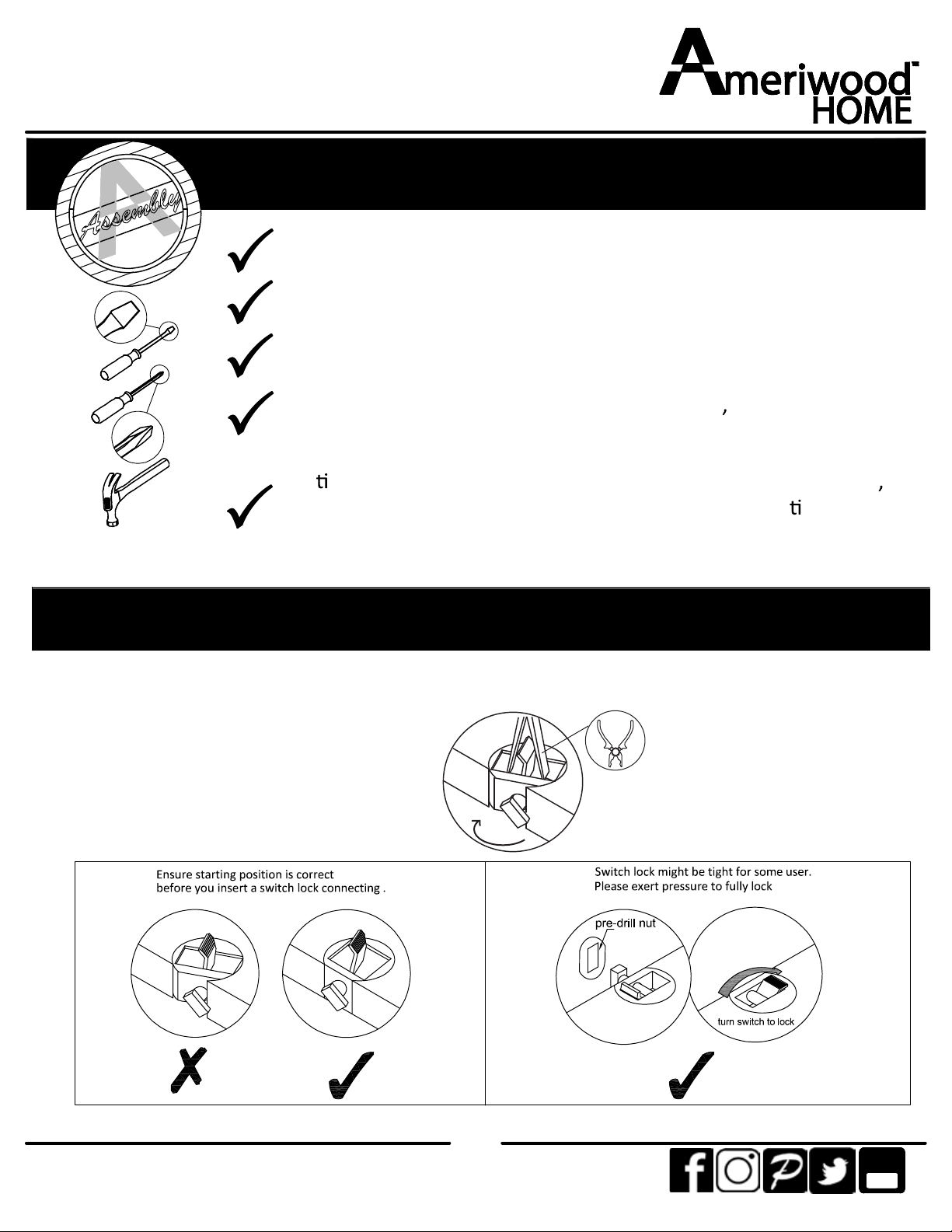

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver #2 Phillips Head

Screwdriver, Plier and Hammer.

Cau on: If using a power drill or power screwdriver for screwing

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

** If the pin position is oset, use pliers

to hold the ip switch in the upright

position and carefully turn the switchlock

to the center of the opening.

fit to 90°

adjust to

center

ameriwoodhome.com

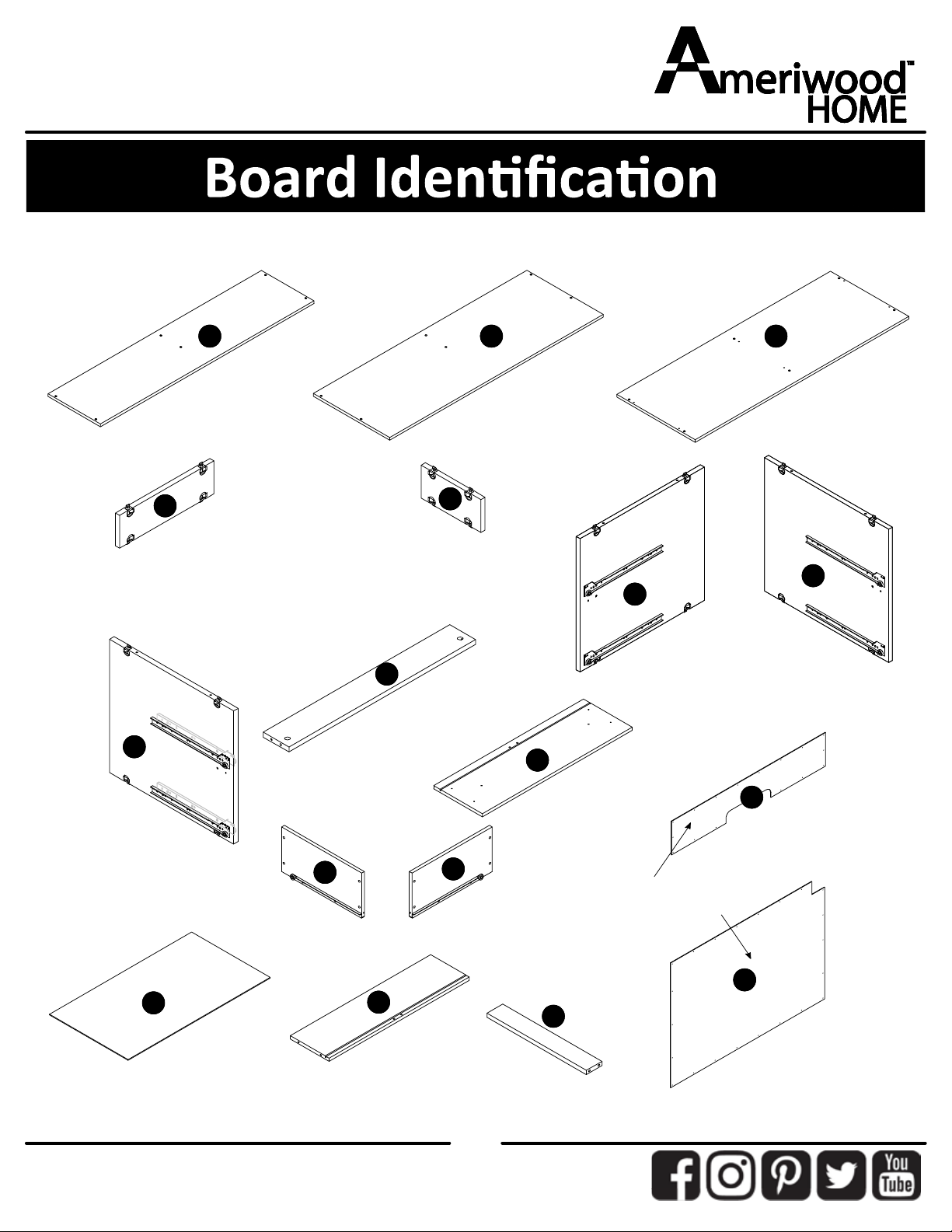

Not actual size

UPPER TOP PANEL

T4566850010MP

(x2)

UPPER LEFT / RIGHT PANEL

T4566850040MP

UPPER PARTITION

T4566850050MP

LEFT SIDE PANEL

T4566850060MP

PARTITION

T4566850080MP

(x2)

BRACE

T4566850090MP (x4)

DRAWER FRONT

T4566850100MP

(x4)

DRAWER LEFT SIDE

T4566850110MP

(x4)

DRAWER BOTTOM

T4566850130MP

(x4)

DRAWER BACK

T4566850140MP (x4)

DRAWER SUPPORT

T4566850150MP

(x2)

UPPER BACK PANEL

T4566850160MP

(x2)

BOTTOM BACK PANEL

T4566850170MP

(x4)

DRAWER RIGHT SIDE

T4566850120MP

RIGHT SIDE PANEL

T4566850070MP

TOP PANEL

T4566850020MP

BOTTOM PANEL

T4566850030MP

A B

MNO

KL

It is not made from wood, but is

required for the assembly of unit

ameriwoodhome.com

Not actual size

FRONT VIEW

BACK VIEW

DRAWER TOP

DRAWER BACK



It is not made from wood, but is

required for the assembly of unit

Not actual size

ameriwoodhome.com

Part List

Hardware Bag Reference number :

24566850

COM0MP

12b

12c 12d

10a

(x12)

TMP2531

Cam Lock Cover

(x4)

TMP5101



10b

(x8sets)

TMP40950

T Knob Handle Set

12a

(x58)

TMP4703

Nail

(x1set)

TMP84050

Safety Bracket Kit

(x4)

TMP22620



(x32)

TMP8002

Wood Dowel

(x8)

TMP54520

Drawer Bracket

6 7

(x32)

TMP12120

PWA Screw

(x16)

TMP21970

Drive Fastener

(x5)

TMP21201

Metal Leg

(x15)

TMP22108

Leg Screw

Ø4 x 11mm Ø4 x 16mm

1.6 x 20mm

Ø15 x 10mm 6 x 30mm7 x 34mm

ameriwoodhome.com

STEP 1



- Repeat this step for another Brace (I).

Arrow facing outward

(x2)

(x4)

TMP22620



(x4)

TMP8002

Wood Dowel

ameriwoodhome.com

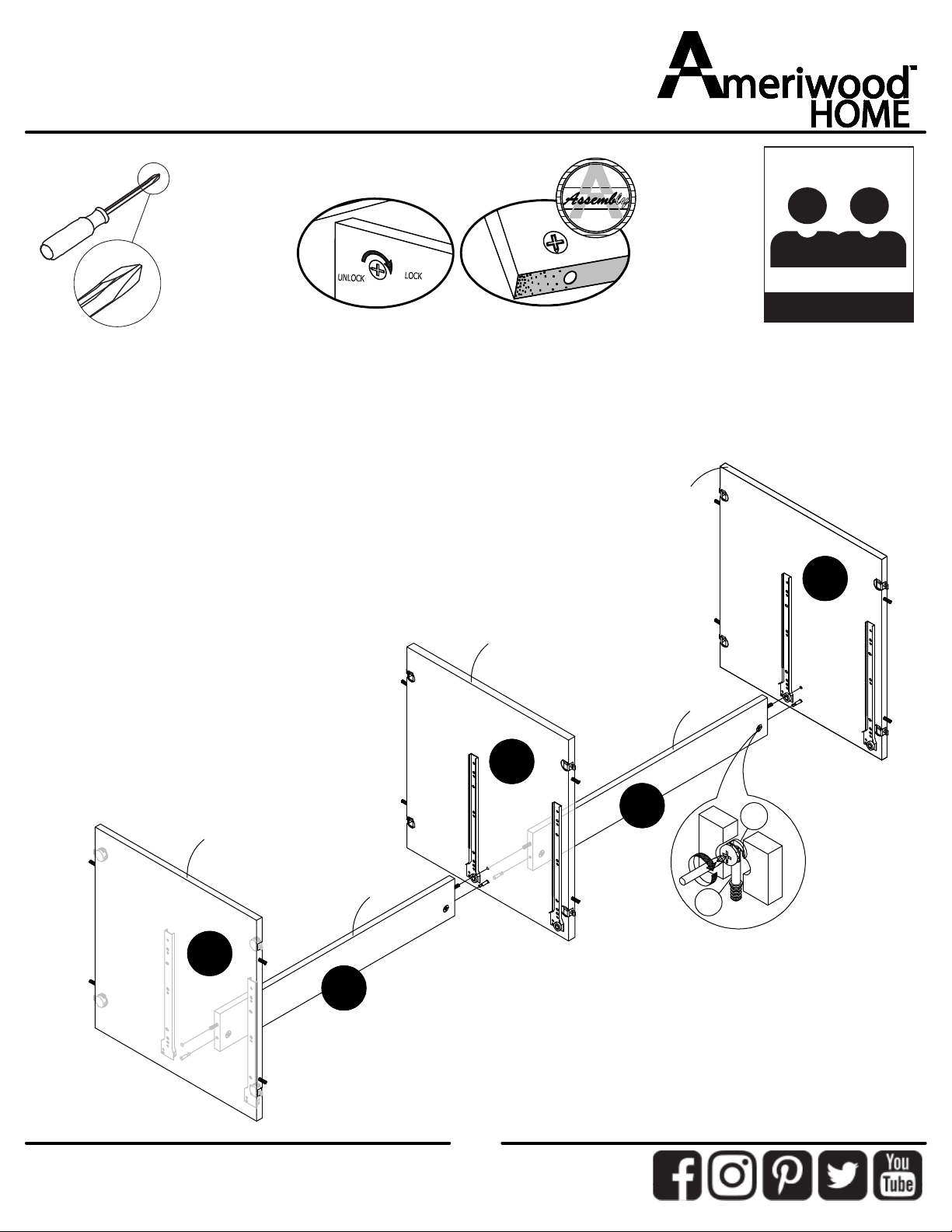

STEP2



Panel (G) as shown below.

(x2)

TMP5101



(x8)

TMP8002

Wood Dowel

ameriwoodhome.com

STEP3



shown below.

(x2)

TMP5101



(x4)

TMP8002

Wood Dowel

ameriwoodhome.com

STEP 4



as show below.



Proper Oriental of CAM LOCK



Recomm. 2 Persons

Tip

Assembly

Quick
