Ameriwood HOME 5391500COM Bedienungsanleitung

5391500COM

NIGHTSTAND

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345391500COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

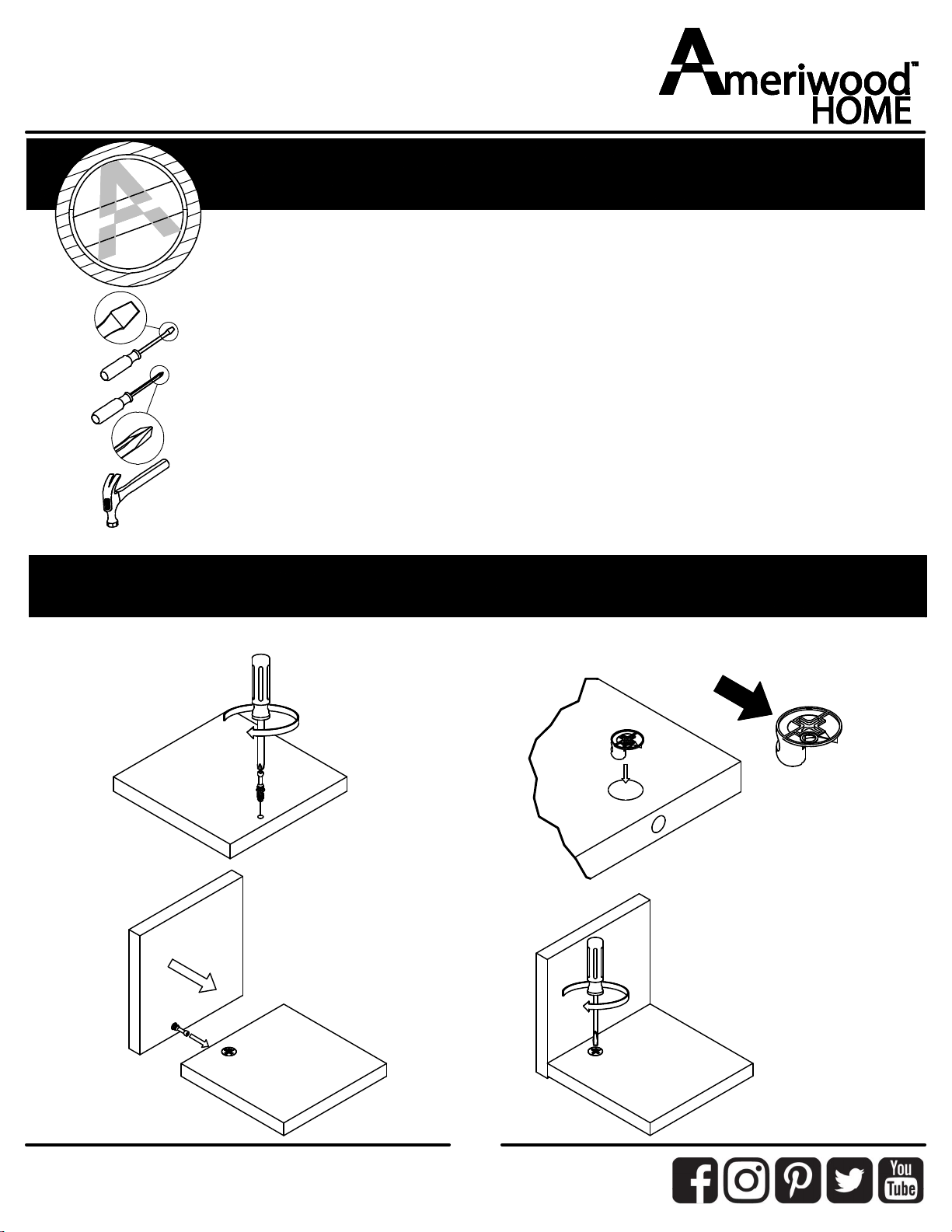

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

35391412010

Right Panel

35391412020

Top

35391412030

Bottom

35391412040

Drawer Back

39991167041140B

Drawer Front

35391412050

Drawer Bottom

35391331060

Drawer Side (2)

39991167346200C

FDWR

BACK

DWR

SIDE

ameriwoodhome.com

Board Identification

Not actual size

Back Panel

K539140710

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

DWR

BACK

DWR

SIDE

DWR

SIDE

ameriwoodhome.com

Part List

Actual Size

Not Actual Size

610

(x4)

#A22620

cam lock

(x4)

#A22610

cam bolt

(x4)

#A21660

wood dowel

(x4)

#A23030

confirmat screw

(x20)

#A21110

nail

(x2)

#A54520

Drawer Bracket

(x1)

#A56770

Drawer Slide Kit

Right Drawer Member

Left Drawer Member

Right Cabinet Member

Left Cabinet Member

(x10)

#A11080

7/16" flat head

(x8)

#A12120

7/16" pan head

(x4)

#A21970

drive fastener

(x1)

#A17400

7/8" bolt

(x12)

#A15600

euro screws

11a

11b

11c

11d

(x1)

#A51955

Knob (x4)

#A44600

Metal Leg

ameriwoodhome.com

STEP1

(x2)

#A22570

11a

(x2)

#A21660

Left Cabinet Member

(x1)

#A56770

(x3)

#A11080

11a

Marked with a "L".

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP2

(x2)

#A22620

* raw edges are shaded

(x2)

#A21660

Right Cabinet Member

(x1)

#A56770

(x3)

#A11080

Marked with a "R".

11b

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP3

(x4)

#A22610

ameriwoodhome.com

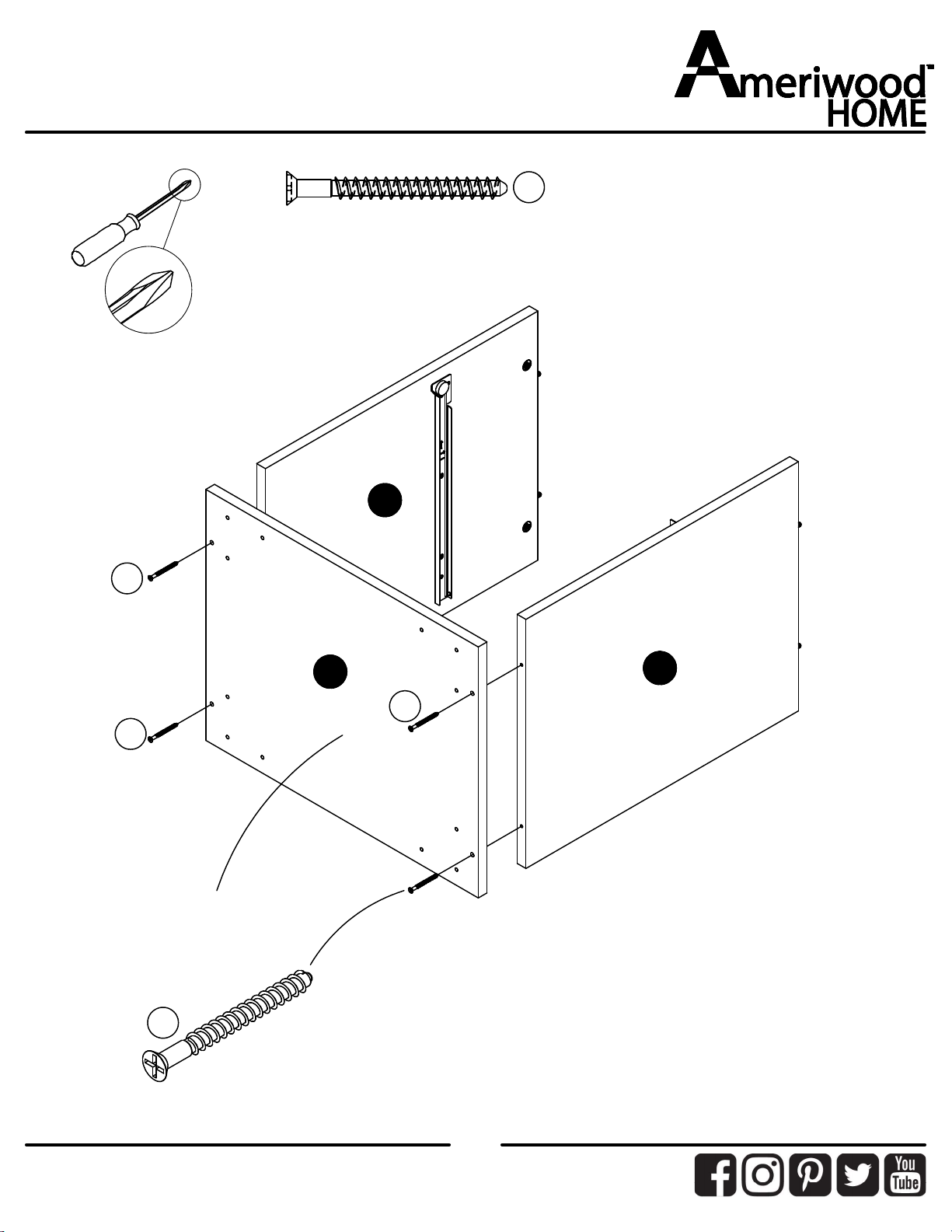

STEP4

(x4)

#A23030

unfinished surface
