DEMO MANUAL DC2585A

Rev. 0

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

VIN VIN Input Voltage Range 4.5 50.5 V

VAUX VAUX Input Voltage Range 4.5 50.5 V

VIN +VAUX Sum of Input Voltage Range 9 55 V

VOUT1 VOUT Output Voltage Range

(High Efficiency Boost Circuit)*

VIN1 + VAUX1 ≥ 15V + ROL • IOUT, JP1 = 15V

VIN1 + VAUX1 ≥ 24V + ROL • IOUT, JP1 = 24V

VIN1 + VAUX1 ≥ 42V + ROL • IOUT, JP1 = 42V

14.5

23.3

40.8

15.5

24.7

43.2

VOUT2 VOUT Output Voltage Range

(VIN Tracking Circuit)*

VAUX2 ≥ 5V + ROL • IOUT, JP4 = VIN2 + 5V

VAUX2 ≥ 10V + ROL • IOUT, JP4 = VIN2 + 10V

VAUX2 ≥ 15V + ROL • IOUT, JP4 = VIN2 + 15V

VIN2 + 4.80

VIN2 + 9.7

VIN2 + 14.55

VIN2 + 5

VIN2 + 10

VIN2 + 15

VIN2 + 5.15

VIN2 + 10.3

VIN2 + 15.45

*ROL is the effective open loop resistance and is typically about 65Ω. Refer to the Available Output Current section of the LTC3290 data sheet for more

information about this.

DESCRIPTION

LTC3290

High Voltage Boost Charge Pump

Demonstration circuit 2585A contains two circuits fea-

turing the LTC

3290. The top LTC3290 circuit operates

as a high voltage boost by using the power from two

input supplies to create a higher output voltage. The bot-

tom LTC3290 circuit operates as a VIN tracking supply by

using the power from an auxiliary supply input (V

AUX

) and

regulating a voltage above the VIN supply input. The wide

VIN/VAUX range allows two voltages to be used together

to efficiently create a third voltage, boost from a single

supply to boost, or regulate above a variable input voltage

like a battery.

The high efficiency boost circuit has three selectable out-

puts, 15V, 24V, or 42V. If a different output is desired then

the top resistor, R2, and/or the bottom resistor, R6, can

be changed to provide a different output voltage. Refer

to the LTC3290 data sheet and demo board schematic

for more information on how to set the output voltage

for the LTC3290.

All registered trademarks and trademarks are the property of their respective owners.

PERFORMANCE SUMMARY

The VIN tracking circuit also has three selectable outputs,

IN2

+ 5V, V

IN2

+ 10V, and V

IN2

+ 15V. If a different output

voltage is desired, then R9 and/or R13 can be changed

to set a different output. Refer to the LTC3290 data sheet

for more information on how to set the output voltage in

VIN tracking mode.

The LTC3290 can use two separate supplies or a single

supply connected to both inputs for either circuit. This

can be useful to boost or track a battery voltage with a

regulated output.

The LTC3290 data sheet gives a complete description of

the device, operation and application information. The data

sheet must be read in conjunction with this demomanual.

Design files for this circuit board are available.

Specifications are at TA= 25°C

DEMO MANUAL DC2585A

Rev. 0

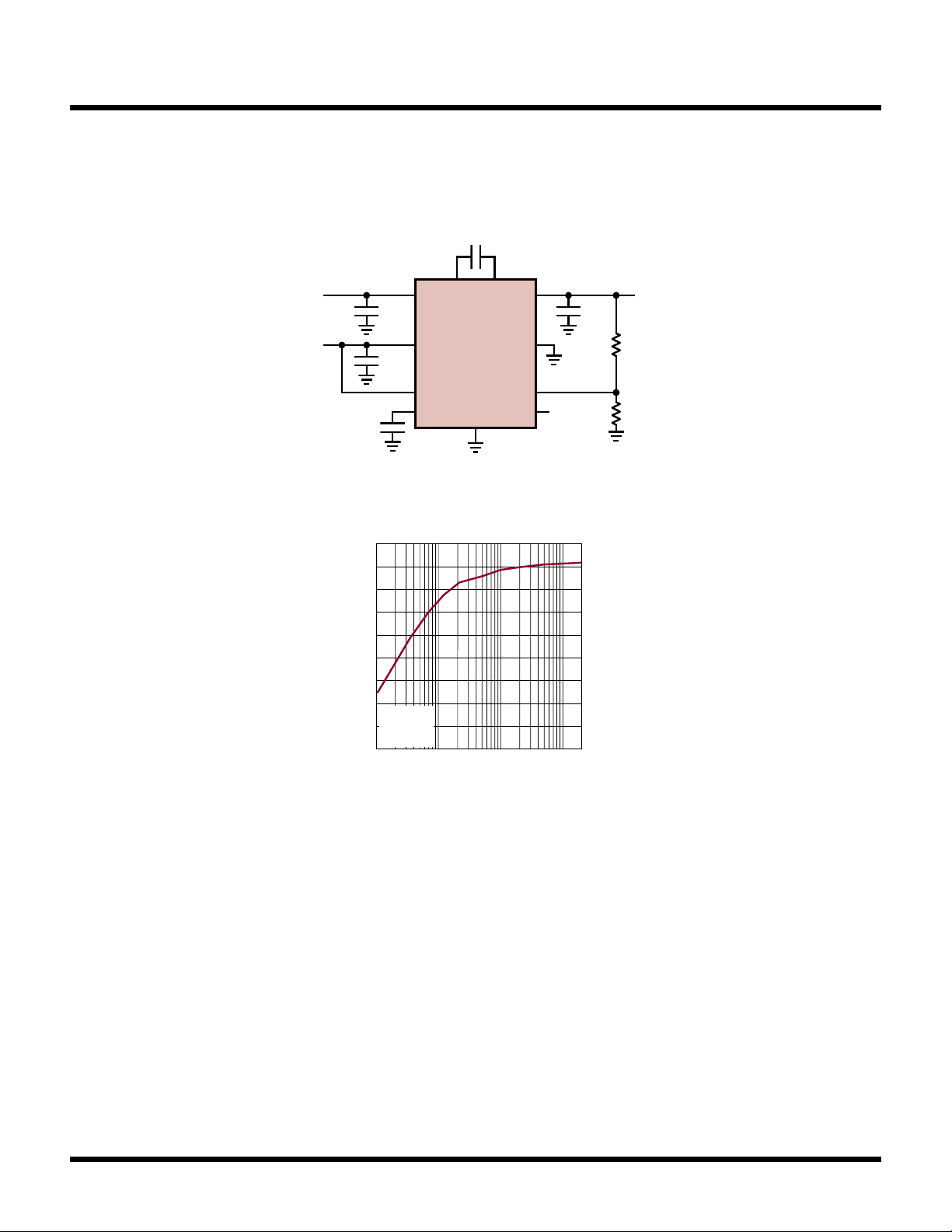

TYPICAL APPLICATIONS

15V Output from a 12V Input (with 5V Auxiliary Input)

Standard Boost Charge Pump Mode, VSET = 0V

Efficiency vs Output Current

VOUT 15V

0mA TO 20mA

1.4M

10µF

100k

VSET

1µF

GND

LTC3290

C–C+

PGOOD

dc2585a TA01a

VAUX

BIAS

12V

10µF

VIN

10µF

4.7µF

EFFICIENCY (PV

OUT

/P(V

+ V

AUX

IOUT (mA)

dc2585a TA01b

0.01 10

10.1

VIN = 12V

VAUX = 5V

VOUT = 15V

DEMO MANUAL DC2585A

Rev. 0

(VIN + 10V) Tracking Power Supply

VOUT, VIN vs Time

VOUT (VIN

+ 10V)

VIN

10µF

100k

VSET

1µF

GND

LTC3290

C–C+

PGOOD

dc2585a TA02a

VIN

VAUX

12V

BIAS

10µF

4.7µF

dc2585a TA02b

400ms/DIV

VIN

VAUX

VOUT

VAUX = 12V

VIN RAMP FROM 0V TO 40V

VOUT = VIN + 10V

IOUT = 1mA (FROM VOUT TO VIN)

ALL CHANNELS 10V/DIV

TYPICAL APPLICATIONS

DEMO MANUAL DC2585A

Rev. 0

ASSEMBLY TEST PROCEDURE

Refer to Figure1 for the proper measurement equipment

setup and jumper settings and follow the procedure below.

NOTE: When measuring the input or output voltage

ripple, care must be taken to avoid a long ground

lead on the oscilloscope probe. Measure the input

or output voltage ripple by touching the probe tip

directly across the VIN or VOUT and GND terminals.

See Figure2 for proper scope probe technique.

Figure1. Proper Measurement Equipment Setup for DC2585A

Figure2. Measuring Input or Output Ripple

QUICK START PROCEDURE

DEMO MANUAL DC2585A

Rev. 0

HIGH EFFICIENCY BOOST CIRCUIT

1. Make sure the jumper settings are as follows:

JP1: VOUT1 is on the 15V position.

JP2: EN1 is on the HI position.

2. Set PS1 and PS2 to 1V and then turn on. If AM1 and

AM2 < 10mA then set both PS1 and PS2 to 10V.

NOTE:Make sure that the sum of VIN1 and VAUX1

≤55V.

3. Set LD1 to 5mA and observe the output voltage, IIN,

IAUX and the output ripple on an oscilloscope.

4. Increase the load slowly up to 50mA and observe the

output voltage, IIN, IAUX, and the output ripple on an

oscilloscope.

5. If it is desired to observe PGOOD1, set PS3 to 3.3V as

shown in Figure1 and observe PGOOD1 with a DVM,

VM4 in Figure1.

6. If a different output voltage or input voltage is desired,

disable the LTC3290 by moving JP2 to the LO posi-

tion and then turn off LD1. Then move JP1 to the

desired VOUT1 selection or replace R2 and/or R6 to

obtain the desired output voltage. Then re-enable the

LTC3290 by returning JP2 to the HI position.

NOTE:If R2 and/or R6 are to be replaced, turn off

PS1 and PS2 to prevent damage due to soldering a

hotcircuit.

7. Adjust PS1 and PS2 to the desired voltages and turn

on and set LD1 to the desired load.

8. When done, turn off LD1, PS1, PS2 and PS3.

VIN TRACKING BOOST CIRCUIT

9. Make sure the jumper settings are as follows:

JP3: EN2 is on the HI position.

JP4: VOUT2 is on the VIN2 +5V position.

10. Set PS4 and PS5 to 1V and then turn on. If AM4 and

AM5 < 10mA then set both PS4 and PS5 to 10V.

NOTE:Make sure that the sum of VIN2 and VAUX2 ≤ 55V.

11. Set LD2 to 5mA and observe the output voltage, IIN,

IAUX, and the output ripple on an oscilloscope.

12. Increase the load slowly up to 50mA and observe the

output voltage, IIN, IAUX, and the output ripple on an

oscilloscope.

NOTE: When the LTC3290 is disabled, VOUT is high

impedance and can be 0V. If an electronic load is

placed from V

OUT2

to V

IN2

, V

OUT2

can have a negative

potential with respect to VIN2. Care must be used with

loads that are high impedance when disabled when

connecting a load between VOUT2 and VIN2.

13. If it is desired to observe PGOOD2, set PS6 to 3.3V as

shown in Figure1 and observe PGOOD2 with a DVM,

VM9 in Figure1.

14. Slowly decrease PS4 to 5V and observe the out-

put voltage, IIN, IAUX, and the output ripple on

anoscilloscope.

15. Slowly increase PS4 to 24V and observe the out-

put voltage, IIN, IAUX, and the output ripple on

anoscilloscope.

16. To observe VOUT2 with respect to VIN2, place a DVM

from VOUT2 to TP1, VIN2. A differential oscilloscope

or isolated scope probe can be used to view VOUT2

with respect to VIN2.

NOTE: Do not short TP1 to GND.

17. If a different output voltage or input voltage is desired,

disable the LTC3290 by moving JP3 to the LO posi-

tion and then turn off LD2. Then move JP4 to the

desired VOUT selection or replace R9 and/or R13.

Then re-enable the LTC3290 by returning JP2 to the

HI position.

NOTE: If R9 and/or R13 are to be replaced, turn off

PS4 and PS5 to prevent damage due to soldering a

hot circuit.

18. Adjust PS4 and PS5 to the desired voltages and turn

on and set LD2 to the desired load.

19. When done, turn off LD2, PS4, PS5 and PS6.

QUICK START PROCEDURE

DEMO MANUAL DC2585A

Rev. 0

BOOST CHARGE PUMP WITH VOUT REGULATION

The LTC3290 can be set up as a high voltage boost charge

pump by utilizing two supply inputs to boost to a higher

regulated voltage. To operate in this mode the VSET pin

is tied to GND and VOUT is set by a voltage divider from

VOUT to GND. The output is regulated to a 1V reference

compared to the voltage sensed on the FB pin.

The VOUT output voltage is given by:

VOUT =1V • R2

R1 +1

⎛

⎝

⎜

⎞

⎠

⎟

VIN TRACKING MODE BOOST CHARGE PUMP

The LTC3290 can also be set to regulate a fixed voltage

above an input voltage. With this circuit a resistor on the

FB pin is used to set up a current using a 1V reference. A

second resistor is connected between the VOUT and VSET

pins to set a voltage above the VIN supply.

The VOUT voltage in this configuration is given by:

VOUT =VIN +1V • R2

⎛

⎝

⎜⎞

⎠

⎟

AVAILABLE OUTPUT CURRENT

The available output current can be limited by the effective

open-loop resistance (ROL). The ROL is affected by the

oscillator frequency, value of the flying cap, nonoverlap

time, internal switch resistance, and ESR of the external

capacitors. The typical ROL is 65Ω and can increase with

temperature.

The available output current is given by:

IOUT =VIN +VAUX

( )

– VOUT

Figure3. Boost Charge Pump with VOUT Regulation

Figure4. Boost Charge Pump with VIN Tracking

Figure5. Typical ROL vs Temperature

VOUT VOUT

VAUX

CAUX

VSET

CF LY

GND

LTC3290

C–C+

PGOOD

dc2585a F03

VAUX

BIAS

VIN

CIN

VIN

COUT

CBIAS

VOUT VOUT

VIN

CIN

VSET

CF LY

GND

LTC3290

C–C+

PGOOD

dc2585a F04

VIN

VAUX

BIAS

COUT

CAUX

CBIAS

TEMPERATURE (°C)

–100

EFFECTIVE ROL (Ω)

100

00 100–50 50 150

dc2585a F04

200

VIN = 12V

VAUX = 5V

QUICK START PROCEDURE

DEMO MANUAL DC2585A

Rev. 0

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 6 C1, C3, C5, C11, C13, C17 CAP., 1μF, X7R, 100V, 10%, 1206 AVX, 12061C105KAT2A

2 2 C4, C15 CAP., 10μF, X7S, 100V, 10%, 1210 MURATA, GRM32EC72A106KE05L

3 2 C6, C14 CAP., 4.7μF, X5R, 6.3V, 20%, 0402 MURATA, GRM155R60J475ME87D

4 1 R2 RES., 698k, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402698KFKED

5 1 R5 RES., 10MΩ, 5%, 1/16W, 0402 VISHAY, CRCW040210M0JNED

6 1 R6 RES., 49.9k, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW040249K9FKED

7 1 R9 RES., 499k, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402499KFKED

8 1 R13 RES., 100k, 1%, 1/10W, 0402, AEC-Q200 PANASONIC, ERJ2RKF1003X

9 2 U1, U2 IC, HIGH VOLTAGE BOOST CHARGE PUMP ANALOG DEVICES, LTC3290EMSE#PBF

Additional Demo Board Circuit Components

1 4 C2, C7, C10, C12 CAP., 10μF, X7S, 100V, 10%, 1210 MURATA, GRM32EC72A106KE05L

2 2 R1, R8 RES., 100k, 5%, 1/16W, 0402 YAGEO, RC0402JR-07100KL

3 1 R3 RES., 1.15MΩ, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M15FKED

4 1 R4 RES., 2.05MΩ, 1%, 1/16W, 0402 VISHAY, CRCW04022M05FKED

5 2 R7, R14 RES., 510k, 5%, 1/16W, 0402 VISHAY, CRCW0402510KJNED

6 1 R10 RES., 1MΩ, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M00FKED

7 1 R11 RES., 1.5MΩ, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M50FKED

8 1 R12 RES., 10MΩ, 5%, 1/16W, 0402 VISHAY, CRCW040210M0JNED

Hardware

1 12 E1-E4, E7, E10, E12-E15, E18, E21 TEST POINT, TURRET, 0.094" MTG. HOLE,

PCB0.062" THK

MILL-MAX, 2501-2-00-80-00-00-07-0

2 10 E5, E6, E8, E9, E11, E16, E17, E19,

E20, E22

TEST POINT, TURRET, 0.064" MTG. HOLE,

PCB0.062" THK

MILL-MAX, 2308-2-00-80-00-00-07-0

3 2 JP1, JP4 CONN., HDR., MALE, 2×3, 2mm, VERT,

STR,THT

WURTH ELEKTRONIK, 62000621121

4 2 JP2, JP3 CONN., HDR, MALE, 1×3, 2mm, VERT, STR, THT WURTH ELEKTRONIK, 62000311121

5 4 MP1-MP4 STANDOFF, NYLON, SNAP-ON, 0.25" (6.4mm) KEYSTONE, 8831

6 4 XJP1, XJP2, XJP4, XJP5 CONN., SHUNT, FEMALE, 2 POS, 2mm WURTH ELEKTRONIK, 60800213421

PARTS LIST

DEMO MANUAL DC2585A

Rev. 0

SCHEMATIC DIAGRAM

D D

C C

B B

A A

REVISION HISTORY

ECO REV DESCRIPTION APPROVED DATE

-3 PRODUCTION MM 7-24-19

PCA ADDITIONAL PARTS

VAUX1

EN1

GND1

EN1

HI LO

VIN1 + VAUX1 < 55V

GND1

VIN1

VOUT1 *

3.6V MAX

PGOOD1

15V

24V

42V

VOUT1 *

HIGH EFFICIENCY BOOST

GND1

PGOOD1

PULL-UP

OPT

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC3290

HIGH VOLTAGE BOOST CHARGE PUMP

DC2585A

710-DC2585A_REV03

N/A 07-24-19DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC3290

HIGH VOLTAGE BOOST CHARGE PUMP

DC2585A

710-DC2585A_REV03

N/A 07-24-19DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC3290

HIGH VOLTAGE BOOST CHARGE PUMP

DC2585A

710-DC2585A_REV03

N/A 07-24-19

E10

LB1 LABEL

698k

STNCL1 TOOL, STENCIL, DC2585A REV03

4.5V - 55V

MP3 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

10M

JP1

5 6

1uF

1206

0 - 50mA

OPT

100k

510k

49.9k

MP1 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

10uF

1uF

1206

10uF

1210

1.15M

MP4 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

E11

4.5V - 55V

10uF

1210 JP2

MP2 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

LTC3290-MSE

VIN

5VOUT 10

FB 8

BIAS 6

C-

VAUX

C+

PGOOD

VSET 9

GND

1uF

1206

4.7uF

PCB1 PCB, DC2585A REV03

2.05M

DEMO MANUAL DC2585A

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

SCHEMATIC DIAGRAM

D D

C C

B B

A A

REVISION HISTORY

ECO REV DESCRIPTION APPROVED DATE

-3PRODUCTION MM 7-25-19

VAUX2

EN2

GND2

EN2

HI LO

VIN2 + VAUX2 < 55V

GND2

VIN2

VOUT2 *

3.6V MAX

PGOOD2

VIN2 + 5V

VIN2 + 10V

VIN2 + 15V

VIN TRACKING BOOST

VOUT2 *

PGOOD2

PULL-UP

VIN2 **

GND2

** DO NOT SHORT TO GND

USE DIFFERENTIAL OR

ISOLATED SCOPE PROBE

OPT

GND2

VIN2

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC3290

HIGH VOLTAGE BOOST CHARGE PUMP

DC2585A

710-DC2585A_REV03

N/A 07-24-19DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC3290

HIGH VOLTAGE BOOST CHARGE PUMP

DC2585A

710-DC2585A_REV03

N/A 07-24-19DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC3290

HIGH VOLTAGE BOOST CHARGE PUMP

DC2585A

710-DC2585A_REV03

N/A 07-24-19

E17

C18

OPT

R14

510k

R10

JP4

5 6

E14

TP1

E21

JP3

R13

100k

LTC3290-MSE

VIN

5VOUT 10

FB 8

BIAS 6

C-

VAUX

C+

PGOOD

VSET 9

GND

R12

10M

499k

E16

E22

C17

1uF

1206

C14

4.7uF

C13

1uF

1206

R11

1.5M

E12

0 - 50mA

C16

E18

4.5V - 55V

C11

1uF

1206

E15

C15

10uF 1210

E13

4.5V - 55V

100k

E20

C12

10uF

1210

C10

10uF

1210

E19

DEMO MANUAL DC2585A

Rev. 0

 ANALOG DEVICES, INC. 2019

11/19

www.analog.com

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal Terms and Conditions

By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and

conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation

Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”)

and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to

Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and

agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted

is expressly made subject to the following additional limitations:Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board;and (ii) permit any Third

Party to access the Evaluation Board. As used herein, the term “Third Party”includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is

NOT sold to Customer;all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all

be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of

use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile

or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited

to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS

Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF

LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS”AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY

DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS

LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD, INCLUDING

BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF ONE

HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United States

federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of Massachusetts

(excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits

to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

Dieses Handbuch passt für folgende Modelle

Andere Analog Devices Hauptplatine Handbücher

Analog Devices

Analog Devices ADuCM350 Bedienungsanleitung

Analog Devices

Analog Devices DC2958A Kurzanleitung zur Einrichtung

Analog Devices

Analog Devices ADP5055-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices ADZS-BF707-BLIP2 Bedienungsanleitung

Analog Devices

Analog Devices UG-425 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-AD5313RDBZ Bedienungsanleitung

Analog Devices

Analog Devices ADSP-TS101S EZ-KIT Lite Bedienungsanleitung

Analog Devices

Analog Devices ADSP-BF518F EZ-Board Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADN469xEFDEBZ Bedienungsanleitung

Analog Devices

Analog Devices AD8222-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices DC2515B Kurzanleitung zur Einrichtung

Analog Devices

Analog Devices EVAL-ADGS1408SDZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADF4350EB2Z Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADXRS290Z-M Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADM2582EEMIZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADuM5028EBZ Bedienungsanleitung

Analog Devices

Analog Devices UG-189 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADGS1208SDZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADuM3070EBZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADAU1701MINIZ Bedienungsanleitung

Analog Devices

Analog Devices ADL5580-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices AD9142A-M5372-EBZ Bedienungsanleitung

Analog Devices

Analog Devices AD9272 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-AD4115SDZ Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
