1 Introduction to the APPH

Your APPH kit contains the following items:

APPH mainframe

Universal power adaptor (AC 100 –240V)

Ethernet Cable

APPH software CD

It is strongly recommended to use the original power adaptor (as supplied with the device) to

guarantee save and reliable operation of the APPH.

1.1 General Features and Functions

The different APPH models offer different measurement capabilities as shown in the table below:

Model

APPH6000-IS400

APPH6040

APPH20G

RF frequency

5 MHz to 400

5 MHz to 7 GHz

5 MHz to 26 GHz

Offset range

0.1 Hz to 1 MHz

0.1 Hz to 50 MHz

Absolute Phase Noise Mode

Additive Phase Noise Mode

Amplitude Noise Mode

FFT Analyzer Mode

Transient Measurement Mode

Features of all models include

Long-term support: software upgrades (firmware and PC based) are available to download

from www.anapico.com. You can also call our technical specialists for support. You can

continue to use both of these services free of charge for the lifetime of the product.

Universal LAN and USB 2.0 interface

24 months calibration cycle

1.2 Options

The following options are available for the APPH signal analyzer:

GPIB GPIB interface added

SUPPLY Dual programmable low noise supply

LN Ultra Low close to carrier phase noise internal references

Anapico AG Europastr. 9 CH-8152 Glattbrugg Switzerland Tel: +41 44 515 5501 www..anapico.com

1.3 Front Panel Overview

Depending on the APPH product configuration, the front panel can contain up to five female SMA

connectors and two female BNC connectors. A green LED indicates the power on/off status of the

instrument.

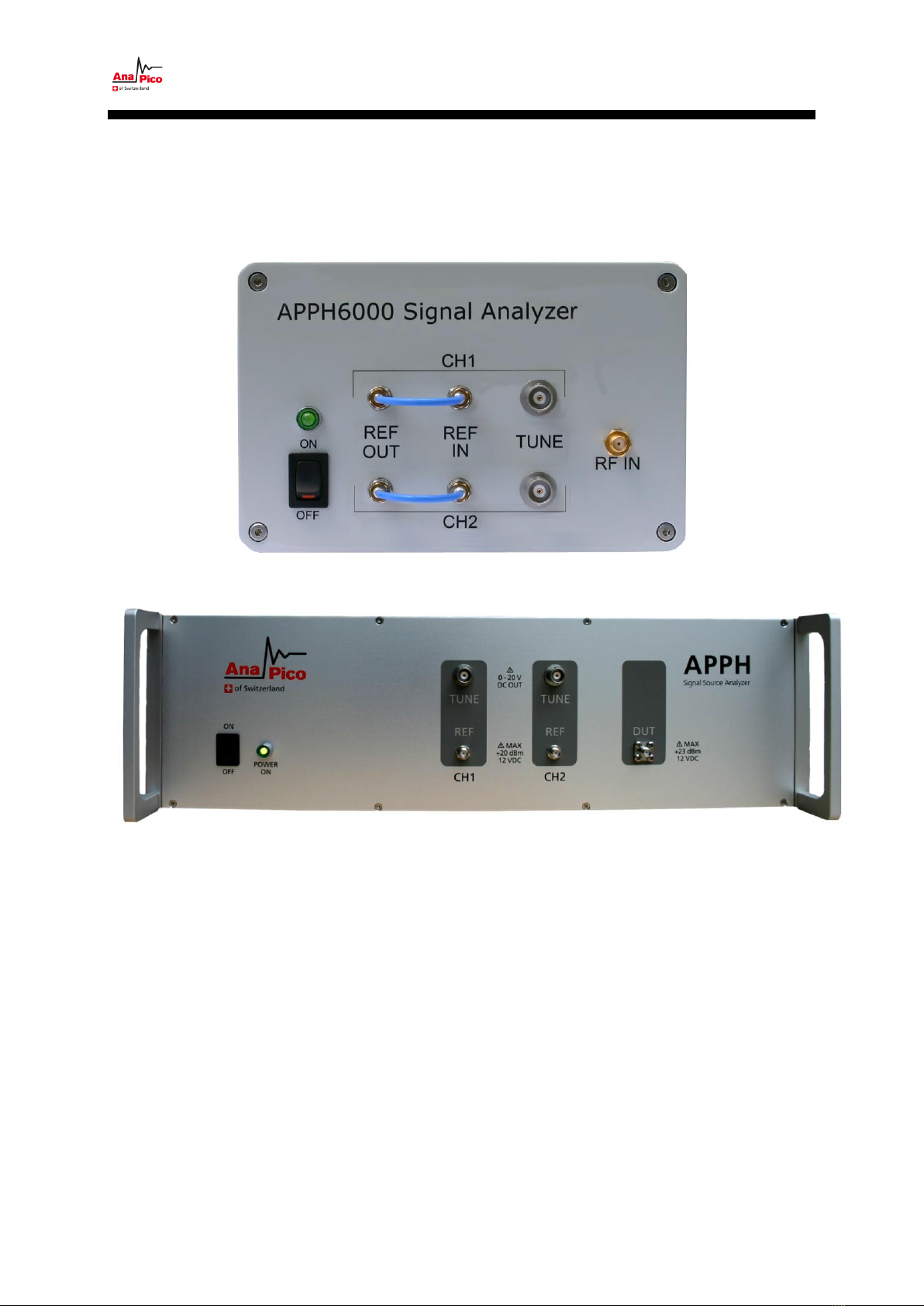

Figure 1 Front Panel Views of APPH6000-IS400 and APPH20G

DUT/RF IN connector This female SMA connector is the DUT signal input. The input is AC-coupled

and the impedance is 50 ohm. The damage level is +26 dBm maximum. The maximum allowed DC

level is +/- 10 V.

Channel 1 and 2:

REF IN connector This female SMA connector is the reference LO input. The impedance is

50 ohm. The damage level is +20 dBm. The maximum allowed DC level is +/- 10 V.

REF OUT connector (APPH6000 ONLY) This female SMA connector is the reference LO

output. The impedance is 50 ohm. In standard operation with internal references the REF

OUT is connected by a short semi-rigid cable to the REF IN.

Anapico AG Europastr. 9 CH-8152 Glattbrugg Switzerland Tel: +41 44 515 5501 www..anapico.com

TUNE connector This female BNC connector is the DC tune voltage output if a tuneable DUT

or tuneable external reference is used.

Power switch The power switch disconnects the instrument from the DC input completely.

Caution:

Do not apply a DC voltage or current to the individual ports of the DC Control, DC Power and

RF Port. Applying a DC voltage or current may lead to the breakdown of this product. In

particular, there is the risk of the capacitor remaining charged. Connect the measurement

sample (DUT) to the port (or the test fixture, cables, etc. connected to the port) after

discharging DUT's electricity enough.

Anapico AG Europastr. 9 CH-8152 Glattbrugg Switzerland Tel: +41 44 515 5501 www..anapico.com

1.4 Rear Panel Connections

In Figure 2 the rear panels is shown for different APPH models.

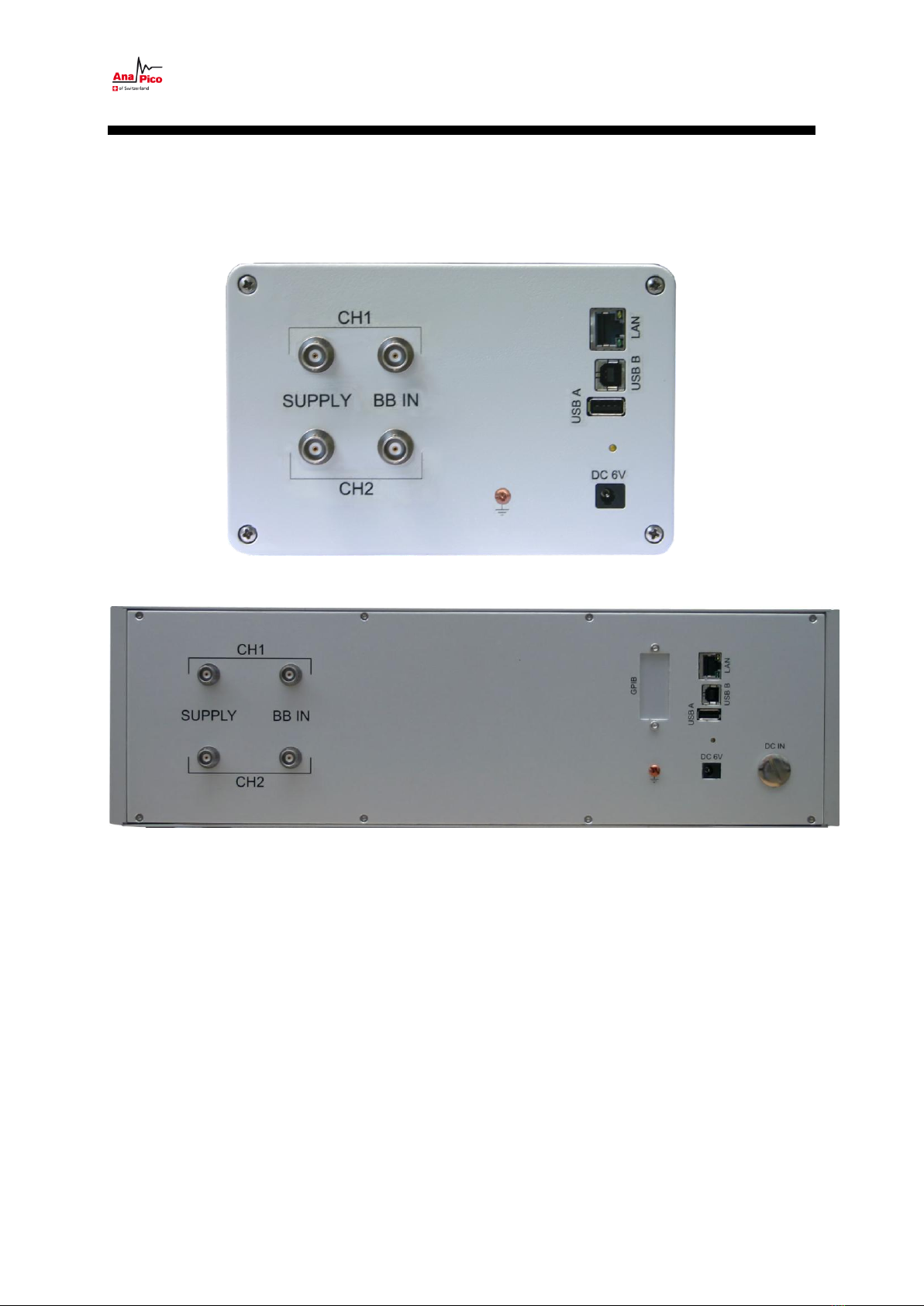

Figure 2 Rear Panel Views of APPH6000-IS400 and APPH20G

Channel 1 and 2:

SUPPLY connector This female BNC connector is the programmable low-noise DC supply

voltage output. APPH6000: Output voltage range is 0 V to +5 V, maximum available current is

80 mA. APPH6040/20G: Output voltage range is 0 V to +15 V, maximum available current is

500 mA.

BASEBAND IN connector This female BNC connector is the baseband signal input. To make

baseband noise measurement mode useful for power supply noise measurement, this port is

well protected for DC voltage application. The maximum allowed DC level is +/- 15 V.

Anapico AG Europastr. 9 CH-8152 Glattbrugg Switzerland Tel: +41 44 515 5501 www..anapico.com

LAN connector (8 Pin) This RJ-45 Host connector is used for connecting via Ethernet with a

controller, such as a PC or Laptop. 10Base-T/100Base-T Ethernet (automatic data rate

selection).

USB B connector Used for connecting with a controller such as a PC or Laptop.

Communication is via USBTMC protocol. Through this port, you can control the APPH from

external controllers. For more information on the measurement system using the USB port,

see the programmer’s manual.

USB A connector Used for connecting USB devices such as Memory sticks.

DC IN power receptacle The power receptacle accepts a two-pin plug from the external 6 or

24 V DC power adapter.

GPIB (optional) connector The connection of an external controller through General Purpose

Interface Bus (GPIB) connector allows you to configure an automatic measurement system.

This GPIB connector is used only for controlling the APPH-IS from an external controller. You

cannot control other devices from the APPH through this GPIB connector.

Serial Number Plate The seal showing the serial number of the product.

Anapico AG Europastr. 9 CH-8152 Glattbrugg Switzerland Tel: +41 44 515 5501 www..anapico.com

2 Getting Started

2.1 System Requirements

To ensure that your APPH signal analyzer operates correctly with the remote control interface

software, you must have a computer with at least the minimum system requirements to run one of the

supported operating systems.

Operating system Windows™ (2000 SP4, XP SP2, 7, 8)

Minimum 1024 MB RAM

Ethernet Port 10/100/1000M LAN or USB 2.0 Port

2.2 Unpacking the APPH

Remove the APPH materials from the shipping containers. Save the containers for future use.

2.3 Initial Inspection

Inspect the shipping container(s) for damage. If container is damaged, retain it until contents of the

shipment have been verified against the packing list and instruments have been inspected for

mechanical and electrical operation.

2.4 Starting the APPH

The following sections describe installation instructions and APPH verification tests.

2.4.1 Applying Power

1. Place the APPH on the intended workbench and connect the appropriate DC power supply to

the receptacle on the rear of the unit. Make sure you use the included DC power supply. The

APPH requires 6 V DC at 6 A maximum. Using other supplies may lead to malfunction

and damage of the APPH.

2. Press the Line on/off switch on the front panel. The green front panel LED will illuminate. The

instrument will initialize and boot within about 45 seconds and be ready for operation.

2.4.2 Connecting to LAN via DHCP Router

Connect the APPH to your local area network (LAN) using the provided Ethernet cable. The

instrument is configured to accept its dynamic IP number from the DHCP server of your network. If

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere AnaPico Messgerät Handbücher

AnaPico

AnaPico APPH40G Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
