ANT+ XPEDO THRUST E XRF12 Bedienungsanleitung

XPEDO THRUST E USER MANUAL V1

XPEDO

THRUST E

XRF12

User’s Manual

This product is ANT+ certified and complies with the bicycle power ANT+

Device Profile. For a complete listing ofANT+ Certified Products and their

specific interoperability, please visit www.thisisant.com

TABLE OF CONTENTS

PACKAGE CONTENTS................................................................................................................................ 4

THRUST E ANATOMY ............................................................................................................................... 5

INSTALLATION OVERVIEW.................................................................................................................... 6

PAIRING (ANT+)......................................................................................................................................... 7

PAIRING (BLE)............................................................................................................................................ 8

LED LIGHTS.................................................................................................................................................. 9

INSTALLING THE PEDALS....................................................................................................................... 9

INSTALLING THE CLEATS ....................................................................................................................... 9

CALIBRATION ...........................................................................................................................................10

RIDE .............................................................................................................................................................10

MAINTENANCE AND CARE....................................................................................................................11

TROUBLESHOOTING ..............................................................................................................................11

FIRMWARE UPDATE...............................................................................................................................12

SPECIFICATIONS ......................................................................................................................................12

ATTENTION!

Before beginning a power-based training program, be sure to consult your physician.

If you use a pacemaker or implanted electronic device, please consult your physician before

using.

When using the THRUST E pedals for the first time, please be sureto practice engaging and

disengaging in a safe and secure environment.

Please read "Battery Information" carefully before using THRUST E rechargeable batteries.

Carefully read the manual and follow instructions to prevent accidents and possible injury.

Warranty Info

XPEDO THRUST E is warrantied to be free from defects in materials or workmanship for one year

from the date of purchase. Within this period, XPEDO will, at its discretion, repair or replace any

components that fail in normal use. Repairs or replacement will be made at no charge to the

customer for parts or labor. Customer shall be responsible for any necessary shipping costs to

warranty center. This warranty does not apply to: (i) cosmetic damage, such asscratches and nicks;

(ii) damage caused by improper installation by an unauthorized dealer; (iii) damagecaused by a crash,

accident, abuse, misuse, fire, or other external causes; (iv) damage caused by service performed by

anyone who is not an authorized XPEDO dealer; or (v) damage to a product that has been modified

or altered without the written permission of XPEDO. Additionally, XPEDO reserves the right to

refusewarranty claims against products or services that it deems fraudulent.

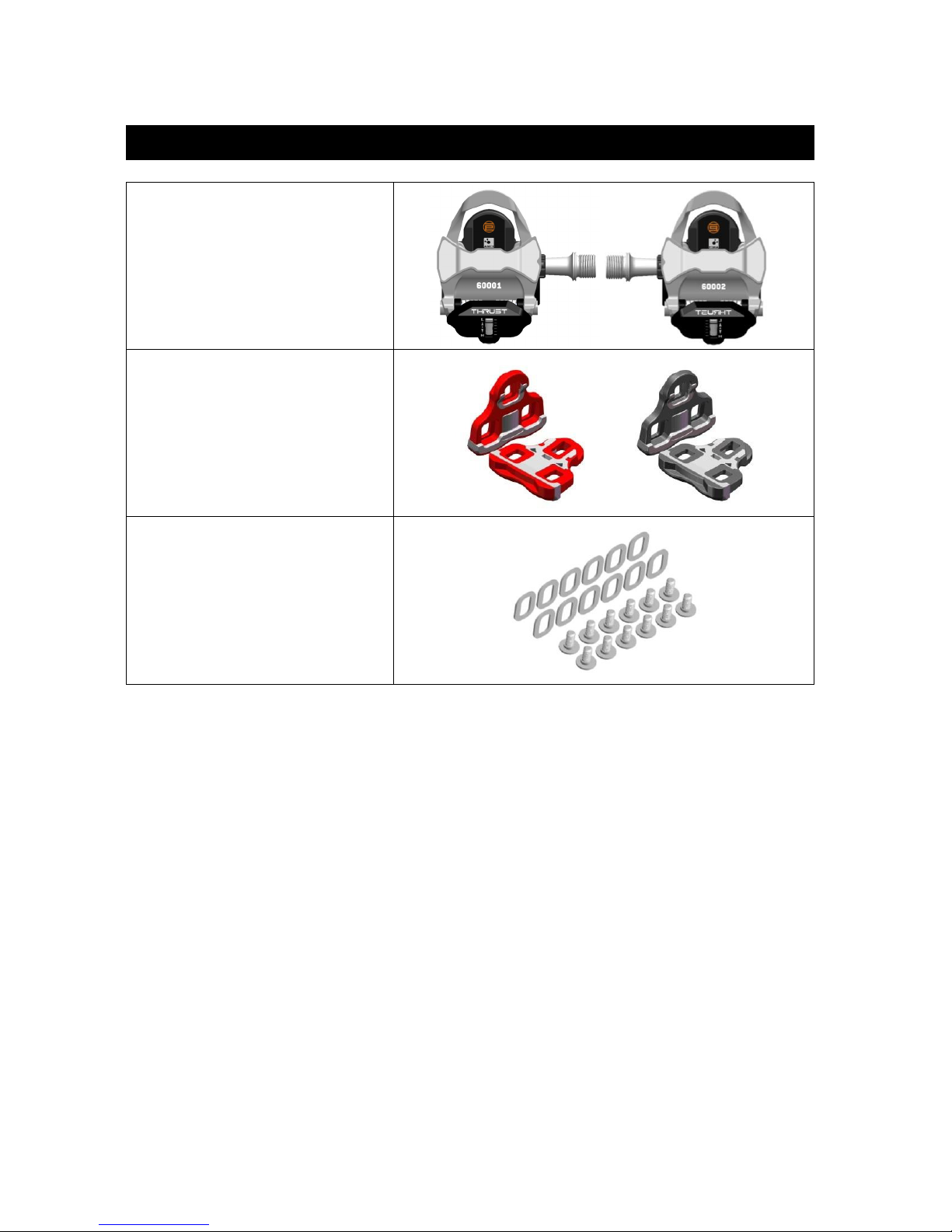

PACKAGE CONTENTS

THRUST E Pedals

Right pedal (1)

Left pedal (1)

Cleats

THRUST 7 6° (red)(2)

THRUST 7 Fixed (black)(2)

Cleat Hardware

11mm cleat bolts (6)

13mm cleat bolts (6)

Cleat washer (12)

THRUST E ANATOMY

ANT+ LED

Identification

Light

Stress Gauge

Device ID number

Tension Indicator

Calibration Button

Battery -Negative

Battery –Positive

Transmitter

Tension Screw

INSTALLATION OVERVIEW

1. Pre Installation ( make sure the battery power is higher than 1.2V )

2. Pair THRUST E with a ANT+or BLE4.0 compatible console.

3. Install THRUST E pedals on your bike

4. Install cleats to the shoes

5. Ride

Tools Needed:

1. 8mm allen wrench for pedal installation and battery cap placement

2. 4mm allen wrench for cleat installation

3. 3mm allen wrench for tension adjustment

4. Grease

3mm 4mm 8mm Grease

PAIRING

Ant+ pairing steps:

We recommend pairing the THRUST E prior to mounting them on the bicycle.

Before pairing the THRUST E to a console, make sure you are at least 10 meters

(30 feet) from any other ANT+™ device. This will avoid any accidental pairing to

another ANT+device.

Steps:

Notice: 1. Insert battery into the THRUST E right pedal first and finished pairing steps,

then left pedal and pairing steps.

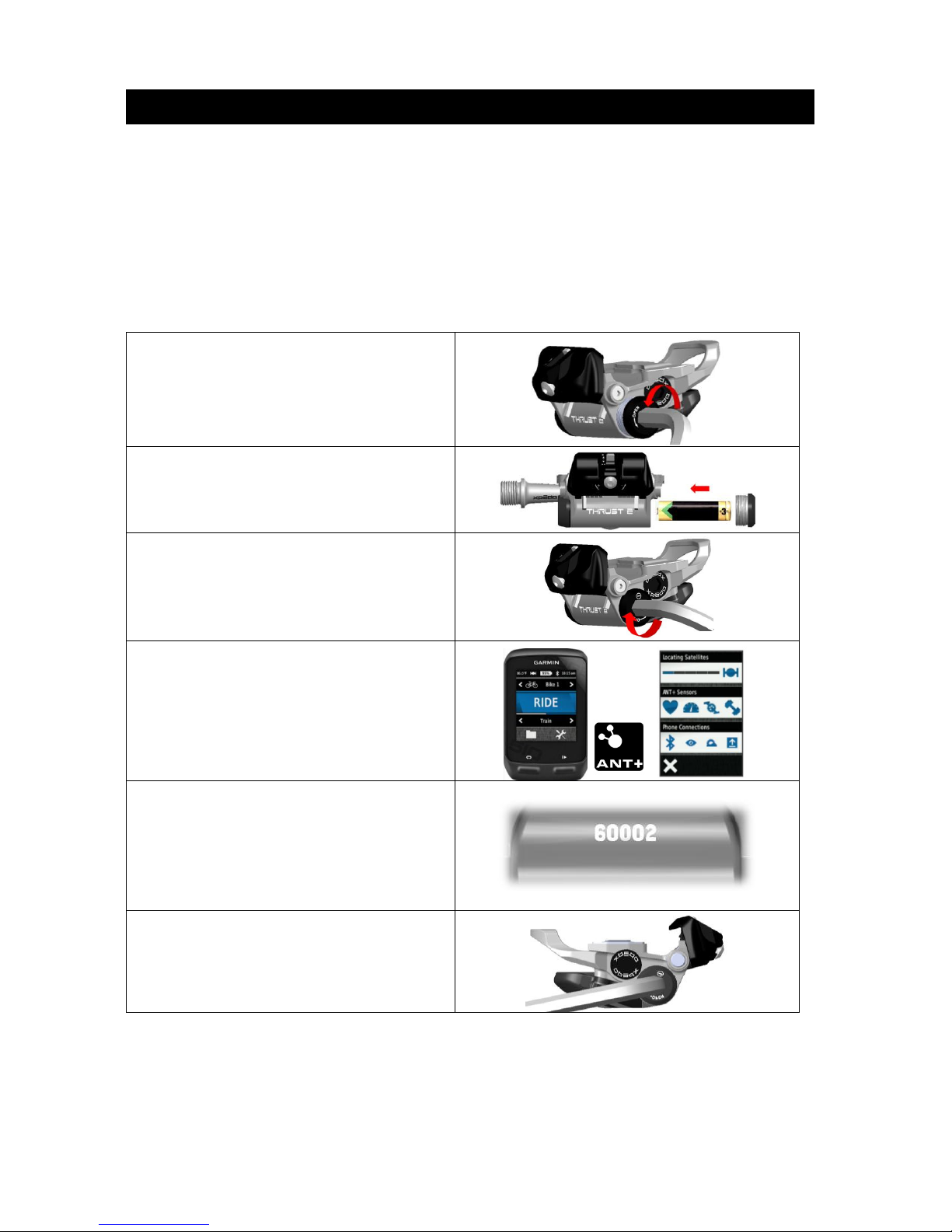

1) Remove the battery cap on the

right pedal with 8mm allen

wrench.

2) Insert battery into the

THRUST E right pedal with the

+ side first.

3) Tighten the battery cap with

8mm allen wrench (Torque: 2-

3Nm).

4) Turn on ANT+ compatible

console and refer to the

console’s manual to add a

Power device.

5) Verify the pairing is complete

by making sure the device ID

number on the console

matches with the number on

the THRUST E right pedal.

6) Repeat the step 1 to 3 to insert

battery into THRUST E left

pedal.

PAIRING

BLE pairing steps:

We recommend pairing the THRUST E prior to mounting them on the bicycle, before connecting

the THRUST E and your compatible console, make sure your console has BLE 4.0 functionality

and your compatible console could receive power information; THRUST E only could pairing

single console at the same time.

Notice: 1. The left / right side pedals can be insert battery at the same time.

2. Select the device number of either foot pedal to pairing your BLE console.

1) Remove the battery cap on the

right pedal with 8mm allen

wrench.

2) Insert battery into the

THRUST E right pedal with the

+ side first.

3) Tighten the battery cap with

8mm allen wrench (Torque: 2-

3Nm).

4) Turn on BLE compatible

console and refer to the

console’s manual to add a

Power device for your own

THRUST E device number.

5) Verify the pairing is complete

by making sure the device ID

number on the console

matches with the number on

the THRUST E right pedal.

6) Repeat the step 1 to 3 to insert

battery into THRUST E left

pedal.

LED LIGHTS

If have no riding within 3 seconds, the LED lights will turn off and THRUST E will into

sleep mode. Pedal few circles to wake the THRUST E up.

Disconnected (ANT and BLE) Flashes per 5 seconds

Connected (ANT or BLE) Flashes per 10 seconds

Above flashes will turn off if THRUST E has been stationary for 4 minutes or after

riding 1 minute.

INSTALLING THE PEDALS

1) Apply a thin layer of grease on the spindle threads. Install the right pedal to

the right crank and left pedal to the left crank. The right pedal will have a “R”

on the underside of the pedal body and the left pedal will have a “L” on the

underside of the pedal body. If the crank arms are recessed, make sure to

use 1mm pedal washers.

2) Tighten the pedals using a 8mm wrench (Recommended torque 35Nm or 25

ft-lbs).

Note: The left pedal spindle is a reverse thread (counter clockwise to tighten)

INSTALLING THE CLEATS

1) Apply a thin layer of grease on the bolt threads.

2) Place cleat on shoe with the washers and bolts.

3) Position the cleat in desired location and tighten the bolts using a 4mm allen

wrench (Recommended torque 5Nm or 45 in-lbs).

Note: Red cleat is 6° float and black cleat is fixed (no float)

CALIBRATION

The timing for performing the calibration

First time use THRUST E

Shoes, cleat, battery has been changed.

Adjust tension screw.

Assemble THRUST E to another bike.

Pedal damaged by impact

1) Make sure your bike is stable on the ground if with kickstand.

2) Assemble pedal to the correct crank thread.

3) Adjust the tension screw to your own suitable clip/release power, make sure clip/release

function is workable.

4) Make sure left and right pedal has inserted battery with correct battery polarity.

5) Turn on your compatible console.

6) Adjust derailleur to middle/light gear; take the 11-speed derailleur as an example.

Crankset 39T with freewheel 14T or 15T

Crankset 36T with freewheel 14T or 15T

Crankset 34T with freewheel 14T or 15T

7) From low cadence step up to 75 ~ 85RPM and keep pedaling more than 30 seconds, please

do not pulling up on the pedal.

Notice : 1. Performing the calibration when you insert battery,

2. Adjust the tension screw to your own suitable clip/release power before calibration

3. Data will be incorrect if calibration failed, please take out batteries of left and right

pedal then inserts batteries and performing the calibration again. If calibration still

failed, please refer the Troubleshooting at page 11.

RIDE

Clip into pedals and start

pedaling. Console will display the

power (watts), cadence and left-

right % balance. Different

consoles will display the data

differently on the screen. Please

refer to the console user manual

to properly display this data.
