Apera Instruments PH60 Bedienungsanleitung

PH60 Series Premium pH Testers

Instruction Manual

PH60 pH Tester

PH60S Spear pH Tester

PH60F Flat pH Tester

APERA INSTRUMENTS, LLC

www.aperainst.com

Thank you for purchasing the Apera Instruments PH60 Series Premium pH Tester. Please

read this manual thoroughly before use in order to properly use the instrument and have a

reliable testing experience. Apera Instruments reserves the rights to update the information

of this manual without giving prior notices.

For video tutorials, please go to support.aperainst.com

Table of Contents

Battery Installation

......................................................................................................................2

Keypad Functions

.......................................................................................................................2

Complete Kit............................................................................................................................3

Preparation Before Use

..............................................................................................................3

pH Calibration

............................................................................................................................4

pHMeasurement

........................................................................................................................5

Parameter Setting

......................................................................................................................6

ORP Measurement

.....................................................................................................................8

Technical Specifications

..............................................................................................................8

10.

Other Specifications

.................................................................................................................8

11.

Probe Replacement

.................................................................................................................9

12.

Warranty..............................................................................................................................10

1. Battery Installation

Please install batteries according to the following steps. *Please note direction of batteries:

All POSITIVE SIDES (“+”) FACING UP. (Wrong installation of batteries will cause

damage to the tester and potential hazards)

2. Keypad Functions

Short press: < 2 seconds

Long press: > 2 seconds

1. Short press to turn on the tester and long press

to turn off the tester.

2.When turned off, long press to enter parameter

setting.

3.In measurement mode, short press to turn on

backlight.

1. In measurement mode, short press to switch

parameter pH→ORP

2. In mode setting, short press to change

parameter (Unidirectional).

1. Long press to enter calibration mode;

2.In calibration mode, short press to confirm

calibration;

3.When measured value is locked, short press

to unlock.

﹣﹣

﹣

① Pull the battery cap up

②

Slide the battery cap along to the direction of arrow

③

Open the battery cap

④

Insert the batteries (ALL POSITIVE SIDES FACING UP) (see graph)

⑤

Close the battery cap

⑥

Slide and lock the battery cap along to the direction of arrow

⑦ Fit the tester’s cap while making sure to push all the way down. The tester’s

waterproof design may be compromised if the cap is not fitted correctly.

Complete Kit

4. Preparation Before Use

4.1 PH60 and PH60F: If it is first-time use or the tester hasn’t been used for over 30 days, pour

certain amount (about a quarter of the probe cap) of 3M KCL solution in the probe cap, and soak

the probe for about 3 to 15 minutes. The black fill line on the cap does NOT indicate how much the

KCL soaking solution should be poured in. The volume of KCL solution for soaking the probe

should be less than that. The black fill line indicates the minimum volume for sample testing in the

probe cap. Users can store the KCL solution in the probe cap when the tester is not in use to keep

the sensor’s accuracy.

To achieve maximum accuracy, we recommend soaking the probe for one night (12 hours) to

activate the glass membrane thoroughly.

4.2 PH60S: Do not keep thespear probein a dry condition. Thespear probe should always bestored

in the soaking solution. If the soaking solution was contaminated, please replace with new ones

timely.

4.3 The soaking solution is 3M KCL. One bottle of 10mL soaking solution comes with the tester kit.

Users can make this solution by themselves. Preparation: Dissolve 25g KCl in 100ml of purewater.

5. pH Calibration

5.1 Rinse the probe in pure water and dry it.

5.2 Pour certain amount (about half volume of calibration bottles) of pH7.00 pH and pH 4.00 buffer

solutions in separate calibration bottles.

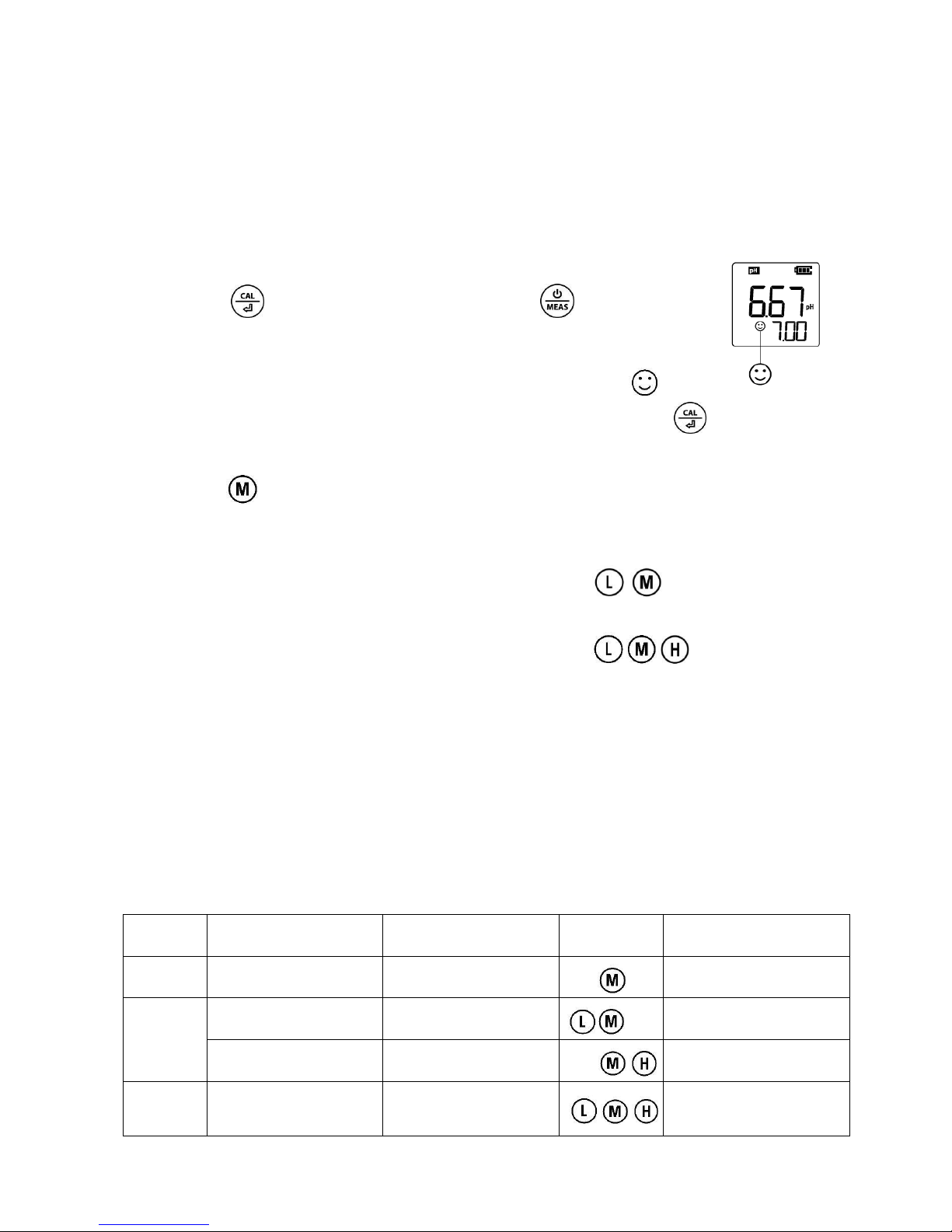

5.3 Long press to enter calibration mode; Short press to exit.

5.4 Dip the probe in pH 7.00 buffer solution, stir gently, and allow it to stand still

in the buffer solution until a stable reading is reached. When stable icon

comes up and stays on the LCD screen (as shown in Diagram 2), short press

to complete 1-point calibration and the tester will return to measurement mode.

Indication Icon will appear on the bottom left of the LCD screen.

5.5 Rinse the probe in pure water and dry it. Dip the probe into pH 4.00 buffer solution, follow the

steps in 5.1~5.4 to complete 2-point calibration. Indication icons will appear on the

bottom left of the LCD screen. If necessary, dip the probe into pH 10.01 buffer solution, follow the

steps in 5.1~5.4,to complete 3-point calibration. Indication icon will appear on the

bottom left of the LCD screen.

5.6 Notes

a) Tester can perform 1~3 points automatic calibration. *Please note that pH 7.00 or pH 6.86

buffer solution must be used to conduct 1st point calibration. Then use other buffer solution to

conduct 2nd or 3rd point calibration. Tester will recognize 5 kinds of pH buffer solutions. For

details, please refer to the following chart:

Calibration

USA Series

NIST Series

Indication icon

Recommended

1-point

7.00 pH

6.86 pH

Accuracy ≥ 0.1 pH

2-point

7.00 pH,

4.00 pH or 1.68 pH

6.86 pH,

4.01 pH or 1.68 pH

Range < 7.00 pH

7.00 pH,

10.01 pH or 12.45 pH

6.86 pH,

9.18 pH or 12.45 pH

Range <7.00 pH

3-point

7.00 pH, 4.00 or 1.68

pH,

10.01 or 12.45 pH

6.86 pH, 4.01 or 1.68

pH, 9.18 pH or 12.45 pH

Range: 0 to 14.00 pH

b) pH 4.00 and pH 7.00 buffer solutions are included in the test kit, but pH 10.01 is not. Users

can purchase it separately if needed. The buffer solutions poured into the calibration bottles

are NOT for one-time use. They can be used for about ten to fifteen times as long as they are

not contaminated and the bottles are covered when not in use. After that, we recommend

replacing the buffer solutions in the calibration bottles with new ones that are in the buffer

bottles (50ml ones) to keep the accuracy of the standard buffer solutions.

*Do not pour used buffer solutions back into the buffer bottles in case of contamination.

c) The tester has self-diagnostic functions:

Icons

Self-diagnostic information

Checking and methods to fix

Wrong pH buffer solution or the range of

calibration solution exceeds standard.

a) Check whether pH buffer solution is correct

(1st point calibration must be 7.00).

b) Check whether the probe is damaged.

c) Start the calibration from pH 7.00, then pH

4.00 or 10.01

Press key when measuring value is not

stable during measurement.

Press key after icon appears and

stays for 2 to 3seconds.

6. pH Measurement

6.1 Short press to turn on the tester. Rinse the probe in pure water and dry it. Dip the probe in

sample solution, stir gently, and allow it to stand until a stable reading isreached.

Get readings after comes up and stays for about 2 to 3seconds.

6.2 Special notes

a) Applications of each model:

Model/Probe

Application

PH60/Bulb probe

Most common liquid measurement such as

hydroponics, aquaculture, pools and spas,

water treatment, cooling towers, etc.

PH60S/Spear probe

Cheese, sushi rice, meat, fruit, bread, soil, solid culture medium

and semi-solid medium measurement; Most common liquid

measurement.

PH60F/Flat probe

Flat surface measurement such as skin, paper, fabric, leather and so on;

micro sample testing; Most common liquid measurement.

b) PH60S Spear probe testers are widely used for solids containing water or semi-solid medium.

When conducting such tests, pay attention to insert probe evenly, and be careful to prevent

probe from damage. If the medium is too hard (such as meat or fruits), please bore a small hole

with a knife before inserting the probe.

c) PH60F Flat probe testers are mostly for flat surface sample test.

■For skin test: skin should be without sweat or dirt, nor be overly cleaned (do not use facewash

products before testing) to avoid affecting measurement results, dampen skin with some distilled

water, slightly force flat probe onto the skin, get readings after valuestabilized.

■For paper, fabric and leather test: add 1~2 drops of distilled water on surface, then perform

measurements.

■For meat and fruit test: use a clean knife to cut the sample open, then perform measurements.

■For micro sample testing, use a container with an inner diameter<=19mm and a flat bottom. The

tester can test volume >=0.5ml.

6.3 The probe must be cleaned thoroughly after each use. If used to test meat, soapy water

should be used to clean the grease.

6.4 Special notes:

1) For pH measurement of any cooked food (such as sushi, cheese, etc.), it should be a

sampling test. That means test samples will no longer be edible.

2) The instruments will NOT give accurate and stable pH readings when testing distilled or

deionized water. This because distilled and deionized water do not have enough ions present for

the electrode to function properly. To measure distilled or deionized water’s pH, users need to use

a specialized electrode.

3) Do not store probe in distilled water or deionized water because they will cause damage to the

glass membrane of the pH probe. The probe should be stored in 3M KCL solution for best

accuracy or stored without any liquid.

7. Parameter Setting

7.1 Setup Menu

Symbol

Contents

Parameter

Factory Default

Select pH buffer solution

USA –NIST

USA

Low value measurement alarm setting

0 ~ 14.00pH

High value measurement alarm setting

0 ~ 14.00pH

14.00

Select automatic lock

Off –On

Off

Select backlight

Off - 1 - On

Select temperature unit

℃ - ℉

℃

Restore to factory default

No –Yes

7.2 Parameter setup method

When turned off, long press to enter parameter setting→Short press toswitch P1-P2-

…P7→Short parameter flashing→Short press to chooseparameter→Short press

to confirm→Long press to switchoff.

7.3 Parameter setting instruction

a) Select standard pH buffer solution (P1):

There are two options of standard buffer solutions: USA series and NIST series. Factory default is

USA series, for details see clause 4.7.

b) Heads-Up Function (P2 and P3)

For example, the following

■Alarm when measured value ≥ 3.20 pH:

Preset lowest value (P2) = 3.20 pH, highest value (P3) = 14.00 pH, when measured value ≥ 3.20

pH (stable displays on LCD); LCD displays red backlight.

■Alarm when measured value ≤ 8.60 pH:

Preset highest value (P3) = 8.60 pH, lowest value (P2) = 0.00 pH, when measured value ≤ 8.60 pH

(stable displays on LCD); LCD displays red backlight.

■Alarm when measured value in range of 6.50 pH and 7.20 pH:

Preset lowest value (P2) = 6.50 pH, highest value (P3) = 7.20 pH, when measured value in range

of 6.50 pH and 7.20 pH (stable displays on LCD); LCD displays red backlightalarm.

c) Automatic lock (P4)

Select “On” to activate auto lock function. When reading is stable for more than 10 seconds, the

tester will lock the value automatically, and HOLD icon will display on LCD. Press key to

cancel reading hold.

d) Backlight (P5)

“Off”-turn off backlight, “On”-always turn on backlight, “1”- backlight will last for 1 minute.

e) Factory default setting (P7)

Select “Yes” to recover instrument calibration to the theoretical value (pH value in zero potential is

7.00pH, slope is 100%), parameter setting return to initial value. This function can be used when

instrument does not work properly in calibration or measurement. Calibrate and measure again

after recovering the instrument to factory default status.

8. ORP Measurement

Refer to Clause 11 to replace OPR probe (to be purchased separately), press key to enter

ORP mode. Rinse the probe in pure water and dry it. Dip the probe in sample solution, stir gently,

and allow it to stand still until a stable reading is reached. Get readings after comes up and

stays.

9. Technical Specifications

Measuring Range

-2.00 ~ 16.00pH

Resolution

0.01pH

Accuracy

±0.01pH

Calibration Points

1 ~ 3 points

Automatic temperature compensation

0 ~ 50℃

ORP

(mV)

Measuring Range

± 1000mV

Resolution

1mV

Accuracy

±0.2% F.S

Temp.

Measuring Range

0 ~ 50℃

Resolution

0.1℃

Accuracy

±0.5℃

10. Other Specifications

LCD

Clear LCD screen, 180°Viewing angle

Blue: Measurement; Green: Calibration; Red: Heads-Up Mode

Reading Lock

HOLD

Low-Voltage Warning

Flashing, reminder of battery replacement

Auto. Power-Off

In 8 minutes without operation

Water Proof Rating

IP67, floats on water

Power

DC3V, AAA batteries×4

Battery Life

Continuous operation＞2000 hours

Dimension/Weight

Tester: 40×40×178mm/133g; Case: 255×210×50mm/700g;

11. Probe Replacement

11.1 Twist off the probe ring, unplug the probe, plug in new probe (pay attention to probe’s

position), and twist on the probe ring.

11.2 The model numbers of replacement probes that are compatible with the tester are:

PH60-E (Regular pH glass bulb probe)

PH60S-E (Spear pH probe for solids/semi-solids pH testing)

PH60F-E (Flat pH probe for surface pH testing)

ORP60-E (ORP probe)

Andere Handbücher für PH60

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Apera Instruments Messgerät Handbücher

Apera Instruments

Apera Instruments WS100 Bedienungsanleitung

Apera Instruments

Apera Instruments SX610 Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 551 Bedienungsanleitung

Apera Instruments

Apera Instruments DO8500 Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 861 Bedienungsanleitung

Apera Instruments

Apera Instruments TN400 Bedienungsanleitung

Apera Instruments

Apera Instruments DO803 Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 801 Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 751 Bedienungsanleitung

Apera Instruments

Apera Instruments DO850 Bedienungsanleitung

Apera Instruments

Apera Instruments PC60 Bedienungsanleitung

Apera Instruments

Apera Instruments PH910 Bedienungsanleitung

Apera Instruments

Apera Instruments MP511 Bedienungsanleitung

Apera Instruments

Apera Instruments SX725 Bedienungsanleitung

Apera Instruments

Apera Instruments 9500 Premium Series Bedienungsanleitung

Apera Instruments

Apera Instruments Premium Series Bedienungsanleitung

Apera Instruments

Apera Instruments TN500 Bedienungsanleitung

Apera Instruments

Apera Instruments GroStar AI101G Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 851-H Bedienungsanleitung

Apera Instruments

Apera Instruments SX751 Bedienungsanleitung

Apera Instruments

Apera Instruments SX716 Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 243-6 Bedienungsanleitung

Apera Instruments

Apera Instruments EC700 Bedienungsanleitung

Apera Instruments

Apera Instruments LabSen 821 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
