iBoard® by APS PART#: IB-R159/R258

READ INSTRUCTIONS CAREFULLY BEFORE START ING

INSTALLATION. REMOVE CONTENTS FROM BOX AND

VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS

RECOMMENDED.

*ROCKER PANEL MOUNT

*NO DRILLING REQUIRED

Fastener Size Tightening Torque (ft-lbs) Required

6mm 6-7 √

8mm 16-18 √

10mm 31-32 X

12mm 56-58 X

14mm 92-94 X

Driver Passenger

Front

1# 1#

NOTE: All Mounting Brackets are universal.

iBoard

Customer Support: info@iboardauto.com

Rev. 20220601

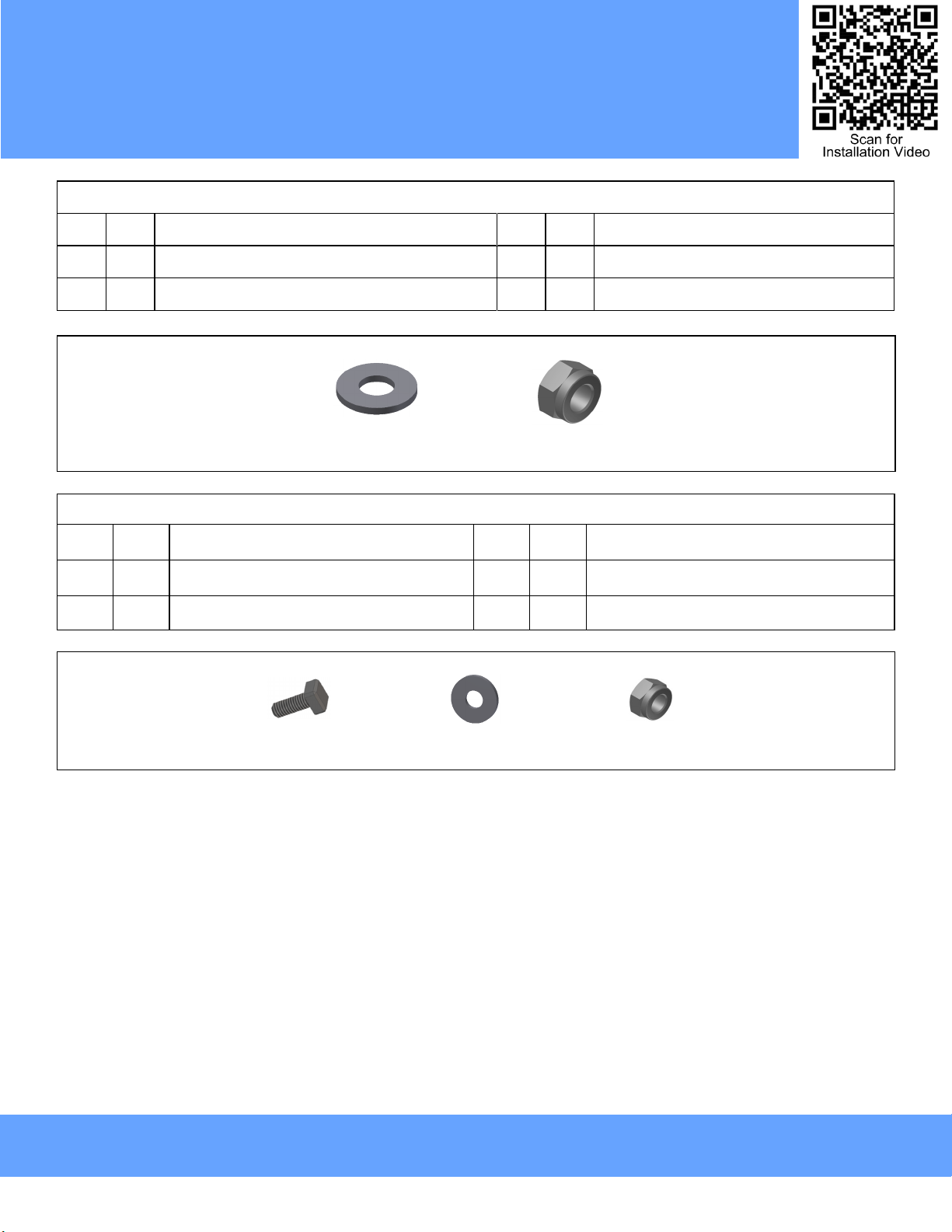

Hardware Package A (For Bracket Installation)

Item QTY Description Item QTY Description

1# 6Mounting Brackets 3# 18 M8X1.25 Nylon Lock Nuts

2# 18 M8 Large Flat Washers

2 # 3 #

1# 3#

Hardware Package B (For Step Bar Installation)

Item QTY Description Item QTY Description

1# 12 M6X1-20mm Square Head Bolts 3# 12 M6 Nylon Lock Nuts

2# 12 M6 Large Flat Washers

iBoard

Customer Support: info@iboardauto.com

Rev. 20220601

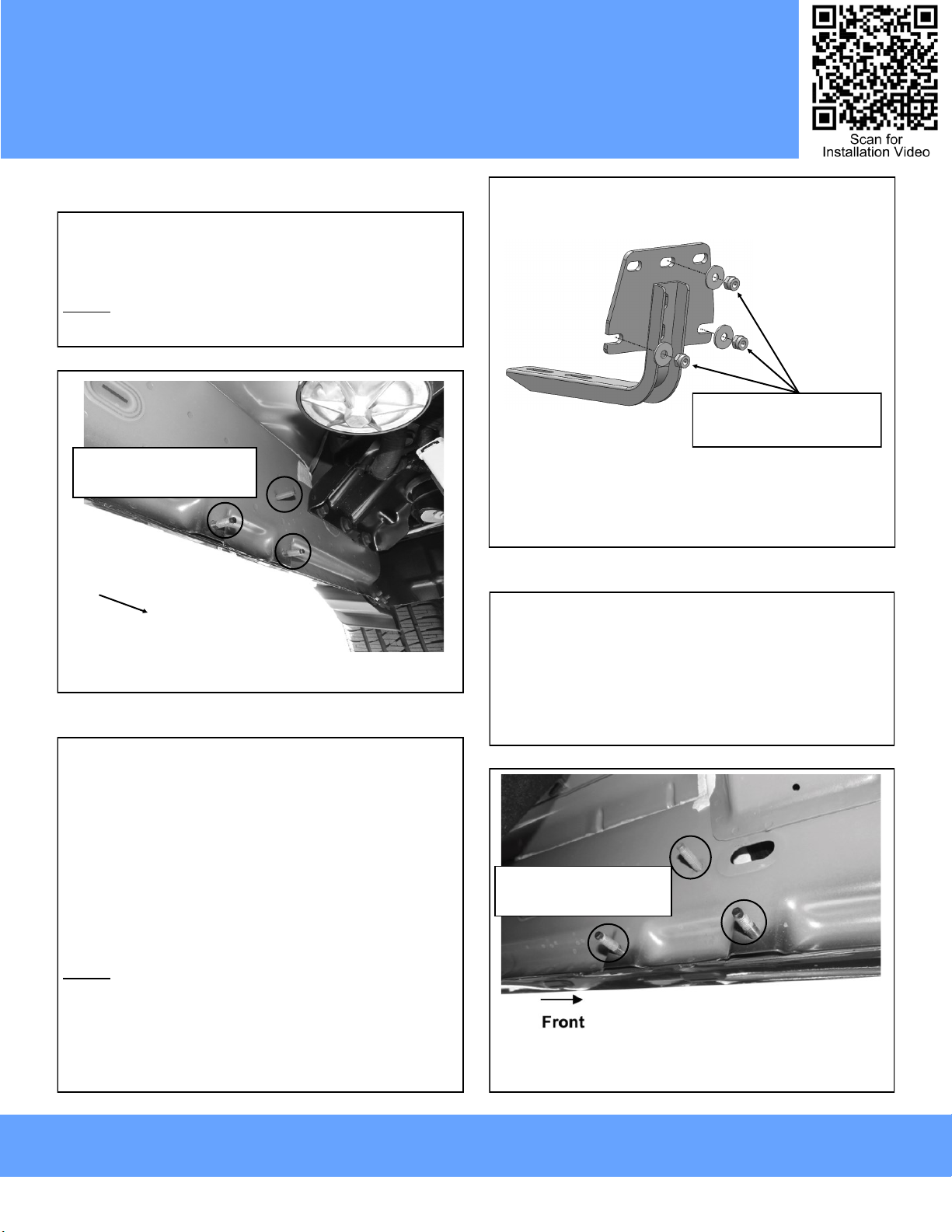

STEP 1

Start the installation under the driver side of the vehicle. Locate

the front (3) factory studs along the inner side of the body pan-

el, (Fig 1).

NOTE: Use a wire brush to remove paint on the threaded studs

if equipped.

(Fig 1) Driver Side Front Mounting Location

Front

STEP 2

Select (1) Mounting Bracket. Attach the Mounting Bracket to

the (3) factory studs on the Driver Side Front Mounting Bracket

Location with (3) M8 Large Flat Washers and (3) M8X1.25 Ny-

lon Lock Nuts, (Fig 2). Do not fully tighten the hardware at this

time.

NOTE: All (6) Mounting Brackets are universal .

(Fig 2) Driver Side Front Mounting Bracket Installation

Remove paint on the thread-

ed studs if equipped

Move to Driver side Center and Rear mounting locations, (Figs

3-4). Repeat Steps 1-2 to install Driver Center Mounting

bracket and Driver Rear Mounting bracket. Do not fully tighten

hardware at this time.

(Fig 3) Driver Side Center Mounting Location

STEP 3

Remove paint on the

threaded studs if equipped

(3) M8 Large Flat Washers

(3) M8Χ1.25 Nylon Lock Nuts

iBoard

Customer Support: info@iboardauto.com

Rev. 20220601

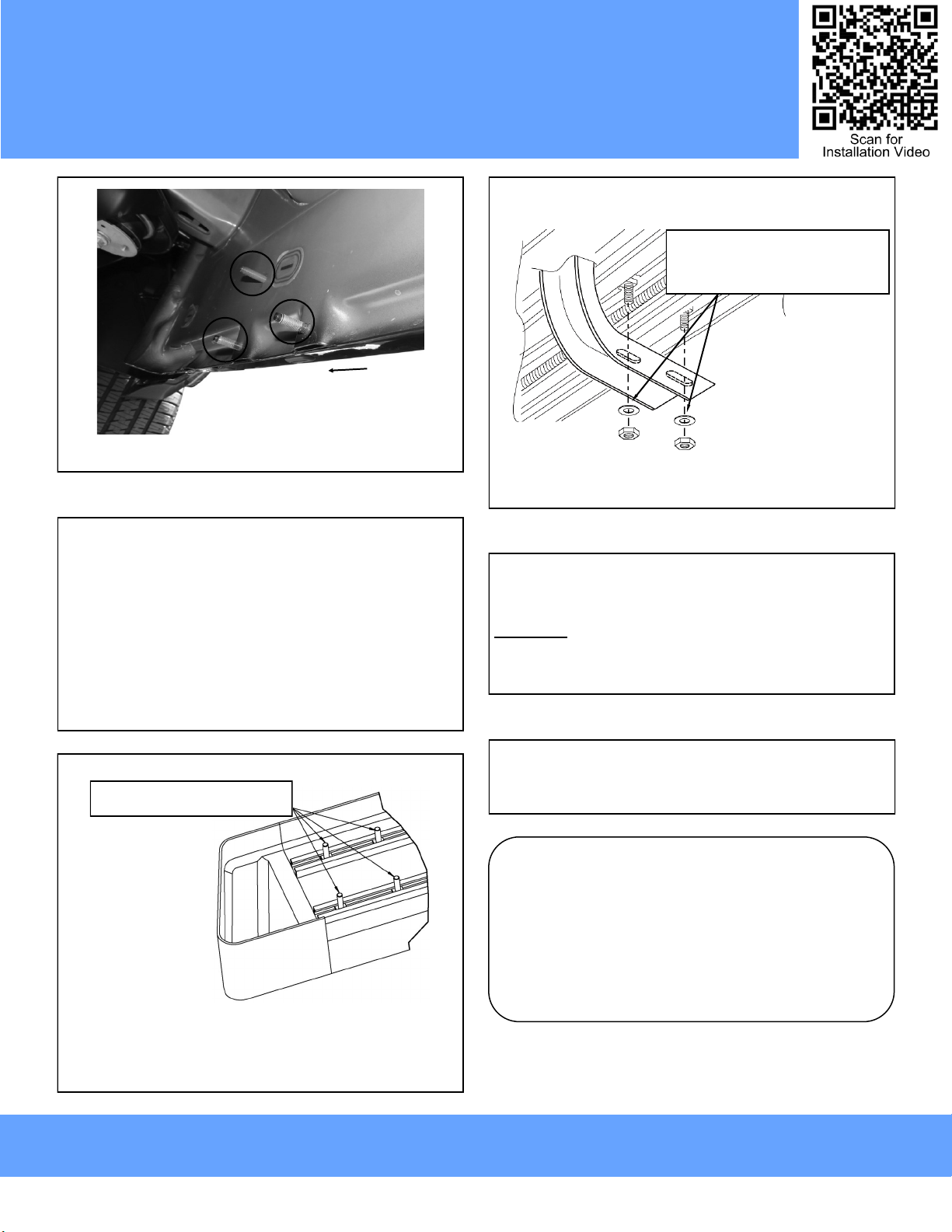

(Fig 4) Driver Side Rear Mounting Location

Rear

STEP 4

Once all (3) Mounting Brackets have been installed, select a

Running Board. Slip (3) M6X1-20mm Square Head Bolts into

each bottom channel (Fig 5). Carefully position the Running

Board onto the (3) Mounting Brackets. Attach the Running

Board to each Mounting Brackets with (2) M6X1-20mm Square

Head Bolts, (2) M6 Large Flat Washers and (2) M6 X1 Nylon

Lock Nuts (Fig 6). Do not fully tighten at this time.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged.

M6X1-20mm Square Head Bolts

(Fig 5) Slip M6X1-20mm Square Head Bolts Into The

Bottom Channels

(Fig 6) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6X1 Nylon Lock Nuts

STEP 5

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.

STEP 6

Repeat Steps 1-5 for the other side Running Board installation.

The installation is completed .

Attention

Do periodic inspections to the installation to make sure

that all hardware is secure and tight.

In order to protect your bars/boards, please use mild

soap/non-abrasive products for cleaning only.
