Arecont Vision MegaViewTM v1x Installation Manual

0 | P a g e

Arecont Vision MegaViewTM v1x Installation Manual

1 | P a g e

MegaViewTM v1x Installation Manual

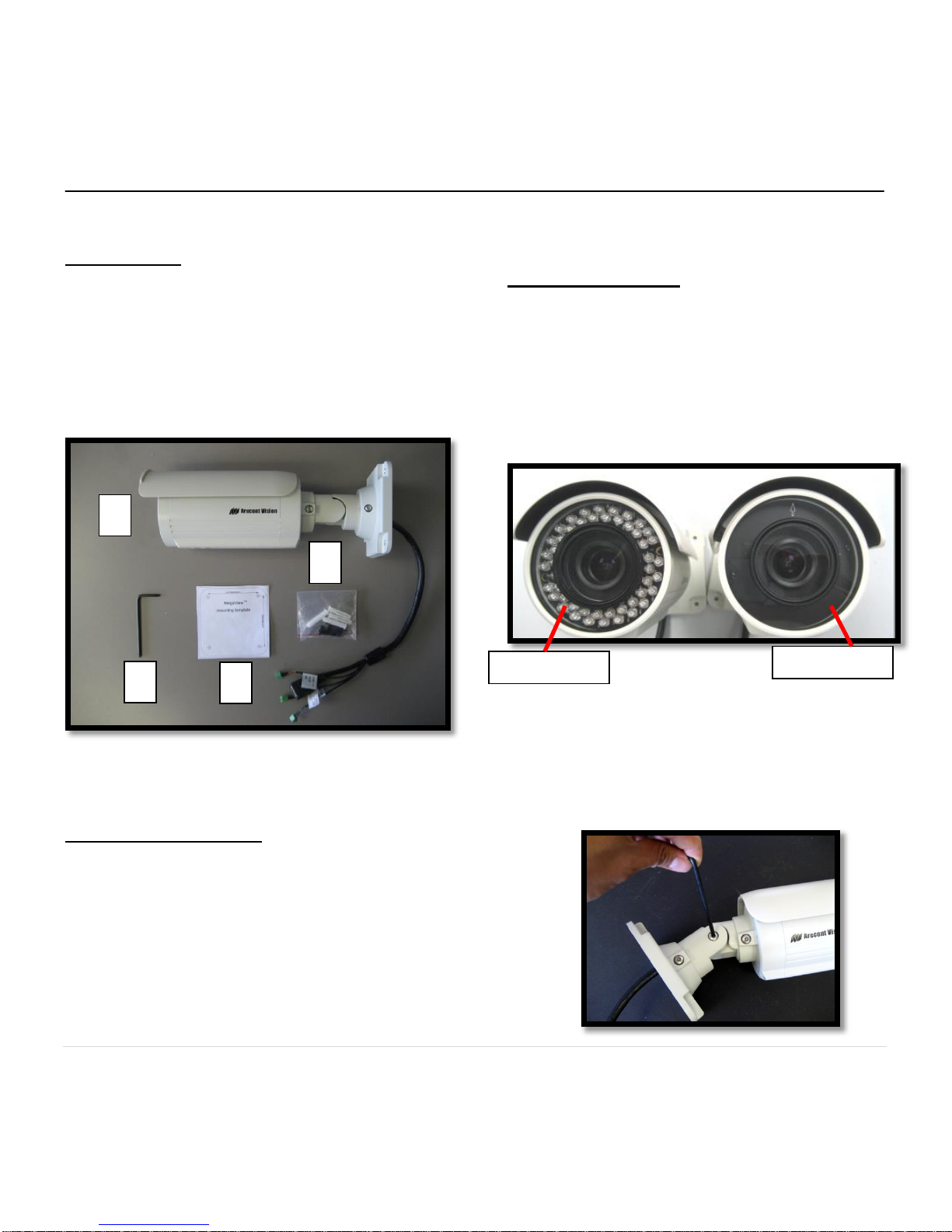

Inside the box:

A. Arecont Vision MegaViewTM v1x

B. Pack of four (4) wood screws and four (4)

dry wall anchors

C. Security L-key

D. Mounting Template

Image 1

Not included but needed:

#1 Phillips head screw driver

#2 Phillips head screw driver

Mounting the Camera:

1. Remove camera and hardware from the box.

NOTE : MegaViewTM v1x is available in two

versions, DN and IR, shown in image 2. Both

versions have motorized day night switcher

but only IR version supports an IR LED ring.

Image 2

2. Use the Mounting Template to prepare the

mounting provisions for camera installation.

3. Use the security L-key to adjust MegaViewTM

v1x bracket to appropriate position. ( Image

IR version

IR LED Ring

DN version

Arecont Vision MegaViewTM v1x Installation Manual

2 | P a g e

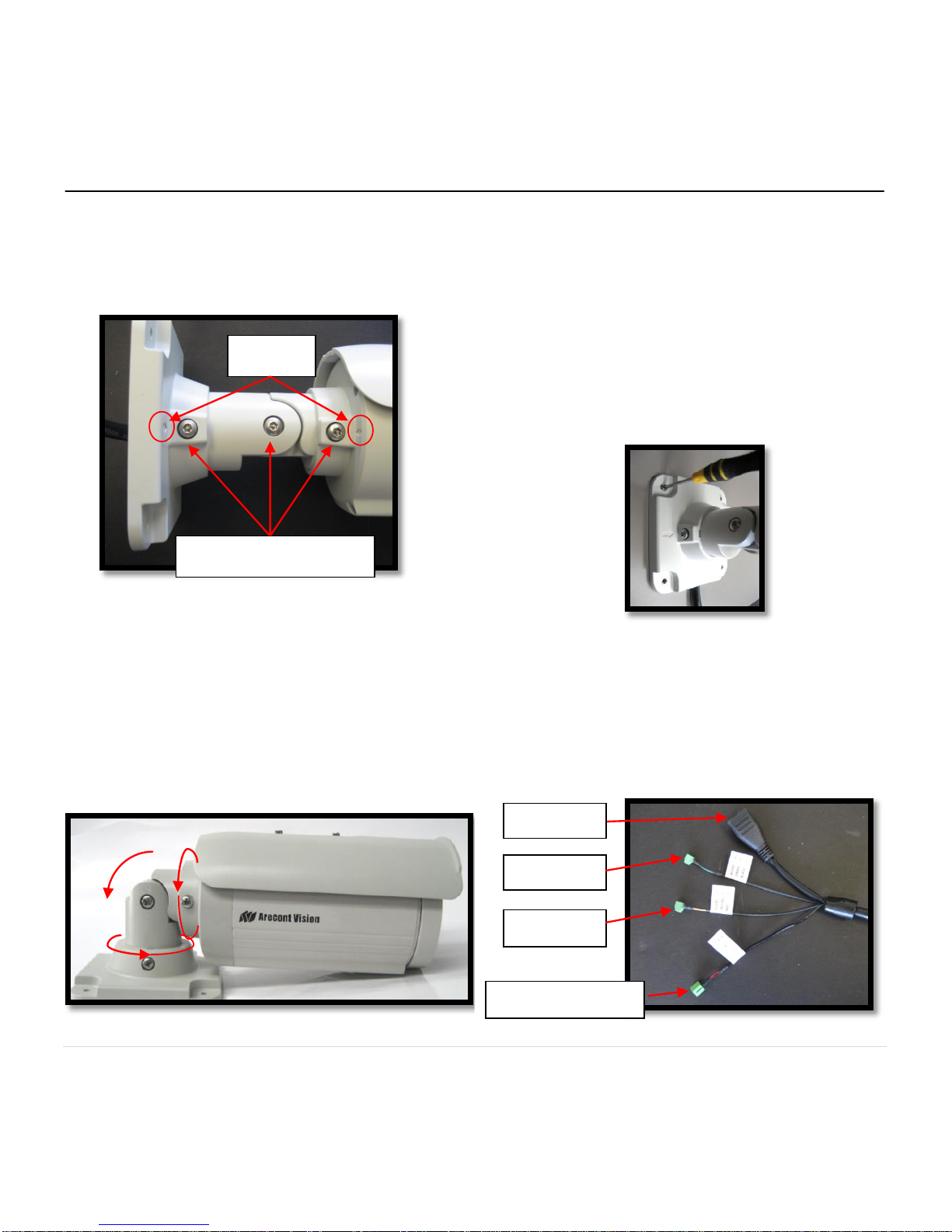

Image 3

CAUTION: Only adjust the screws with an

arrow pointing to them on the bracket base

and camera body (Image 4)

Image 4

NOTE : Bracket screws are all security

screws that are tamper-resistant.

NOTE : Bracket with 3 axes enables easy

installation in any location, including 360°

camera body rotation, 90° tilt, 360° bracket

rotation. (image 5)

Image 5

4. Align the holes in the camera with the

prepared holes on the mounting surface.

Attach the camera to the mounting surface

with the wood screws or any other hardware

that fits the mounting application. (image 6)

NOTE: Use junction box adapter, SV-JBA, to

ensure a water tight installation as shown in

Page 5. Use of silicon does not guarantee a

water resistant install.

Image 6

5. Plug Ethernet cable into the MegaViewTM v1x

PoE Female RJ45 connector. (Image 7)

NOTE: MegaViewTM v1x is a total PoE class 3

solution to power the camera, IR illuminator

and fan.

Image 7

Digital In

Digital Out

Auxiliary Power

PoE RJ45

90°

360°

Adjustable Screws

Arrow

Arecont Vision MegaViewTM v1x Installation Manual

3 | P a g e

Optional: Connecting External Power for

Camera, IR Illuminator and Fan.

6. To use the external power, 12-48VDC or

24VAC, to power on camera, IR illuminator

and fan, connect external power with pigtail

cable connector (Image 7)

NOTE: MegaViewTM v1x cameras contain fan

which is always on.

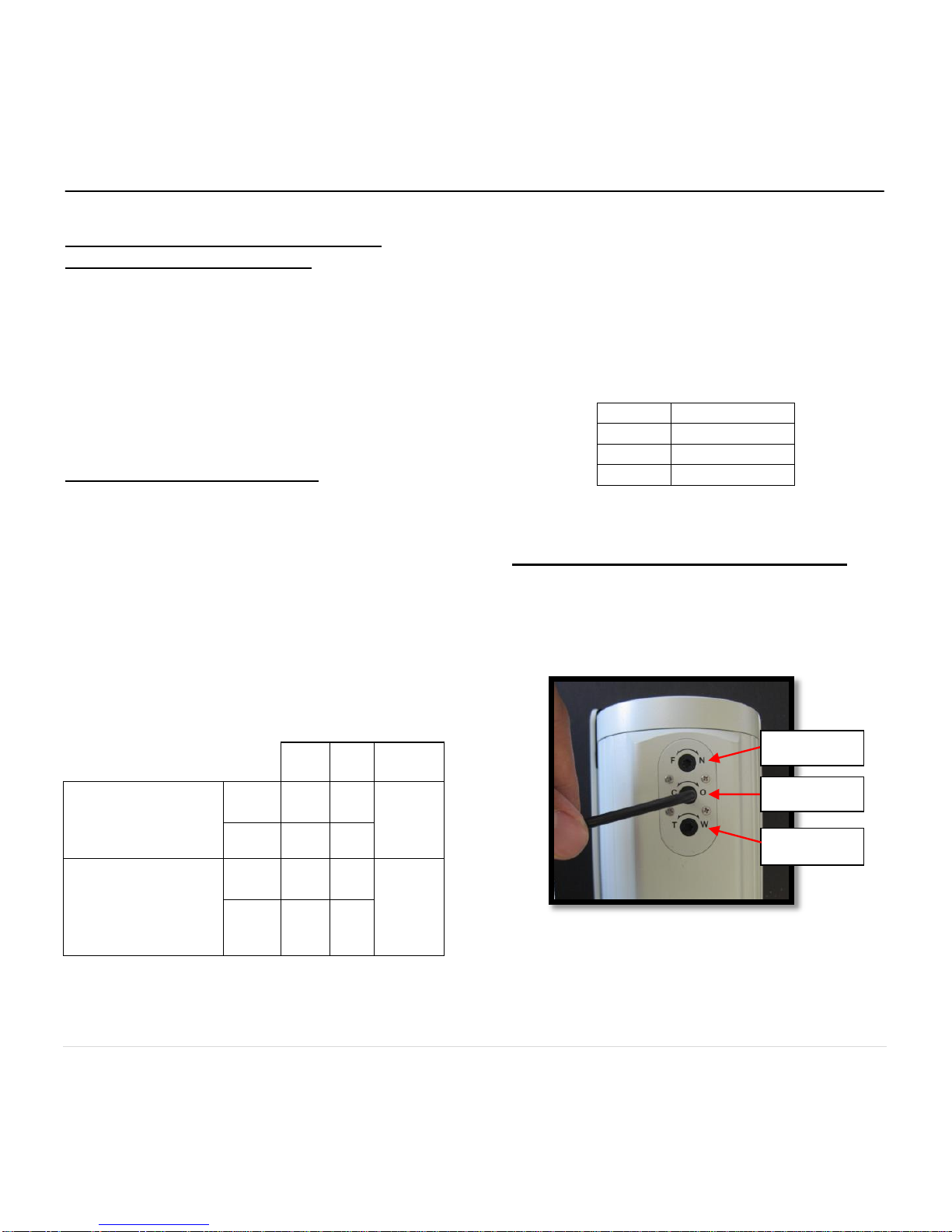

Optional: Connecting Digital I/O:

7. To use digital I/O, connect digital I/O with

pigtail cable connector. (Image 7)

NOTE: MegaViewTM v1x DN version supports

both digital input and output; IR version only

supports digital input.

NOTE: Table 1 shows electrical

characteristics and Table 2 shows cable color

for digital in and out.

Electrical

Characteristics:

Min

Max

Camera

Input voltage (V)

(measured between

+ and –terminals)

2.9

6.3

IR & DN

Versions

OFF

1.3

Output current (mA)

(measured between

+ and –terminals)

Applied Voltage

Rage: 0 - 80V

version

Only

OFF

0.1

Table 1

NOTE: Both the input and the output are electrically

isolated from the rest of the camera’s electrical

circuitry via general-purpose photo couplers. The

input is additionally protected with a serial 250 Ohm

resistor, and a debouncing circuit. Duration of

any input signal should be at least 5 ms to comply

with the requirements of the debouncing circuit.

Yellow

Digital OUT +

Red

Digital OUT –

Green

Digital IN +

Black

Digital IN -

Table 2

Adjusting the Focus, Iris and Field of View:

8. To adjust focus, iris and field of view, use

security L-key to adjust external lens screws

shown in Image 8.

Image 8

Iris

Zoom

Focus

Arecont Vision MegaViewTM v1x Installation Manual

4 | P a g e

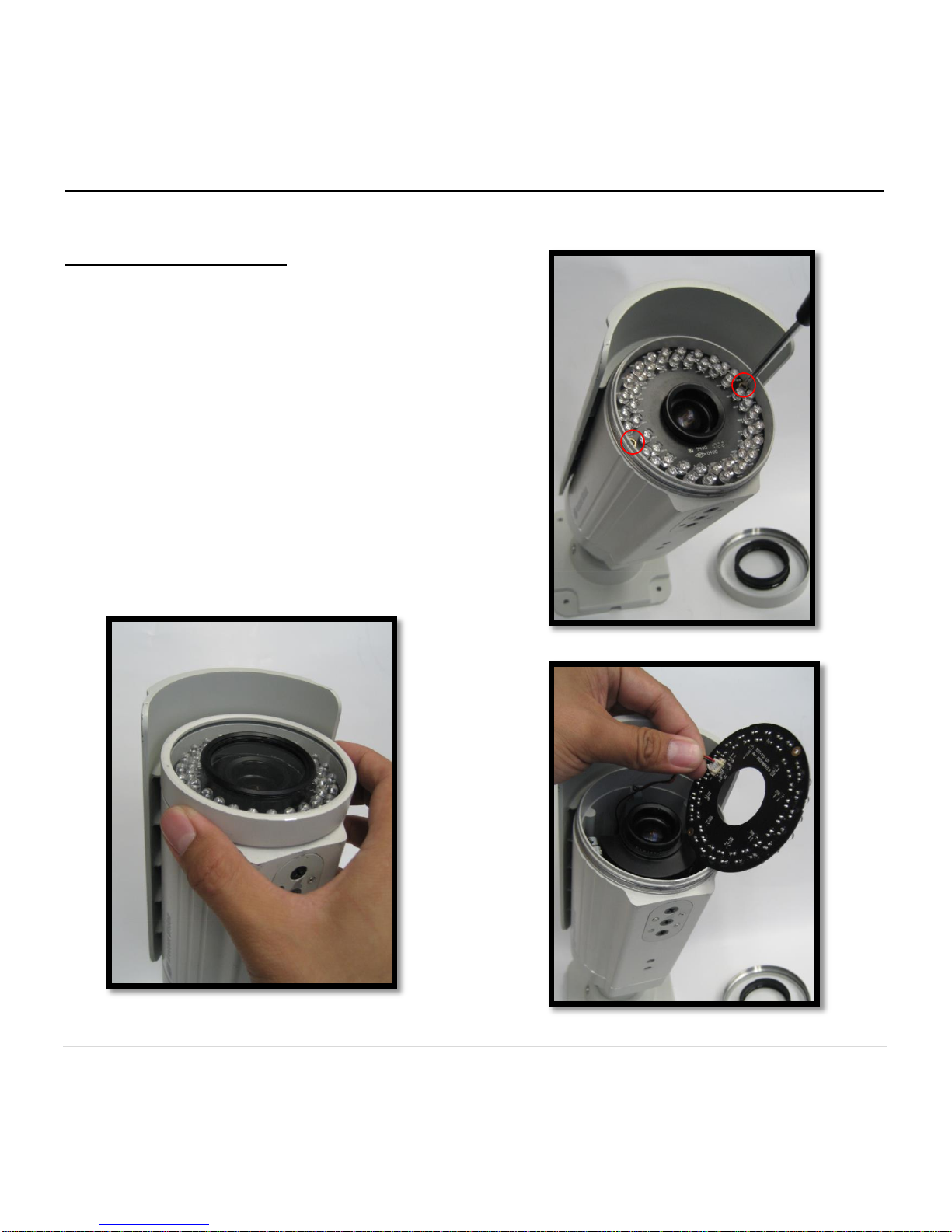

Replacing the IR LED board:

9. Unscrew glass ring (Image 9)

10. Use Phillips screwdriver to remove IR LED

board (Image 10)

11. To replace IR LED board, unplug cable and

replace new IR LED board (Image 11)

NOTE: Only MegaViewTM v1x IR version can

accommodate a replacement IR LED board.

IR LED Board cannot be added to DN

version.

NOTE: IR LED board part number: M000094-

Image 9

Image 10

Image 11

Arecont Vision MegaViewTM v1x Installation Manual

5 | P a g e

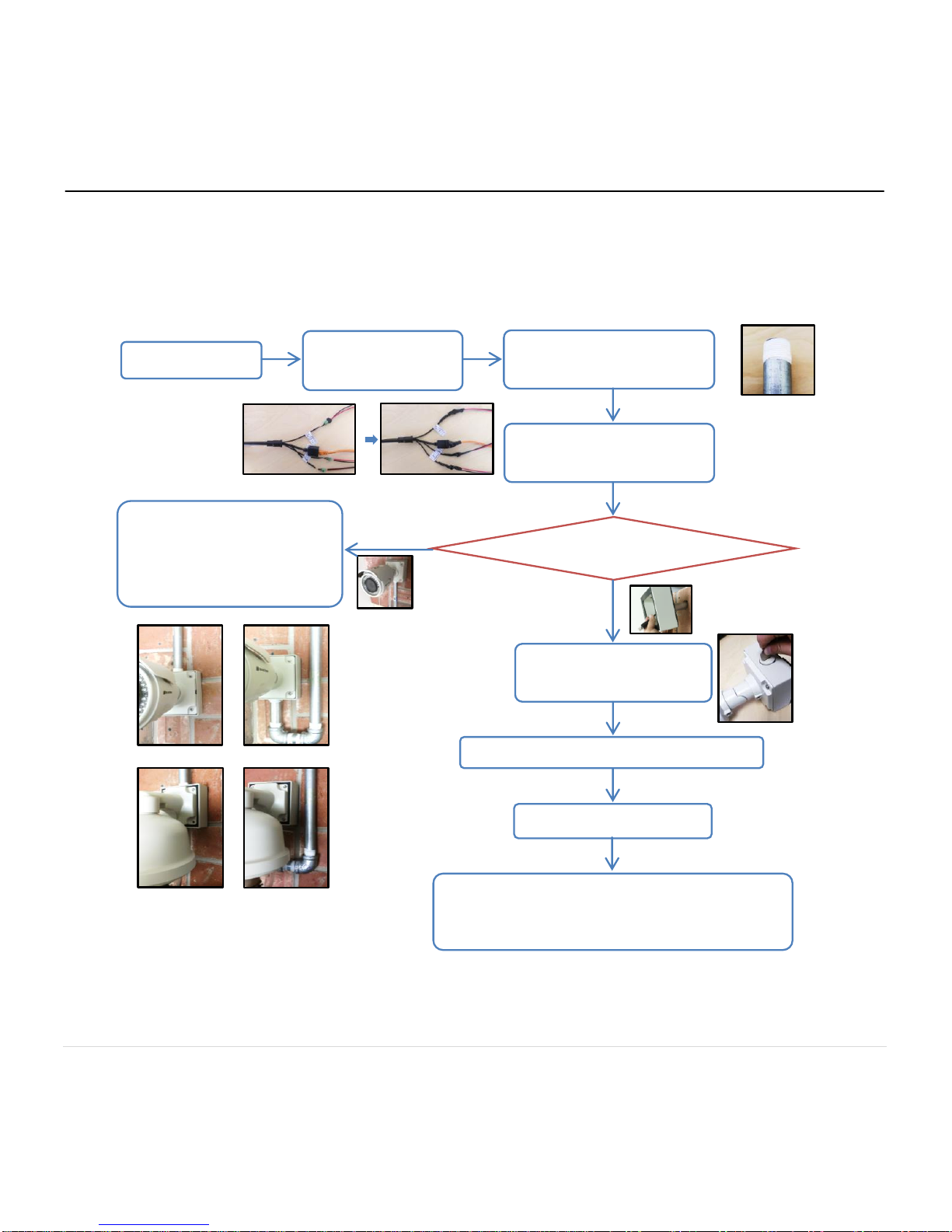

Installation Best Practices

Begin Installation

Wind Vinyl electrical

tape on all cables

Adding Teflon thread sealing

tape to all male threads

Connect ¾” NPT conduit pipe

to junction box adapter

Does conduit pipe go through the wall?

Make sure position of conduit

hole is at the lower side

forming a “drip loop” below

the camera using ¾”

galvanized or flex conduit and

appropriate fittings

Not Recommended!

Recommended!

Yes

Tighten all camera screws

and ¾” NPT plugs

Caulk the perimeter of the mounting area

Conduct periodic inspections of the installation. Rust

on the metal parts or screws may result in damage to

camera

End Installation

Arecont Vision MegaViewTM v1x Installation Manual

5 | P a g e

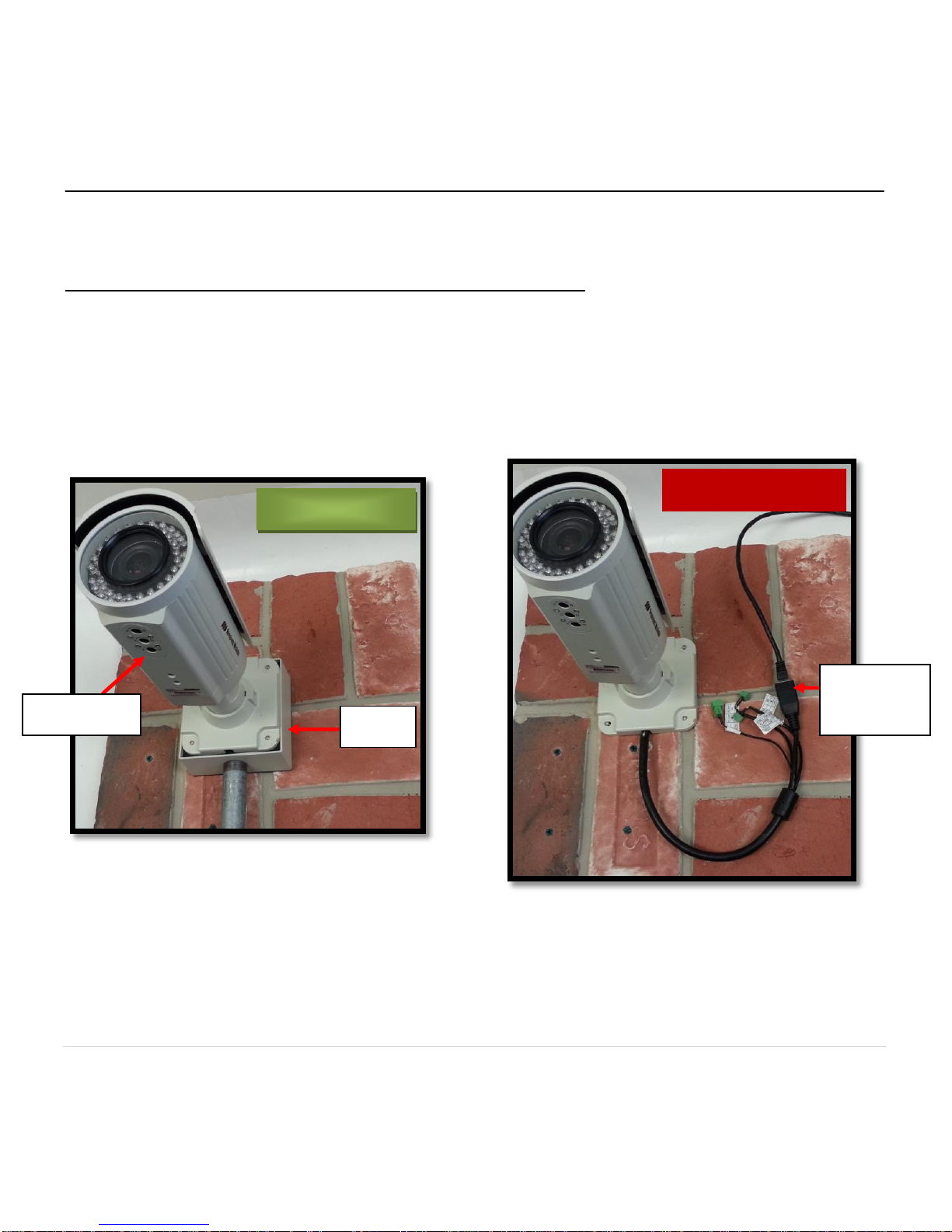

Important Note

Correct installation for outdoor application of MegaView™ v1x

Correct Installation:

Please install the MegaView™ v1x with

junction box adapter (SV-JBA) to avoid risk of

water leakage in outdoor applications as

shown in Image 12.

Image 12

Note: Please see how to install SV-JBA on page 6.

Incorrect Installation:

Attaching the MegaView™ v1x directly onto a

wall surface may result in water leakage, see

Image 13.

Image 13

NOTE: Water damage from improper installation is

not covered by the warranty!

NOTE: Use silicon to cover RJ45 connector does

not guarantee a water resistant install.

Not Recommended!

SV-JBA

Recommended!

MegaView

RJ45

Connector

Arecont Vision MegaViewTM v1x Installation Manual

6 | P a g e

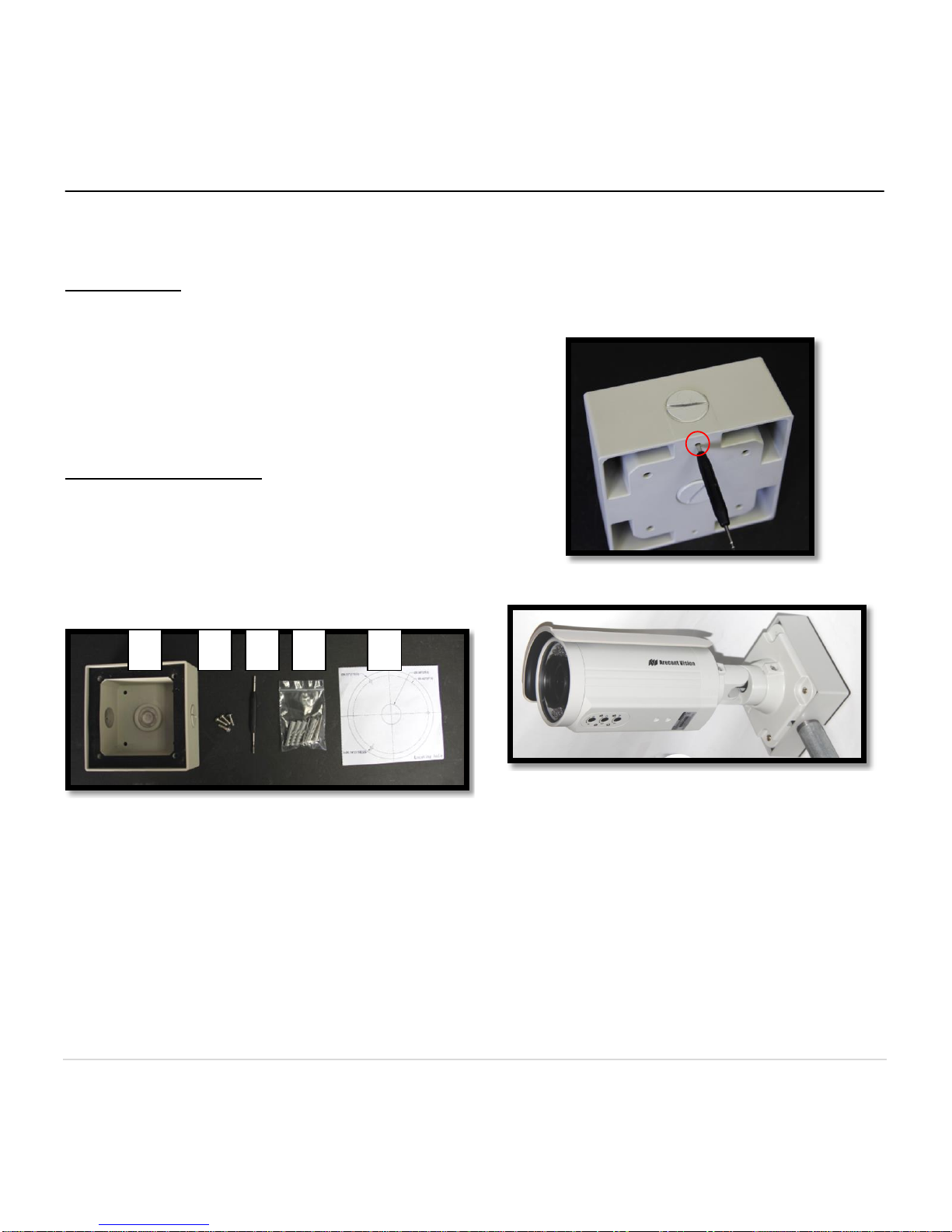

MegaView™v1x Junction Box Adapter (SV-JBA) Installation Instruction

Inside the box:

A. Junction Box Adapter

B. Pack of four (4) machine screws

C. One double sided hex key

D. Pack of four (4) wood screws and four (4)

dry wall anchors

E. Mounting Template

Not included but needed:

#2 Phillips head screw driver

¾” NPT Conduit (if necessary)

NOTE: SV-JBA is same unit used for MegaDome®

2 wall mount and SurroundVideo®wall mount

Image 14

1. Remove Junction Box and hardware from

the box

2. Remove the conduit plug by first removing

the socket set screw using one of provided

hex keys shown in Image 15

3. Attach Junction Box Adapter to the wall

using drywall screws or any optional

hardware suitable for the mounting

surface.

Image 15

Image 16

4. Connect ¾” NPT Conduit to Junction Box

Adapter shown in Image 16.

5. Run Ethernet Cable and outside power cable

(if necessary) through the Junction Box

Adapter and connect to Megaview™ v1x

pigtail cable.

6. Attach Megaview™ v1x to Junction Box

Adapter as shown in Image 16.

Arecont Vision MegaViewTM v1x Installation Manual

7 | P a g e

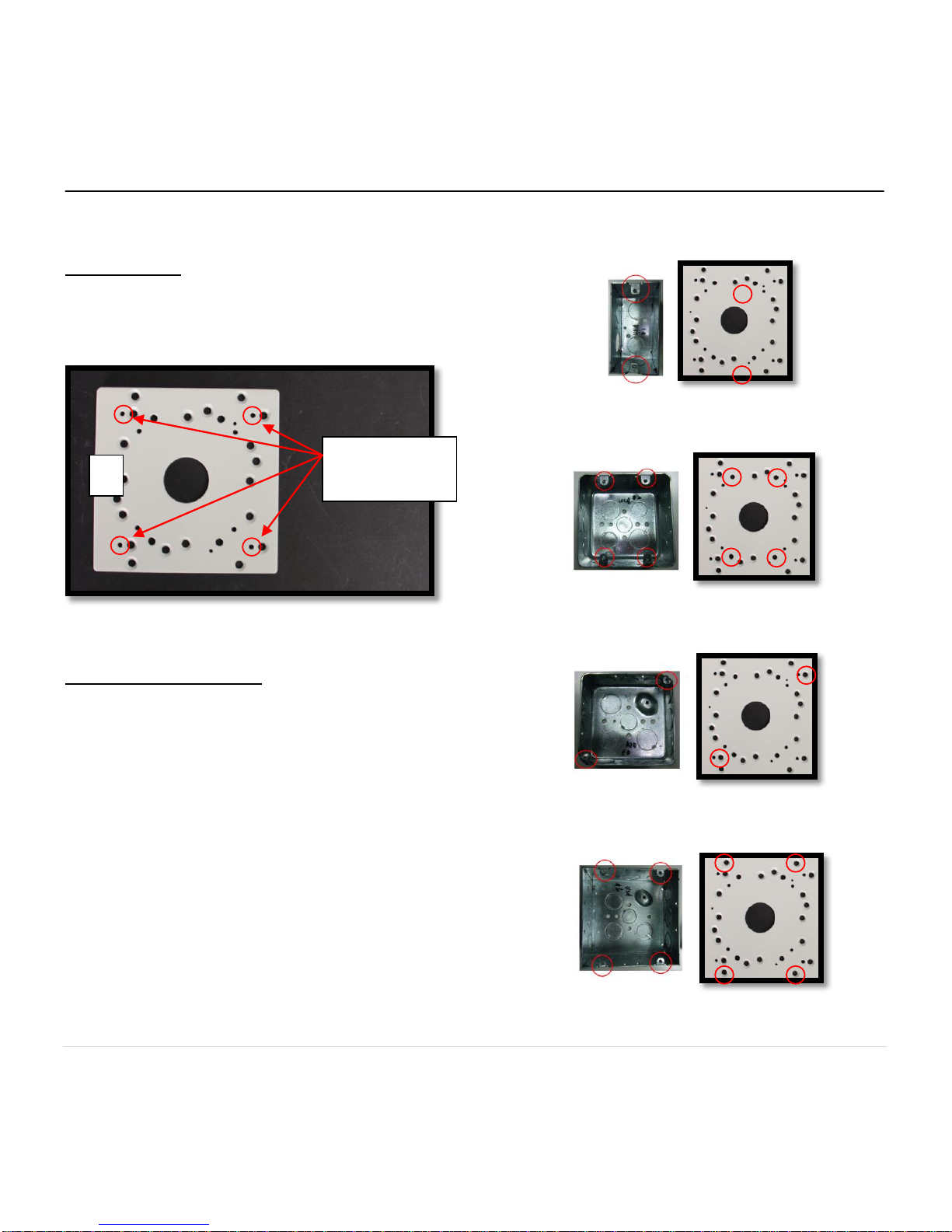

MegaView™v1x Electrical Box Adapter (SV-EBA) Installation Instructions

Inside the box:

A. Electrical Box Adapter

B. Pack of four (4) machine screws

Image 17

Not included but needed:

#2 Phillips head screw driver

Common Electrical Box, such as single

gang box, double gang box, or square

electrical boxes shown in Image 18-1~4.

NOTE: SV-EBA also works with MD-WMT2, SV-

WMT and D4S-WMT

1. Remove Electrical Box Adapter and hardware

from the box.

2. Attach MegaView™v1x bracket to Electrical

Box Adapter.

3. Attach Electrical Box Adapter to Electrical Box.

Image 18-1 Single gang box

Image 18-2 Double gang box

Image 18-3 Square box

Image 16-4 Square box

MegaView™

v1x Bracket

holes

Arecont Vision MegaViewTM v1x Installation Manual

8 | P a g e

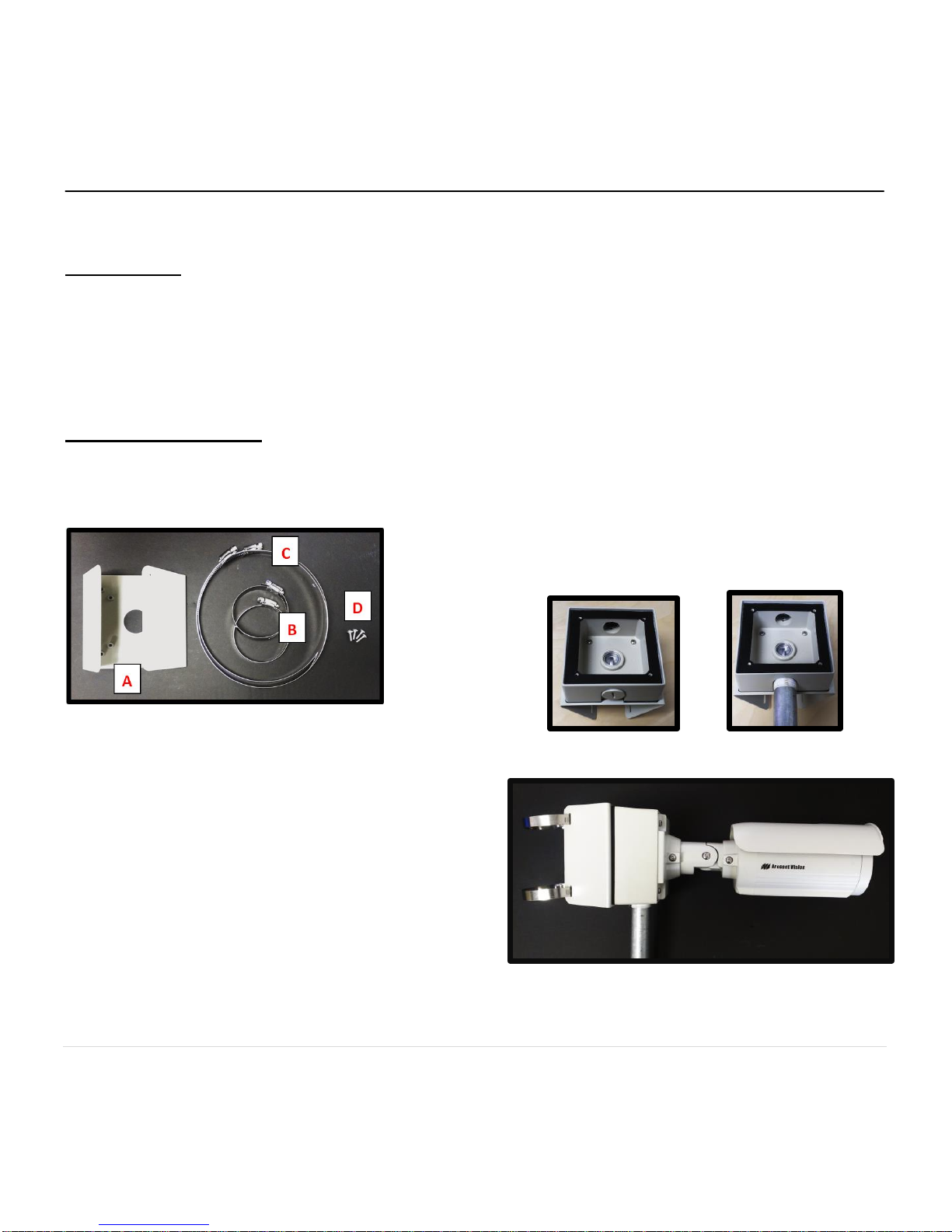

MegaView™v1x Pole Mount Adapter (AV-PMA) Installation Instructions

Inside the box:

A. Pole Mount Adapter

B. 2x Small Steel Straps

C. 2x Large Steel Straps

D. Pack of four (4) machine screws (#8-32

5/8”)

Not included but needed:

#2 Phillips head screw driver

SV-JBA (Junction box adapter)

Image 19

1. Remove Pole Mount Adapter, steel Straps

and hardware from the box.

2. Attach SV-JBA (Junction Box Adapter) to Pole

Mount Adapter as shown in Image 20.

3. Remove the conduit plug on Junction box

adapter and connect ¾” NPT Conduit to

Junction Box Adapter shown in Image 20-1.

NOTE: Use silicon or water pipe seal tape to

make sure no water leakage between conduit

pipe and junction box adapter.

4. Run the Ethernet cable and outside power

cable (if necessary) through the Junction Box

Adapter and connect to MegaView™pigtail

cable.

5. Attach MegaView™bracket to Pole Mount

Adapter as shown in Image 21.

6. Use the supplied two steel straps to attach the

Pole Mount Adapter to the pole and tighten

the compression screws as shown in Image

21.

7. To adjust MegaView™v1x bracket, please

reference “Mounting the Camera”, if needed.

Image 20 Image 20-1

Image 21

Inhaltsverzeichnis

Andere Arecont Vision Sicherheitskamera Handbücher

Arecont Vision

Arecont Vision MicroDome AV1455DN-S Bedienungsanleitung

Arecont Vision

Arecont Vision MicroDome AV1455DN-F Bedienungsanleitung

Arecont Vision

Arecont Vision AV08ZMV-300 Bedienungsanleitung

Arecont Vision

Arecont Vision D4SO Series Bedienungsanleitung

Arecont Vision

Arecont Vision MegaDome 2 Bedienungsanleitung

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-08 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaDome G3 Bedienungsanleitung

Arecont Vision

Arecont Vision AV2100 Bedienungsanleitung

Arecont Vision

Arecont Vision AV1255AM Bedienungsanleitung

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-NL Bedienungsanleitung

Arecont Vision

Arecont Vision D4S Series Bedienungsanleitung

Arecont Vision

Arecont Vision SurroundVideo G5 Mini Bedienungsanleitung

Arecont Vision

Arecont Vision AV2225PMIR Bedienungsanleitung

Arecont Vision

Arecont Vision ConteraIP Fisheye AV12CPD-236 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaDome 2 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaDomeT Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall 2 Bedienungsanleitung

Arecont Vision

Arecont Vision H.264 Day/Night SurroundVideo Series Bedienungsanleitung

Arecont Vision

Arecont Vision MegaDome AV1355DN-1HK Bedienungsanleitung

Arecont Vision

Arecont Vision Contera AV02CID-100 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV2245PM-W Bedienungsanleitung

Arecont Vision

Arecont Vision MegaVideo Flex Series Bedienungsanleitung

Arecont Vision

Arecont Vision AV1215PM-S Bedienungsanleitung

Arecont Vision

Arecont Vision AV12ZMV-301 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
