Arecont Vision AV08ZMV-300 Bedienungsanleitung

MegaVideo®4K

Installation Manual

Models

8.3 Megapixel

AV08ZMV-300

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 2support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

Contents

Package Contents!..................................................................................................................................................!3!

Camera Overview!...................................................................................................................................................!5!

Installing the Lens!...................................................................................................................................................!6!

Auxiliary I/O Functions!...........................................................................................................................................!7!

Mounting the Camera!..........................................................................................................................................!11!

Camera Power Up!................................................................................................................................................!11!

SD Card Set-up!.....................................................................................................................................................!13!

SD Card Tab!.........................................................................................................................................................!16!

System Requirements!..........................................................................................................................................!17!

Camera Discovery, Setup, and Configuration!..................................................................................................!17!

Network Protocols!................................................................................................................................................!17!

General Remote Focus!........................................................................................................................................!18!

Refined Remote Focus!........................................................................................................................................!19!

AV IP Utility Focus Tab!........................................................................................................................................!21!

Support!...................................................................................................................................................................!22!

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 3support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

CAUTION!

1. Do not attempt to service a damaged unit yourself. Refer all servicing to qualified service

personnel.

2. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and

with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or

Recognized wire suitable for the application.

3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with

mounting surface and of sufficient length and construction to insure a secure mount.

Package Contents

This equipment should be unpacked and handled with care. The original packaging is the safest

container in which to transport the unit and can be used if returning the unit for service. The packaging

contains:

•One (1) Arecont Vision MegaVideo 4K Camera

•One (1) Rubber gasket (preinstalled on the camera)

•One (1) CD containing software and user manual

•One (1) C to CS lens adapter (lens sold separately)

•One (1) 0.5mm lens spacer ring

•One (1) 7-position external power & IO plug

•One (1) 0.05 hex L-Key

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 4support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

Warranty Information

Global (3 Year) Limited Warranty

ARECONT VISION warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that: (a) each

Product shall be free from material defects in material and workmanship for a period of thirty-six (36)

months from the date of shipment (the “Warranty Period”); (b) during the Warranty Period, the

Products will materially conform with the specification in the applicable documentation; (c) all licensed

programs accompanying the Product (the “Licensed Programs”) will materially conform with applicable

specifications. Notwithstanding the preceding provisions, ARECONT VISION shall have no obligation or

responsibility with respect to any Product that (i) has been modified or altered without ARECONT

VISION’s written authorization; (ii) has not been used in accordance with applicable documentation; (iii)

has been subjected to unusual stress, neglect, misuse, abuse, improper storage, testing or connection;

or unauthorized repair; or (iv) is no longer covered under the Warranty Period. ARECONT VISION

MAKE NO WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,

OTHER THAN THE EXPRESS LIMITED WARRANTIES MADE BY ARECONT VISION ABOVE, AND

ARECONT VISION HEREBY SPECIFICALLY DISCLAIMS ALL OTHER EXPRESS, STATUTORY AND

IMPLIED WARRANTIES AND CONDITIONS, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT AND THE

IMPLIED CONDITION OF SATISFACTORY QUALITY. ALL LICENSED PROGRAMS ARE LICENSED

ON AN “AS IS” BASIS WITHOUT WARRANTY. ARECONT VISION DOES NOT WARRANT THAT (I)

THE OPERATION OF THE PRODUCTS OR PARTS WILL BE UNINTERRUPTED OR ERROR FREE;

(II) THE PRODUCTS OR PARTS AND DOCUMENTATION WILL MEET THE END USERS’

REQUIREMENTS; (III) THE PRODUCTS OR PARTS WILL OPERATE IN COMBINATIONS AND

CONFIGURATIONS SELECTED BY THE END USER; OTHER THAN COMBINATIONS AND

CONFIGURATIONS WITH PARTS OR OTHER PRODUCTS AUTHORIZED BY ARECONT VISION

OR (IV) THAT ALL LICENSED PROGRAM ERRORS WILL BE CORRECTED.

For RMA and Advance Replacement information visit http://www.arecontvision.com

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 5support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

Camera Overview

The 8.3MP/1080p MegaVideo® 4K dual mode network camera is the new generation of Arecont

Vision’s MegaVideo cameras. This fully compliant implementation of H.264 (MPEG-4, Part 10)

provides full 3840 x 2160 megapixel resolution at full video frame rates of 30 frames per second

(fps) at 8MP and 60fps while in 1080p binning mode.

The series combines a day/night mechanical IR cut filter with a choice of three ultra-high definition

P-iris lenses for precise, optimal image quality. MegaVideo 4K performs exceptionally well in very

low-light thanks to NightView™ mode, which allows for extended exposure and noise reduction.

Features include SNAPstream™ (Smart Noise Adaptation and Processing) to reduce bandwidth

without impacting image quality, scaling, binning mode, privacy masking, extended motion detection,

flexible cropping, and Power over Ethernet (PoE - IEEE 802.3af). Built with Arecont Vision

massively-parallel processing technology, MegaVideo 4K offers more than 27-times the resolution of

standard resolution IP cameras. It offers the ability to output full real-time frame rates and deliver

high-quality megapixel imaging for both indoor and outdoor* applications.

The SDHC card slot supports up to 32GB of storage capacity for convenient onboard storage. The

motorized remote focus/zoom lenses with P-iris control make set-up and maintenance easy. The

camera’s power can be supplied via a Power-over-Ethernet compliant network cable connection or

with power from a 12–24V DC/ 24V AC power supply. The camera's interface allows for an intuitive,

fast, and easy configuration.

* Applicable for outdoor use in HSSG2 or HSG3 housing

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 6support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

Installing the Lens

1. Remove the sensor protection cap from the camera (if present).

2. Screw the lens onto the camera in a clockwise rotation as shown in Image 1.

NOTE: UHD30-120MPI is a C mount lens, and will require a supplied C to CS mount adapter

ring.

! !

Image!1!

3. Connect the Remote Focus/Remote Zoom connecter and P-Iris connecter from the lens into the

corresponding ports on the back of the camera as shown in Image 2.

Image!2!

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 7support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

NOTE: Compatible Remote Focus / Remote Zoom Lenses

Lens!

Description!

UHD4.4-10MPI!

4.4-10mm,!1/1.7",!F/1.2,!P-Iris,!IR!corrected,!CS-mount,!Motorized!Zoom!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

and!Focus,!H-FOV!=!43o-96o!

UHD12-50MPI!

12-50mm,!1/1.7",!F/1.8,!P-Iris,!IR!corrected,!CS-mount,!Motorized!Zoom!!!!and!

Focus,!H-FOV!=!9o-37o!

UHD30-120MPI!

30-120mm,! 1/1.7",! F/2.2,! P-Iris,! IR! corrected,! C-mount,! Motorized! Zoom! ! and!

Focus,!H-FOV!=!3.5o-13o!

Auxiliary I/O Functions

1. To use digital I/O, connect digital I/O with pigtail cable connector as shown in Image 3.

NOTE: There are seven connector ports that look identical, be sure to use the correct I/O ports

as shown in Image 3-1.

The output consists of an optically coupled solid state relay (SSR) and the input has an

optocoupler. Both the SSR and optocoupler have an isolation voltage of 1500 VRMS between

the external terminals and internal camera circuitry. The input is further protected with a serial

250Ωresistor and a debouncing circuit.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 8support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

OUTPUT Relay Control and Function!

The camera has an output for activating an external device. The camera supports both transient and

continuous relay operation. You can operate the relay during an active connection using the API

command set. Typical applications include turning on lights or activating doors and locks.

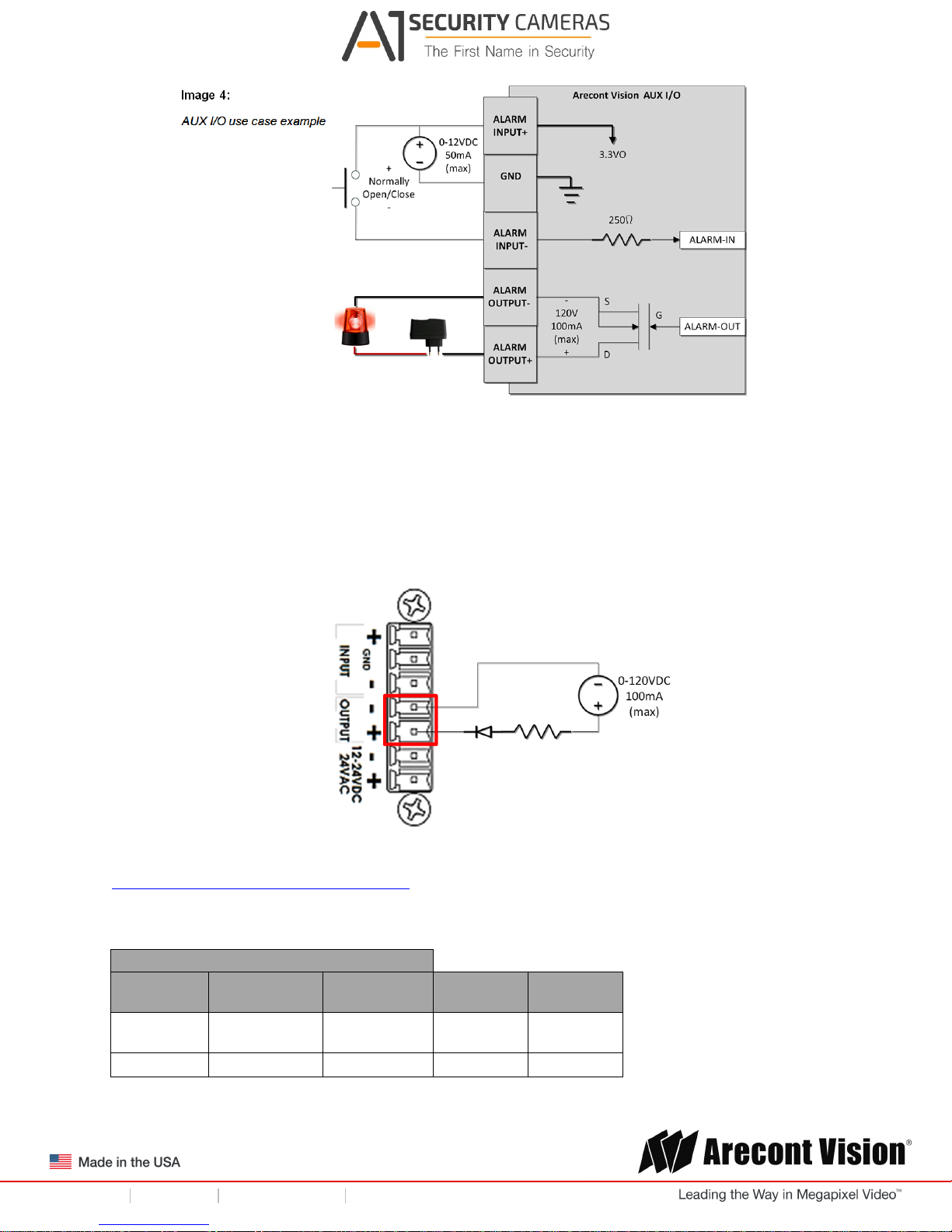

Image!5 Relay wiring with power source to the camera

Camera output can be turned on|off with the following command:

http://camera_ip/set?auxout=(“on”|“off”)

The following table shows the output control and electrical characteristics:

Output Control

Terminals

External

Status

Camera

Status

Max

Voltage

Max

Current

OUT+ &

OUT-

OPEN

OFF

120V

CLOSED

100mA

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 9support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

INPUT Alarm Control and Detection!

The input optocoupler supports two ways to connect external unsupervised alarms to Arecont Vision

camera. Only one of the following two schemes should be used at any given time.

OPTION-1: UNSUPERVISED ALARM DETECTION

In this scheme the IN+ & IN- terminals can be used for external signaling devices, such as door

contacts or motion detectors. Both normally open and normally closed devices are supported as shown

in Image!6:

Image!6!

Image 7 illustrates the unsupervised alarm conditions:

!"# !"$ !"# !"$

!"# !"$

"%&'())*+,-./ "%&'())*+0)%1.2

Image!7!

The following table shows how camera detects unsupervised alarms:

Input Unsupervised Alarms

Terminals

External

Status

Camera

Status

IN+ & IN-

OPEN

OFF

Camera status can be read with the following command:

http://camera_ip/get?auxin

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installation Manual

Page | 10 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MegaVideo®4K

OPTION-2: INPUT VOLTAGE DETECTION

In this scheme the IN- & GND terminals can be tied to an external power source. The camera can

detect a range of voltage to trigger an internal alarm on|off condition as shown in Image 8.

Image!8!

The following table shows the input voltage range and electrical characteristics:

Input Voltage Detection

Terminals

External

Status

Camera

Status

Voltage

Range

Current

Range

IN- &

GND

OFF

0-1V

0-2mA

2-12V

10-50mA

The status of the camera can be read with the following command:

http://camera_ip/get?auxin

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Inhaltsverzeichnis

Andere Arecont Vision Sicherheitskamera Handbücher

Arecont Vision

Arecont Vision Contera AV02CLB-100 Bedienungsanleitung

Arecont Vision

Arecont Vision AV2100 Bedienungsanleitung

Arecont Vision

Arecont Vision MicroDome AV1455DN-S Bedienungsanleitung

Arecont Vision

Arecont Vision AV12ZMV-301 Bedienungsanleitung

Arecont Vision

Arecont Vision ConteraIP Fisheye AV12CPD-236 Bedienungsanleitung

Arecont Vision

Arecont Vision Contera Micro Bullet Bedienungsanleitung

Arecont Vision

Arecont Vision MicroDome G2 AV1555DN-S Bedienungsanleitung

Arecont Vision

Arecont Vision AV12975DN-NL Bedienungsanleitung

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-NL Bedienungsanleitung

Arecont Vision

Arecont Vision MegaView 2 AV1225PMIR-S Bedienungsanleitung

Arecont Vision

Arecont Vision MegaVideo Flex Series Bedienungsanleitung

Arecont Vision

Arecont Vision D4S Series Bedienungsanleitung

Arecont Vision

Arecont Vision MicroDome Bedienungsanleitung

Arecont Vision

Arecont Vision MicroDome AV1455DN-F Bedienungsanleitung

Arecont Vision

Arecont Vision AV2325DNIR Bedienungsanleitung

Arecont Vision

Arecont Vision megadome Bedienungsanleitung

Arecont Vision

Arecont Vision MegaDome G3 Bedienungsanleitung

Arecont Vision

Arecont Vision AV1215PM-S Bedienungsanleitung

Arecont Vision

Arecont Vision AV12275DN-NL Bedienungsanleitung

Arecont Vision

Arecont Vision AV1255AM Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV2245PM-W Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall 2 Bedienungsanleitung

Arecont Vision

Arecont Vision Megaball series Bedienungsanleitung

Arecont Vision

Arecont Vision D4SO Series Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
