PAGE 1 • 2074106-INS-RB• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Level of Difﬁculty

Easy

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL 2074106

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

Tools Required

Ratchet Torque wrench

Socket, 13mm Level

Flathead

screwdriver

Parts List

1Driver / left rocker step

1Passenger / left rocker step

8Clip nut, M8

8 Hex bolt, M8 - 1.50 x 30mm

4Bolt plate, M8

12 Flat washer, M8

12 Lock washer, M8

4Hex nut, M8

4Bolt retainer, plastic

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • 2074106-INS-RB• PAGE 2

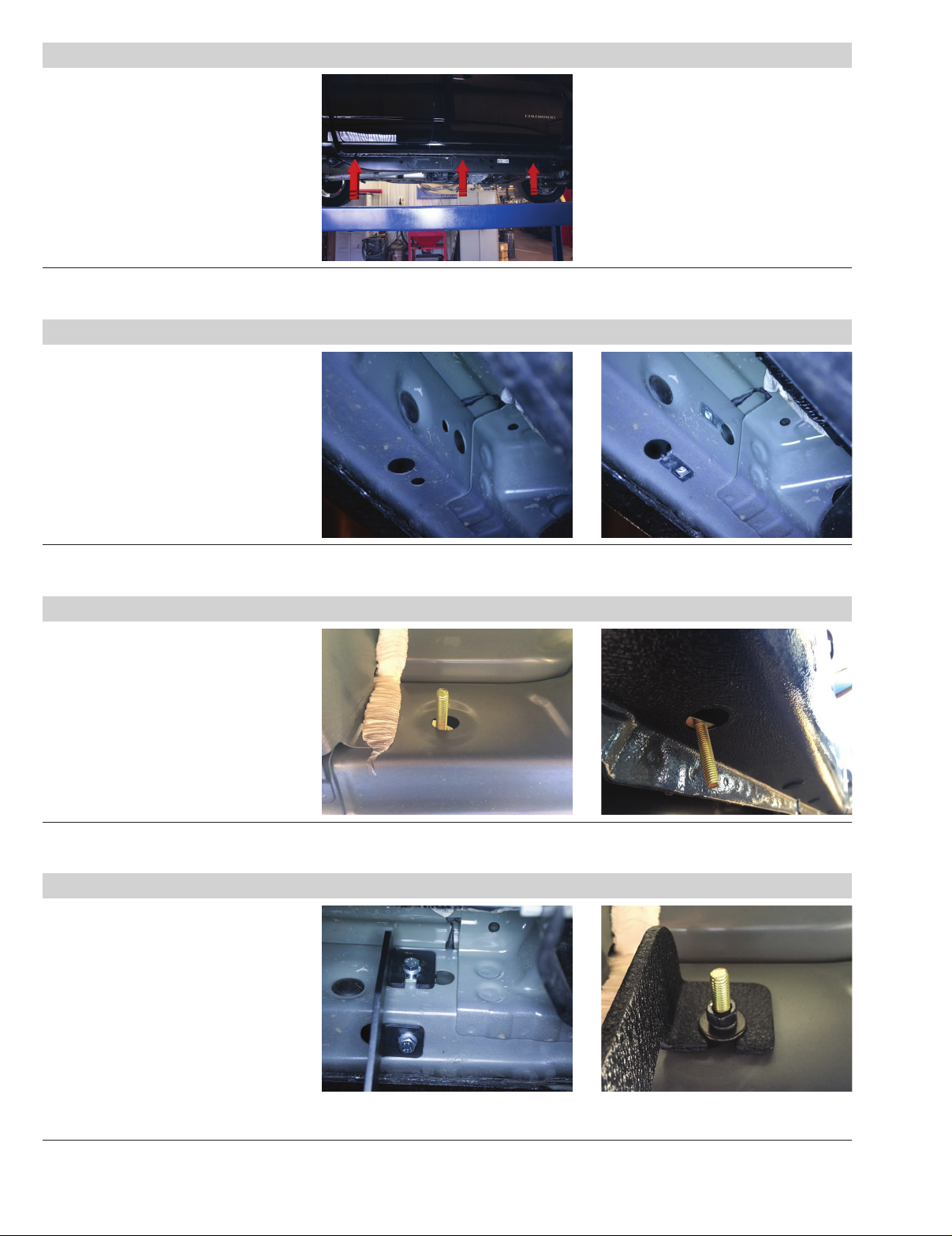

Step 1

Starting on the driver side, locate

the three mounting locations

underneath the vehicle.

Step 2

Remove the two hole plugs.

Insert a clip nut through the access hole

and align it over the adjacent smaller

hole. Insert a second clip nut over the

lower mounting tab.

Repeat this step for the

middle mounting location.

Step 3

Locate and remove the two hole plugs

located along the edge of the vehicle

and on the inner rocker panel.

Insert an M8 bolt into each mounting

hole. Slide a plastic bolt retainer over

the thread of each bolt to hold the bolt

in place.

Step 4

With help, lift the rocker step into

position and align the brackets on

the rocker step with the mounting

points on the vehicle.

Secure the front and middle mounting

brackets with two M8 hex bolts, two

lock washers and two ﬂat washers.

Secure the rear mounting bracket with

two M8 hex nuts, two lock washers

and two ﬂat washers.

Tighten all hardware to the

recommended torque speciﬁcations

listed in the table on the ﬁrst page.

PAGE 3 • 2074106-INS-RB• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

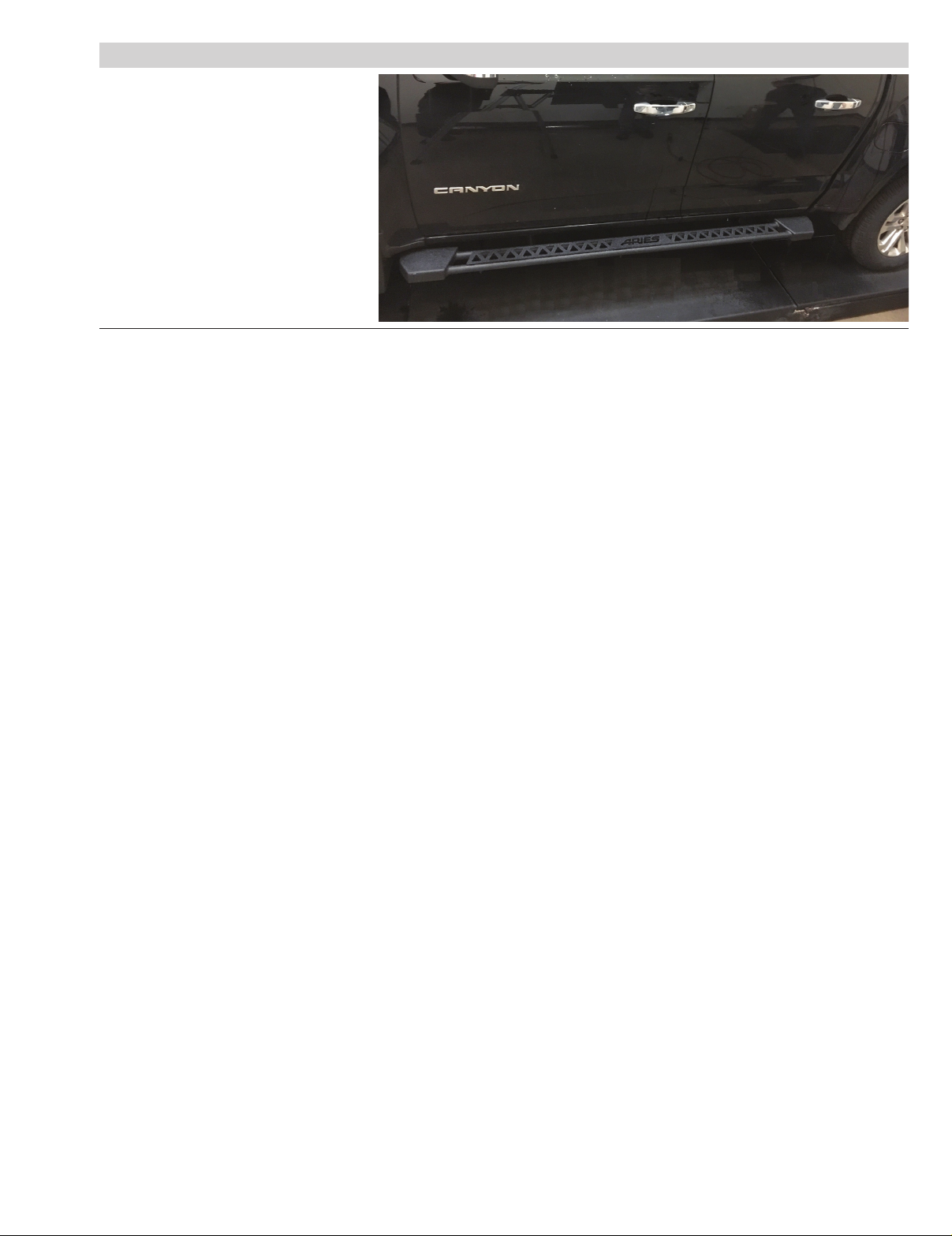

Step 5

Repeat steps 1 through 3 on the

passenger side of the vehicle.

Congratulations on the installation

of your new ARIES rocker steps.

With the rocker steps installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
