Aries 2162000 Bedienungsanleitung

PAGE 1 • 2162000-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Level of Difﬁculty

Easy

Scan

for helpful

install tips

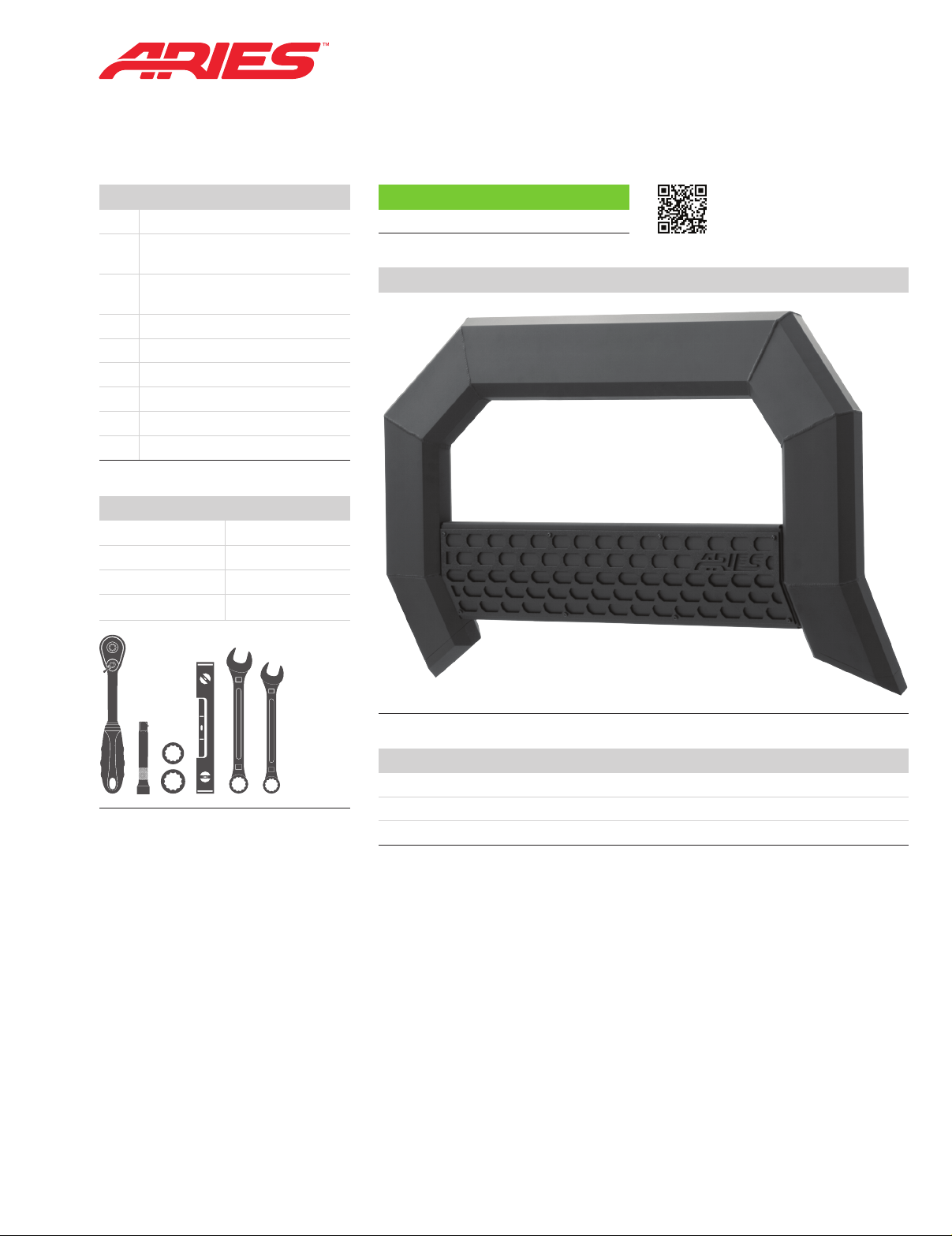

INSTALLATION MANUAL 2162000

Tools Required

Ratchet Extension

Socket, 13mm Socket, 16mm

Wrench, 13mm Wrench, 17m m

Level

Parts List

1 Bull bar

2Driver / left

mounting bracket

2Passenger / left

mounting bracket

6Hex bolt, 8mm

6Flat washer, 8mm

6 Nylock nut, 8mm

4Hex bolt, 10mm

8Flat washer, 10mm

4 Nylock nut, 10mm

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For black ﬁnishes, mild soap may be used to clean the product.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2162000-INS-RA • PAGE 2

Step 1

Starting on the driver side, remove the

two factory hex bolts securing the tow

hooks to the vehicle frame.

Step 2

Attach the driver-side mounting bracket

using the factory bolts previously

removed from the tow hooks.

If you prefer to retain the factory tow

hooks, they may be reinstalled over the

bull bar bracket prior to reinstalling the

factory bolts.

Snug the hardware,

but do not fully tighten.

Step 3

Repeat steps 1 and 2 to attach

the passenger-side mounting bracket.

Step 4

To attach the bull bar mounting brackets,

lay the bull bar on a ﬂat surface.

Insert two 8mm hex bolts in the outside

rail slots and one bolt in the inside slot.

Place the driver-side bracket over the

bolts and secure the bracket to the bull

bar using an 8mm ﬂat washer and 8mm

nylon lock nut.

Snug the hardware,

but do not fully tighten.

PAGE 3 • 2162000-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 5

With help, lift the bull bar into place

and align the mounting tabs on the

outside of the mounting brackets.

Step 6

Insert a 10mm hex bolt with ﬂat washer

on the outside of the bracket and a

10mm ﬂat washer and nylon lock nut

on the inside.

Snug the hardware,

but do not fully tighten.

Repeat this process

for all mounting locations.

Step 7

Level and adjust the bull bar into the

desired position and tighten all hardware.

Step 8

Congratulations on the installation of

your new ARIES AdvantEDGE™bull bar.

With the bull bar installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
