Aries 4520 Bedienungsanleitung

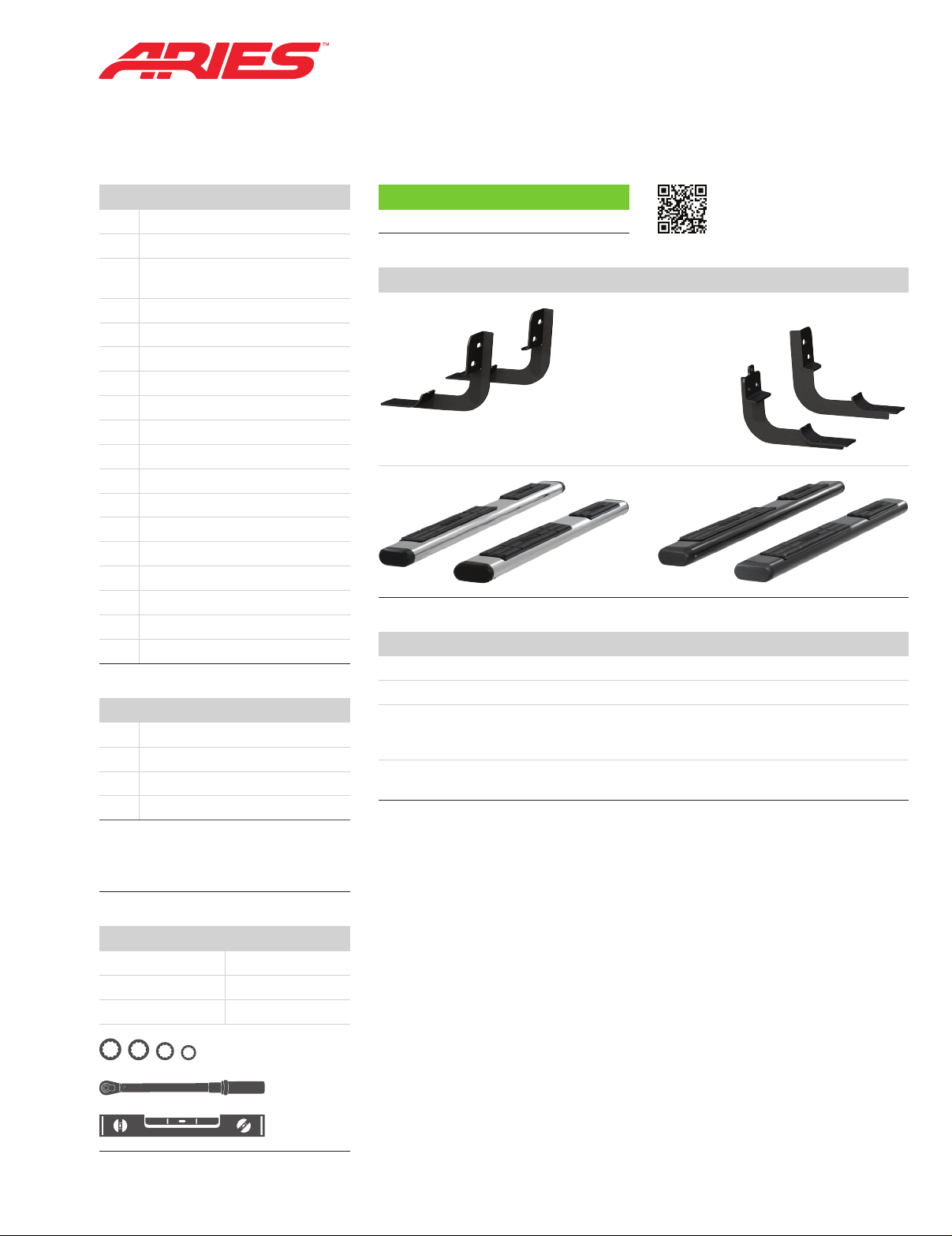

PAGE 1 • 4520-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Level of Difﬁculty

Easy

Scan

for helpful

install tips

INSTALLATION MANUAL 4520

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For stainless steel and aluminum, polish may be used to clear small scratches

and scuffs on the ﬁnish. Mild soap may be used also to clean the product.

Product Image

Front Front

Rear Rear

Tools Required

Torque wrench Level

Socket, 10mm Socket, 16mm

Socket, 13mm Socket, 18mm

Parts List

1Driver / left side bar

1Passenger / right side bar

1Mounting bracket,

driver-side front

3Mounting bracket, universal

4Bolt plate, 6mm

16 Flat washer, 6mm

16 Nylock nut, 6mm

5Hex bolt, 8mm

5Flat washer, 8mm

5Lock washer, 8mm

4Hex bolt, 10mm

4Flat washer, 10mm

4Lock washer, 10mm

4Nut & bolt plate, 12mm

4Flat washer, 12mm

4Lock washer, 12mm

4Hex nut, 12mm

4Plastic bolt retainer, 12mm

Additional Hardware*

16 T-bolt, M8 x 1.25 - 25mm, CL8.8

16 Flat washer, M8

16 Lock washer, M8

16 Hex nut, M8 x 1, CL8.8

* Aluminum side bars are supplied

with additional hardware.

Quantities listed are in addition

to the standard supplied hardware.

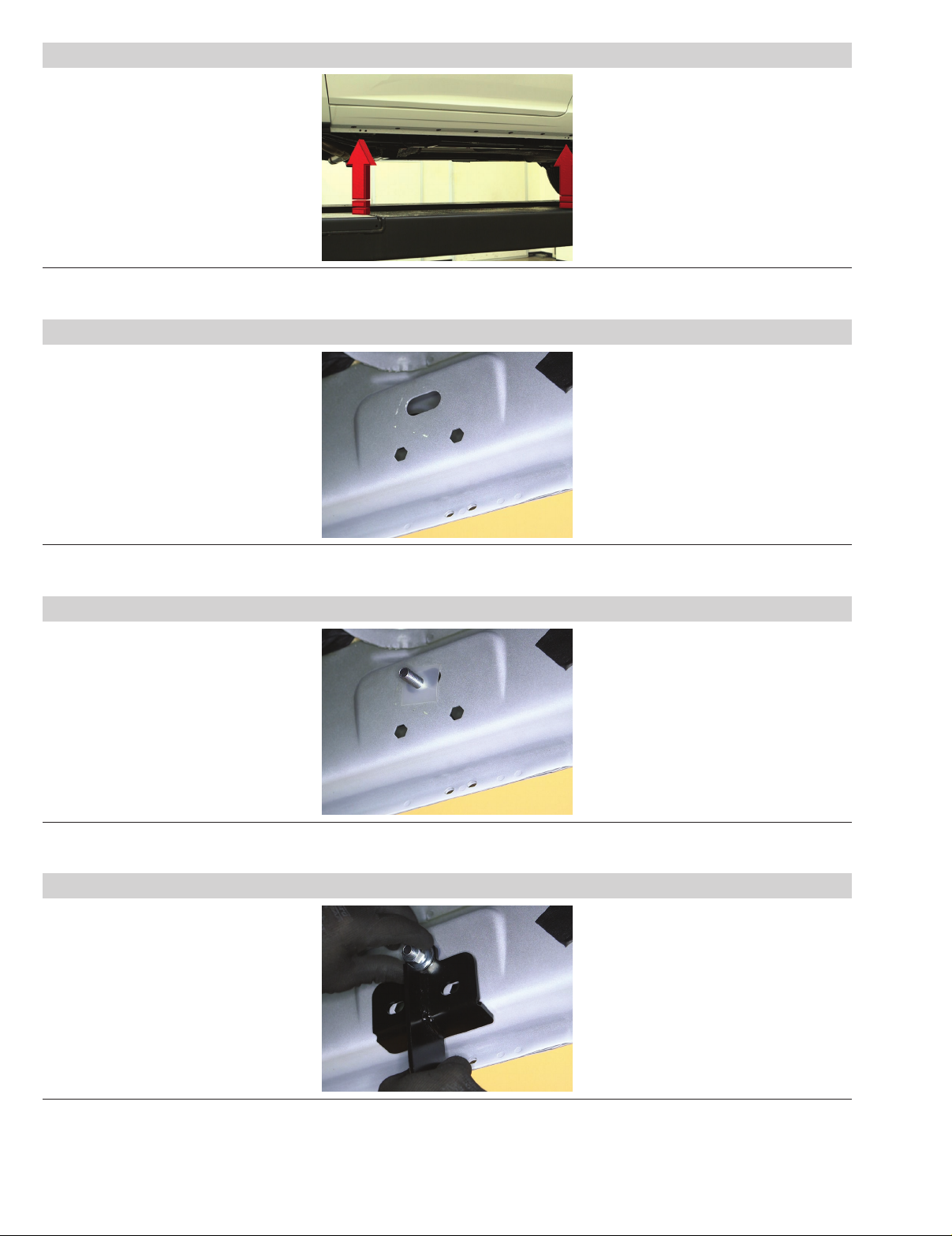

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 4520-RA • PAGE 2

Step 1

Starting on the driver side, locate

the two mounting locations underneath

the vehicle, on the rocker panel.

Step 2

Locate the driver-side front mounting

tab. Remove the factory tape covering

the oval mounting tab on the inner

body panel.

Step 3

Insert a 12mm bolt and nut plate into

the opening. Slide a plastic bolt retainer

over the threads of the bolt to hold the

bolt in place.

Position the bolt plate so the welded

nut is aligned over either of the lower

mounting holes.

Step 4

Place the front driver-side bracket

onto the vehicle and secure with a

12mm ﬂat washer, 12mm lock washer

and 12mm hex nut.

Snug the hardware,

but do not fully tighten.

PAGE 3 • 4520-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 5

Rotate the bolt and nut plate until

the threaded nut lines up with the

mounting location. Secure with a

10mm hex bolt, 10mm lock washer

and 10mm ﬂat washer.

Step 6

Repeat steps 2 through 5 to install

the rear driver-side mounting bracket.

Step 7

Carefully place the side bar

onto the brackets.

Step 8A - For Polished Stainless Steel Side Bars

Insert a bolt plate into the bottom

channels of the side bar as shown.

Slide the bolt plate forward to the

front bracket and insert the studs

through the bracket cradle. Repeat

this for the rear brackets.

Secure the side bar to the brackets using

eight 6mm ﬂat washers and nylock nuts.

Snug the hardware,

but do not fully tighten.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 4520-RA • PAGE 4

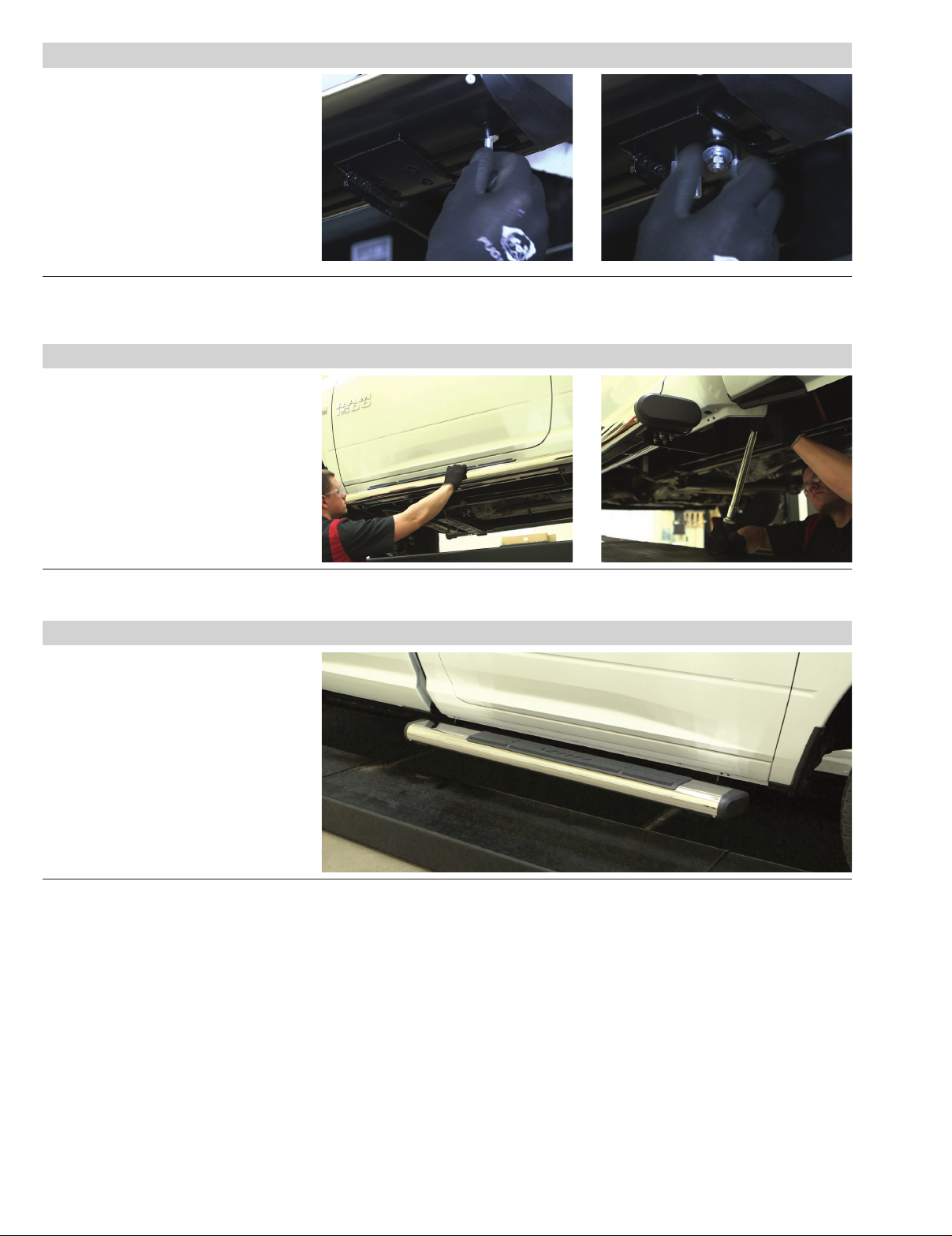

Step 9

Adjust and level the side bar.

With the side bar in position, it is

recommended to tighten all brackets

to the vehicle ﬁrst, followed by the

side bar connections.

Step 10

Repeat steps 1 through 9 on the

passenger side of the vehicle.

Congratulations on the installation

of your new ARIES 6" oval side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.

Step 8B - For Semi-Gloss Black, Aluminum Side Bars

Insert four T-bolts into the bottom

channels of the side bar as shown.

Slide the bolts forward to the front bracket

and insert them through the bracket

cradle. Repeat this for the rear bracket.

Secure the side bar to the brackets using

eight 8mm ﬂat washers, lock washers

and hex nuts.

Snug the hardware,

but do not fully tighten.
