ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •S224054-2-INS-RA •PAGE 1

INSTALLATION MANUAL S224054-2

Parts List

1Driver / left running board

1Passenger / right running board

6Mounting bracket, universal

12 Hex bolt, M8

12 Flat washer, M8

12 Lock washer, M8

12 Hex bolt, M10

12 Flat washer, M10

12 Lock washer, M10

Tools Required

Ratchet Flathead screwdriver

Torque wrench Level

Socket set --

Maintenance

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the finish. Do not use any type of polish or wax

that may contain abrasives that could damage the finish.

For polished, gloss and other smooth finishes,

polish may be used to clear small scratches and scuffs on the finish.

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive

cleaners, abrasive pads, wire brushes or other similar products that may damage the ﬁnish.

Product Photo

Front

Rear

Level of Difﬁculty

Easy

NOTICE

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To help prevent damage to the product or vehicle, refer to the specified

torque specifications when securing hardware during the installation process.

Torque Speciﬁcations

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

Product Registration and Warranty

CURT Group stands behind our products with industry-leading warranties.

Provide feedback and help us to improve our products by registering your purchase at:

warranty.curtgroup.com/surveys

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •S224054-2-INS-RA •PAGE 2

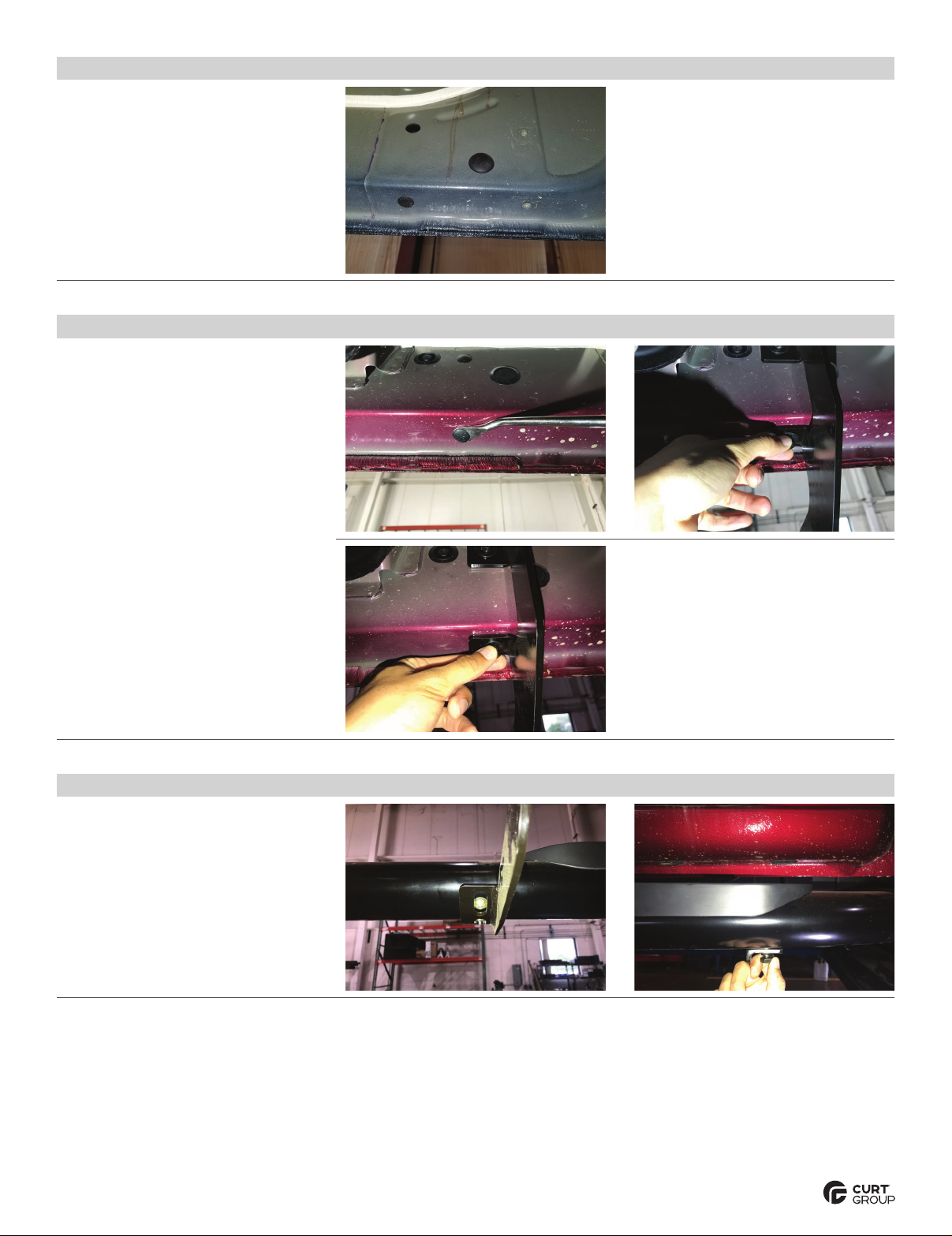

Step 1

Starting on the driver side, locate the six

mounting locations along the inside of the

rocker panel. Each location will have two

threaded holes directly above / below one

another with a plastic cover.

Step 3

Carefully place the side bar onto the

mounting brackets and align all mounting

locations on the bottom of the side bar with

the mounting brackets. Secure the side bar

to the brackets using six M10 hex bolts,

flat washers and lock washers.

Step 2

Remove the plastic covers from the threaded

holes at the front mounting location. Attach the

bracket to the body panel using two M8 hex

bolts, lock washers and flat washers.

Repeat this step for the remaining

two brackets on the driver side.

Snug the hardware,

but do not fully tighten.

Repeat steps 1 through 2

on the passenger side.

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •S224054-2-INS-RA •PAGE 3

Step 4

Congratulations on the installation

of your new ARIES 4" oval side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the 'Notes

and Maintenance' section on page one.
