Aries 2074140 Bedienungsanleitung

PAGE 1 • 2074140-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Level of Difﬁculty

Easy

Parts List

1Driver / left side rocker step

1 Passenger / right side rocker step

12 Flat washer, M8

12 Serrated ﬂange hex nut, M8

Tools Required

Torque wrench Socket, 13mm

Scan

for helpful

install tips

Front

Rear

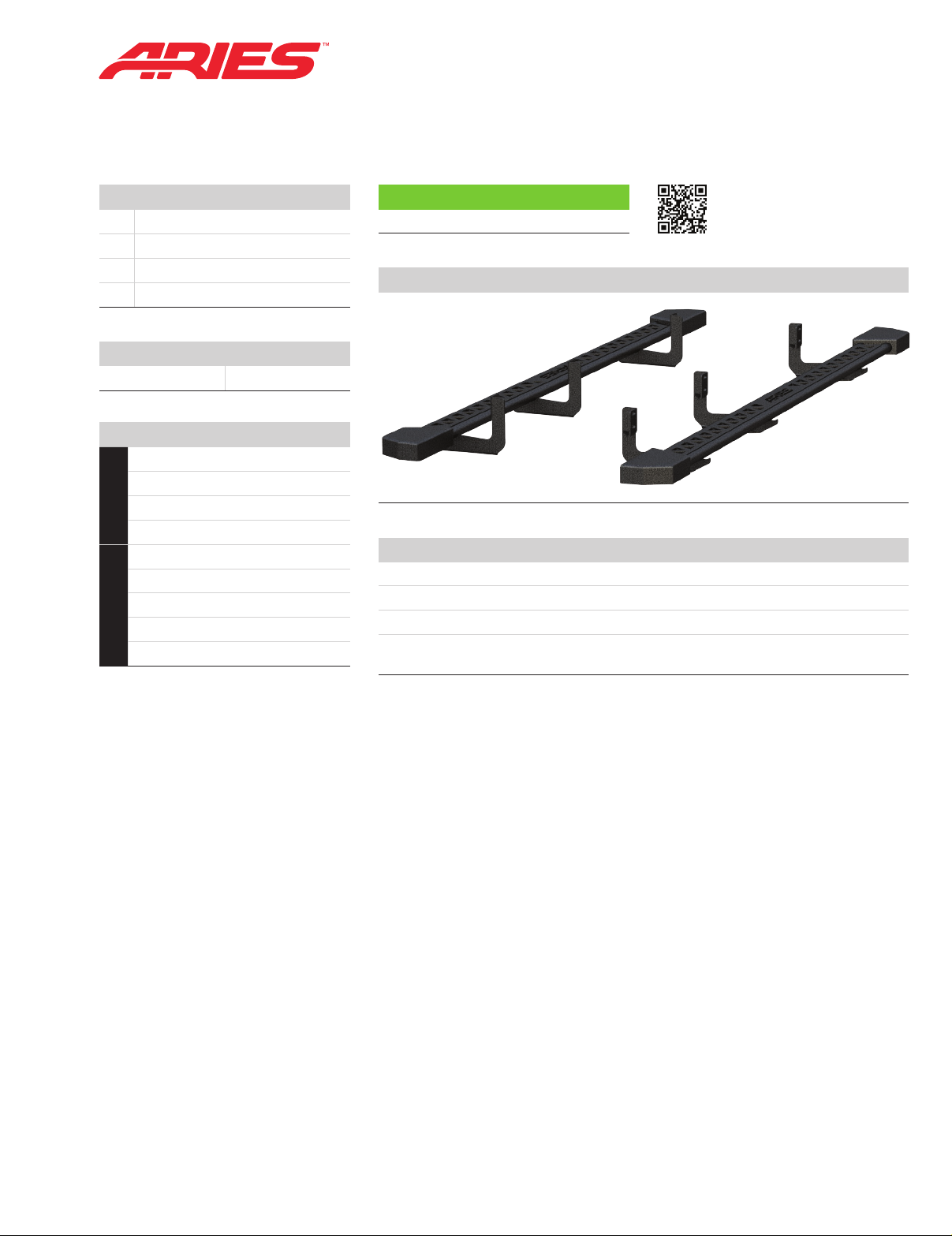

INSTALLATION MANUAL 2074140

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2074140-INS-RA • PAGE 2

Step 1

Locate the three mounting points along

the bottom edge of the vehicle body.

Step 2

Starting on the driver side,

locate the front mounting point.

With help, lift the rocker step up to the

vehicle and secure using two M8 ﬂat

washers and two M8 serrated ﬂange

hex nuts.

Snug the hardware,

but do not fully tighten.

Step 3

Repeat step 2 to secure the middle and

rear mounting brackets to the vehicle.

With the rocker step in position,

tighten all mounting hardware to the

recommended torque speciﬁcations

listed in the table on the ﬁrst page.

Step 4

Repeat steps 1 through 3 on the

passenger side of the vehicle.

Congratulations on the installation

of your new ARIES rocker steps.

With the rocker step installed, periodic

inspections should be performed to

ensure all mounting hardware

remains tight.
