SER0005_6 • 02/2020_

SERVICE MANUAL

Mattress & Seat Systems

CONTENTS

CHAPTER 1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Numbering and Cross-Referencing in this Manual . . . . . . . . . . . . . . . . . . . . . 1

Warnings, Cautions and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Regulatory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electromagnetic Compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Environmental Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Design Policy and Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Mattress Overlay Systems (OL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mattress Replacement Systems (MR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Seating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Rapid Deflation of the Overlay or Mattress Replacement . . . . . . . . . . . . . . . . . . . . 8

CHAPTER 2

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mattress/Seat System Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mattress/Seat System Maintenance Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CHAPTER 3

Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Product Assembly Drawings and Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Removing the Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Zipped Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Studded Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Strapped Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Installing the Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

All Cover Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Zipped Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Studded Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Strapped Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Replacing the Non-Return Valve Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Removing a Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

All Mattress Replacement and Overlay Systems except Alpha Trancell II . . . . . . . . . 39

Alpha Trancell II Mattress Overlay only . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

All Seat Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Installing a Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

All Mattress Replacement and Overlay Systems except Alpha Trancell II . . . . . . . . . 40

Alpha Trancell II Mattress Overlay only . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

All Seat Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Removing a Manifold Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

All Mattress Replacement and Overlay Systems except Alpha Trancell II . . . . . . . . . 41

Alpha Trancell II Mattress Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

All Seat Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installing a Manifold Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

All Mattress Replacement and Overlay Systems except Alpha Trancell II . . . . . . . . . 42

Alpha Trancell II Mattress Overlay only . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

All Seat Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Replacing the CPR/Rapid Deflate End Plug Assembly . . . . . . . . . . . . . . . . . . . . . 43

Removing the Loop Base Sheet Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

All Mattresses (MR and OL) and Seat Systems, except Alpha Trancell II . . . . . . . . . 44

Alpha Trancell II Mattress Overlay only . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Installing the Loop Base Sheet Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

All Mattresses (MR and OL) and Seat Systems, except Alpha Trancell II . . . . . . . . . 44

Alpha Trancell II Mattress Overlay only . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Removing the Foam Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Alpha Active (MR) and Alpha Relief (MR) . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Turbo-Puls (MR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Installing the Foam Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Alpha Active (MR) and Alpha Relief (MR) . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Turbo-Puls (MR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Replacing the Base Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Replacing the Pump Connectors on the end of the Manifold Tubes . . . . . . . . . . . . . . . 46

Replacing the Turn Valves on the AlphaXcell Double Mattress Overlay . . . . . . . . . . . . . 46

Press Stud Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

CHAPTER 4

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Troubleshooting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

CHAPTER 5

Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Pressure and Function Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Test Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

CHAPTER 6

Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

CHAPTER 7

Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Alpha Active Mattress Replacement and Overlay . . . . . . . . . . . . . . . . . . . . . . . . 52

Alpha Relief Mattress Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Alpha Relief 2 Mattress Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Alpha Trancell II Mattress Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Alpha Trancell Deluxe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

AlphaXcell Mattress Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

AlphaXcell Double Mattress Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Turbo-Puls Mattress Replacement and Overlay . . . . . . . . . . . . . . . . . . . . . . . . . 57

ICT18 Mattress Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

ICT/6R Standard Mattress Overlay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Alpha Trancell Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Aura Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Turbo-Puls Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Alpha Trancell Deluxe Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Hand Press Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Mattress and Seat Systems Service Manual Introduction

Page 1

CHAPTER 1

INTRODUCTION

1 About This Manual

Arjo strongly recommend that their equipment is only serviced by trained personnel and provide

courses for customers who wish to become licensed to service their own equipment. In no event

will Arjo be responsible for any service performed by customers or third parties.

This manual contains information on maintenance, servicing, repair, troubleshooting and testing for the

range of pressure relief mattress and seat systems shown in Table 1. The information in this handbook

is limited to the mattresses and seat cushions. The pumps for this range of systems are described in the

appropriate service manual.

Mattress replacements (MR), are a replacement for the normal bed mattress. Overlays (OL) are placed

on top of a normal bed mattress

Read and understand this manual before attempting to service or repair the equipment.

Numbering and Cross-Referencing in this Manual

For all chapters in this manual:

• Chapter page numbering is continuous. Section and paragraph numbering re-start at “1” in each

chapter.

• Figure and table numbering continue from the previous chapter.

Cross-references, which include a chapter number (and/or chapter title) refer to text in a different

chapter. Cross-references which do NOT include any chapter number (or chapter title) refer to text within

the same chapter.

Warnings, Cautions and Notes

WARNINGS given in this manual identify possible hazards in procedures or conditions which, if not

correctly followed, could result in death, injury or other serious adverse reactions.

CAUTIONS given in this manual identify possible hazards in procedures or conditions which, if not

correctly followed, could result in equipment failure or damage.

Notes given in this manual are used to explain or amplify a procedure or condition.

WARNING: BEFORE PERFORMING ANY SERVICE OR MAINTENANCE PROCEDURES,

ENSURE THAT THE EQUIPMENT HAS BEEN ADEQUATELY

DECONTAMINATED.

CAUTION: Do not use hypercarbonate and phenolic based cleaning solutions.

CAUTION: Ensure the system is clean and dry prior to storage.

Note: Store the systems in the protective bags provided.

2 General Description

The mattress replacement, overlays and seat systems identified in Table 1 are designed specifically to

aid in the prevention, treatment and management of pressure ulcers.

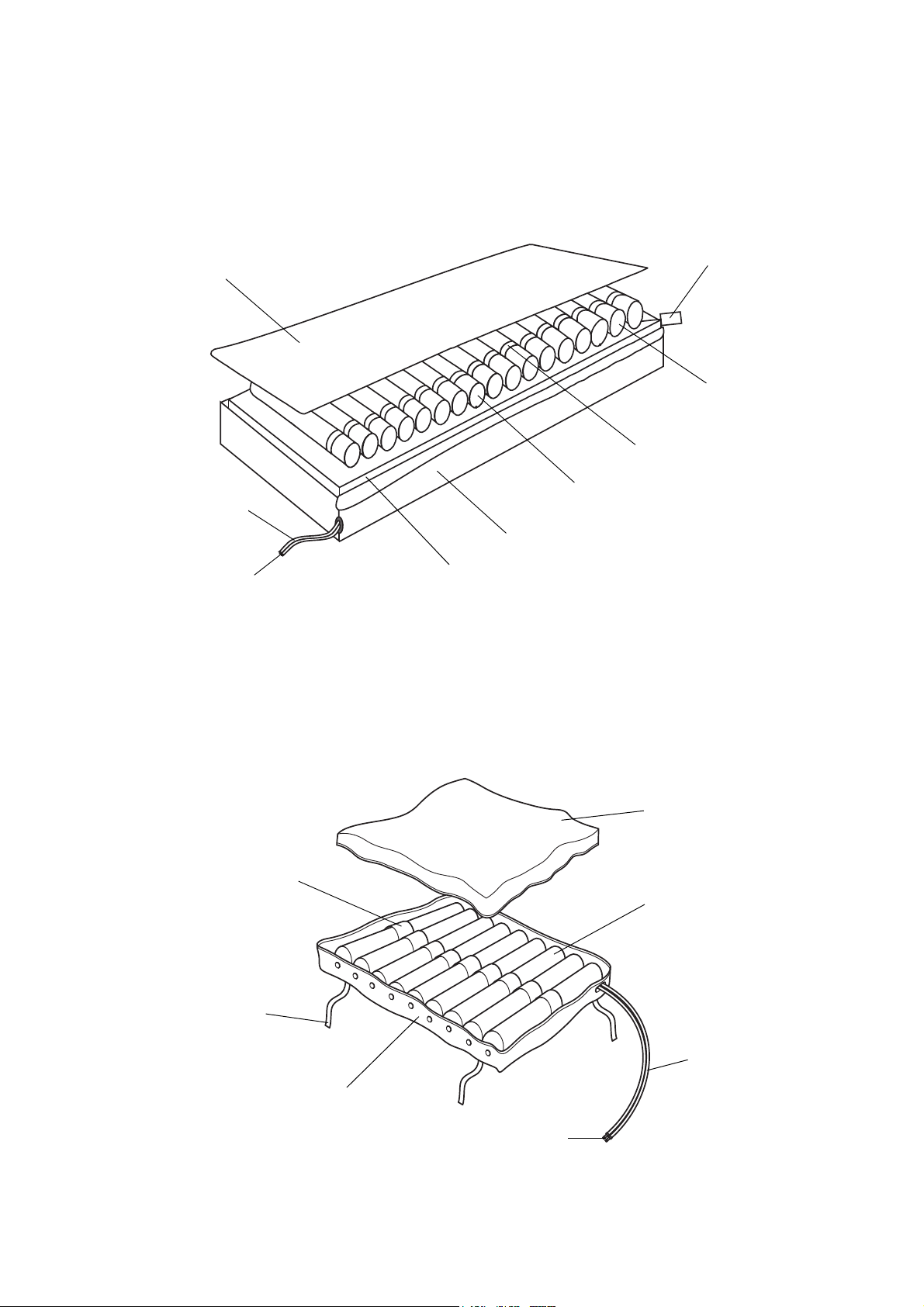

They are air-filled, alternating pressure mattress and seat systems powered by air pumps. Some of the

pumps provide an option of microprocessor aided control and sound alarm functions and have LED

indications on the front panel.

The mattresses can be used on standard hospital and normal domestic beds. The seat cushions can be

used on standard hospital and normal domestic chairs.

Mattress and Seat Systems Service Manual Introduction

Page 2

Table 1 - Mattresses and Seat Pads included in this service manual

Product Type(a) Part Number Figure Number

Alpha Active (Reliant IS2Cover, USA) MR 400001DAR Chap 3, Page 13, Fig 6

Alpha Active (Reliant IS2Cover, German) OL 400002DAR Chap 3, Page 14, Fig 7

Alpha Active (Glide IS2Cover, German) MR 400003ADV Chap 3, Page 13, Fig 6

Alpha Active (Reliant IS2Cover, German) MR 400003DAR Chap 3, Page 13, Fig 6

Alpha Relief (Reliant IS2Cover) MR 402001DAR Chap 3, Page 16, Fig 8

Alpha Relief (Hairnet Cover, USA) MR 402003HN Chap 3, Page 16, Fig 8

Alpha Relief 2 (Reliant IS2Cover) MR 402022DAR Chap 3, Page 18, Fig 9

Alpha Relief 2 (Glide IS2Cover) MR 402022ADV Chap 3, Page 18, Fig 9

Alpha Trancell II OL 401001 Chap 3, Page 20, Fig 10

Alpha Trancell II (German) OL 401002 Chap 3, Page 20, Fig 10

Alpha Trancell II (Ventilated) OL 401003 Chap 3, Page 20, Fig 10

Alpha Trancell II (Without Cover) OL 401007 Chap 3, Page 20, Fig 10

Alpha Trancell Deluxe MR ATD001DAR Chap 3, Page 22, Fig 11

Alpha Trancell Deluxe OL ATD002DAR Chap 3, Page 22, Fig 11

Alpha Trancell Deluxe Seat Seat ATD003DAR Chap 3, Page 36, Fig 21

Alpha Trancell (ICC13) Seat IC004 Chap 3, Page 33, Fig 18

AlphaXcell (Studded Cover, Euro) OL IC087 Chap 3, Page 24, Fig 12

AlphaXcell (Zipped Cover, Euro) OL IC137 Chap 3, Page 24, Fig 12

AlphaXcell (Studded Cover, USA) OL IC076 Chap 3, Page 24, Fig 12

AlphaXcell Double Mattress OL 632001 Chap 3, Page 26, Fig 13

Aura Seat 403001 Chap 3, Page 34, Fig 19

Turbo-Puls (Standard Cover) OL BB27001 Chap 3, Page 28, Fig 15

Turbo-Puls (Luxury Cover) OL BB27004 Chap 3, Page 28, Fig 15

Turbo-Puls (Standard Cover) MR BB27002 Chap 3, Page 28, Fig 15

Turbo-Puls Seat BB27003 Chap 3, Page 35, Fig 20

ICT/6R Standard OL IC001 Chap 3, Page 32, Fig 17

ICT18 (Harada) OL IC044 Chap 3, Page 30, Fig 16

ICT18 (Sanse Do) OL IC109 Chap 3, Page 30, Fig 16

ICT18 (Taiwan) OL IC116 Chap 3, Page 30, Fig 16

ICT18 (Ventilated, Harada) OL IC120 Chap 3, Page 30, Fig 16

a. Mattress Type: MR = Mattress Replacement, OL = Mattress Overlay

Mattress and Seat Systems Service Manual Introduction

Page 3

Regulatory

The mattress replacement, overlays and seat systems identified in Table 1 have been designed to

comply with regulatory safety standards including:

• EN60601-1:1990/A13:1996 and IEC 60601-1:1988/A2:1995

• UL60601-1, UL2601-1 and CAN/CSA C22.2 No. 601.1-M90

• EN60601-1:2006 and IEC 60601-1:2005

• AAMI/ANSI ES60601-1:2006 and CAN/CSA C22.2 No.60601.1(2008)

Precautions

For your own safety and the safety of the equipment, always take the following precautions:

• Do not expose the system to open flames, such as cigarettes, etc.

• Do not use or store the system in direct sunlight.

• Do not use phenol-based solutions to clean the system.

• Make sure the system is clean and dry before use or storage.

Electromagnetic Compatibility (EMC)

This product complies with the requirements of applicable EMC Standards. Medical electrical equipment

needs special precautions regarding EMC and needs to be installed in accordance with the following

instructions:

• The use of accessories not specified by the manufacturer may result in increased emissions by, or

decreased immunity of, the equipment, affecting its performance.

• Portable and mobile radio frequency (RF) communications equipment (e.g. mobile/cell phones) can

affect medical electrical equipment.

• If this equipment needs to be used adjacent to other electrical equipment, normal operation must be

confirmed before use.

Environmental Protection

Incorrect disposal of this equipment and its component parts, particularly batteries or other electrical

components, may produce substances that are hazardous to the environment. To minimise these

hazards, contact Arjo for information on correct disposal.

Mattress and Seat Systems Service Manual Introduction

Page 4

3 Mattress Overlay Systems (OL)

A typical mattress overlay (OL) system is shown in Figure 1. It includes a base sheet, alternating and

static cells (which are individually replaceable), a cover, air inlet tubes (with connectors where

applicable) and a Cardiopulmonary Resuscitation (CPR) pull tag (also referred to as a Rapid Deflate

stopper). The cell configurations are detailed in Table 2.

The AlphaXcell Double Mattress system is a double inflatable mattress overlay, which provides static

pressure to one side and alternating pressure relief to the other side. The static and alternating sides of

the mattress can be set up on either side of the bed depending on customer requirements.

The Trancell system is an exception. The cells for the Alpha Trancell system are not individual

replaceable cells but are a one-piece manufactured item and can only be replaced as a complete item.

Figure 1 - Typical Mattress Overlay (OL) System

Static Cells (Head Section)

Cardiopulmonary Resuscitation (CPR) Pull Tag

Cover

Tube Connections

Air Inlet Tubes

Strap

Base Sheet

Alternating Cells

Cell Loops Setting-up Instructions

Securing Apron

Mattress and Seat Systems Service Manual Introduction

Page 5

4 Mattress Replacement Systems (MR)

A typical mattress replacement (MR) system is shown in Figure 2. The MR systems are basically the

same configuration as the OL systems with the addition of a foam base which replaces the normal bed

mattress. The foam base provides a safety and transport function should the air supply fail or the

alternating cells deflate. The cell configurations are detailed in Table 2.

Figure 2 - Typical Mattress Replacement (MR) System

5 Seating Systems

A typical seating system is shown in Figure 3. The seat includes a base sheet, alternating cells, a cover

and air inlet tubes (with connectors where applicable).The cell configurations are detailed in Table 2.

Figure 3 - Typical Seating System

Static Cells

Cardiopulmonary

Cover

Tube Connections

Air Inlet Tubes

Base Cover

Alternating Cells

Cell Loops

Resuscitation

(CPR) Pull Tag

Foam Base

(Head Section)

Cover

Tube Connections

Air Inlet Tubes

Straps

Base Sheet

Alternating Cells

Cell Loops

Mattress and Seat Systems Service Manual Introduction

Page 6

Table 2 - Static and Alternating Cell Configurations

Product

Mattress

Type(a)

a. Mattress Type: MR = Mattress Replacement, OL = Mattress Overlay

Total Number

of Cells

Alternating

Cells Static Cells

Alpha Active MR 17(b)

b. The Alpha Active system has 8 ventilated cells and 9 non-ventilated cells.

14 3

Alpha Active (German) OL 17(b) 14 3

Alpha Relief MR 17 17 0

Alpha Trancell II OL 16 14 2

Alpha Trancell II (Ventilated) OL 16 14 2

Alpha Trancell II (Without Cover) OL 16 14 2

Alpha Trancell (ICC13) Seat 9 9 0

Alpha Trancell Deluxe MR 20 20 0

Alpha Trancell Deluxe OL 20 20 0

Alpha Trancell Deluxe Seat Seat 9 9 0

AlphaXcell (Studded/Zipped Cover) OL 20 17 3

AlphaXcell Double Mattress OL 20 + 20(c)

c. The AlphaXcell Double Mattress has 20 cells on each side. On one side 17 cells are

alternating and 3 are static, and on the other side all 20 cells are static.

17 + 0(c) 3 + 20(c)

Aura Seat 9 9 0

Turbo-Puls OL 20 20 0

Turbo-Puls MR 20 20 0

Turbo-Puls Seat 9 9 0

ICT/6R Standard OL 20 20 0

ICT18 OL 18 15 3

ICT18 (Ventilated, Harada) OL 18 15 3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Arjo Medizinische Geräte Handbücher

Arjo

Arjo Assembly instructions Bedienungsanleitung

Arjo

Arjo Flowtron ACS900 Bedienungsanleitung

Arjo

Arjo CARENDO Bedienungsanleitung

Arjo

Arjo MAXI MOVE Bedienungsanleitung

Arjo

Arjo Flowtron ACS900 Bedienungsanleitung

Arjo

Arjo Miranti Bedienungsanleitung

Arjo

Arjo Huntleigh Sonicaid Team3 USA Bedienungsanleitung

Arjo

Arjo Prioma Semi Electric Couch Series Bedienungsanleitung

Arjo

Arjo Maxi Sky 1000 Bedienungsanleitung

Arjo

Arjo MLAAS2000 Bedienungsanleitung

Arjo

Arjo Dual-Loop Attachment Straps Bedienungsanleitung

Arjo

Arjo MAA1150 Bedienungsanleitung

Arjo

Arjo Bolero Bedienungsanleitung

Arjo

Arjo First Spet Select Bedienungsanleitung

Arjo

Arjo Lifeguard LG20 Bedienungsanleitung

Arjo

Arjo Tornado Bedienungsanleitung

Arjo

Arjo Maxi Twin Bedienungsanleitung

Arjo

Arjo Sara 3000 Bedienungsanleitung

Arjo

Arjo Auralis Bedienungsanleitung

Arjo

Arjo 2000 Rhapsody Bedienungsanleitung

Arjo

Arjo Typhoon Bedienungsanleitung

Arjo

Arjo Maxi Sky 2 PLUS Bedienungsanleitung

Arjo

Arjo Huntleigh Hydroven 12 LymphAssist... Bedienungsanleitung

Arjo

Arjo Lifeguard LG55 Bedienungsanleitung

Beliebte Medizinische Geräte Handbücher anderer Marken

TekTone

TekTone Tek-CARE160 Bedienungsanleitung

NeuroMetrix

NeuroMetrix Quell 2.0 Bedienungsanleitung

AMT

AMT XLR8 Bedienungsanleitung

Medipost-Nutristoma

Medipost-Nutristoma MD300K2 Bedienungsanleitung

EDAN

EDAN SONOTRAX Pro Bedienungsanleitung

Restorative Therapies

Restorative Therapies RT300 Bedienungsanleitung

Gendex

Gendex Expert DC Bedienungsanleitung

Dexcowin

Dexcowin ADX4000W Bedienungsanleitung

Libelium

Libelium MySignals Bedienungsanleitung

Acelity

Acelity V.A.C.ULTA 4 Bedienungsanleitung

Caputron

Caputron ActivaDose II tDCS Bedienungsanleitung

FujiFilm

FujiFilm Sonart Betriebsanleitung

Plinth 2000

Plinth 2000 93CDT Bedienungsanleitung

GE SENOGRAPHE 800T Bedienungsanleitung

GE Definium 5000 Bedienungsanleitung

Kanmed

Kanmed GE-1380 Bedienungsanleitung

Huntleigh

Huntleigh FD1 Bedienungsanleitung

Stryker

Stryker SPR Plus Bedienungsanleitung
