Arrow OLIVIA 1004 Bedienungsanleitung

OLIVIA

SEWING CABINET

OWNER’S MANUAL

Where Creativity Meets Color!

Assembly Instructions

IMPORTANT: Please read these instructions before assembling!

Model Numbers:

1001 White

1004 Pistachio Green

1009 Blue

Thank you for your purchase of an Arrow Sewing Cabinet!

Thank you for your purchase! Our products have a three-year warranty from the

date of shipment from our facility that covers manufacturer defects plus a 15 day

warranty for any shipping damages.

--get a bonus 1 year of warranty!

The warranty covers parts and freight for the rst year and parts only for any claims

after the rst year. Freight after the rst year of ownership will be the responsibility of

the customer.

The warranty covers all manufacturer defects but does not cover damage caused by

abuse, mis-use, alteration, poor assembly, accident or neglect of the product. The

warranty does not cover damage as a result of moving the cabinet fully loaded or

damage caused by moving the cabinet with locked casters.

Under the terms of this warranty the repair and replacement of any parts shall be at

the discretion of the company or their designated representatives.

Replacement Part Shipping Policy:

All replacement parts shipping prepaid freight must ship out at the same time.

Please help us in this endeavor by reviewing ALL parts in ALL boxes for damage

before calling or e-mailing us to report damage. Warranty covers shipping cost of

replacement parts 1 time only within the rst year of ownership. Additional warranty

parts requests will be shipped at the customer’s expense.

VISIT WWW.ARROWCABINETS.COM FOR ASSEMBLY VIDEOS, PICTURES AND

FREQUENTLY ASKED QUESTIONS.

If you have any questions, please call or email us at:

1-800-533-7347

cs@arrowcabinets.com

Check out our website for pictures and frequently asked questions at:

www.arrowcabinets.com

READ THIS PAGE FIRST

ARROW WARRANTY

Assembly InstructionsOLIVIA Sewing Cabinet Page 1

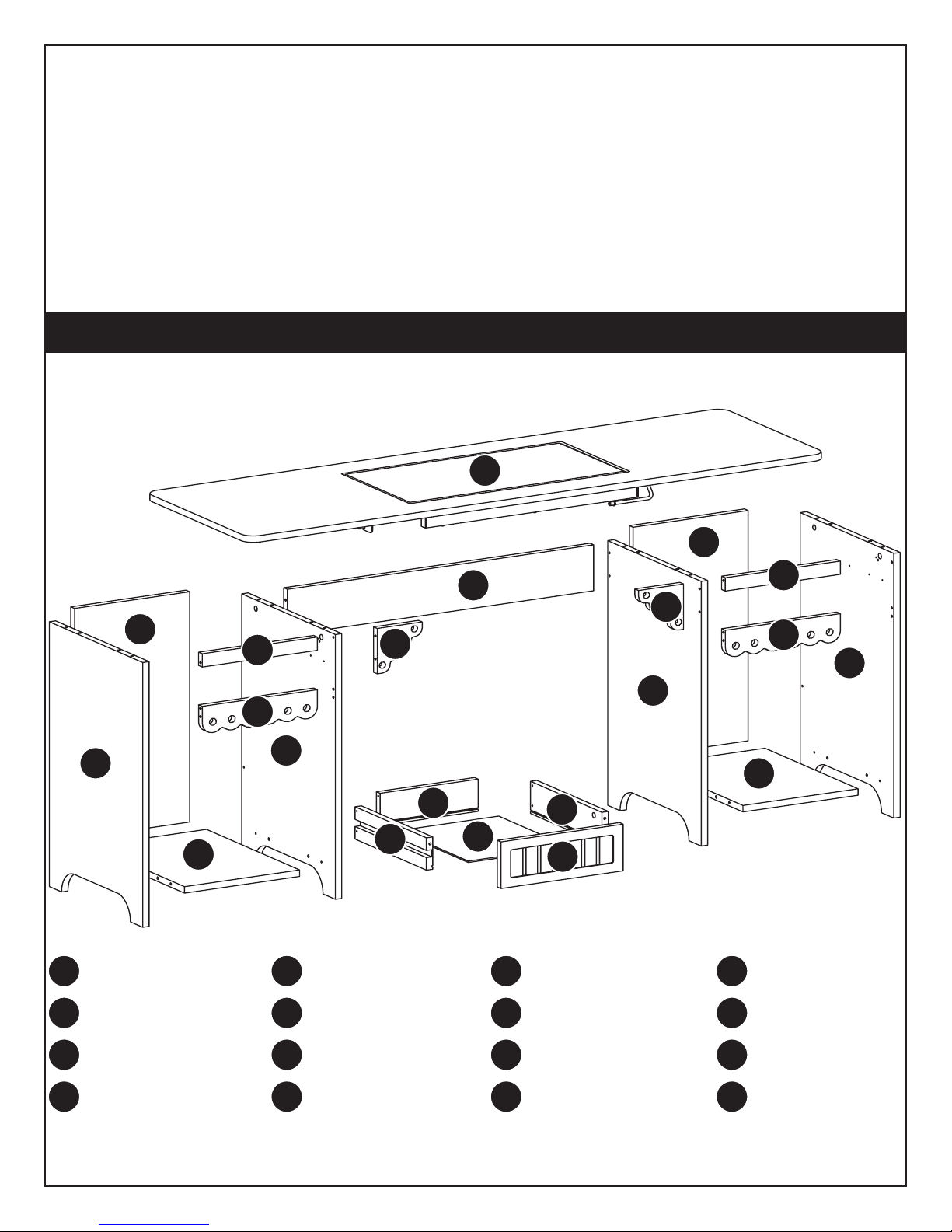

Cabinet Connector Panel Straight Gingerbread

Piece x2

Cabinet Right Inside

Panel

Cabinet Right Outside

Panel

Drawer Back x2

Drawer Side Left x2

Drawer Side Right x2

Cabinet Side Connector x2

Cabinet Left Outide Panel

Cabinet Left Inside Panel

Gingerbread Piece

(right and left version)

Cabinet Bottom Panel x2

Cabinet Back Panel x2

Drawer Front x2

Drawer Bottom x2

If any of these parts arrived damaged, please call us at

1-800-533-7347 and we will send a replacement part out.

For additional strength dab wood glue on tip of screws

before attaching.

Table Top with Sewing

Machine Brace Assembly

NOTE: To assure proper handling of replacement parts

please include the following information:

• Model Number of Unit - 1001 (Crisp White)

1004 (Pistachio)

1009 (Blue)

• Production ID Number

• Number of Part Required

• Your Name, Address, and Phone Number

Notice to Customer:

Before beginning assembly, remove all parts from

the carton. Please review the illustrations below to

determine that all parts are Included.

For assembly or operating assistance, or to report any

missing or damaged parts, you may call or write to:

cs@arrowcabinets.com

1-800-533-7347

Arrow Cabinets

P.O. Box 307, Delavan, WI 53115

TO ORDER REPLACEMENT PARTS CALL

1-800-533-7347

Parts are labeled with capital letters. To reference letters,

turn to the Wood Parts List in the back of your manual.

Wooden Materials

Assembly InstructionsOLIVIA Sewing Cabinet Page 2

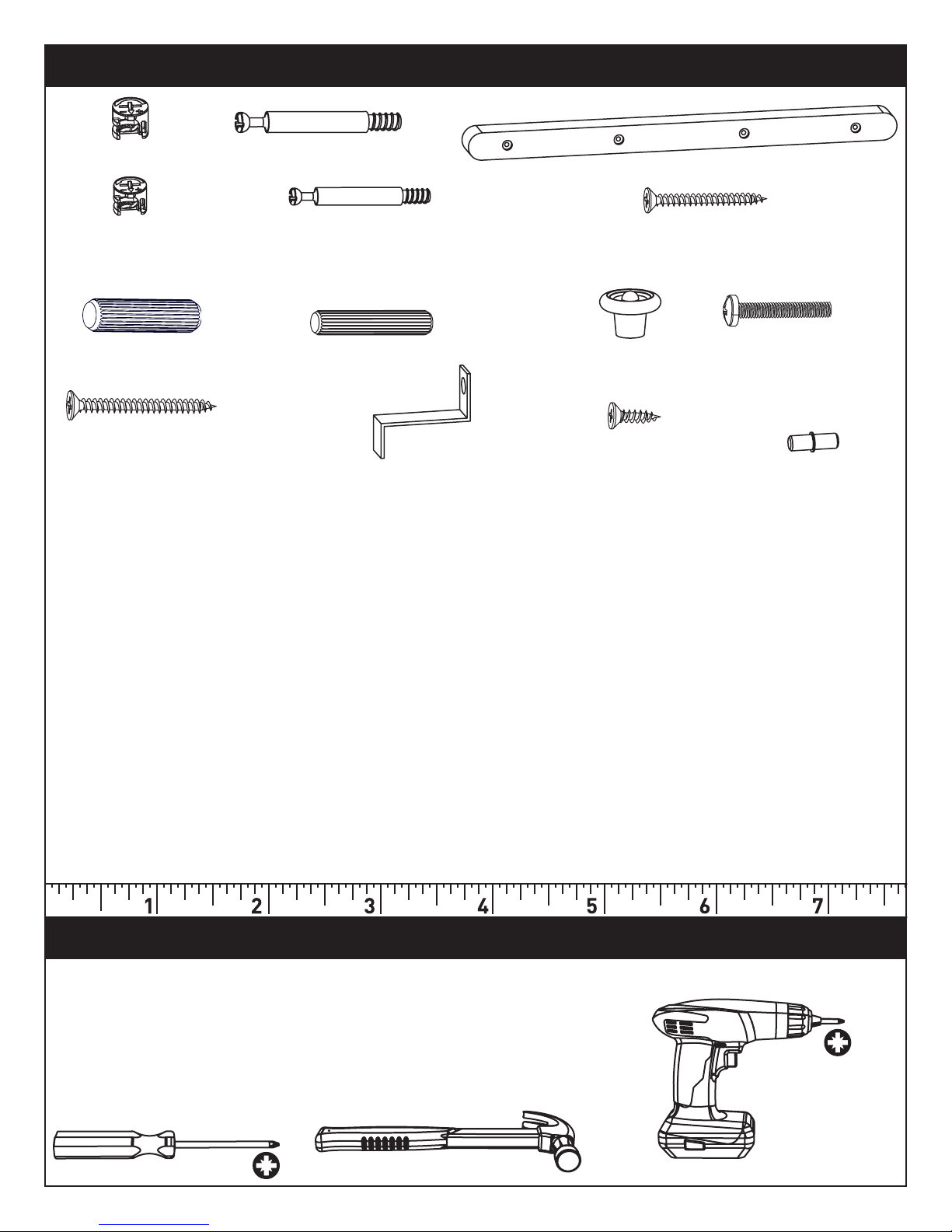

Hardware Included

Tools required

Drawer Stoppers x2

Door Knob x2

Metal Dowels x2

#7x5/8”

Flathead Screws x2

#10x1-3/8”

Door Knob Bolt x2

Connecting Bolts x32

Cams x32 Drawer Runners x4

#6x1”

Flathead Screw x16

#10x1-1/4”

Flathead Screw x8

Wood dowel 8x30mm x16 Wood dowel 6x30mm x16

Note: Screws are included in the bag of parts they

will be used with.

*Items not drawn to scale.

Phillips Screwdriver Hammer Electric screwdriver

Drawer Cams x4 Drawer Connecting Bolts x4

180°

Assembly InstructionsOLIVIA Sewing Cabinet Page 3

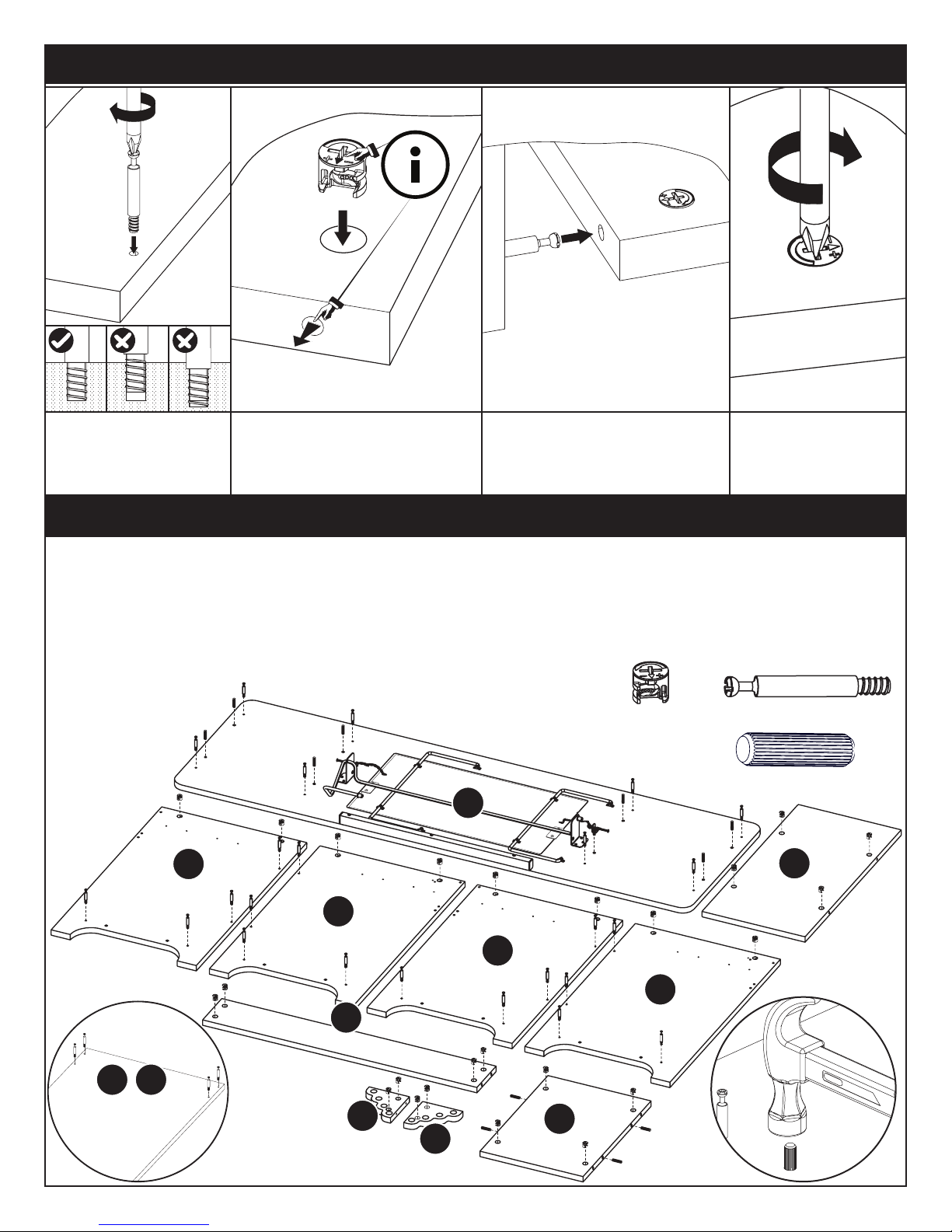

Understanding How the “ARROW-LOC” Cam Fastener Works

Cabinet Assembly

Position bolt in

pre-drilled hole and

turn until tight.

Press cam Into pre-drilled

hole until flush with surface.

Insert bolt through pre-drilled

hole in edge of panel.

To lock, rotate cam

until tight, using a

screwdriver.

ARROW TOWARDS

HOLE IN EDGE!

FIG. 1.

Step 1. Place all wood panels and pieces on a flat

working area. Insert Cams (x32) and Connecting

Bolts (x32) into the wood panels* (As shown in FIG.

1). Insert 8x30mm Wood Dowels (x16) into Dowel

holes on Panel (A) and on side edges of panels (E).

*4 Connecting bolts on back of Left Inside Panel (D)

and Right Inside Panel (L) (As shown in FIG. 1A).

Note: For added support, drop 2 to 3 drop of wood

glue in each dowel hole before inserting wood dowels.

Allow several minutes to dry.

Connecting Bolts x32

Cams x32

Wood dowel 8x30mm x16

Back side

FIG. 1A.

Metal Dowels x2

180°

Assembly InstructionsOLIVIA Sewing Cabinet Page 4

*DO NOT OVERTIGHTEN #6x1”

Flathead Screws. Make sure

the screw heads are flush with

plastic.

#6x1”

Flathead Screw x16

FIG. 2.

FIG. 2B.

FIG. 3.

#7x5/8”

Flathead Screws x2

Step 3. Lay Outside Side Panels (C, M) on a flat

surface with Cams facing up. Attach Back Panel

(F) to Panels (C, M) with Cams facing toward the

edge of (C, M), guide the Connecting Bolts into

holes on side edge of Panel (F) (As shown in FIG.

3). Tighten Cams (x4).

Note: Panels (C, M) has no Connecting Bolts on

the reverse side.

Step 2. Attach drawer runner (x1) each to Cabinet

Side Panels (C), (D), (L) and (M) using #6x1”

Flathead Screws* (x16) (See FIG 2). Screw Drawer

Stops (x2) into Right Side Panels (D) and (M) above

drawer runner using #7x5/8” Flathead screws

(x2). DO NOT tighten the screws completely, leave

1/4” for up and down swivel of the drawer runner

(See FIG. 2B). Insert Metal Dowels (x2) into pre-

drilled hole next to drawer stop.

180°

Assembly InstructionsOLIVIA Sewing Cabinet Page 5

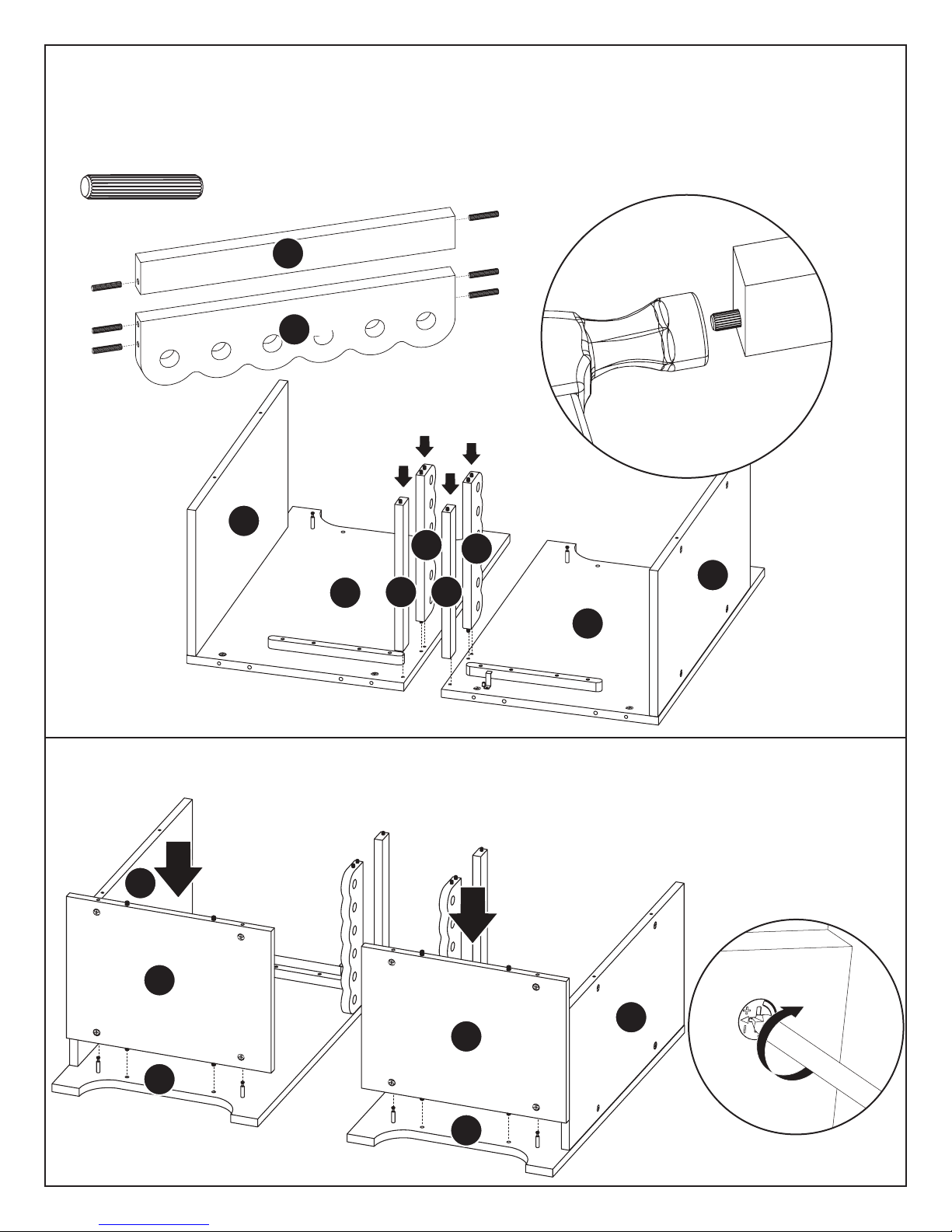

Step 4. Insert 6x30mm Wood Dowels (x8) into each

Straight Gingerbread Piece (J) and 6x30mm Wood

Dowels (x4) into each Cabinet Side Connector (K)

(See FIG 4A). With the smooth edge facing the legs

on Panels (C, M), guide Connector Piece (K) into

Step 5. With Cams facing the legs of Panels (C,

M), attach Bottom Panel (E) to Panels (C, M), guide

FIG. 4A.

FIG. 4.

the Connecting Bolts Into the holes on the edge of

Panel (E) (As shown in FIG. 5). Tighten Cams (x4).

FIG. 5.

Panels (C, M). With the curved edge facing the legs on

Panels (C, M), guide Straight Gingerbread Piece (J) into

Panels (C, M) (As shown in FIG. 4).

Note: For added support, drop 2 to 3 drop of wood

glue in each dowel hole before inserting wood dowels.

Allow several minutes to dry.

Wood dowel 6x30mm x12

180°

Assembly InstructionsOLIVIA Sewing Cabinet Page 6

Step 6. Using two people attach Inside Side

Panels (D, L), with Cams facing down, guiding the

connecting bolts into the holes on the edges of

Step 7. Attach Gingerbread piece (right and left

version) (I) to Left and Right Inside Panels (D, L) with

FIG. 6.

FIG. 7.

Cams facing backward and rounded edges facing

down (As shown in FIG. 7). Tighten the Cams (x4).

Panel (E) and (F). Also guide the dowels of (K) and

(J) into the dowel holes on Panels (D, L) (As shown

in FIG. 6). Tighten the Cams (x8).

180°

Assembly InstructionsOLIVIA Sewing Cabinet Page 7

Step 8. With the Cams facing back attach Cabinet

Connector Panel (B) to Side Panels (D) and (L),

guiding the connecting bolts Into the holes on the

Step 9. With two people attach Table Top (A) to the

top of the Cabinets. The handle lever should be on

the right side and facing down when attaching.

FIG. 8.

FIG. 9.

edge of (B) (As shown in FIG. 8) and tightening the

Cams (x4).

180°

Guide Connecting bolts and Wood Dowels into

holes on top edge of cabinets (As shown in FIG. 9).

Tighten all 8 Cams.

180°

Assembly InstructionsOLIVIA Sewing Cabinet Page 8

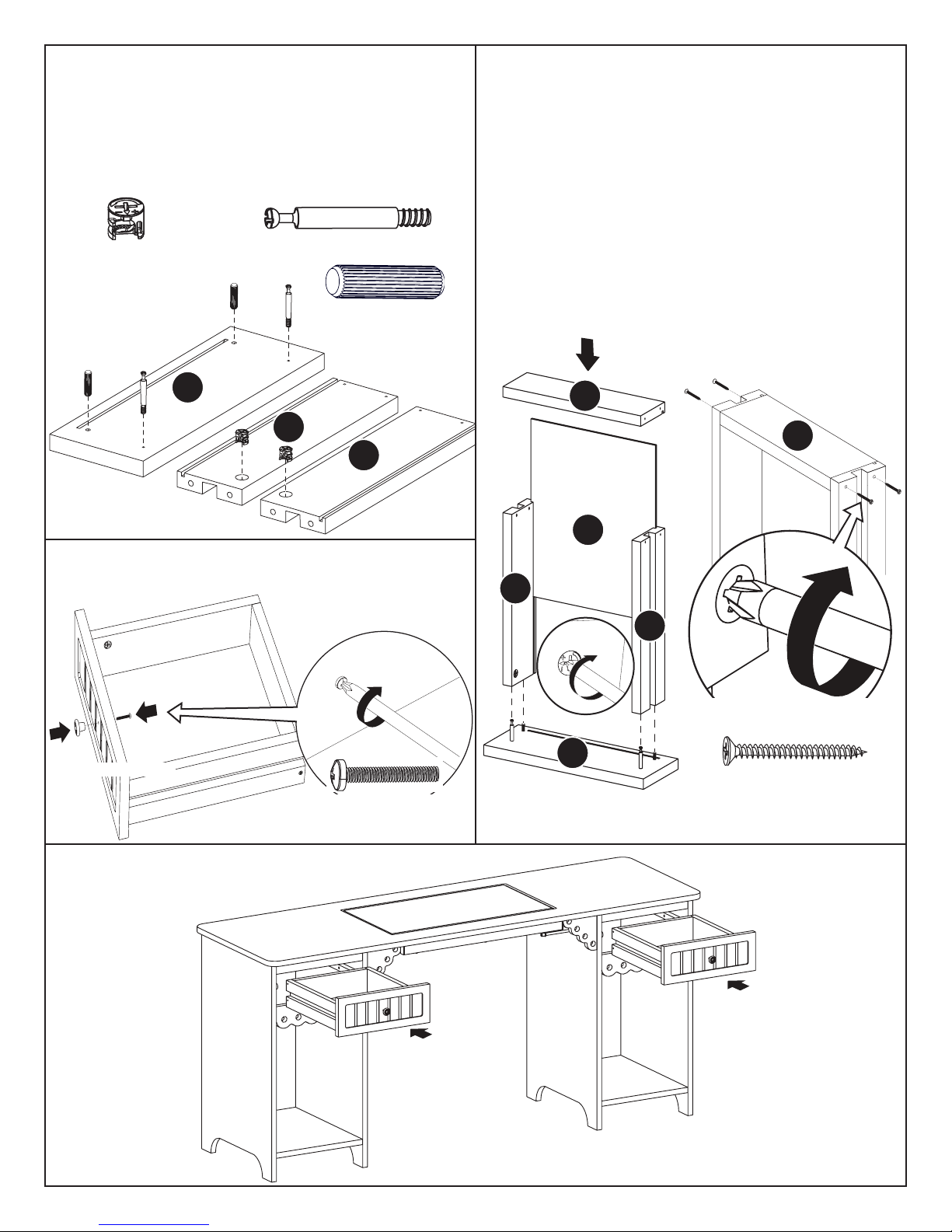

Step 10. Thread Drawer Connecting Bolts (4 total)

into pre-drilled holes and in Drawer Front (G).

Insert 6x30mm Wood Dowels (x4) into each Drawer

Front (G). Install Drawer Cams (4 total) in Drawer

side (Ox1, Px1) by pushing a Cam into each hole

flush with surface (as shown in FIG. 10).

Step 12. Attach the Knob to the Drawer Front (Gx2)

using 8/32x1” Bolt (x2) for Knob (as shown in FIG. 12).

Step 11. Attach Drawer Sides (O,Px2) to Drawer

Front (Gx2), guide Connecting Bolts into holes in

Drawer Sides (O, P), turn Cams to locked position.

Align Drawer Bottom (Hx2) grooves in Sides with

Drawer Bottom groove In Drawer Front (as shown in

FIG. 11).

Slide Drawer Bottom (Hx2) along grooves on the

Sides Into the Groove In Drawer Front (Gx2).

Attach Drawer Back (Nx2) to Drawer Sides (O,Px2)

with the #10x1-1/2” Flathead Screw (x8) (as shown

in FIG. 11A).

FIG. 10.

The Drawers may now be insatalled into your cabinet.

Drawer Connecting Bolts x4

Drawer Cams x4

#10x1-3/8”

Door Knob Bolt x2

FIG. 12.

Door Knob x2

FIG. 11A.

FIG. 11.

#10x1-1/4”

Flathead Screw x8

Wood dowel

6x30mm x4

180°
