Assembly Instructions

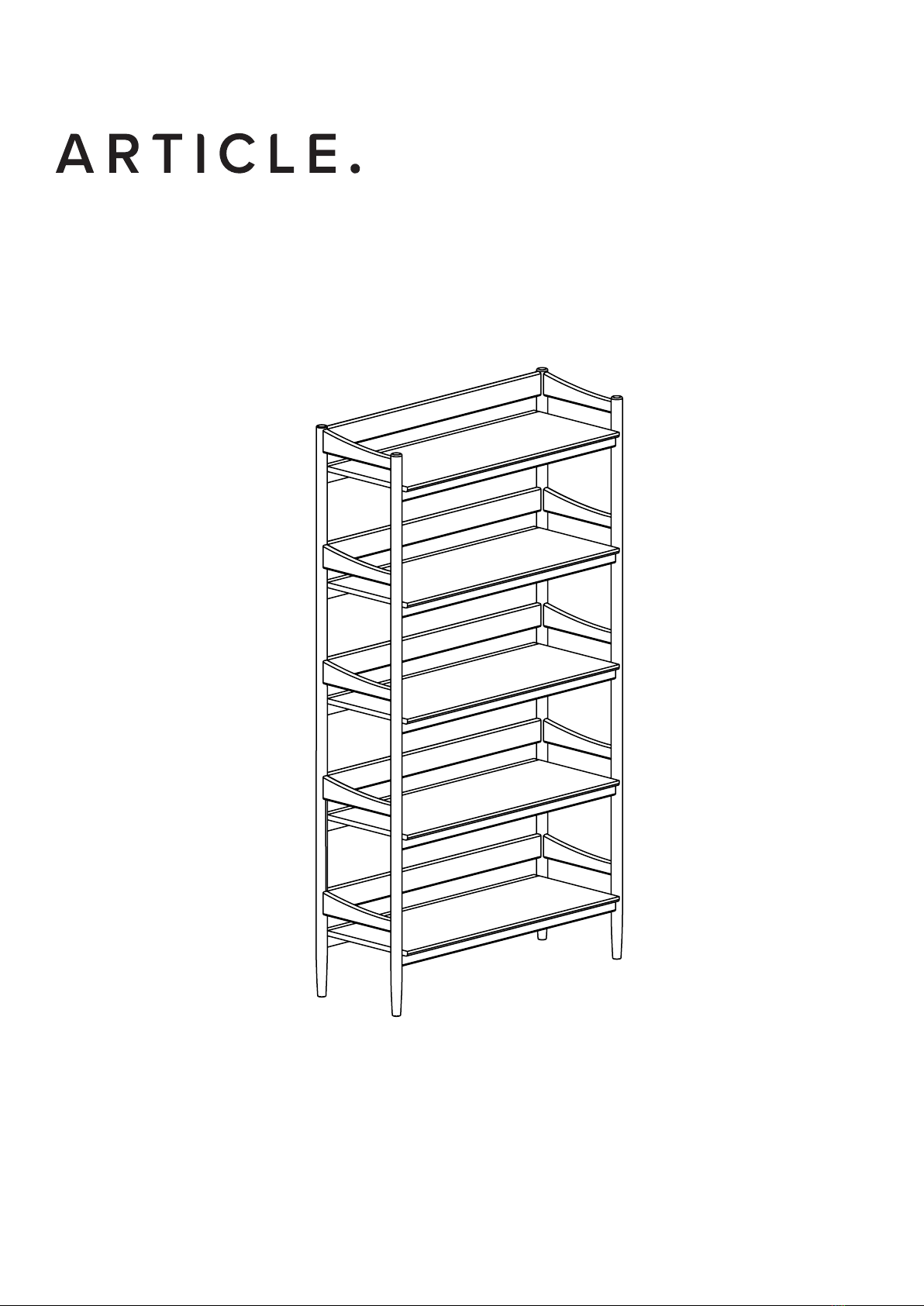

COTU

Bookcase

VERSION 1.0

Page 2 of 9

COTU Bookcase

WARNING!

ANTI-TIP RESTRAINT INSTALLATION

Serious or fatal crushing injuries can occur from furniture

tip-over. To help prevent tip-over:

• Install tip-over restraint provided.

• Do not set heavy objects on top of this product,

unless the product is speciﬁcally designed to

accomodate them.

• Never allow children to climb or hang on mirrors,

shelves, consoles, or cabinets with doors and/or

drawers.

Use of tip-over restraints may only reduce but not

eliminate, the risk of tip-over.

20 min

3

TIME

REQUIRED TOOLREQUIRED TOOL

# OF PEOPLE DIFFICULTY

PARTS INVENTORY

ID DESCRIPTION QTY

LEG FRAME LEFT 1

LEG FRAME RIGHT 1

SHELF FRAME 5

REAR SUPPORT BAR 5

ANCHOR 30

LOCK NUT 30

ALLEN KEY 1

SCREW 30

PARTS INVENTORY CONT.

ID DESCRIPTION QTY

BRACKET 4

M4 ×20MM SCREW 4

M8 ×51MM PLUG 4

M6 ×70MM SCREW 4

STRAP 2

Hardware (K/L) to attach brackets to wall is

designed for drywall. To attach this unit to another

type of wall, consult with your local hardware store.

#

×15

1

Page 3 of 9

COTU Bookcase

#

2

Page 4 of 9

COTU Bookcase

×15

Page 5 of 9

4

3

× 10

Lines on lock nuts (F) must be parallel

with the length of the rear support bar (D).

!

Lines on lock nuts (F) must be parallel

with the length of the shelf frame (C).

!

× 20 × 20

COTU Bookcase

Page 6 of 9

5

COTU Bookcase

Note holes in anchors are

paralell with the legs as shown.

!

Page 7 of 9

6

COTU Bookcase

Note holes in anchors are

paralell with the legs as shown.

!

#

7

Page 8 of 9

8

Drill holes into drywall, in wall

using 8mm 5/16" drill bit.

× 4× 4× 4

Attach pair of brackets to top

corners of the back of the unit.

×4

Mark on wall where second pair

of brackets should be placed.

×2

COTU Bookcase

#

9

Page 9 of 9

COTU Bookcase
