INSTALLATION & OWNER’S MANUAL
Rev. A, 04/30/2020 p/n: IM-1RMTRK

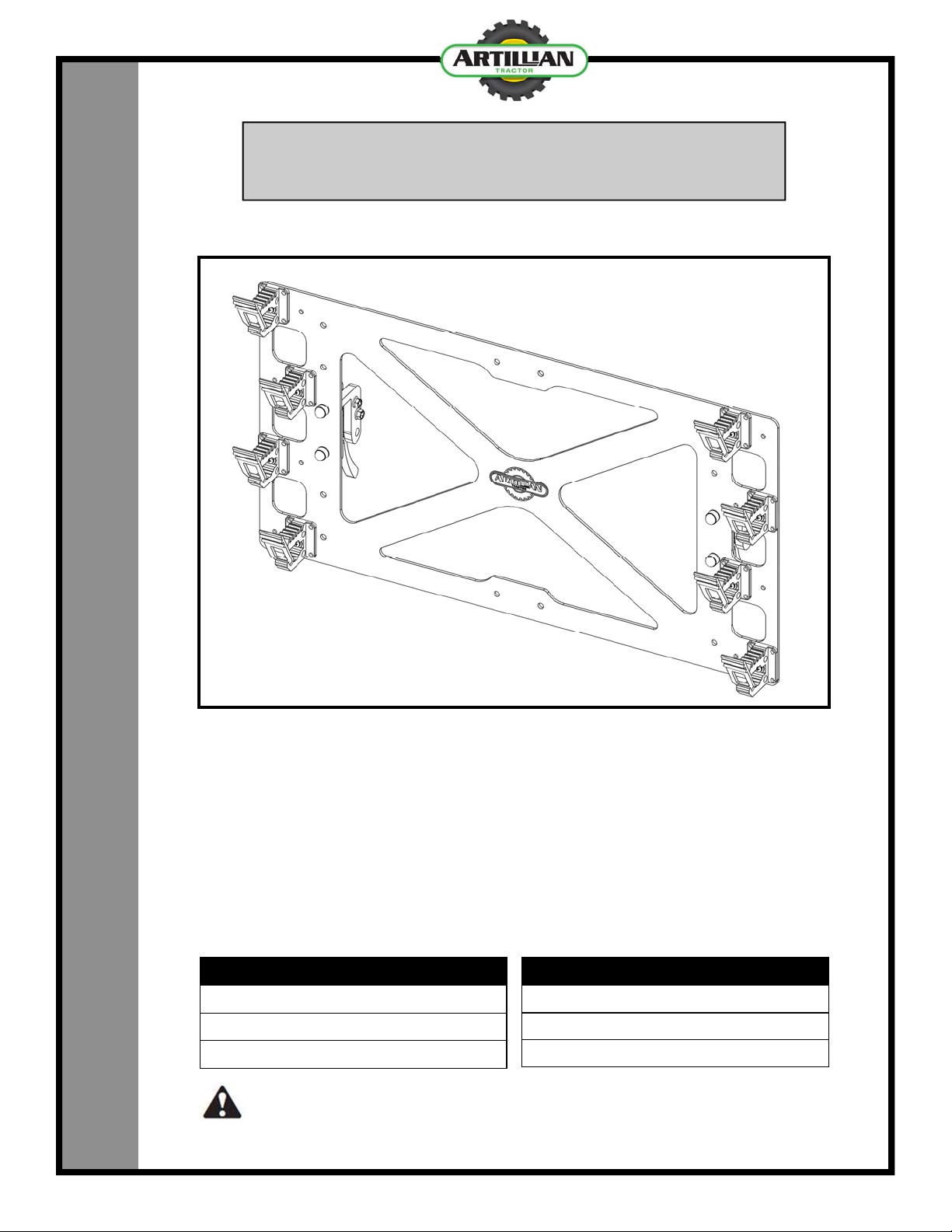

ARTILLIAN ROPS MOUNTED TOOL RACK
P/N: 1RMTRK
Approximate Installation Time
Experienced Dealer Technician – 2 Minutes
Average Dealer Technician – 2 Minutes
Do-It-Yourself – 2 Minutes
Approximate Product Specifications
Overall dimensions: 14.05” high x 26.50” wide
Weight: 11.26 lbs. (not including mounting bar)
Capacity: 40 lbs.
For use on the Artillian ROPS Mounted Tool Bar (P/N: 1RMTB) (sold separately)
The Artillian ROPS Mounted Tool Rack is rated for 40 LBs and is capable
of holding up to (4) long handle tools at a time. The mounting plate is made
from powder coated 10 gauge steel and incorporates (8) rubber clamps.
These clamps hold tools firmly, while providing for fast installation or
removal.
Integrated Cam Lever Latches securely lock onto the Artillian ROPS
Mounted Tool Bar (sold separately) in seconds without the use of tools.
These latches can be repositioned to the long sides of the rack, allowing
the user to orient the rack vertically, if desired.
CAUTION Do not exceed the rated capacity for the Tool Rack. Doing so may result
in damage to the Tool Rack and/or the Tool Bar and will void the warranty.
The contents of this envelope are the property of the owner. Leave with the owner when installation is complete.
2 of 3

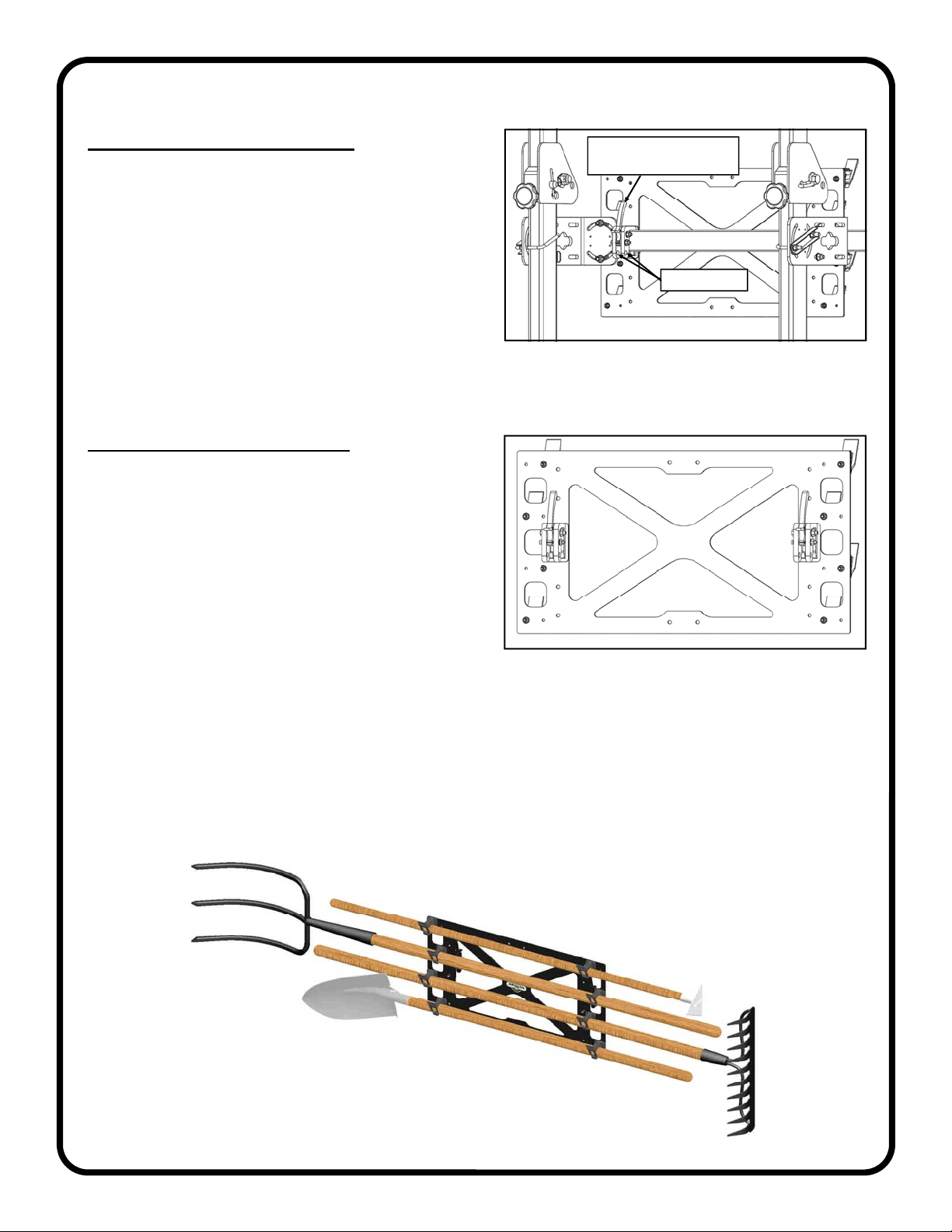

Fig. 1 (attaching the tool rack)
ATTACH TO MOUNTING BAR:
1. To install the tool rack, rotate both cam levers UP,
then place onto the Toolbar. See figure 1.
Note: if the Cam Lever Latches do not sit flush on the Toolbar, one of
the clamp plates may not have been fully open. Simply remove the
tool rack, rotate the cam levers up, and tilt the tool rack away from
you to ensure the clamp plates are fully open, then reinstall on the
Toolbar.
2. To secure the tool rack to the Toolbar, rotate both
cam levers DOWN until they cam over.
NOTE: For additional security, the tool rack can be locked to the
Toolbar by inserting a padlock through the holes in the mounting
bracket where shown. See figure 1.
3. To remove the tool rack from the Toolbar, rotate both
cam levers UP, then lift the tool rack.
FEATURES AND OPERATION
1. The 8 rubber clamps are intentionally staggered so
than an upper clamp does not interfere when trying
to pull the rubber strap from a lower clamp up and
inward onto the hooks. The end user may change
the stagger pattern if so desired.
2. The cam lever latches are factory installed in the
middle set of holes where shown in figure 2. At the
user’s discretion, the latches can be relocated to
the set of holes marked “A” or “B”. The entire plate
assembly can also be rotated 90 degrees if
preferred. In that case, utilize the holes provided in
location “C”.
3. For optimal functionality, the cam lever latches are
factory assembled with some friction between the cam
lever and the housing. This ensures the cam lever
doesn’t accidentally flip closed while the user attempts to
install it on the bar. If the cam levers loosen up over time,
simply tighten the nut and bolt that secure the lever to
the housing until the desired resistance on the cam lever
has been achieved.
FEATURES AND OPERATION
rotate both cam levers up
to install the tool rack
padlock holes
Fig. 2 (optional cam lever latch locations)
A
C
C
B B
A
ENJOY!
3 of 3

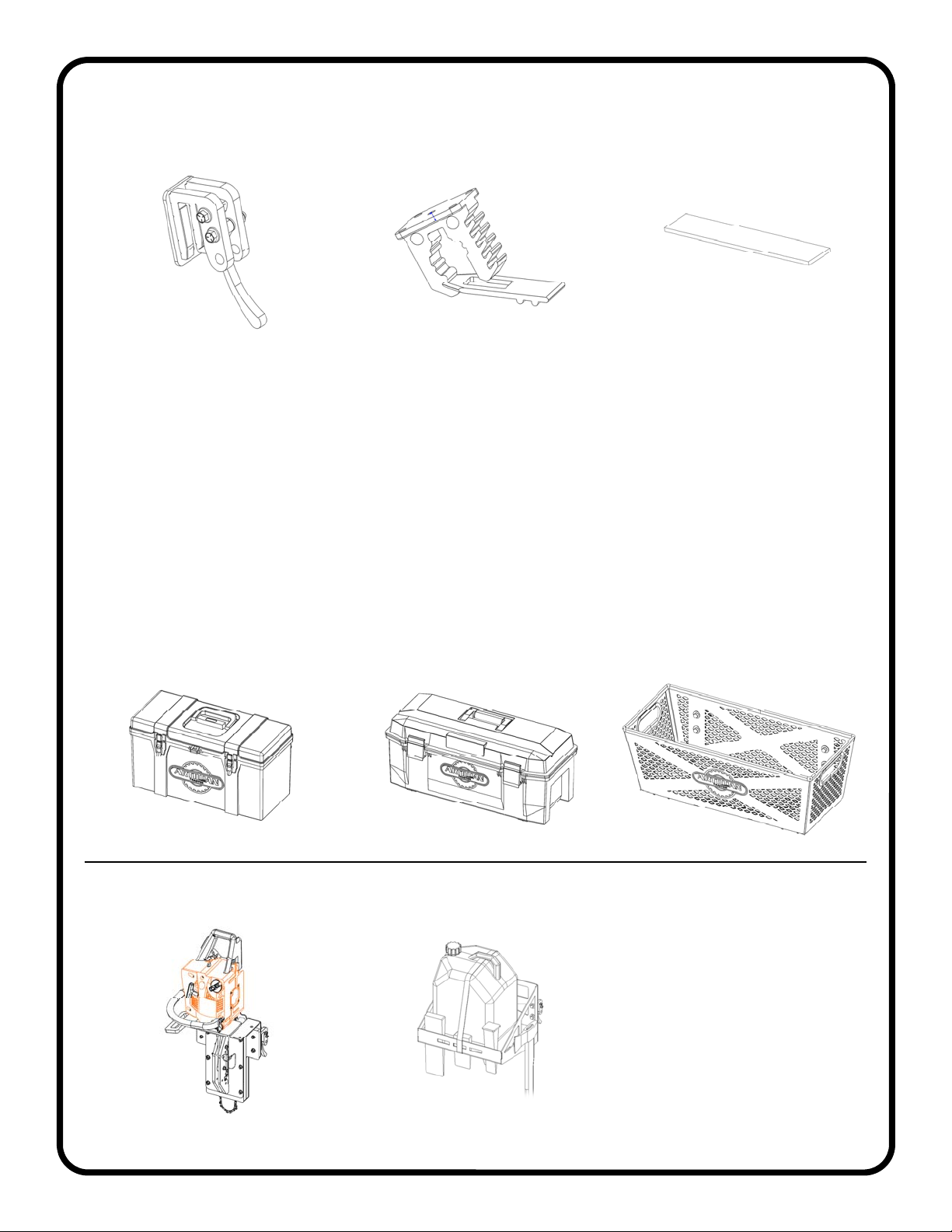

MORE ACCESSORIES COMING SOON!
CAM LEVER LATCH
P/N: 8SV-110-00071 (QTY.: ONE)
RUBBER CLAMP
P/N: 9SV-9WL08 (QTY.: 2)
SAFETY WALK ADHESIVE STRIPS
P/N: 9SV-9PR62-375 (QTY.: 12)
SERVICE PARTS:
ROPS MOUNTED TOOLBOX, SMALL
P/N: 1RMTBXS
ROPS MOUNTED TOOLBOX, LARGE
P/N: 1RMTBXL
ROPS MOUNTED TOOL BASKET
P/N: 1RMTBSK
OTHER ACCESSORIES:
ROPS MOUNTED CHAINSAW MOUNT
P/N: 1RMCSM
(chainsaw shown for illustration purposes)
ROPS MOUNTED FUEL CAN HOLDER
P/N: 1RMFCH
(Fuel can, wedges, & maul shown for illustration purposes)
