Ashley ASH3809B Bedienungsanleitung
SAFETY INFORMATION
INSTALLATION GUIDE FOR ASH3809B and ASH3809B1
Released Date: 2020-12-09
Fixture Body
x 1
CARE AND MAINTENANCE
• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
PACKAGE CONTENTS
MOUNTING HARDWARE
A
Inner Backplate
x 1
AA Mounting Screw
x 2
BB Outlet Box Screw
x 2
DD
Wire Connector
x 3
CC
- 1 -
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
• RISK OF ELECTRIC SHOCK - Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE - Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

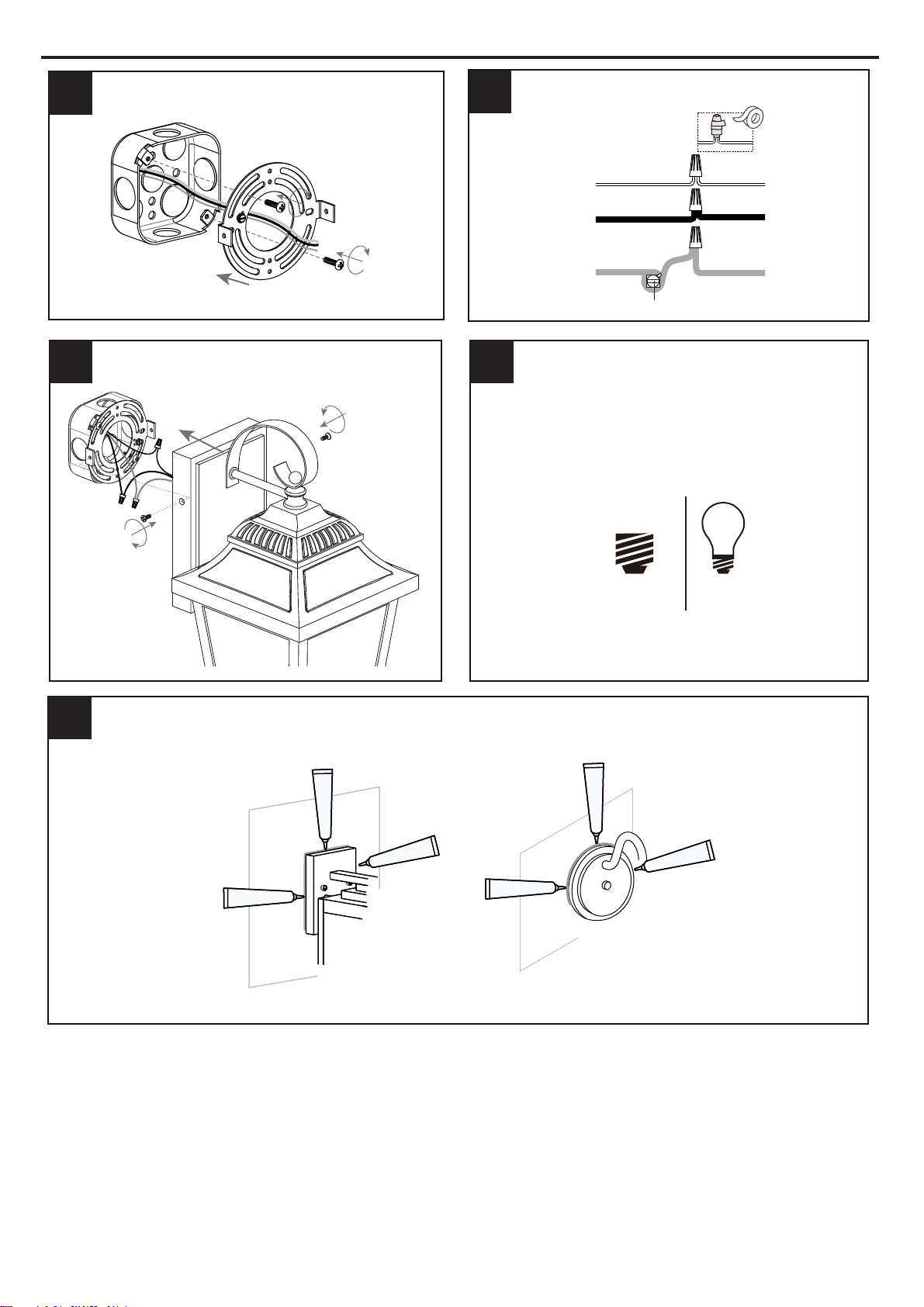

TOOLS REQUIRED
1
Green ground screw
2
Black (or red) wire from supply
Ground wire from supply
White from fixture
Black from fixture
Ground wire
from fixture
White wire from supply
3
Rectangle/Square Backplate Round Backplate
5
Apply Caulking (Backplate shape is varies depends on items purchased)
*Note: Do NOT caulk the bottom of the backplate to allow moisture to escape.
WiringInstall Inner Backplate
Install Fixture Body
4
Install Bulb
Exterior Caulk Exterior Caulk
Exterior Caulk
Exterior Caulk
Exterior Caulk
Exterior Caulk
Your installation is now complete! Restore electricity and save this sheet for future reference.
INSTALLATION
- 2 -
Install one correct bulb referring to fixture markings and/or labels for
maximum wattage.
Recommended Bulb type (not included):
BULB BASE TYPE
Medium (E26)
BULB SHAPE
TYPE A
100W
MAX

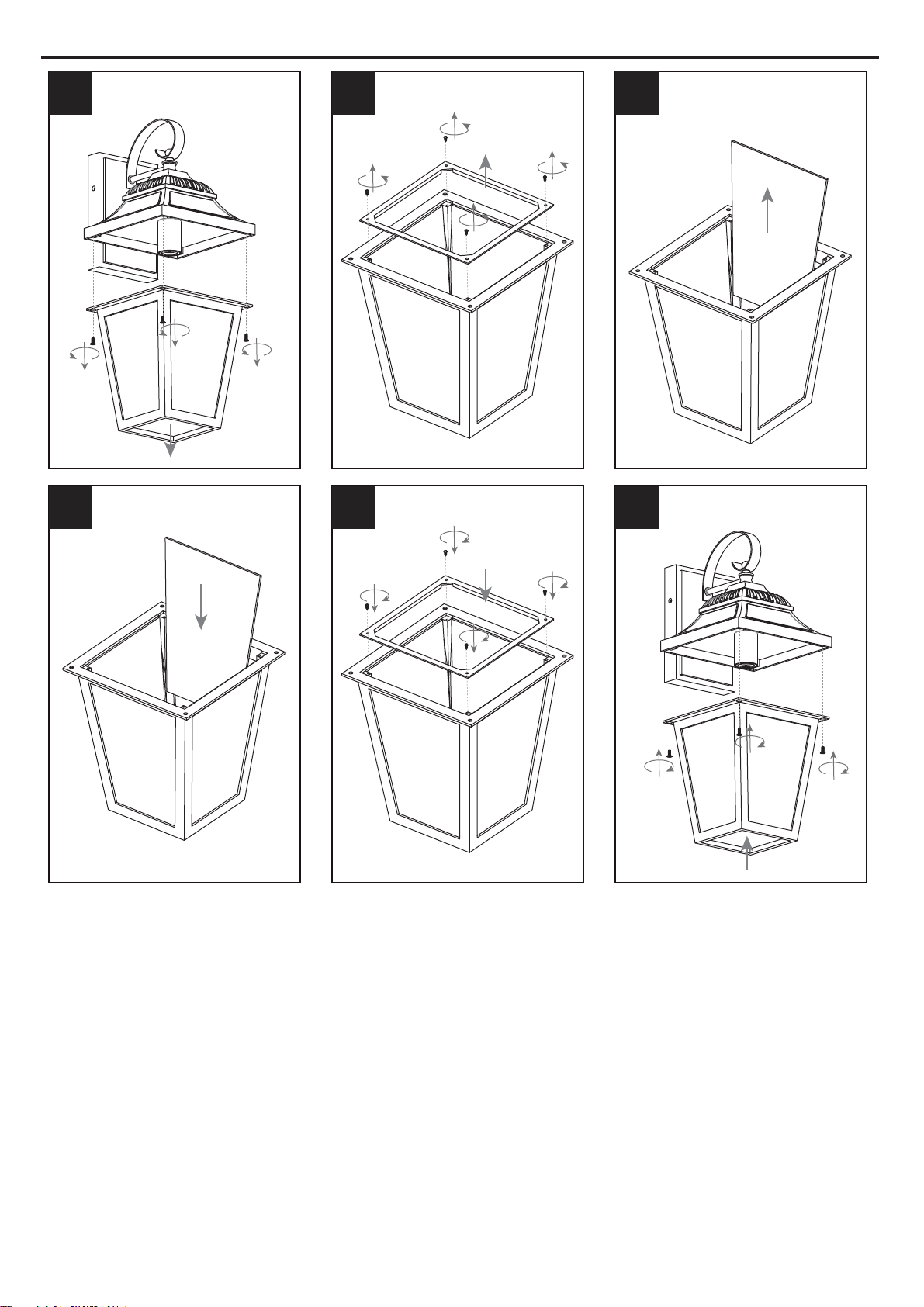

1
Remove Cage
HOW TO REPLACE GLASS PANEL
- 3 -
2
Remove Glass Holder
3
Remove Glass Panel
4
Install New Glass Panel
5
Install Glass Holder
6
Install Cage
