User’s

Guide

> > > > > > >

C175 C185

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Avenue, Wilsonville,

Oregon 97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conforms to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: IEC 60950-1: 1st Edition

May, 2004

Trademarks

Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered trade-

marks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered

trademarks of Adobe Systems Incorporated. Digital Light Processing is a trademark

or registered trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (styl-

ized) are either registered trademarks or trademarks of InFocus Corporation in the

United States and other countries.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference when the equipment is oper-

ated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruc-

tion manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,

in which case the user may be required to take adequate measures. The typical use is

in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, TUV

Other specific Country Approvals may apply, please see product certification label.

This user’s guide applies to models IN32, C175, W320, IN34, C185, W340

InFocus reserves the right to alter product offerings and specifications at any time.

Table of Contents

Introduction 3

Connecting a computer 5

Required computer connections 5

Displaying a computer image 7

Adjusting the image 8

Connecting a video device 9

Displaying a video image 10

Shutting down the projector 12

Troubleshooting your setup 12

Using the keypad buttons 20

Using the remote control 21

Using the audio 22

Optimizing computer images 23

Presentation features 23

Optimizing video images 23

Customizing the projector 23

Using the menus 24

Picture menu 25

Settings menu 28

Maintenance 32

Cleaning the lens 32

Using the security lock 32

Replacing the projection lamp 33

Cleaning the lamp filter screens 35

Appendix 36

Projected image size 36

Important Operating Considerations for Safety

•Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this guide for proper startup and shutdown procedures.

• This product has a lamp which contains a very small amount of mer-

cury. Wash hands after cleaning the area and handling the ruptured

lamp. Dispose of it as required by local, state or federal ordinances and

regulations. For more information see www.eiae.org.

• In the unlikely event of a lamp rupture, particles may exit through the

projector side vents. When the projector is turned on, keep people,

food, and drinks out of the "keep out" area under and around the pro-

jector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty booklet.

2’ / 0.6 m

3’ / 1 m

5’/1.5m

8’/2.4m

Introduction

Your new digital projector provides computer and video inputs and has

XGA 1024x768 resolution. The projector is easy to connect, easy to use, and

easy to maintain.

Product specifications

To read the latest specifications on your multimedia projector, be sure to

visit our website at www.askproxima.com, as specifications are subject to

change.

Accessories

The standard accessories that came with your projector are listed in the

included user’s guide. Optional accessories can be found on our website at

www.infocus.com or at your retailer or dealer.

Online Registration

vate your warranty and receive product updates, announcements, and reg-

istration incentives.

Projector components and features

keypad

speaker

zoom

focus

elevator foot release

remote

control

receiver (IR)

connectors

leveling

foot

heat vent

IR receiver

status indicators

Connector Panel

The projector provides computer and video connectors:

• one M1-D/A (HD, DVI, and computer)

• one VESA (HD, HD component, and computer)

• one VESA (monitor out)

• one S-video

• one composite RCA video

• one audio in/one audio out

It also has an RJ-45 connector for serial control. The Command Line Inter-

face (CLI) specifications and commands are on our website.

Connector panel

lock

power

connector

M1-D/A

s-video

composite

external

speaker

(audio out)

RJ-45 serial control

video

computer

audio in

VESA in monitor out

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector

on the projector. Connect the blue end to the video port on your computer. If

you are using a desktop computer, you first need to disconnect the monitor

cable from the computer’s video port.

Some Macintosh®computers do not have a standard VESA-out video port.

If the supplied computer cable will not connect to your computer, purchase

the appropriate adapter from your Apple®reseller.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

The Power light on the Status Indicator Panel (page 12) turns amber.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To advance slides in a PowerPoint™ presentation using the up and down

arrow buttons on the remote, plug the USB connector on the computer cable

into the USB mouse connector on your computer.

To have sound with your presentation, connect an audio cable (sold sepa-

rately) to your computer and to the Audio In connector on the projector.

connect computer cable

connect power cable

connect computer cable

connect audio cable

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor Out connector on the projector.

If you prefer connecting your projector to your computer with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial Control connector. Spe-

cific RS-232 commands can be found in the Service and Support section of

our website.

connect monitor cable

connect VESA cable

connect RS-232 cable

Displaying a computer image

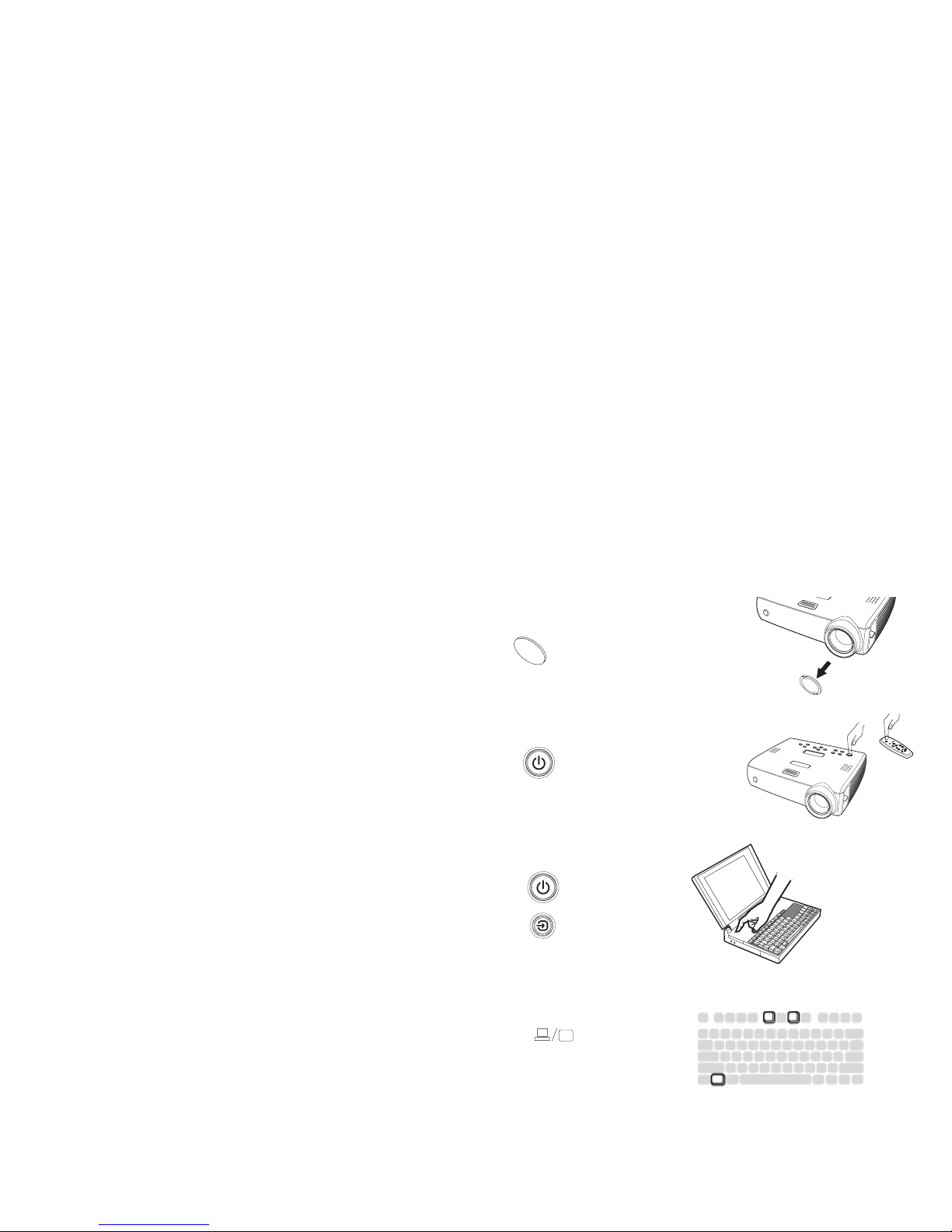

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The Power light on the Status Indicator Panel (page 12) blinks green and the

fans start to run. When the lamp comes on, the start up screen displays and

the Power light is steady green. It can take a minute for the image to achieve

full brightness.

? No startup screen? Get help on page 13.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Source button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F8 or CRT/LCD

key turns the external display on and off. Locate a function key labeled

CRT/LCD or a function key with a monitor symbol. Press FN and the

labeled function key simultaneously. Refer to your laptop’s documenta-

tion to learn your laptop’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 13.

remove lens cap

press Power button

turn on computer

activate laptop’s external port

Adjusting the image

Adjust the height of the projector, if necessary, by pressing the release but-

ton to extend the elevator foot.

Rotate the leveling foot (located at the bottom back right corner), if neces-

sary.

Position the projector the desired distance from the screen, so that the lens is

perpendicular to the screen.

See page 36 for a table listing screen sizes and distances.

Adjust the zoom or focus rings by rotating them until the desired image size

and focus are produced.

If the image is not square, adjust the vertical digital keystone by using the

buttons on the keypad. Press the upper Keystone button to reduce the

upper part of the image, and press the lower Keystone button to reduce the

lower part.

You can also adjust the keystone via the menus. See page 25.

Adjust the Contrast or Brightness in the Picture menu.

See page 24 for help with the menus.

adjust height

rotate

leveling

foot

elevator

foot

ease

utton

adjust distance

adjust zoom and focus

focus

zoom

adjust keystone

adjust Contrast or Brightness

Connecting a video device

No video or audio cables are included with your projector.

If the video device uses a round, four-prong S-video connector, plug an

S-video cable into that connector on the video device and into the Video 2

connector on the projector. If the device uses a composite video connector,

plug a composite video cable into that connector on the video device and

into the Video 1 connector on the projector.

For audio, plug a mini-plug audio Y-cable into the Audio in connector on

the projector and into the video device’s left and right audio out connectors.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

NOTE: Always use the power cable that shipped with the projector.

To connect a progressive scan EDTV or HD source, use the Component to

M1 adapter (sold separately).

connect S-video and audio cables

connect video and audio cables

connect power cable

Andere Handbücher für C175

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Ask Proxima Projektor Handbücher

Ask Proxima

Ask Proxima M9 Bedienungsanleitung

Ask Proxima

Ask Proxima M2+ Bedienungsanleitung

Ask Proxima

Ask Proxima C440 Bedienungsanleitung

Ask Proxima

Ask Proxima UltraLight DX2 Bedienungsanleitung

Ask Proxima

Ask Proxima DP9200 Bedienungsanleitung

Ask Proxima

Ask Proxima E1655U Bedienungsanleitung

Ask Proxima

Ask Proxima C40 (DP2000s) Bedienungsanleitung

Ask Proxima

Ask Proxima C500 Kurzanleitung zur Einrichtung

Ask Proxima

Ask Proxima D-ILA Pro AV SX1 Bedienungsanleitung

Ask Proxima

Ask Proxima Impression 960 Bedienungsanleitung

Ask Proxima

Ask Proxima PL-300 Bedienungsanleitung

Ask Proxima

Ask Proxima IN35W Bedienungsanleitung

Ask Proxima

Ask Proxima DP6105 Bedienungsanleitung

Ask Proxima

Ask Proxima C445+ Bedienungsanleitung

Ask Proxima

Ask Proxima Impact WSX Bedienungsanleitung

Ask Proxima

Ask Proxima E1655-A Bedienungsanleitung

Ask Proxima

Ask Proxima C447 Bedienungsanleitung

Ask Proxima

Ask Proxima DP6860 Bedienungsanleitung

Ask Proxima

Ask Proxima C420 C420 C420 Bedienungsanleitung

Ask Proxima

Ask Proxima DLP Projector Bedienungsanleitung

Ask Proxima

Ask Proxima C180 C180 C180 Bedienungsanleitung

Ask Proxima

Ask Proxima C200 Bedienungsanleitung

Ask Proxima

Ask Proxima A1100 Bedienungsanleitung

Ask Proxima

Ask Proxima Impression 750 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
