Ask Proxima C300 Bedienungsanleitung

USER

GUIDE

CAMPUS 300

801.250B

USG/300/AE-B

12.05.95

Not the actual front page

USER

GUIDE

CAMPUS 300

USER GUIDE LCD PANEL

TABLE OF CONTENTS

INTRODUCTION..................................................................................... 5

MAIN FEATURES.................................................................................... 5

SUPPLIED MATERIAL............................................................................. 6

SETTING UP THE LCD PANEL............................................................... 7

COMPUTER............................................................................... 8

USING THE LCD PANEL......................................................................... 9

REMOTE CONTROL.................................................................. 9

CONNECTORS.........................................................................11

LOCKING THE PANEL..............................................................11

FEATURES ............................................................................................12

PRACTICAL HINTS AND TIPS ...............................................................15

MAINTENANCE......................................................................................17

SERVICE................................................................................................17

TECHNICAL DATA.................................................................................18

CONNECTORS......................................................................................21

FCC STATEMENT..................................................................................22

ENVIRONMENTAL STATEMENT............................................................23

SERVICE INFORMATION.......................................................................24

CONNECTION LAYOUT.........................................................................25

(Foldout Page)

USER GUIDE LCD PANEL

This publication is printed on recycled paper.

The information contained in this user guide is preliminary, and the products described

herein are subject to change without prior notice.

The symbols and are used in this publication to indicate

Warning and Note respectively.

USER GUIDE LCD PANEL

2INTRODUCTION

This LCD Data panel is a state of the art projection device that can be

connected to most computers.

Applications include presentations, software training, educational use,

advertising, information boards and other situations where a small or large

audience shares information.

3MAIN FEATURES

-2.1 million colors

-VGA and MAC compatible

-User settings memorized

-Correct VGA text

-Infrared remote control

-Housing footprint fits OHP glass exactly

-Low weight

-Dual Safecool system

-False light blocking

-4 meters Y cable

USER GUIDE LCD PANEL

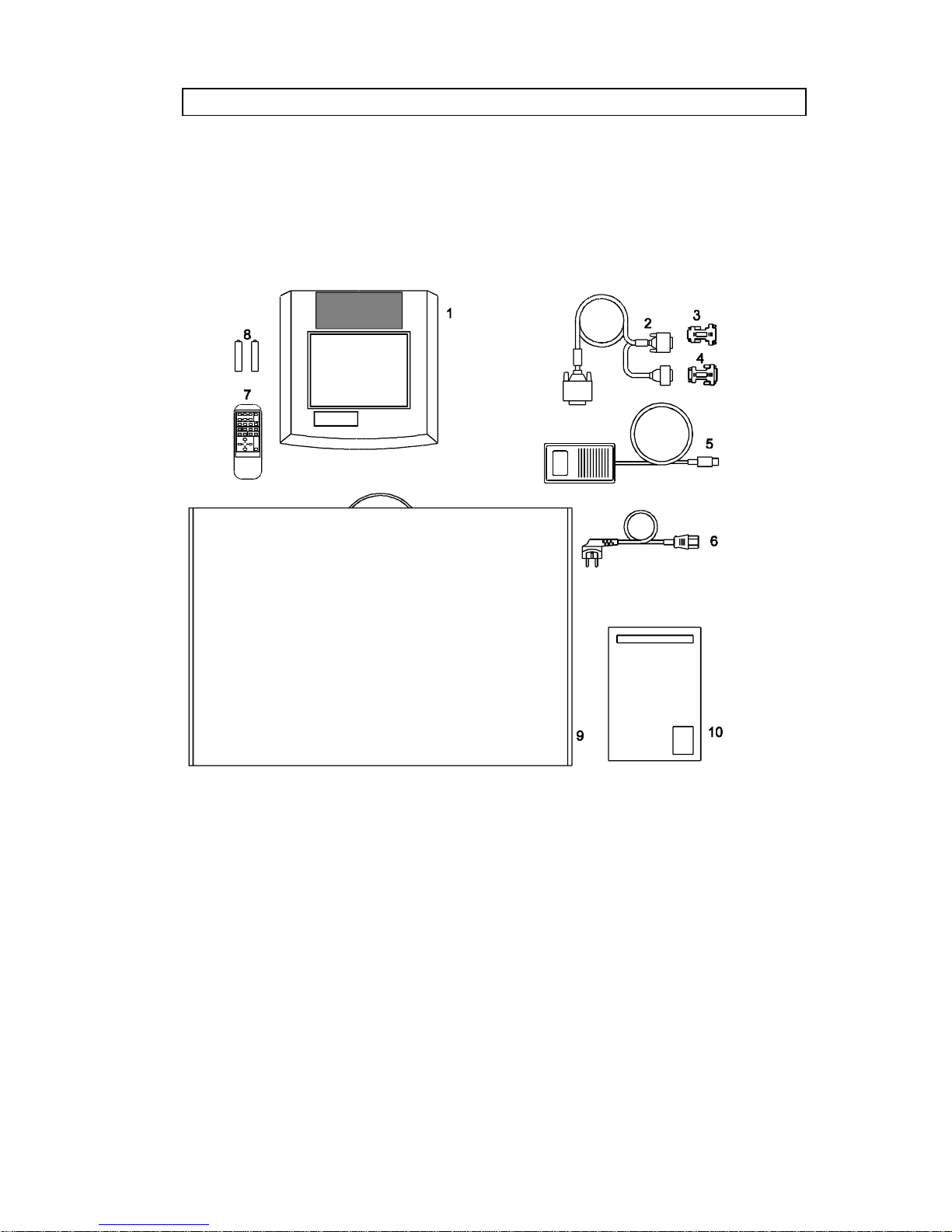

4SUPPLIED MATERIAL

A complete set includes the following components :

1. LCD Data Panel 6. Power Cable

2. VGA Cable 7. Remote Control

3. Cable-Adapt. MAC mon 8. Batteries

4. Cable-Adapt. MAC comp. 9. Box

5. Power -5, 12, 5 V 10. User Guide

USER GUIDE LCD PANEL

5SETTING UP THE LCD PANEL

Switch off all equipment before connecting the components. Be aware of

static electricity that may build up, especially in the dry season and when

operating on synthetic carpets. Discharge any static electricity by touching

a metallic surface before you start.

Place the LCD panel on top of a transmissive overhead projector (OHP).

Select a high intensity type projector, for instance 400 W halogen or metal-

halide. Best results are obtained in a dimmed room with no direct sunlight

shining in.

The following are guidelines for first time set-up:

Connect the cables and power supply as described in the rear foldout page

(see Connection Layout).

Attach power to the LCD panel, turn the overhead projector and computer

on. For more information on set-up see the following sections on

Computer.

USER GUIDE LCD PANEL

5.1 COMPUTER

Connect the LCD panel, computer, monitor and power supply as shown in

the rear foldout.

Connect cable (1) between the LCD panel and the computer. Use the Y-

split on the computer end to connect the monitor.

If you have a Macintosh computer, insert applicable adapters (2) and (3)

as shown.

Connect the power supply to the LCD panel (4).

TO SET UP FROM THE REMOTE CONTROL:

STEP OPERATION

1Press RESET for default settings

2Adjust TUNE for a stable image. *)

3Position the image correctly using the four POSITION keys

5Adjust CONTRAST and BRIGHTNESS as desired

*) If a stable image is not achieved using TUNE, try to adjust the

BRIGHTNESS/CONTRAST setting as described later.

USER GUIDE LCD PANEL

6USING THE LCD PANEL

The LCD panel has a set of connectors that you need to know in order to

operate the device correctly.

6.1 REMOTE CONTROL

The infrared remote control (RC) is the main user interface to the device.

The RC is used to set the LCD panel correctly (to get the best possible

viewing conditions) and to control the presentation.

The figure shows the different keys of the remote control.

* Grey area does not apply for this product.

Set-up should be done once with the application(s) you are running most

frequently. Allow some minutes for the equipment to warm up before

adjusting. Most settings will automatically be memorized individually for

each source for future use.
