USER

GUIDE

CAMPUS 700

801.280B

USG/700/AE-B

12.05.95

Not the actual front page

USER

GUIDE

CAMPUS 700

USER GUIDE LCD PANEL

TABLE OF CONTENTS

1 INTRODUCTION .................................................................................. 5

2 MAIN FEATURES................................................................................. 5

3 SUPPLIED MATERIAL.......................................................................... 6

4 SETTING UP THE LCD PANEL............................................................ 7

4.1 COMPUTER......................................................................... 8

4.2 VIDEO.................................................................................. 9

5 USING THE LCD PANEL.....................................................................10

5.1 REMOTE CONTROL...........................................................10

5.2 CONNECTORS...................................................................12

5.3 LOCKING THE PANEL........................................................12

6 FEATURES..........................................................................................13

7 PRACTICAL HINTS AND TIPS ............................................................16

8 MAINTENANCE...................................................................................18

9 SERVICE.............................................................................................18

10 TECHNICAL DATA ............................................................................19

11 CONNECTORS .................................................................................22

12 FCC STATEMENT.............................................................................24

13 ENVIRONMENTAL STATEMENT.......................................................25

14 SERVICE INFORMATION..................................................................26

15 CONNECTION LAYOUT....................................................................27

(Foldout Page)

USER GUIDE LCD PANEL

This publication is printed on recycled paper.

The information contained in this user guide is preliminary, and the products described

herein are subject to change without prior notice.

The symbols and are used in this publication to indicate

Warning and Note respectively.

USER GUIDE LCD PANEL

1INTRODUCTION

This LCD data/video panel is a state of the art projection device that can

be connected to most computer and video sources.

Applications include presentations, software training, educational use,

advertising, information boards and other situations where a small or

large audience shares information.

2MAIN FEATURES

-16.7 million colors

-Built in Video interface

-Multistandard NTSC/PAL/SECAM

-VGA and MAC compatible

-User settings memorized

-Correct VGA text

-Infrared remote control

-Housing footprint fits OHP glass exactly

-Low weight

-Dual Safecool system

-False light blocking

-4 meters Y cable

USER GUIDE LCD PANEL

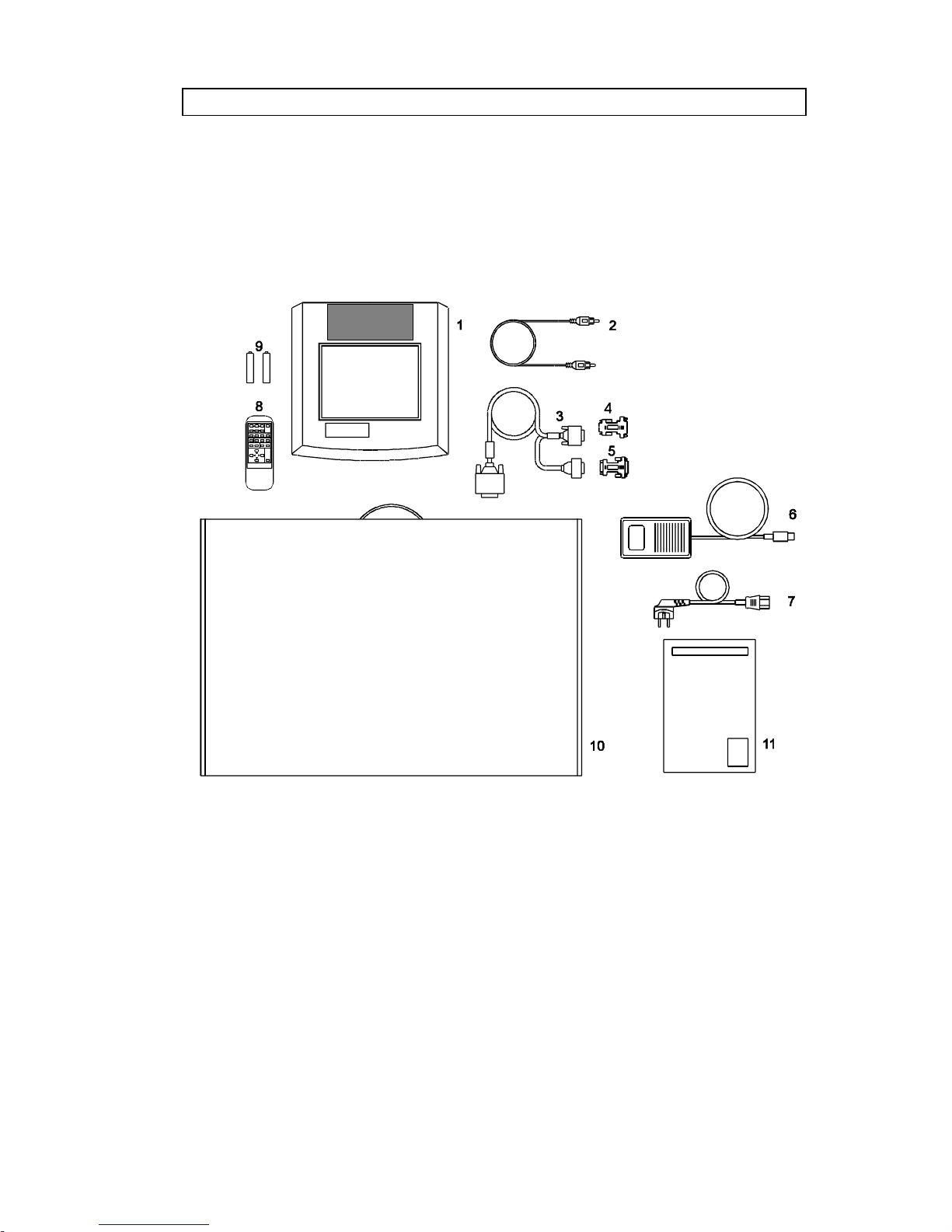

3SUPPLIED MATERIAL

A complete set includes the following components :

1. LCD Panel 6. Power -5, 12, 5 V

2. Video Cable 7. Power Cable

3. VGA Cable 8. Remote Control

4. Cable-Adapt. MAC mon 9. Batteries

5. Cable-Adapt. MAC comp. 10. Box

11. User Guide

USER GUIDE LCD PANEL

4SETTING UP THE LCD PANEL

Switch off all equipment before connecting the components. Be aware of

static electricity that may build up, especially in the dry season and when

operating on synthetic carpets. Discharge any static electricity by touching

a metallic surface before you start.

Place the LCD panel on top of a transmissive overhead projector (OHP).

Select a high intensity type projector, for instance 400 W halogen or metal-

halide. Best results are obtained in a dimmed room with no direct sunlight

shining in.

The following are guidelines for first time set-up:

Connect the cables and power supply as described in the rear foldout page

(see Connection Layout).

Attach power to the LCD panel, turn the overhead projector and computer

on. For more information on set-up see the following sections on Computer

and Video.

USER GUIDE LCD PANEL

4.1 COMPUTER

Connect the LCD panel, computer, monitor and power supply as shown in

the rear foldout.

Connect cable (2) between the LCD panel and the computer. Use the Y-

split on the computer end to connect the monitor.

If you have a Macintosh computer, insert applicable adapters (4) and (5)

as shown.

Connect the power supply to the LCD panel (3).

TO SET UP FROM THE REMOTE CONTROL:

STEP OPERATION

1Press RESET for default settings

2Adjust TUNE for a stable image. *)

3Position the image correctly using the four POSITION keys

5Adjust CONTRAST and BRIGHTNESS as desired

*) If a stable image is not achieved using TUNE, try to adjust the

CONTRAST/BRIGHTNESS setting as described later.

USER GUIDE LCD PANEL

4.2 VIDEO

Connect the LCD panel to a video source as shown in the rear foldout.

Use a TV set as a local video monitor if desired (the data monitor may not

be used as a video monitor).

Connect the video cable (1) to the VIDEO connector on the LCD panel.

Then connect the video cable to the video out connector on the video

source.

S-VIDEO, often referred to as S-VHS, may be connected using an optional

S-VIDEO cable.

TO SET UP FROM THE REMOTE CONTROL :

STEP OPERATION

1Press COMP, S-VIDEO or VIDEO depending on input used

2If necessary POSITION correctly

3If necessary, adjust COLOR saturation and TINT.

4Adjust CONTRAST, BRIGHTNESS as desired
