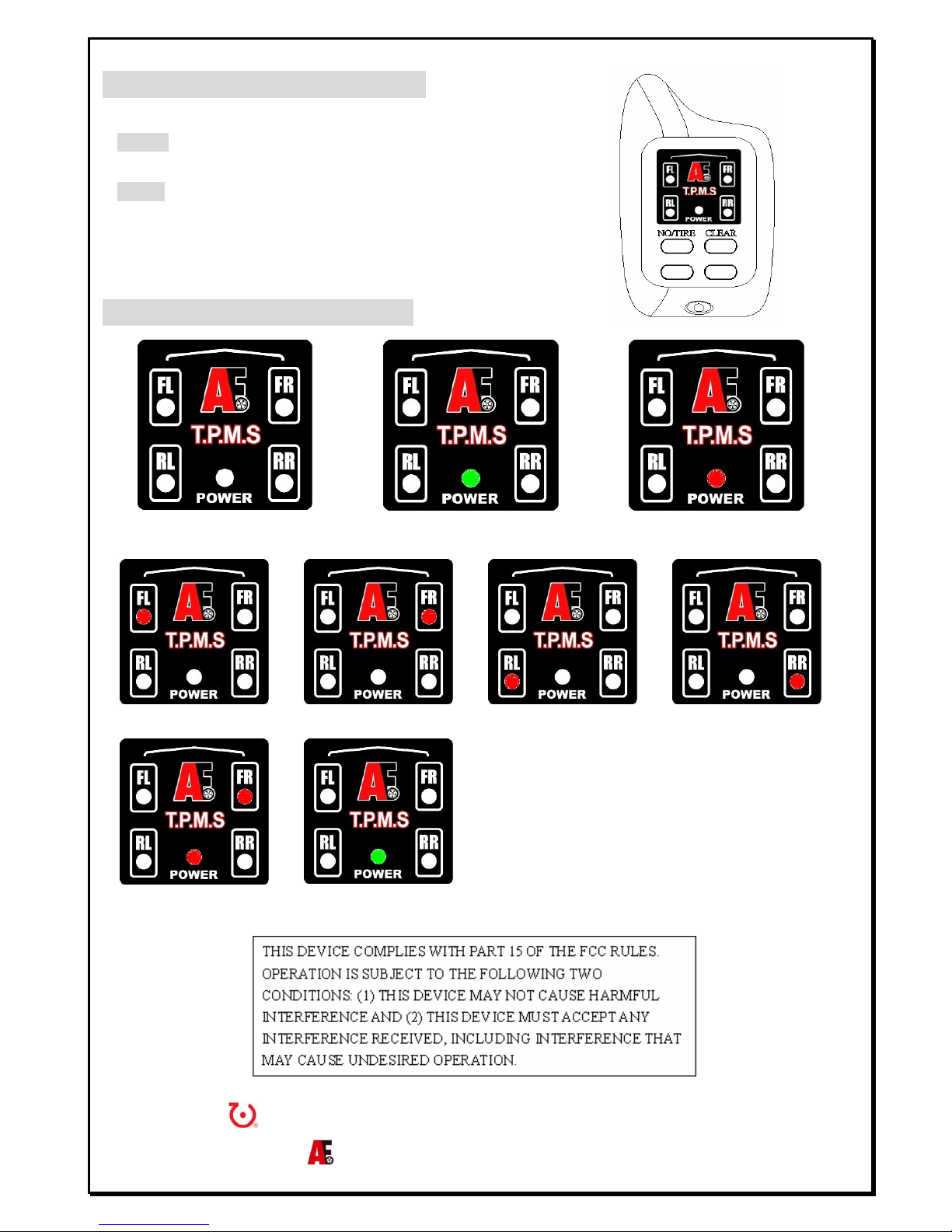

zAlarm Types shown on Display:
1. Indication of High-PressureAlarm: LED flashing on specific wheel with High-Pressure value
and “Beep” sound.
2. Indication of Low-PressureAlarm: LED flashing on specific wheel with Low-Pressure value
and “Beep” sound.
3. Indication of Sensor Low-Battery Warning: Red Light on Power & LED on specific wheel on
display panel.
4. Indication of Display Low-Battery Warning: LED flashing indication on the Power light &
“Beep” sound.
zSpecification:
Sensors LCD Display
Dimension ψ22.3* H: 22.5 ±0.5 (mm) 76mm (L) x 42.5mm (W) x 19.5mm (H)
Weight 10.0g ± 0.5g ( w/Battery contained) 36.5g ± 0.5g (Battery Excluded)
Power Supply 3V Lithium CR1632
(1~2 year Lifetime or above 2 years when
under normal condition)
2 x 3A’ BatteryAlkaline type or
(Power Supplied line 12V)
Frequency 433.92MHz 433.92MHz
Operating
Temperature
-30℃~ + 85℃-20℃~+80℃
*Specification is subject to change for product performance without any notice

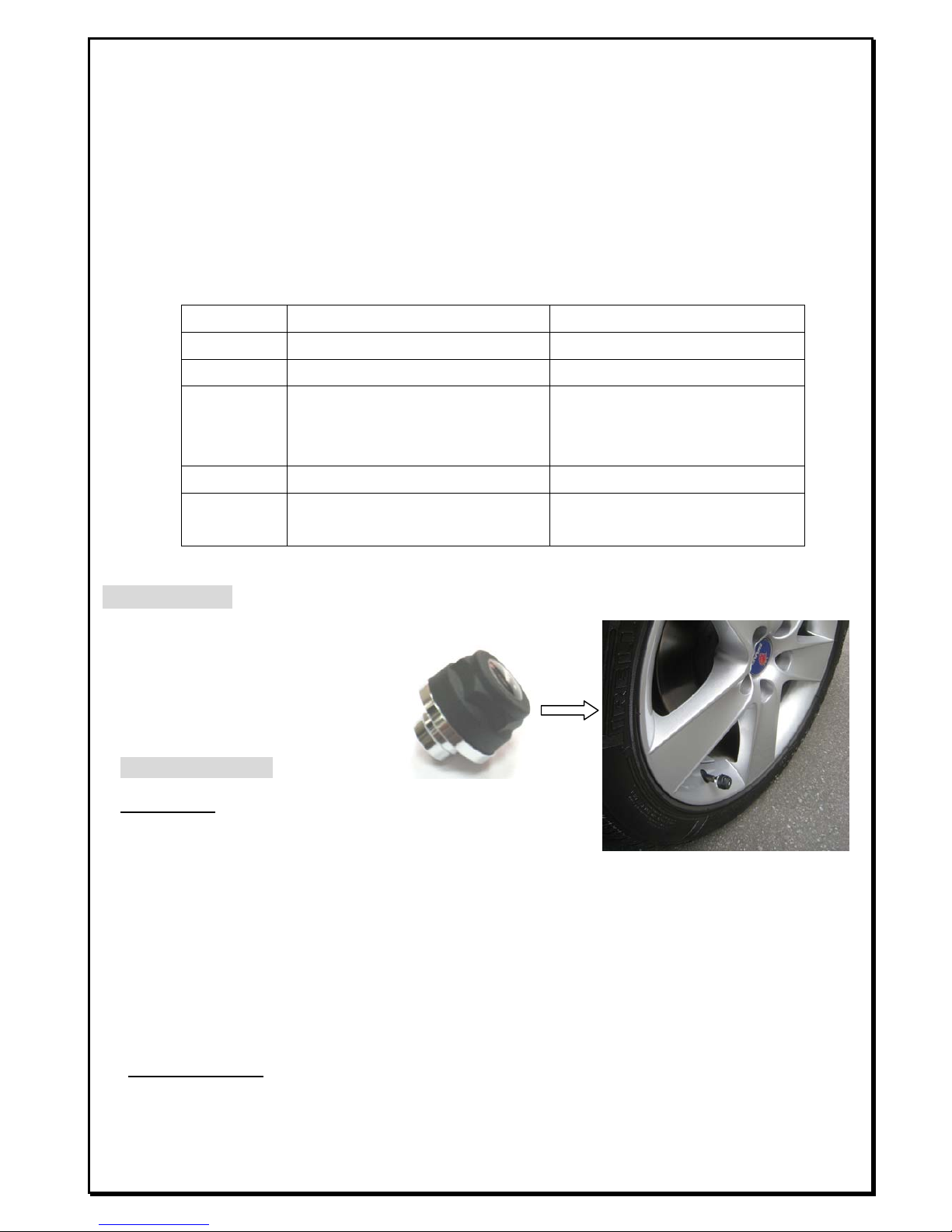

B. Installation:(Always have the display power on before installation of sensors)
Sensor Indication:
1. Labeled w/ FL: Front Left Wheel
2. Labeled w/ FR: Front Right Wheel
3. Labeled w/ RL: Rear Left Wheel.
4. Labeled w/ RR: Rear Right Wheel
Installation Process:
For Sensors:
1. Make sure the top and bottom are tighten on the sensors
(Applied with enclosed wrench)
2. Remove the original valve from stem。
3. Testing the pressure by applying Tire Gauges.(The suggested pressure value
can be referred to Car user manual to ensure proper pressure).
4. Screw-on the enclosed Hex nut on the valve; then, mount the valve
sensors onto the valve stem. Make sure the Hex nut is being tighten in reverse
clockwise direction to affix with the bottom part of the Valve Sensors。
NOTICE: To Check the valve if it is leaking after installation
,it can be confirmed from the display to see if the
pressure has dropped down.
For LCD Display:
1. Place the LCD display at best view place, then, have the
display power ON (or plugging DC12V supplied cord into cigarette part)
SUGGESTION: Make sure the display power is on to confirm the communication of sensor & display
is normal。
