ASRock NF6-GLAN Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published May 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock NF6-GLAN Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

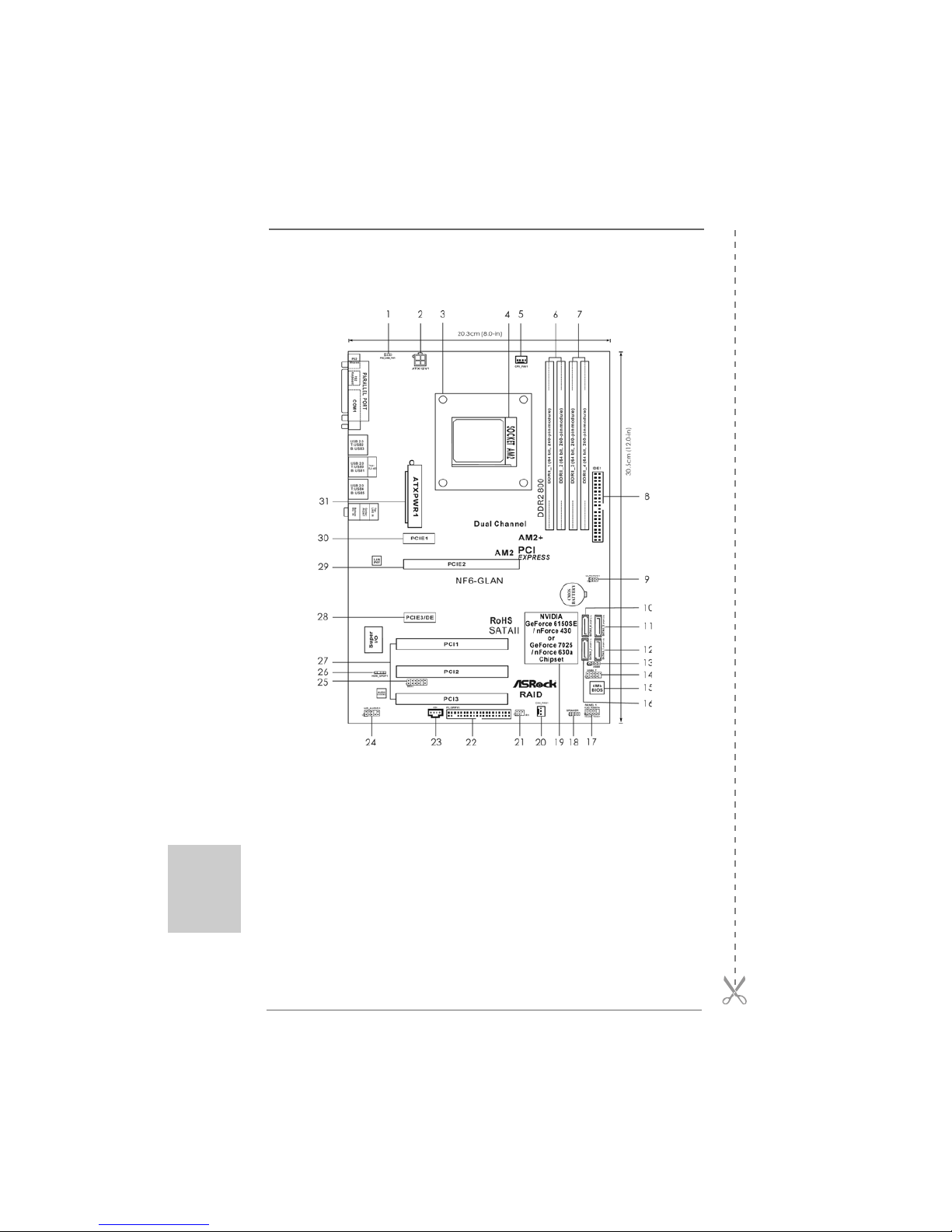

1 PS2_USB_PW1 Jumper 16 SATAII Connector (SATAII_2(PORT1.1),Red)

2 ATX 12V Power Connector (ATX12V1) 17 System Panel Header (PANEL1)

3 CPU Heatsink Retention Module 18 Chassis Speaker Header (SPEAKER1)

4 AM2 940-Pin CPU Socket 19 NVIDIA Chipset

5 CPU Fan Connector (CPU_FAN1) 20 Chassis Fan Connector (CHA_FAN1)

6 2 x 240-pin DDR2 DIMM Slots 21 Infrared Module Header (IR1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 22 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDR2 DIMM Slots 23 Internal Audio Connector: CD1 (Black)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 24 Front Panel Audio Header (HD_AUDIO1)

8 Primary IDE Connector (IDE1, Blue) 25 WiFi Header (WIFI)

9 Clear CMOS Jumper (CLRCMOS1) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

10 SATAII Connector (SATAII_4 (PORT 2.1), Red) 27 PCI Slots (PCI1- 3)

11 SATAII Connector (SATAII_3(PORT 2.0), Red) 28 PCI Express x1 Slot (PCIE3/DE)

12 SATAII Connector (SATAII_1(PORT 1.0), Red) 29 PCI Express x16 Slot (PCIE2)

13 USB 2.0 Header (USB8, Blue) 30 PCI Express x1 Slot (PCIE1)

14 USB 2.0 Header (USB6_7, Blue) 31 ATX Power Connector (ATXPWR1)

15 BIOS SPI Chip

ASRock NF6-GLAN Motherboard

EnglishEnglish

English

ASRock HD 6CH I/OASRock HD 6CH I/O

ASRock HD 6CH I/O

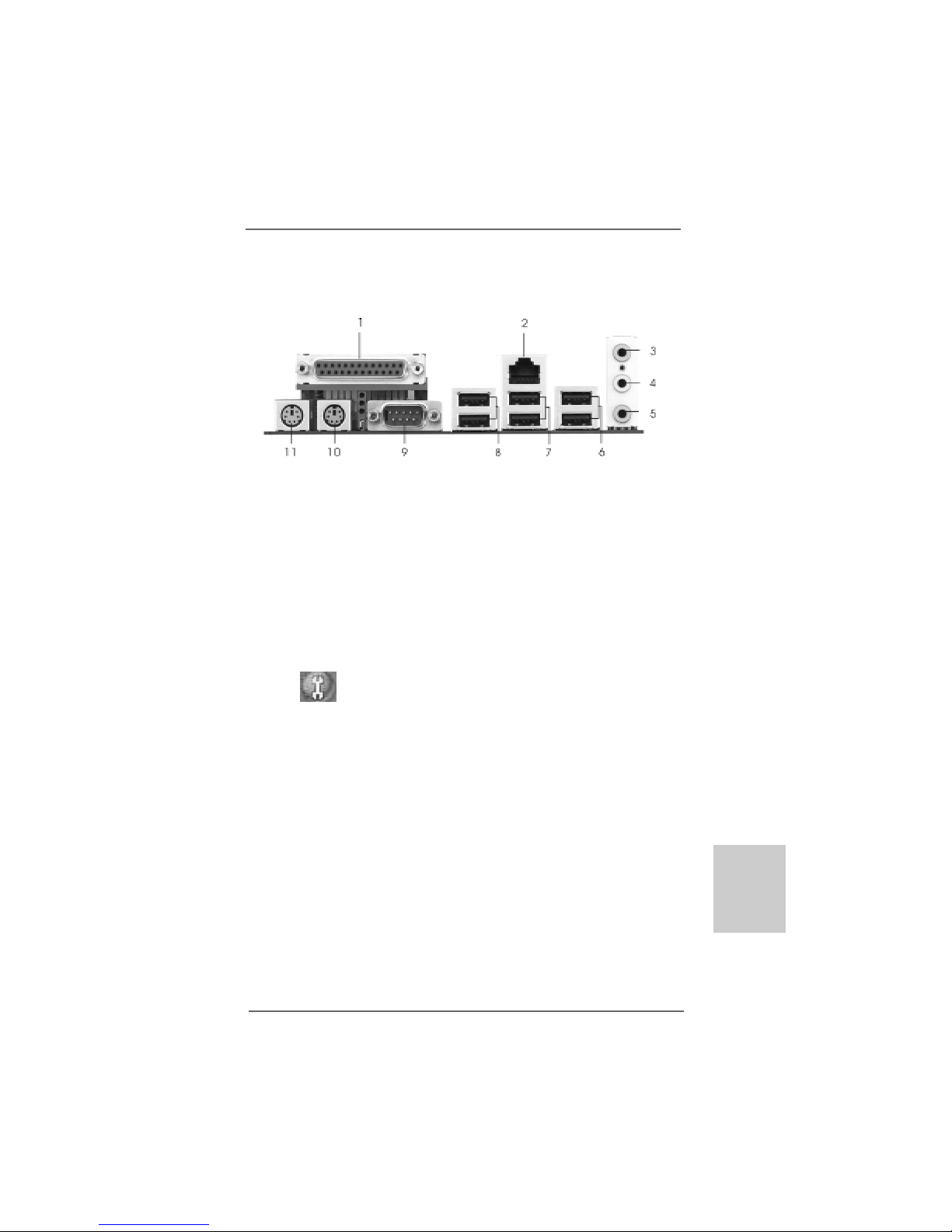

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 COM Port

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB45)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HDAudio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock NF6-GLAN Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock NF6-GLAN motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock NF6-GLAN Motherboard

(ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm)

1 x ASRock NF6-GLAN Quick Installation Guide

1 x ASRock NF6-GLAN Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x 3.5-in Floppy Drive Ribbon Cable

1 x SerialATA (SATA) Data Cable (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 x “ASRock HD 6CH I/O” I/O Shield

ASRock NF6-GLAN Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform -ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm

CPU - Support for SocketAM2+ /AM2 processors: AMDPhenomTM

FX / Phenom / Athlon 64 FX /Athlon 64 X2 Dual-Core /Athlon

X2Dual-Core /Athlon 64 / Sempronprocessor

- Support forAM3 processors:AMDPhenomTM II X4 / X3 and

Athlon II X4 / X3 / X2 processors

- SupportsAMD’s Cool ‘n’ QuietTM Technology

- FSB 1000 MHz (2.0GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport Technology

Chipset -NVIDIA®GeForce 6150SE / nForce 430 or

GeForce 7025 / nForce 630a

Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2DIMM slots

-SupportDDR21066/800/667/533 non-ECC,un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 16GB (see CAUTION 4)

Expansion Slot - 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio - 5.1 CH Windows® VistaTM Premium Level HDAudio

(RealtekALC662 Audio Codec)

LAN -Gigabit LAN10/100/1000 Mb/s

-Giga PHY Realtek RTL8211B

- Supports Wake-On-LAN

Rear Panel I/O ASRock HD 6CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Line in / Front Speaker / Microphone

Connector - 4 x SerialATAII 3.0Gb/s connectors, support RAID(RAID 0,

RAID1, RAID0+1, RAID 5 and JBOD),NCQ and “Hot Plug”

functions (see CAUTION 5)

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

6ASRock NF6-GLAN Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

- 1 x HDMI_SPDIF header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 3 USB 2.0 ports)

(see CAUTION 6)

- 1 x WiFi header (see CAUTION 7)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Unique Feature -ASRock OC Tuner (see CAUTION 8)

- Instant Boot

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 9)

- ASRock U-COP (see CAUTION 10)

- Boot FailureGuard (B.F.G.)

-ASRockAM2 Boost:ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 11)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

ASRock NF6-GLAN Motherboard

EnglishEnglish

English

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 19 for details.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 10 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 24 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

6. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

7. WiFi header supports WiFi+AP function withASRock WiFi-802.11g or

WiFi-802.11n module, an easy-to-use wireless local area network (WLAN)

adapter. It allows you to create a wireless environment and enjoy the

convenience of wireless network connectivity. Please visit our website for

the availability of ASRock WiFi-802.11g or WiFi-802.11n

module.

ASRock website http://www.asrock.com

8. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows®

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website: http://www.asrock.com

9. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

8ASRock NF6-GLAN Motherboard

EnglishEnglish

English

10. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

11. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you

adopt. Enabling this function will overclock the chipset/CPU reference clock.

However, we can not guarantee the system stability for all CPU/DRAM

configurations. If your system is unstable after AM2 Boost function is enabled,

it may not be applicative to your system. You may choose to disable this

function for keeping the stability of your system.

ASRock NF6-GLAN Motherboard

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a

grounded antstatic pad or in the bag that comes with the

component.

5. When placing screws into the screw holes to secure the

motherboardto the chassis, please do not over-tighten the screws!

Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

1010

10 ASRock NF6-GLAN Motherboard

EnglishEnglish

English

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR2 (DoubleData Rate 2) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install identical (the same brand, speed, size and chip-

type)DDR2 DIMM pair in the slots of the same color. In other words, you have to

install identical DDR2 DIMM pair in Dual Channel A (DDRII_1 and DDRII_2;

Yellow slots; see p.2 No.6) or identical DDR2 DIMM pair in Dual Channel B

(DDRII_3 andDDRII_4; Orange slots; see p.2 No.7), so thatDual Channel Memory

Technology can be activated. This motherboard also allows you to install four

DDR2 DIMMs for dual channel configuration, and please install identical DDR2

DIMMs in all four slots. You may refer to the Dual Channel Memory Configuration

Table below.

Dual Channel Memory Configurations

DDRII_1 DDRII_2 DDRII_3 DDRII_4

(Yellow Slot) (Yellow Slot) (Orange Slot) (Orange Slot)

(1) Populated Populated - -

(2) - - Populated Populated

(3)* Populated Populated Populated Populated

* For the configuration (3), please install identical DDR2 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of yellow

slots (DDRII_1 and DDRII_2), or in the set of orange slots (DDRII_3

and DDRII_4).

2. If only one memory module or three memory modules are installed

in the DDR2 DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules inDDRII_1

and DDRII_3, it is unable to activate the Dual Channel Memory

Technology .

4. It is not allowed to install a DDR memory module into DDR2 slot;

otherwise, this motherboard and DIMM may be damaged.

Andere Handbücher für NF6-GLAN

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK Z390 Phantom Gaming 9 Bedienungsanleitung

ASROCK

ASROCK IMB-157 Bedienungsanleitung

ASROCK

ASROCK H61M-PS4 Bedienungsanleitung

ASROCK

ASROCK B365 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK 970DE3/U3S3 Bedienungsanleitung

ASROCK

ASROCK A55 Pro Bedienungsanleitung

ASROCK

ASROCK Z97 OC Formula Bedienungsanleitung

ASROCK

ASROCK G41MH/USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK 4CORE1333-GLAN-M - V1.0 Bedienungsanleitung

ASROCK

ASROCK P43DE2 Bedienungsanleitung

ASROCK

ASROCK B660M Pro RS/AX Bedienungsanleitung

ASROCK

ASROCK H470M-HVS R2.0 Bedienungsanleitung

ASROCK

ASROCK A780LM-S Bedienungsanleitung

ASROCK

ASROCK G41M-VGS3 Bedienungsanleitung

ASROCK

ASROCK Q1900DC-ITX Bedienungsanleitung

ASROCK

ASROCK 775V88-M+ Bedienungsanleitung

ASROCK

ASROCK H81M-ITX Bedienungsanleitung

ASROCK

ASROCK H81TM-ITX R2.0 Bedienungsanleitung

ASROCK

ASROCK H61M-DP3 Bedienungsanleitung

ASROCK

ASROCK K7UPGRADE-880 Bedienungsanleitung

ASROCK

ASROCK FM2A88X Pro Bedienungsanleitung

ASROCK

ASROCK H370M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK B150M Pro4/Hyper Bedienungsanleitung

ASROCK

ASROCK MB-370-D Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
