ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published April 2009

2ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

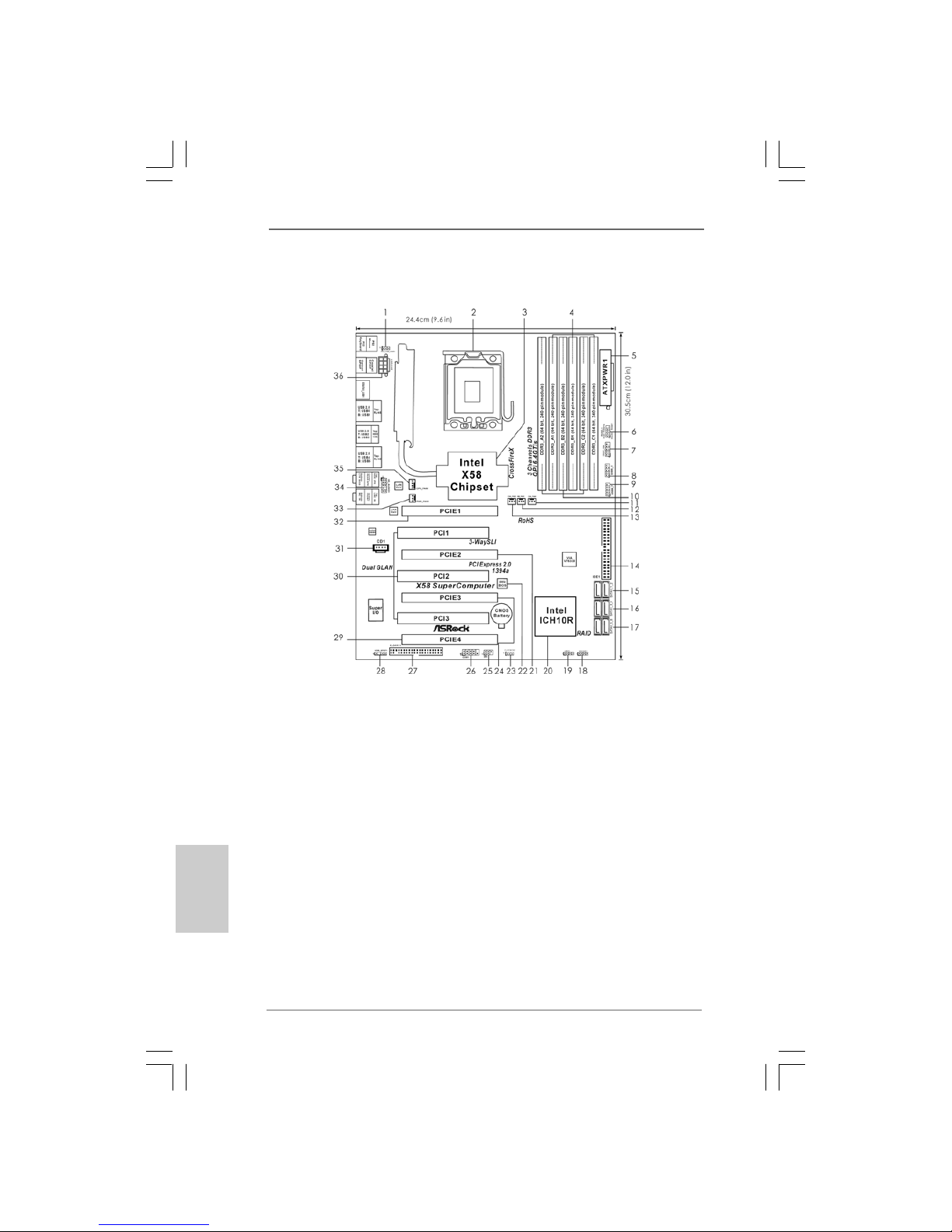

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 18 Chassis Speaker Header

2 1366-Pin CPU Socket (SPEAKER 1, Purple)

3 North Bridge Controller 19 USB 2.0 Header (USB10, Blue)

4 3 x 240-pin DDR3 DIMM Slots 20 South Bridge Controller

(Triple Channel: DDR3_A1, DDR3_B1, DDR3_C1 21 PCI Express x16 Slot (PCIE2, Orange)

; White) 22 8Mb SPI Flash

5 ATX Power Connector (ATXPWR1) 23 Clear CMOS Jumper (CLRCMOS1)

6 System Panel Header (PANEL1, Orange) 24 PCI Express x16 Slot (PCIE3, Blue)

7 Front Panel IEEE 1394 Header 25 Infrared Module Header (IR1)

(FRONT_1394, Red) 26 COM Port Header (COM1)

8 USB 2.0 Header (USB8_9, Blue) 27 Floppy Connector (FLOPPY1)

9 USB 2.0 Header (USB6_7, Blue) 28 HDMI_SPDIF Header

10 3 x 240-pin DDR3 DIMM Slots (HDMI_SPDIF1, Yellow)

(Triple Channel: DDR3_A2, DDR3_B2, DDR3_C2 29 PCI Express x16 Slot (PCIE4, Orange)

; Blue) 30 PCI Slots (PCI1-3)

11 Chassis Fan Connector (CHA_FAN1) 31 Internal Audio Connector: CD1 (Black)

12 North Bridge Fan Connector (NB_FAN1) 32 PCI Express x16 Slot (PCIE1, Blue)

13 Chassis Fan Connector (CHA_FAN2) 33 Power Fan Connector (PWR_FAN1)

14 Primary IDE Connector (IDE1, Blue) 34 Front Panel Audio Header

15 SATAII Connector (SATAII_1_2, Red) (HD_AUDIO1, Lime)

16 SATAII Connector (SATAII_3_4, Red) 35 CPU Fan Connector (CPU_FAN1)

17 SATAII Connector (SATAII_5_6, Red) 36 ATX 12V Power Connector (ATX12V1)

ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

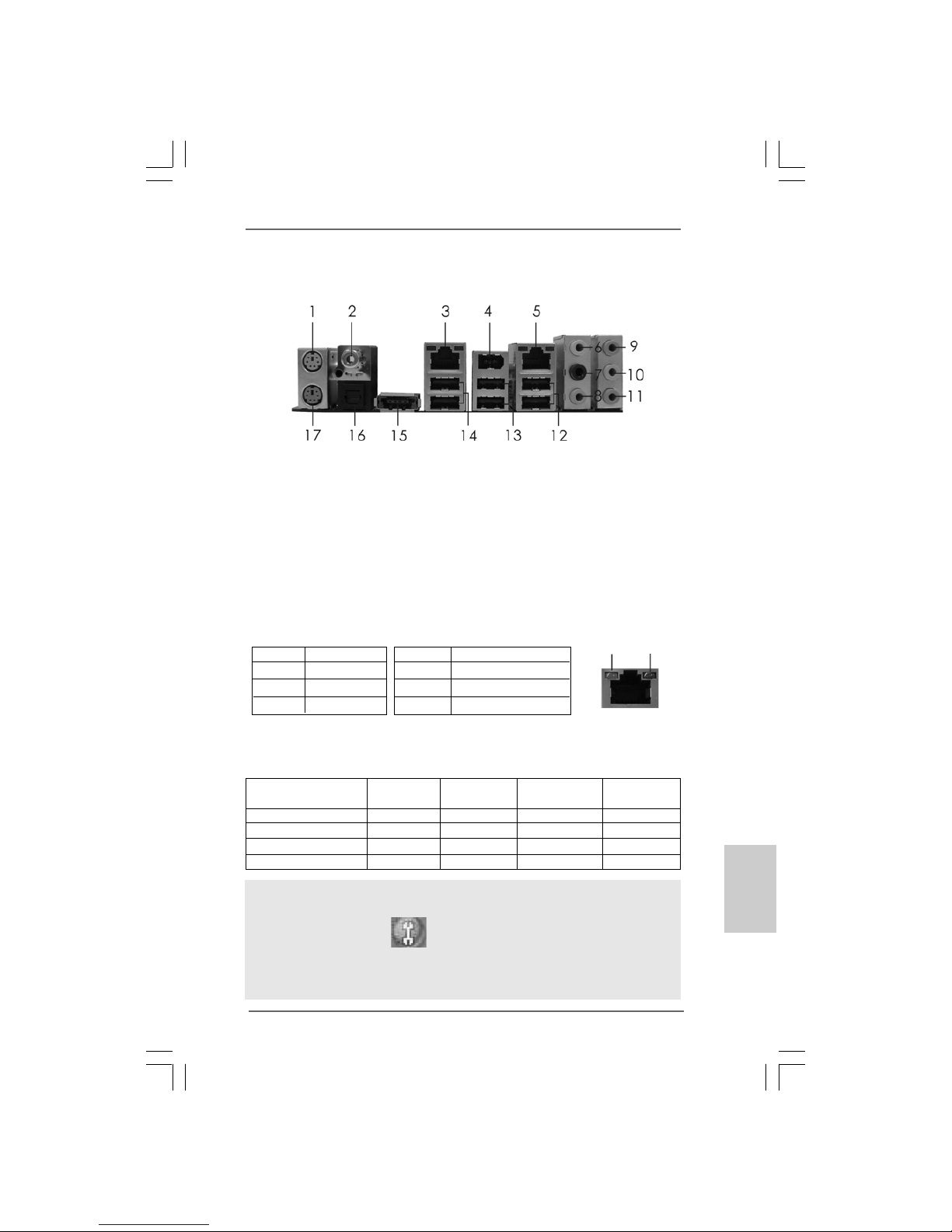

I/O PI/O P

I/O Panelanel

anelanel

anel

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH” or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDAAudio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 10) (No. 7) (No. 8) (No. 6)

2 V -- -- --

4 V -- -- V

6V--VV

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)

2 Coaxial SPDIF Out Port 11 Microphone (Pink)

* 3 LAN RJ-45 Port 12 USB 2.0 Ports (USB45)

4 IEEE 1394 Port 13 USB 2.0 Ports (USB23)

* 5 LAN RJ-45 Port 14 USB 2.0 Ports (USB01)

6 Side Speaker (Gray) 15 Powered eSATAII/USB (ESATAII_USB1)

7 Rear Speaker (Black) 16 Optical SPDIF Out Port

8 Central / Bass (Orange) 17 PS/2 Keyboard Port (Purple)

9 Line In (Light Blue)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Light Link Green 1Gbps connection

4ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock X58 SuperComputer motherboard, a reliable

motherboard produced underASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming toASRock’s commitment to qual-

ity and endurance.

This Quick InstallationGuide contains introduction of the motherboard and step-by-step

installation guide. More detailed information of the motherboard can be found in the user

manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists onASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock X58 SuperComputer Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock X58 SuperComputer Quick InstallationGuide

ASRock X58 SuperComputer Support CD

1 x 80-conductor UltraATA66/100/133 IDE Ribbon Cable

1 x Ribbon Cable for a 3.5-in FloppyDrive

6 x SerialATA(SATA)Data Cables (Optional)

2 x SerialATA (SATA) HDD Power Cables (Optional)

1 x I/O Panel Shield

2 xASRock XFire_Bridge_3S Cards

1 xASRock SLI Bridge

1 xASRock SLI_Bridge_3S Card

1 xASRock 3-Way SLI Bridge Card

ASRock X58 SuperComputer Motherboard

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

-All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - Intel®Socket 1366 CoreTM i7ProcessorExtremeEdition / CoreTM

i7 Processor Supports Intel®Dynamic Speed Technology

- System Bus up to 6400 MT/s; Intel®QuickPath Interconnect

- Supports Hyper-ThreadingTechnology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset -Northbridge: Intel®X58

- Southbridge: Intel®ICH10R

Memory - Triple ChannelDDR3 MemoryTechnology (see CAUTION 3)

- 6 xDDR3 DIMM slots

-SupportsDDR32000(OC)/1866(OC)/1600(OC)/1333(OC)/1066

non-ECC, un-buffered memory

- Supports DDR3 ECC, un-buffered memory with Intel®

Workstation 1S Xeon®processors 3500 series

- Max. capacity of system memory: 24GB (see CAUTION 4)

- Supports Intel®Extreme Memory Profile (XMP)

Expansion Slot - 4 x PCI Express 2.0 x16 slots

(blue @ x8 / x16 mode, orange @ x8 / N/Amode)

(Double-wide slot spacing between each PCI-E slot)

- 3 x PCI slots

- SupportsATITM CrossFireXTM, Quad CrossFireXTM

- SupportsNVIDIA®Quad SLITM, 3-Way SLITM and SLITM

- SupportsNVIDIA®Tesla Personal Supercomputer with three

Tesla and one Quadro graphics cards

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio with

Content Protection

-DAC with 110dB dynamic range (ALC890 Audio Codec)

-DTS (Digital Theater Systems) support (see CAUTION 5)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-Realtek RTL8111DL

- Supports Wake-On-LAN

- SupportsDual LANwith Teaming function

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

EnglishEnglish

English

6ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x Powered eSATAII/USB Connector

- 2 x RJ-45 LANPorts with LED (ACT/LINK LED and SPEED

LED)

- 1 x IEEE 1394 Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 6)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID(RAID0,

RAID 1, RAID10, RAID5 and Intel Matrix Storage),NCQ,

AHCI and “Hot Plug” functions (see CAUTION 7)

* 2 SATAII 3.0 Gb/s connectors can be used as eSATAII connectors

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- CPU/Chassis/NB/Power FANconnector

- 24 pinATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 5 USB 2.0 ports)

(see CAUTION 8)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU,DRAM,NB, SB, VTT Voltage Multi-adjustment

- Supports I. O. T. (Intelligent Overclocking Technology)

- Supports Smart BIOS

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Unique Feature -ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Instant Boot

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

-ASRock U-COP (see CAUTION 12)

- Boot FailureGuard (B.F.G.)

ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

58 of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 37 for details.

3. This motherboard supports Triple Channel Memory Technology. Be-

fore you implement Triple Channel Memory Technology, make sure to

read the installation guide of memory modules on page 14 for proper

installation.

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

5. DTS (Digital Theater Systems) is a multi-channel digital surround sound

format. To enable DTS function, you need to adjust the settings after

audio driver installation. Please refer to “DTS Operation Guide” on page

35 for details.

6. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-

channel, 6-channel, and 8-channel modes. Please check the table on

page 3 for proper connection.

7. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 40 of “User Manual” in the

support CD to adjust your SATAII hard disk drive to SATAII mode. You can

also connect SATA hard disk to SATAII connector directly.

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

Hardware - CPUTemperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/NB/Power FanTachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit

compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

8. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

9. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows®

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website: http://www.asrock.com

10. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. In other words, it is able to provide excep-

tional power saving and improve power efficiency without sacrificing

computing performance. Please visit our website for the operation pro-

cedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

11. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

1.31.3

1.3 TT

Two SLIwo SLI

wo SLIwo SLI

wo SLITMTM

TMTM

TM Graphics Card SupporGraphics Card Suppor

Graphics Card SupporGraphics Card Suppor

Graphics Card Support Listt List

t Listt List

t List

(for Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit)

Chipset Model Name Chipset Name Driver

Vendor

NVIDIA

* For the latest updates of the supported PCI Express VGA card list for SLITM Mode,

please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

1.41.4

1.4 Three SLIThree SLI

Three SLIThree SLI

Three SLITMTM

TMTM

TM Graphics Card Support ListGraphics Card Support List

Graphics Card Support ListGraphics Card Support List

Graphics Card Support List

(for Windows®VistaTM / VistaTM 64-bit)

Gigabyte GV-NX88T256H GeForce 8800 GT 180.48

Gigabyte GV-NX88S512H-B GeForce 8800 GTS 180.48

LEADTEK PX8800 GTX TDH GeForce 8800 GTX 180.48

Chaintech GES96GT-A1512P GeForce 9600 GT 180.48

ASUS EN9800GT TDP/HTDP/512M GeForce 9800GT 180.48

LEADTEK PX9800GTX GeForce 9800GTX 180.48

LEADTEK PX9800 GTX+ GeForce 9800GTX+ 180.48

GIGABYTE GV-N26-896H-B GeForce GTX260 180.48

Chipset Model Name Chipset Name Driver

Vendor

NVIDIA

* For the latest updates of the supported PCI Express VGA card list for 3-Way SLITM

Mode, please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

LEADTEK PX9800 GTX+ GeForce 9800GTX+ 180.48

GIGABYTE GV-N26-896H-B GeForce GTX260 180.48

1010

10 ASRock X58 SuperComputer Motherboard

EnglishEnglish

English

1.51.5

1.5 TT

Two CrossFwo CrossF

wo CrossFwo CrossF

wo CrossFireXireX

ireXireX

ireXTMTM

TMTM

TM Graphics Card SupporGraphics Card Suppor

Graphics Card SupporGraphics Card Suppor

Graphics Card Support Listt List

t Listt List

t List

(for Windows®VistaTM / VistaTM 64-bit)

Chipset Model Name Chipset Name Driver

Vendor

ATI

* For the latest updates of the supported PCI Express VGA card list for

CrossFireXTM Mode, please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

MSI RX2600PRO-T2D256EZ Radeon HD 2600PRO Catalyst 8.9

Gigabyte GV-RX26T256HP-B Radeon HD 2600XT Catalyst 8.9

Powercolor AX3650 512MMD3-XP RADEON 3650 Catalyst 8.9

Gigabyte GV-RX385256H-B RADEON 3850 Catalyst 8.9

Powercolor AX3870 512MD4-H RADEON 3870 Catalyst 8.9

Powercolor AX3870X2 1GBD3-H RADEON 3870 Catalyst 8.9

Gecube GC-HD485PG3-E3 RADEON 4850 Catalyst 8.9

1.61.6

1.6 Three CrossFireXThree CrossFireX

Three CrossFireXThree CrossFireX

Three CrossFireXTMTM

TMTM

TM Graphics Card Support ListGraphics Card Support List

Graphics Card Support ListGraphics Card Support List

Graphics Card Support List

(for Windows®VistaTM / VistaTM 64-bit)

Chipset Model Name Chipset Name Driver

Vendor

ATI

* For the latest updates of the supported PCI Express VGA card list for

CrossFireXTM Mode, please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

Gecube GC-HD485PG3-E3 RADEON 4850 Catalyst 8.12

+ Hotfix

1.71.7

1.7 Four CrossFireXFour CrossFireX

Four CrossFireXFour CrossFireX

Four CrossFireXTMTM

TMTM

TM Graphics Card Support ListGraphics Card Support List

Graphics Card Support ListGraphics Card Support List

Graphics Card Support List

(for Windows®VistaTM / VistaTM 64-bit)

Chipset Model Name Chipset Name Driver

Vendor

ATI

* For the latest updates of the supported PCI Express VGA card list for

CrossFireXTM Mode, please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

Gecube GC-HD485PG3-E3 RADEON 4850 Catalyst 8.12

+ Hotfix

Andere Handbücher für X58 SUPERCOMPUTER -

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK A55M-VS Bedienungsanleitung

ASROCK

ASROCK A75 Extreme6 Bedienungsanleitung

ASROCK

ASROCK H97M Anniversary Bedienungsanleitung

ASROCK

ASROCK IMB-186-E Bedienungsanleitung

ASROCK

ASROCK Super Alloy Z120M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK K8NF6G-VSTA Bedienungsanleitung

ASROCK

ASROCK IMB-391 Bedienungsanleitung

ASROCK

ASROCK AM1H-M Bedienungsanleitung

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0 - Bedienungsanleitung

ASROCK

ASROCK B75M-DGS Bedienungsanleitung

ASROCK

ASROCK Fatal1ty 990FX Killer Series Bedienungsanleitung

ASROCK

ASROCK K7VT2 Bedienungsanleitung

ASROCK

ASROCK Z68 Extreme4 Gen3 Bedienungsanleitung

ASROCK

ASROCK IMB-A1000 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z77 Professional Bedienungsanleitung

ASROCK

ASROCK 4CORE1600-GLAN/M Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z97 Bedienungsanleitung

ASROCK

ASROCK N68C-GS UCC - Bedienungsanleitung

ASROCK

ASROCK AOD790GX-128M Bedienungsanleitung

ASROCK

ASROCK X570 Steel Legend Bedienungsanleitung

ASROCK

ASROCK 939Dual-SATA2 Bedienungsanleitung

ASROCK

ASROCK Z370 Killer SLI Bedienungsanleitung

ASROCK

ASROCK K7VT6-C Bedienungsanleitung

ASROCK

ASROCK H91M-PLUS Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
