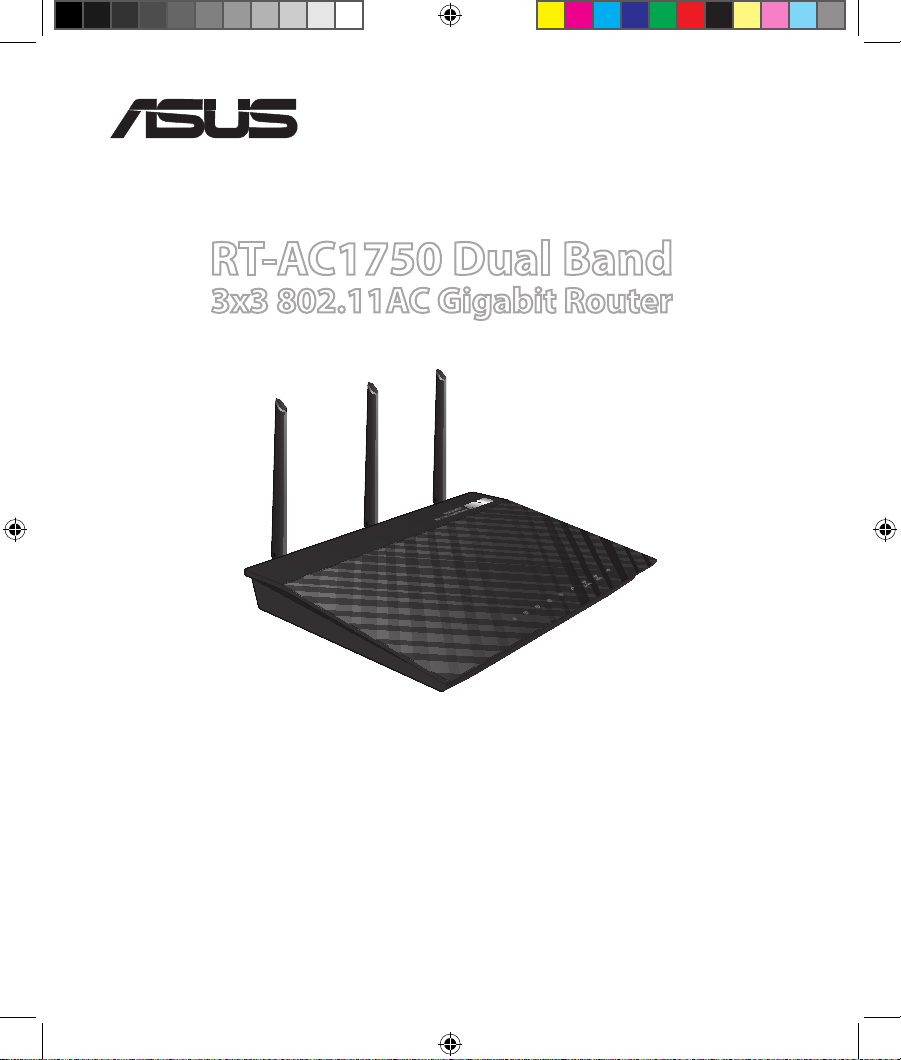

Asus RT-AC1750 Bedienungsanleitung

Quick Start Guide

RT-AC1750 Dual Band

3x3 802.11AC Gigabit Router

NA11363 / First Edition /February 2016

NA11363_RT-AC1750_QSG.indb 1 2016-02-22 16:25:06

NOTE / <T-CHINESE> / <FRENCH> / <PORTUGUESE> /

• Formoredetails,refertotheusermanualincludedinthe

support CD.

• <T-CHINESE>

• <FRENCH>

• <PORTUGUESE>

• <SPANISH>

Table of contents

English.............................................................................................3

T-Chinese........................................................................................16

French..............................................................................................29

Portuguese ....................................................................................42

Spanish............................................................................................55

NA11363_RT-AC1750_QSG.indb 2 2016-02-22 16:25:06

ENGLISH

Package contents

RT-AC1750 AC adapter

Networkcable   Quick Start Guide

SupportCD(UserManual/utilities) Warranty card

Stand

A quick look

1)PowerLED 5)5GHzLED 9)USB2.0ports

2)LANLED 6)USB2.0LED 10)Resetbutton

3)WANLED 7)Power(DC-IN)port 11)Internet&LANports

4)2.4GHzLED 8)Powerswitch 12)WPSbutton

NOTE:Ifanyoftheitemsisdamagedormissing,contactyourretailer.

7 9 10 12

1 2 3

NA11363_RT-AC1750_QSG.indb 3 2016-02-22 16:25:06

ENGLISH

NOTES:

• USB External HDD/Flash disk:

 •ThewirelessrouterworkswithmostUSBHDDs/Flashdisksupto

2TBandsupportsread-writeaccessforFAT16,FAT32,EXT2,EXT3,

and NTFS.

 •TosafelyremovetheUSBdisk,launchthewebGUI

(http://192.168.1.1),thenintheNetwork Mappage'supperright

corner,clicktheUSBiconandclickEject USB 1.

 •IncorrectremovaloftheUSBdiskmaycausedatacorruption.

 •Forthelistoflesystemandharddiskpartitionsthatthe

wirelessroutersupports,visithttp://event.asus.com/networks/

disksupport

• Forthelistofprintersthatthewirelessroutersupports,visit

http://event.asus.com/networks/printersupport

NA11363_RT-AC1750_QSG.indb 4 2016-02-22 16:25:06

ENGLISH

Positioning your wireless router

Forthebestwirelesssignaltransmissionbetweenthewirelessrouterandthe

networkdevicesconnectedtoit,ensurethatyou:

• Placethewirelessrouterinacentralizedareaforamaximumwirelesscoverage

forthenetworkdevices.

• Keepthedeviceawayfrommetalobstructionsandawayfromdirectsunlight.

• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fidevices,2.4GHz

computerperipherals,Bluetoothdevices,cordlessphones,transformers,

heavy-dutymotors,uorescentlights,microwaveovens,refrigerators,andother

industrialequipmenttopreventsignalinterferenceorloss.

• Toensurethebestwirelesssignal,orientthethreedetachableantennasas

showninthedrawingbelow.

• Foroptimumperformance,adjusttheinternalcoolingsystem.Refertotheuser

manualfordetails.

• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat

http://www.asus.comtogetthelatestrmwareupdates.

450

900

NA11363_RT-AC1750_QSG.indb 5 2016-02-22 16:25:06

ENGLISH

Mounting to the stand

• Alignandinsertthestand’smountinghooks

tothewirelessrouter’smountingholes.

Before you proceed

1. Unpluganddisconnectthewires/cablesfromyourexistingmodemsetup

andreleaseyourcomputer’soutmodedIPaddress.

a: UnplugtheACadapterfromthepoweroutletanddisconnectitfromyour

cable/ADSLmodem.

b: Disconnectthenetworkcablefromyourcable/ADSLmodem.

c: Rebootyourcomputer(recommended).

Modem

OFF!

NA11363_RT-AC1750_QSG.indb 6 2016-02-22 16:25:07

ENGLISH

WARNING!Beforedisconnectingthewires/cables,ensurethatyour

cable/ADSLmodemhasbeenturnedoforatleasttwominutes.Ifyour

modemhasabackupbattery,removeitaswell.

2. Setupyourwirelessenvironment.

Computer

Modem

LAN

Power

Wall Power Outlet

Power

WAN

a: Insertyourwirelessrouter’sACadaptertotheDC-INportandplugittoa

poweroutlet.

b: Usingthebundlednetworkcable,connectyourcomputertoyourwireless

router’sLANport.

IMPORTANT!EnsurethattheWANandLANLEDsareblinking.

c: Usinganothernetworkcable,connectyourmodemtoyourwirelessrouter’s

WAN port.

d: Insertyourmodem’sACadaptertotheDC-INportandplugittoapower

outlet.

NA11363_RT-AC1750_QSG.indb 7 2016-02-22 16:25:07

ENGLISH

3. Disablesomesettingsonyourcomputer.

A. Disable the proxy server, if enabled.

B. Set the TCP/IP settings to automatically obtain an IP address.

C. Disable the dial-up connection, if enabled.

NOTE:Formoredetailsondisablingyourcomputersettings,referto

Frequently Asked Questions (FAQs).

1. Congureyourwirelesssettingsviathewirelessrouter’swebgraphics

userinterface(webGUI).

a: LaunchyourwebbrowsersuchasInternetExplorer,Firefox,GoogleChrome,

orSafari.

Getting started

NA11363_RT-AC1750_QSG.indb 8 2016-02-22 16:25:07

ENGLISH

NOTE:IfQISdoesnotlaunchautomatically,followthesestepsto

manuallylaunchQIS:

•Onyourwebbrowser,keyinhttp://192.168.1.1andruntheQuick

InternetSetup(QIS)Wizardagain.

•Disabletheproxysettings,dial-upconnection,andsetyourTCP/IP

settingstoautomaticallyobtainanIPaddress.Formoredetails,refer

totheFAQssectionorusetheSetupWizardinthesupportCDfor

auto-diagnosis.

b: Thewirelessrouter’sQuickInternetSetup(QIS)featureautomaticallydetects

ifyourISPconnectiontypeisDynamic IP,PPPoE,PPTP,L2TP,andStatic IP.

Keyinthenecessaryinformationforyourconnectiontype.

IMPORTANT!ObtainthenecessaryinformationaboutyourInternet

connectiontypefromyourInternetServiceProvider(ISP).

NOTE:Theauto-detectionofyourISPconnectiontypetakesplace

whenyoucongurethewirelessrouterforthersttimeorwhenyour

wirelessrouterisresettoitsdefaultsettings.

NOTE: Youcanassignanetworknamewithupto32characters.

c: Assignthenetworkname(SSID)and

securitykeyforyour2.4GHzand

5GHzwirelessconnection.ClickAp-

plywhendone.

d: YourInternetandwirelesssettings

aredisplayed.ClickNext to con-

tinue.

e: Readthewirelessnetworkcon-

nectiontutorial.Whendone,click

Finish.

NA11363_RT-AC1750_QSG.indb 9 2016-02-22 16:25:07

ENGLISH

Frequently Asked Questions (FAQs)

After following the steps, I still cannot access the wireless router’s web

graphics user interface (web GUI) to congure the wireless router settings.

A. Disable the proxy server, if enabled.

Windows® 7

1. ClickStart > Internet Explorertolaunchtheweb

browser.

2. ClickTools > Internet options > Connections tab

> LAN settings.

3. FromtheLocalAreaNetwork(LAN)Settings

screen,untickUse a proxy server for your

LAN.

4. ClickOKwhendone.
