Asus RT-N12 Series Bedienungsanleitung

User Manual

RT-N12

RT-N12 B1

ASUS Wireless Super Speed N Router

RT-N12/RT-N12B1

Wireless Super Speed N Router

E6473_RT-N12-B1_Manual.indd 1 4/11/11 12:40:32 PM

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means, except documentation kept by the purchaser for

backup purposes, without the express written permission of ASUSTeK Computer Inc.

(“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or

altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OFANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES ORAGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE

OR DATA, INTERRUPTION OF BUSINESSAND THE LIKE), EVEN IFASUS HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED

FOR INFORMATIONAL USE ONLY,AND ARE SUBJECT TO CHANGE AT ANY TIME

WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY

ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS

AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or

explanation and to the owners’ benet, without intent to infringe.

E6473

First Edition V1

April 2011

E6473_RT-N12-B1_Manual.indd 2 4/11/11 12:40:33 PM

Table of contents

About this guide .................................................................................... 4

Chapter 1: Knowing your wireless router

Package contents.................................................................................. 6

System requirements............................................................................ 6

Before you proceed............................................................................... 6

Hardware features ................................................................................. 7

Front panel........................................................................................ 7

Rear panel......................................................................................... 8

Bottom panel..................................................................................... 9

Mounting options................................................................................. 10

Chapter 2: Getting started

Setting up the wireless router.............................................................11

Using the Quick Internet Setup (QIS)..................................................11

Setting up the wireless router in Router mode................................ 12

Setting up the wireless router in Repeater mode............................ 15

Setting up the wireless router in AP mode...................................... 17

Chapter 3: Conguring the network clients

Accessing the wireless router............................................................ 19

Setting an IP address for wired or wireless clients.......................... 19

Chapter 4: Conguring via the web GUI

Conguring via the web GUI............................................................... 27

Using the Network Map....................................................................... 29

Creating multiple SSID proles ....................................................... 30

Managing bandwidth with EzQoS...................................................... 31

Upgrading the rmware ...................................................................... 32

Restoring/Saving/Uploading settings................................................ 33

Chapter 5: Installing the utilities

Installing the utilities........................................................................... 35

Device Discovery................................................................................. 37

Firmware Restoration.......................................................................... 38

WPS Wizard.......................................................................................... 39

Using WPS Wizard.......................................................................... 39

E6473_RT-N12-B1_Manual.indd 3 4/11/11 12:40:33 PM

Table of contents

About this guide

This user guide contains information that you need to install and congure the

ASUS Wireless Router.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Knowing your wireless router

This chapter provides information on the package contents, system

requirements, hardware features, and LED indicators of the ASUS Wireless

Router.

• Chapter 2: Getting started

This chapter provides instructions on setting up the Router, Repeater, and

Access Point modes of the ASUS Wireless Router.

• Chapter 3: Conguring the network clients

This chapter provides instructions on setting up the clients in your network to

work with your ASUS Wireless Router.

• Chapter 4: Conguring via the web GUI

This chapter provides instructions on conguring the ASUS Wireless Router

using its web graphics user interface (web GUI).

• Chapter 5: Installing the utilities

This chapter provides information on the utilities that are available from the

support CD.

Chapter 6: Troubleshooting

Troubleshooting................................................................................... 45

ASUS DDNS Service............................................................................ 48

Frequently Asked Questions (FAQs)............................................... 48

Appendices

Notices.................................................................................................. 51

ASUS Contact information.................................................................. 59

E6473_RT-N12-B1_Manual.indd 4 4/11/11 12:40:33 PM

• Chapter 6: Troubleshooting

This chapter provides you with a troubleshooting guide for solving common

problems you may encounter when using the ASUS Wireless Router.

• Appendices

This chapter provides you with the regulatory Notices and Safety Statements.

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

E6473_RT-N12-B1_Manual.indd 5 4/11/11 12:40:35 PM

6RT-N12 B1 Chapter 1: Knowing your wireless router

Knowing your

wireless router

Package contents

Check the following items in your ASUS Wireless Router package.

RT-N12 B1 Wireless Router x1

Power adapter x1

Support CD (manual, utilities) x1

RJ45 cable x1

Detachable antenna x2

Quick Start Guide x1

Note: If any of the items is damaged or missing, contact your retailer.

System requirements

Before installing the ASUS Wireless Router, ensure that your system/network

meets the following requirements:

• An Ethernet RJ-45 port (10Base-T/100Base-TX)

• At least one IEEE 802.11b/g/n device with wireless capability

• An installed TCP/IP and Internet browser

Before you proceed

Take note of the following guidelines before installing the ASUS Wireless Router:

• The length of the Ethernet cable that connects the device to the network (hub,

ADSL/cable modem, router, wall patch) must not exceed 100 meters.

• Place the device on a at and stable surface as far from the ground as

possible.

• Keep the device clear from metal obstructions and away from direct sunlight.

• Keep the device away from transformers, heavy-duty motors, uorescent lights,

microwave ovens, refrigerators, and other industrial equipment to prevent

signal loss.

• Install the device in a central area to provide ideal coverage for all wireless

mobile devices.

E6473_RT-N12-B1_Manual.indd 6 4/11/11 12:40:36 PM

Chapter 1: Knowing your wireless router RT-N12 B1

Status indicators

LED Status Indication

(Power) Off No power or wireless signal is disabled

On System ready

Flashing-slow Rescue mode

Flashing-quick WPS processing

(Wireless) Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

LAN 1-4

(Local Area

Network)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

WAN (Wide

Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

• Install the device at least 20cm from a person to insure that the product is

operated in accordance with the RF Guidelines for Human Exposure adopted

by the Federal Communications Commission.

Hardware features

Front panel

RT-N12/RT-N12 B1

Wireless Super Speed N Router

E6473_RT-N12-B1_Manual.indd 7 4/11/11 12:40:38 PM

8RT-N12 B1 Chapter 1: Knowing your wireless router

Rear panel

Label Description

WAN Connect an RJ-45 Ethernet cable to this port to establish

WAN connection.

LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to establish

LAN connection.

DC IN Insert the AC adapter into this port to connect your router

to a power source.

WPS Press this button to establish wireless connection.

Restore Press this button for more than ve seconds to restore the

system to its factory default settings.

Item Description

Operation

mode

selector

Use this selector to choose an operation mode:

Router (IP Sharing mode): In the Router mode, the wireless

router connects to the Internet via PPPoE, Automatic IP, PPTP,

L2TP, or Static IP, and provides you with wireless radio signals.

The NAT, rewall, and IP sharing services for LAN clients are

enabled.

Repeater: In this mode, the wireless router extends your wireless

network coverage and provides you with higher quality wireless

radio signals. The NAT, rewall, and IP sharing services are

disabled.

Access Point (AP): In this mode, the wireless router receives

the WAN IP address from the router connected to the WAN port

and provides you with wireless radio signals. The NAT, rewall,

and IP sharing services are disabled.

Operation mode

selector

E6473_RT-N12-B1_Manual.indd 8 4/11/11 12:40:39 PM

Chapter 2: Setting up the hardware RT-N12 B1

Getting started

Setting up the wireless router

The ASUS Wireless Router includes a web graphics user interface (web GUI)

that allows you to congure the wireless router using your web browser on your

computer.

You can set up the wireless router in any of these three operation modes: Router

(IP Sharing), Repeater, and Access Point (AP). Set up the wireless router in the

Router (IP Sharing) and Repeater modes via the Quick Internet Setup (QIS), and

the AP mode via the web GUI.

Note: For details on conguring your wireless router using the web GUI, refer to Chapter 4:

Conguring via the web GUI.

Note: To set up the wireless router in the AP mode, use Device Discovery included in the

support CD to access the web GUI.

Using the Quick Internet Setup (QIS)

The Quick Internet Setup (QIS) function, which is integrated in the wireless router’s

web GUI, detects the Internet connection type automatically and guides you in

setting up your network quickly.

The QIS web page appears automatically after you connected all your devices and

launched your web browser. You may also launch the QIS from the Network Map

page in the web GUI. To do this, click Go in the QIS eld under Internet status.

E6473_RT-N12-B1_Manual.indd 11 4/11/11 12:40:41 PM

12 RT-N12 B1 Chapter 2: Setting up the hardware

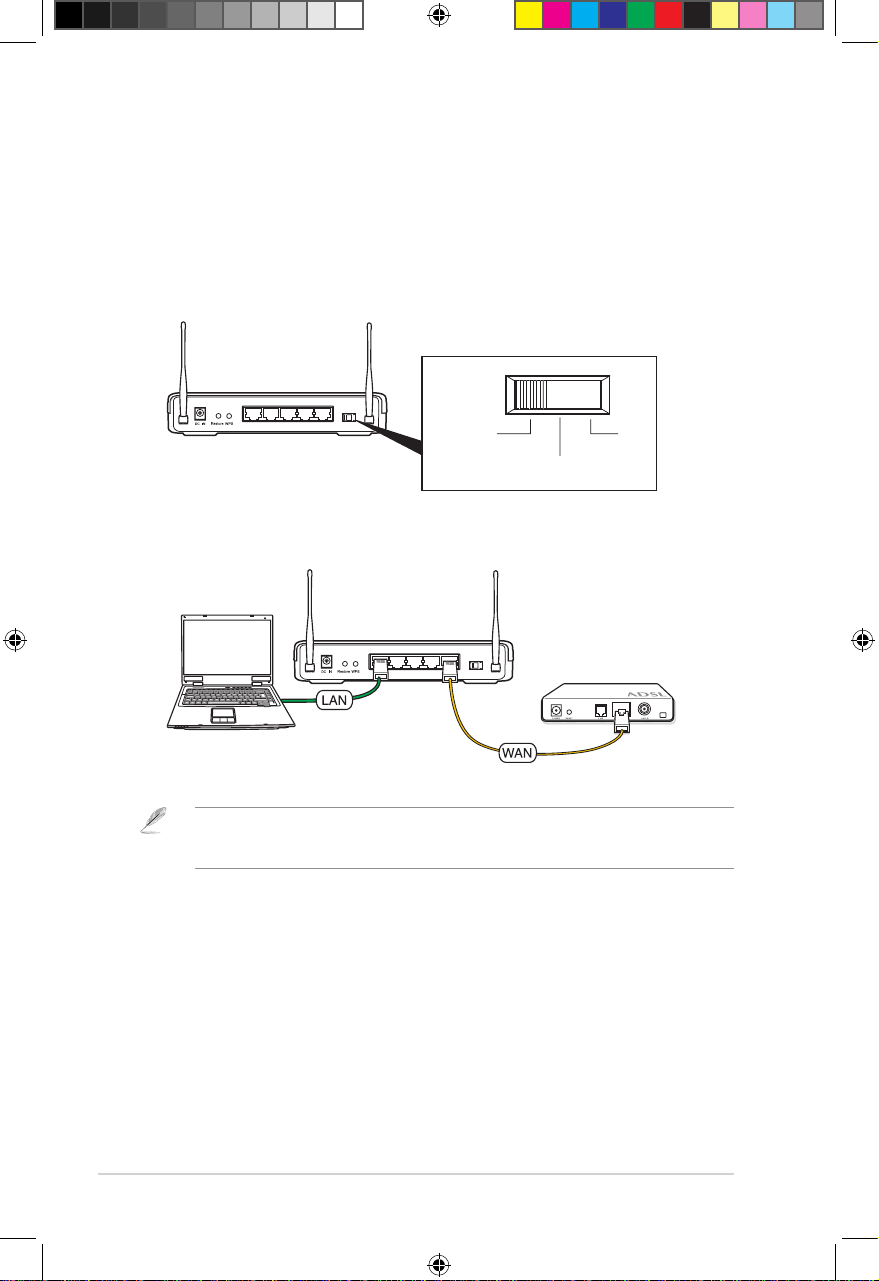

LAN1 LAN2 LAN3 LAN4 Internet

Modem

RT-N12 B1

Client

2. Connect your devices.

Setting up the wireless router in Router mode

In the Router mode, the wireless router connects to the Internet via PPPoE,

Automatic IP, PPTP, L2TP, or Static IP, and provides you with wireless radio

signals. The NAT, rewall, and IP sharing services for LAN clients are enabled.

To set up the wireless router in Router mode:

1. Choose the Router mode.

Router AP

Repeater

RT-N12 B1

LAN1 LAN2 LAN3 LAN4 Internet

Note: We recommend that you use an Ethernet cable (wired connection) to connect your

computer to the wireless router for initial conguration to avoid possible setup problems due to

wireless uncertainty.

E6473_RT-N12-B1_Manual.indd 12 4/11/11 12:40:43 PM

Andere Handbücher für RT-N12 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Asus Netzwerk-Router Handbücher

Asus

Asus RT-N65U Bedienungsanleitung

Asus

Asus wl-550ge Bedienungsanleitung

Asus

Asus RT-AC52U B1 Bedienungsanleitung

Asus

Asus SuperSpeed N WL-500W Bedienungsanleitung

Asus

Asus RT-AC88U Bedienungsanleitung

Asus

Asus WL-AM604g Bedienungsanleitung

Asus

Asus DSL-AC55U Bedienungsanleitung

Asus

Asus RT-AC53 Bedienungsanleitung

Asus

Asus RT-AX92U Bedienungsanleitung

Asus

Asus AAM6020VI Bedienungsanleitung

Asus

Asus RT-AC58U Bedienungsanleitung

Asus

Asus RT-AC1200GU Bedienungsanleitung

Asus

Asus ROG Rapture GT-AC5300 Bedienungsanleitung

Asus

Asus AX5400 Bedienungsanleitung

Asus

Asus RT-AC1500UHP Bedienungsanleitung

Asus

Asus DSL-N10S Bedienungsanleitung

Asus

Asus ZenWiFi Pro ET12 Bedienungsanleitung

Asus

Asus ExpertWiFi EBM68 Bedienungsanleitung

Asus

Asus RT-AX86U Bedienungsanleitung

Asus

Asus RT-G32 - Wireless Router Bedienungsanleitung

Asus

Asus 90IG04K0-BU9100 Bedienungsanleitung

Asus

Asus WL-330NUL Bedienungsanleitung

Asus

Asus DSL-N10 Bedienungsanleitung

Asus

Asus RT-AX92U Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
