Quick Start Guide

WL-500gP Wireless Router

English

Manufacturer Contact Information

ASUSTeK COMPUTER INC. (Asia-Pacic)

Company address: 15 Li-Te Road, Beitou, Taipei 11259

General (tel): +886-2-2894-3447 Web site address: www.asus.com.tw

General (fax): +886-2-2894-7798 General email: [email protected]

ASUS COMPUTER INTERNATIONAL (America)

Company address: 44370 Nobel Drive, Fremont, CA 94538, USA

General (fax): +1-510-608-4555 Web site address: usa.asus.com

Technical support

General support: +1-502-995-0883 Support (fax): +1-502-933-8713

Online support: http://vip.asus.com/eservice/techserv.aspx

ASUS COMPUTER GmbH (Germany & Austria)

Company address: Harkort Str. 25, D-40880 Ratingen, Germany

General (tel): +49-2102-95990 Web site address: www.asuscom.de

General (fax): +49-2102-959911 Online contact: www.asuscom.de/sales

Technical support

Components: +49-2102-95990 Online support: www.asuscom.de/support

Notebook: +49-2102-959910 Support (fax): +49-2102-959911

English

WL-500gP Wireless Router Quick Start Guide

English

Table of contents

1. Package contents.................................................................................2

2. Connecting ADSL modem and wireless router .................................2

1) Cable connection ...............................................................................2

2) Status indicators ................................................................................3

3) Wall mount option ..............................................................................3

3. Getting started......................................................................................4

1) Wired connection ...............................................................................4

2) Wireless Connection..........................................................................4

3) Setting IP address for wired or wireless client ...................................4

4) Conguring the wireless router ..........................................................5

5) Quick setup .......................................................................................6

4. Application features ........................................................................... 11

1) Sharing USB storage ....................................................................... 11

2) Setting up FTP site ..........................................................................13

3) Download Master.............................................................................14

4) Sharing USB printer.........................................................................16

WL-500gP Wireless Router Quick Start Guide

English

2. Connecting ADSL modem and wireless router

1. Package contents

• WL-500gP wireless router x 1

• Power adapter x 1

• Utility CD x 1

• RJ45 cable x 1

• Quick Start Guide x 1

1) Cable connection

Modem

Wall telephone outlet

Wall power outlet

Phone

Power

Wall power outlet

ASUS Wireless Router

LAN

Modem

Wall telephone outlet

Wall power outlet

LAN

Power

Phone

Power

ASUS Wireless Router

WAN

Power

WL-500gP Wireless Router Quick Start Guide

English

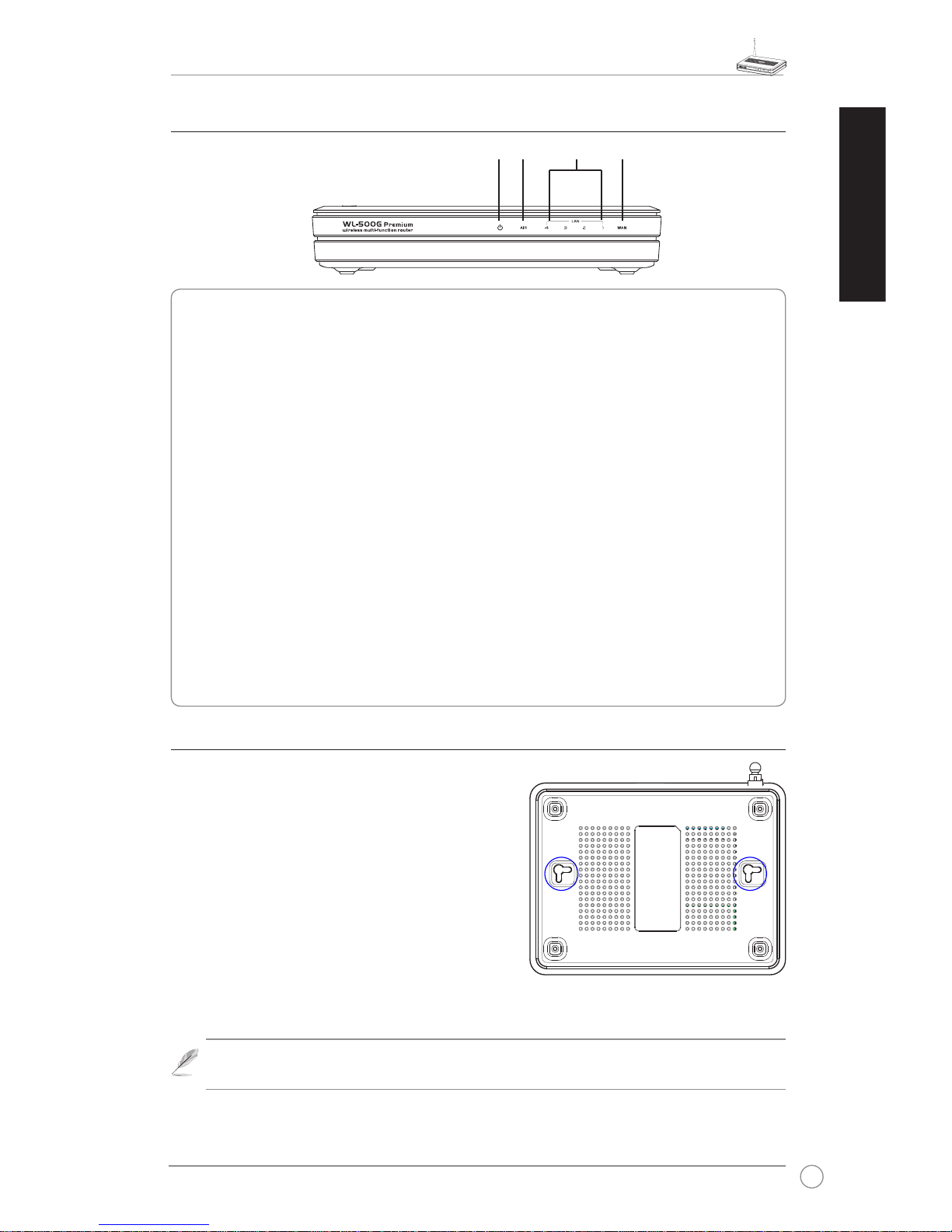

2) Status indicators

PWR (Power)

Off No power

On System ready

Flashing-slow Firmware upgrade failed

Flashing-quick EZsetup processing

AIR (Wireless Network)

Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

WAN (Wide Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (through Ethernet cable)

LAN 1-4 (Local Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (through Ethernet cable)

3) Wall mount option

Out of the box, ASUS WL-500gP Wireless Router

is designed to sit on a raised flat surface like a

file cabinet or book shelf. The unit may also be

converted for mounting to a wall or ceiling.

Follow these steps to mount the ASUS Wireless

Router to a wall:

1. Look on the underside for the two mounting

hooks.

2. Mark two upper holes in a at surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS Wireless Router onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the

screws or if it is too loose.

PWR

AIR WANLAN

WL-500gP Wireless Router Quick Start Guide

English

The ASUS WL-500gP Wireless Router can meet various working scenarios with proper

conguration. The default settings of the wireless router may need change so as to meet your

individual needs. Therefore, before using the ASUS Wireless Router, check the basic settings to

make sure they all work in your environment.

ASUS provides a utility named EZSetup for fast wireless conguration. If you would like to use

EZSetup for your router conguration, refer to chapter 6 of user manual in support CD.

Note: Wired connection for initial conguration is recommended to avoid possible

setup problems due to wireless uncertainty.

1) Wired connectionired connection

The ASUS WL-500gP Wireless Router is supplied with an Ethernet cable in the package. Since

the ASUS Wireless Router has integrated auto-crossover function, therefore, you can use either

straight-through or crossover cable for wired connection. Plug one end of the cable to the LAN

port on the rear panel of the router and the other end to the Ethernet port on your PC.

2) Wireless Connection

For establishing wireless connection, you need an IEEE 802.11b/g compatible WLAN card. ReferRefer

to your wireless adapter user manual for wireless connection procedures. By default, the

SSID of ASUS Wireless Router is “default” (in lower case), encryption is disabled and open

system authentication is used.

3) Setting IP address for wired or wireless client

To access WL-500gP Wireless Router, you must have correct TCP/IP settings on your wired or

wireless clients. Set the IP addresses of the clients within the same subnet of WL-500gP.

Getting IP address Automatically

The ASUS Wireless Router integrates DHCP server functions, therefore, you can make your

PC get IP address automatically from the ASUS Wirelesss Router.

Note: Before rebooting your PC, switch ON the

wireless router and make sure the router is ready.

Setting up IP address Manually

To set IP address manually, you need to know the default

settings of the ASUS Wireless Router:

• IP address 192.168.1.1

• Subnet Mask 255.255.255.0

3. Getting started

WL-500gP Wireless Router Quick Start Guide

English

To set up the connection with a manually assigned

IP address, the address of your PC and the wireless

router must be within the same subnet:

• IP address: 192.168.1.xxx (xxx can be any

number between 2 and 254. Make sure the IP

address is not used by other device)

• Subnet Mask: 255.255.255.0 (same as WL-

500gP)

• Gateway: 192.168.1.1 (IP address of WL-500gP)

• DNS: 192.168.1.1 (WL-500gP), or assign a

known DNS server in your network.

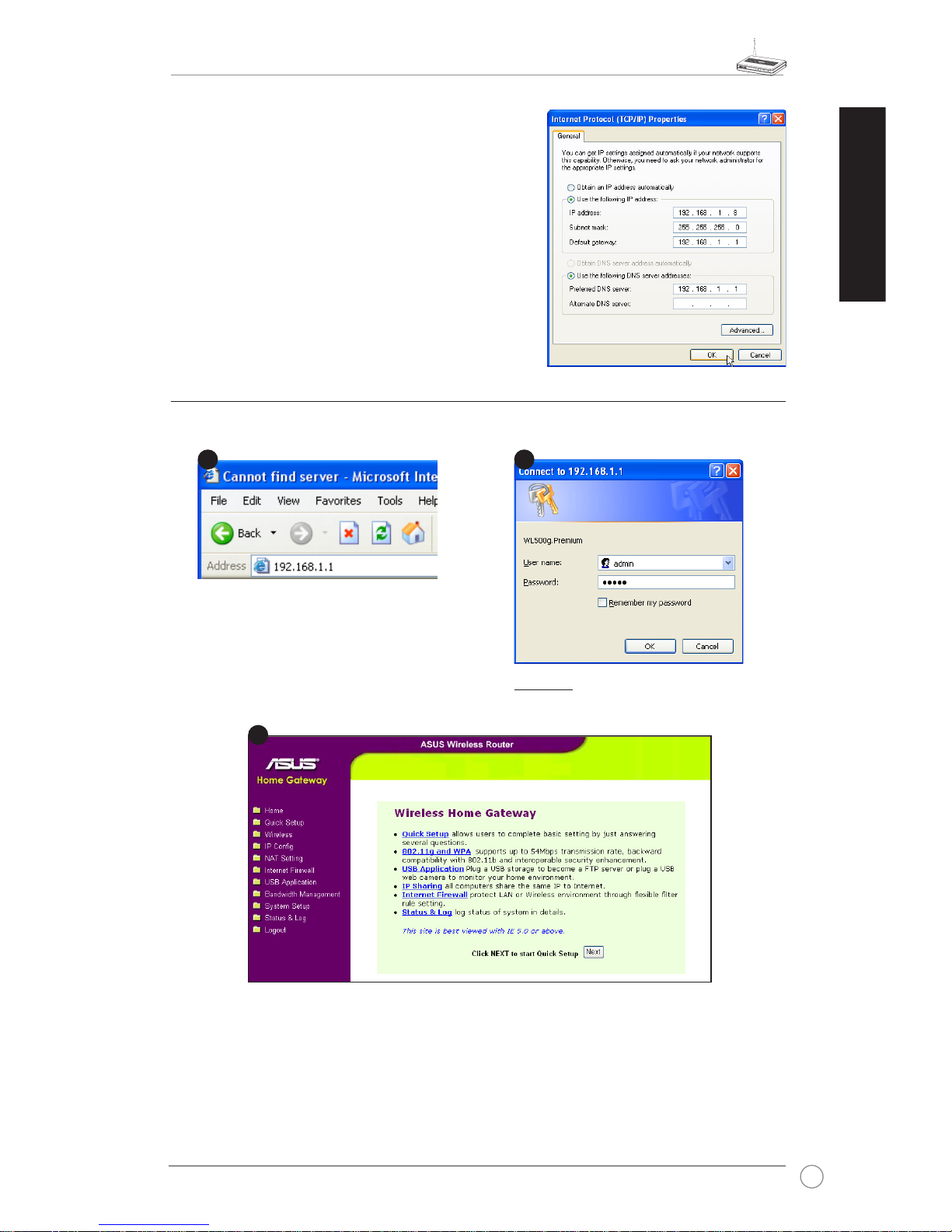

4) Conguring the wireless router

Follow the steps below to enter the Web conguration interface of WL-500gP.

Defaults

User name: admin Password: admin

Enter the following address in your

web browser: http://192.168.1.1

After logging in, you can see the ASUS Wireless Router home page.

The homepage displays quick links to congure the main features of the wireless router.

WL-500gP Wireless Router Quick Start Guide

English

1. Select your time zone and click

Next.

5) Quick setup

To start quick setup, click Next to enter the “Quick Setup”

page. Follow the instructions to setup the ASUS Wireless

Router.

2. ASUS wireless router supports

five types of ISP services: cable,

PPPoE, PPTP, static WAN IP,

and Telstra BigPond. Select your

connection type and click Next to

continue.

Cable or dynamic IP user

If you are using services provided by

cable ISP, select Cable Modem or other

connection that gets IP automatically.

If your ISP provides you hostname, MAC

address, and heartbeat server address,

fill these information into the boxes on

the setting page; if not, click Next to skip

this step.

PPPoE user

If you use PPPoE service, select ADSL

connection that requires username

and password. It is known as PPPoE.

You need to input the username and

password provided by your ISP. Click

Next to continue.

WL-500gP Wireless Router Quick Start Guide

English

3. Setting up your wireless interface.Specify

to your wireless router an SSID (Service

Set Identier), which is a unique identier

attached to packets sent over WLAN.

This identifier emulates a password

when a device attempts to communicate

with your wireless router via WLAN.

If you want to protect transmitted data, select a Security Level to enable encryption methods.

Medium: Only users with the same WEP key settings can connect to your wireless router

and transmit data using 64bits or 128bits WEP key encryption.

High: Only users with the same WPA pre-shared key settings can connect to your wireless

router and transmit data using TKIP encryption.

PPTP user

If you are using PPTP services, select ADSL

connection that requires username,

password and IP address. Fill in the

username, password and IP address

provided by your ISP into the fields. Click

Next to continue.

Static IP user

If you are using ADSL or other connection

type that uses static IP address, select ADSL

or other connection type that uses static

IP address. Input the IP address, subnet

mask, and default gateway provided by your

ISP. You can specify DNS servers, or get

DNS information automatically.
