Asus WL-700GE - Wireless Router Bedienungsanleitung

Multifunctional Wireless Storage Router

WL-700gE

User Manual

(For 802.11g and 802.11b wireless network)

WL-700gE Wireless Router User Manual

Manufacturer contact information

ASUSTeK COMPUTER INC. (Asia-Pacic)

Company address: 15 Li-Te Road, Beitou, Taipei 11259

General (tel): +886-2-2894-3447 Web site address: www.asus.com.cn

General (fax): +886-2-2890-7698 General email: [email protected]

ASUS COMPUTER INTERNATIONAL (America)

Company address: 44370 Nobel Drive, Fremont, CA 94538, USA

General (fax): +1-510-608-4555 Web site address: usa.asus.com

Technical support

General support: +1-502-995-0883 Support (fax): +1-502-933-8713

Online support: http://vip.asus.com/eservice/techserv.aspx

ASUS COMPUTER GmbH (Germany & Austria)

Company address: Harkort Str. 25, D-40880 Ratingen, Germany

General (tel): +49-2102-95990 Web site address: de.asus.com

General (fax): +49-2102-959911 Online contact: de.asus.com/sales

Technical support

Components: +49-2102-95990 Online support: de.asus.com/support

Notebook: +49-2102-959910 Support (fax): +49-2102-959911

E2393

June 2006

WL-700gE Wireless Router User Manual

1. Product introduction ................................................................5

1) System requirement................................................................5

2) Package contents ..................................................................5

3) Rear panel ..............................................................................5

4) Front panel..............................................................................6

2. Connecting ADSL modem & installing the utilities ...............7

1) Installing the utilities................................................................7

Setting up the wireless router using EZSetup

.............. 11

3. Conguring the wireless router .............................................17

1) Wired connection ..................................................................17

2) Wireless connection..............................................................17

3) Setting IP address for Wired or Wireless Connection...........17

 4)Conguringthewirelessrouter .............................................18

4. Wireless router features .........................................................24

1) Sett up wireless encryption...................................................24

2) Setting up a virtual server in your LAN .................................25

3) Setting up a virtual DMZ in your LAN ...................................26

4) Setting up DDNS ..................................................................26

5) Setting up bandwidth management ......................................30

5. Utilities feature.........................................................................33

1) USB auto copy function ........................................................33

2) Wireless data sharing ...........................................................34

3) Download machine ...............................................................37

4) Sharing photos on your website ...........................................40

5) Setting up the message board .............................................44

6) Webcam ...............................................................................47

7) Setting up shared printer......................................................50

5. Troubleshooting ......................................................................25

Contents

WL-700gE Wireless Router User Manual

About this guide

This user manual contains the information you need when using the

product, its chapters are as the following:

• Chapter 1: Product introduction

Through its simple and easy descriptions and illustrations, this

chapter guides you to explore the excellent features of WL-700gE that

endowed by ASUS. You will soon be mastering in ASUS WL-700gE's

various functions and features, including the product's appearence,

functions, and basic operating skills.

• Chapter 2:

Connecting ADSL modem & installing the utilities

This chapter tells how to connect ADSL modem and to install the

software.

• Chapter 3:

Conguring the wireless router

Thischaptertellshowtocongurethewirelessrouter.

• Chapter 4:

Wireless router features

This chapter tells how to use the special features of WL-700gE.

• Chapter 5: Application features

This chapter tells how to use the software available along with the

WL-700gE.

Where to nd more information

Refer to the following sources for additional information and for product

and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware

and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as

warranty flyers, that may have been added by your dealer. These

documents are not part of the standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the

following symbols used throughout this manual.

Caution: Information to prevent damage to the components

when trying to complete a task.

Note: Tips and additional information to help you complete a

task.

WL-700gE Wireless Router User Manual

2) Package contents

• WL-700gE wireless router x 1

• White 2dbi antenna x 1

• Power cable x 1

• RJ-45 Ethernet cable (straight-through) x 1

• Utility CD (with User Manual) x 1

• Foot stand x 1

• User Manual x 1

1. Product introduction

1) System requirement

You will need the following items to set up a wireless network environment using

WL-700gE:

1. An ADSL/Cable modern and an account for broadband service

2. A computer with a 10-Base-T or 10/100Base-TX Ethernet adapter (with a RJ-45

LAN port) pre-installed for connecting the LAN

3. A wireless client (such as a PDA or laptop computer) that has build-in 802.11g/b

wireless connection, or has a 802.11g/b wireless LAN card

4. The computer and the wireless client must have installed TCP/IP protocol

component and a Web browser

RESET

Push the RESET button for 10 seconds to restore the factory default.

EZSetup

This button is for using EZSetup setting wizard.

3) Rear panel

LAN 1-4 EZSetupWAN

USB 2.0

RESET

AC IN

Cover lock

Antenna

WL-700gE Wireless Router User Manual

4) Front panel

LAN 1-4IDE AIR

USB 2.0

COPY

WANREADY

PWR

PWR (Hard disk power indicator/ power switch)

OFF Hard disk unmounted or no power

ON Hard disk mounted

*Push this button and wait for 10 seconds to shut down the hard disk.

COPY

This button is for copying the data in your USB storage to the hard disk

of WL-700gE.

READY

OFF No power

ON The system is powered on and in ready state

Flashing slowly USB storage inserted to the USB2.0 port

Flashing quickly Copying data from USB storage

LAN (Local Area Network) 1-4

OFF No power

ON An Ethernet device is connected to the port

Flashing Transmitting data via wired LAN

AIR (Wireless LAN)

OFF No power

ON Wireless LAN ready

Flashing Transmitting data via wireless LAN

WAN (Wide Area Network)

OFF No power

ON Connected to ADSL or Cable modem

Flashing Communicating with WAN

USB2.0

ForconnectingUSBstorage,suchasUSBharddiskandUSBash.

WL-700gE Wireless Router User Manual

2. Connecting ADSL modem and installing the utilities

1) Installing the utilities

1. Connect your WL-700gE wireless router to yourADSLor Cable modem. Refer

to the illustration below to wire your network devices.

ADSL Modem WL-700gE Wireless Router

WAN

2. Insert the support CD into the optical drive of your computer to run the

utility installation program. Select your language and click Install ASUS

Wireless Router Utilities to install. Follow the instructions to complete

the utility installation.

WL-700gE Wireless Router User Manual

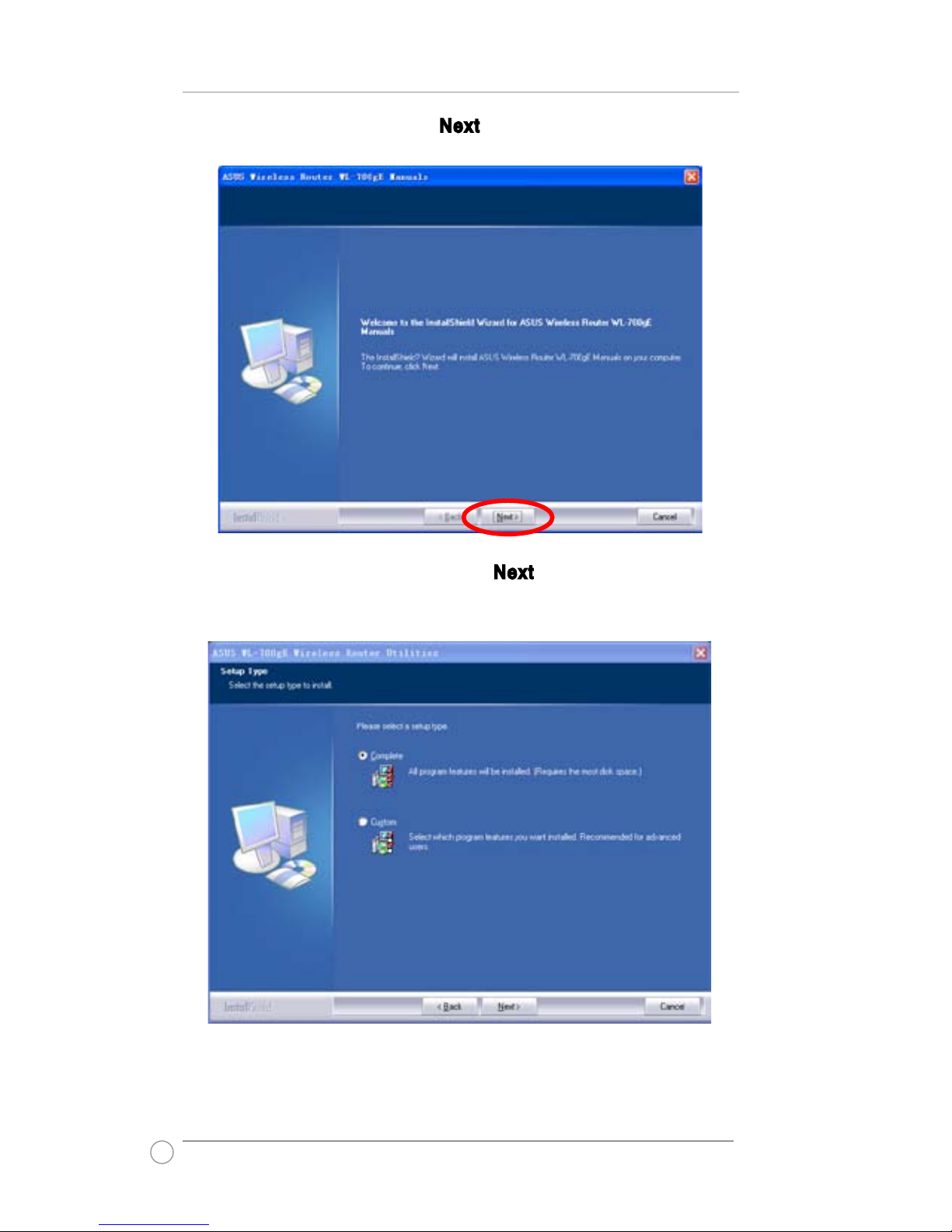

3. On the Welcome window, click Next to start the installation.

4. Select the installation type, then click Next . (For non-advanced users,

we suggest using “Complete” installation.

WL-700gE Wireless Router User Manual

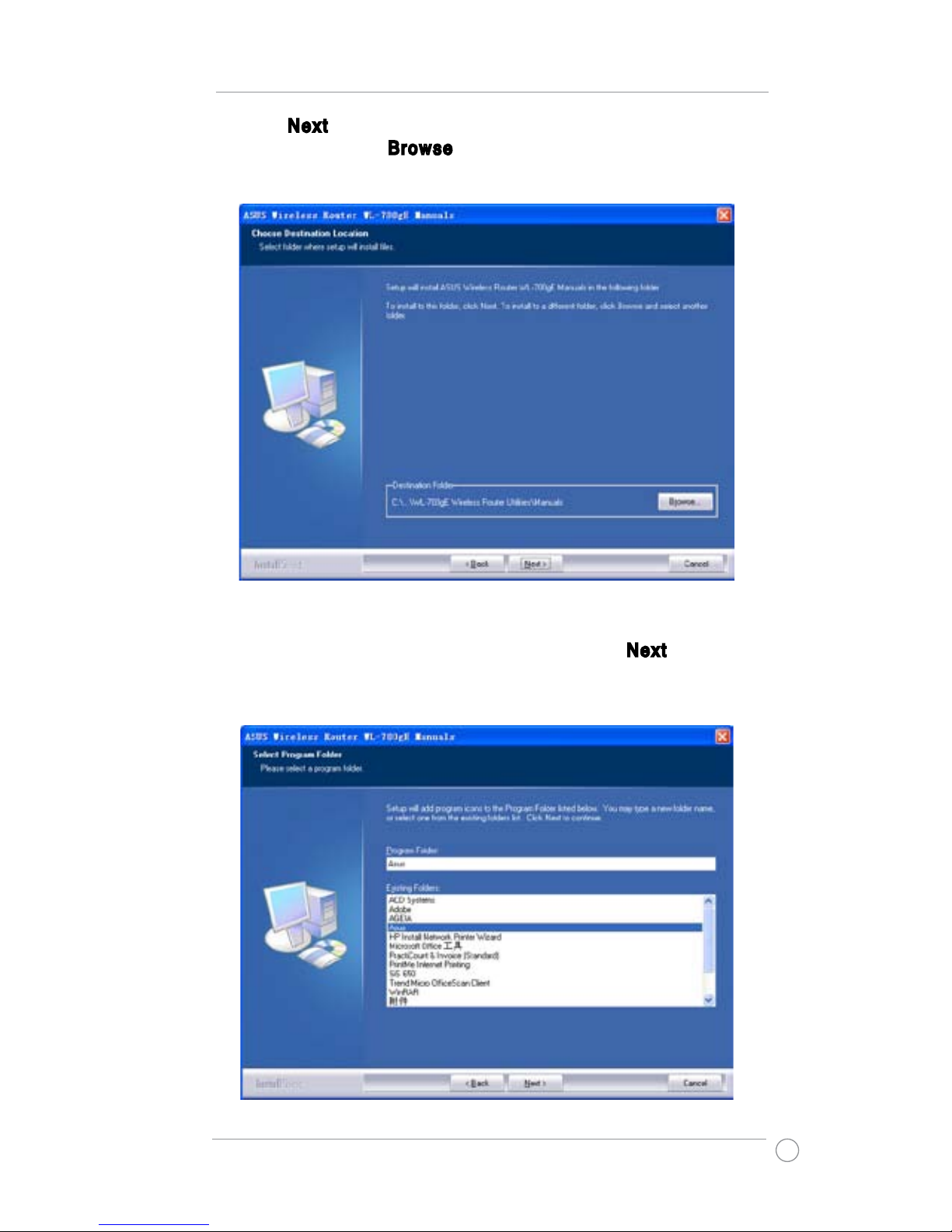

5. Click “Next” on the Choose Destination Location screen to continue

installation, or click “Brow se” to choose another destination location for

the software that will be installed in your computer.

6. Select a folder among the folder list in the text box on the screen,

or type a new folder name in the text bar, then click “Next ”.

Setup will add program icons to the folder your choosed or created.

WL-700gE Wireless Router User Manual

7. The program is being copied into your computer. This may takes several

minutes to complete.

8. Click Finish to complete the installation process.
