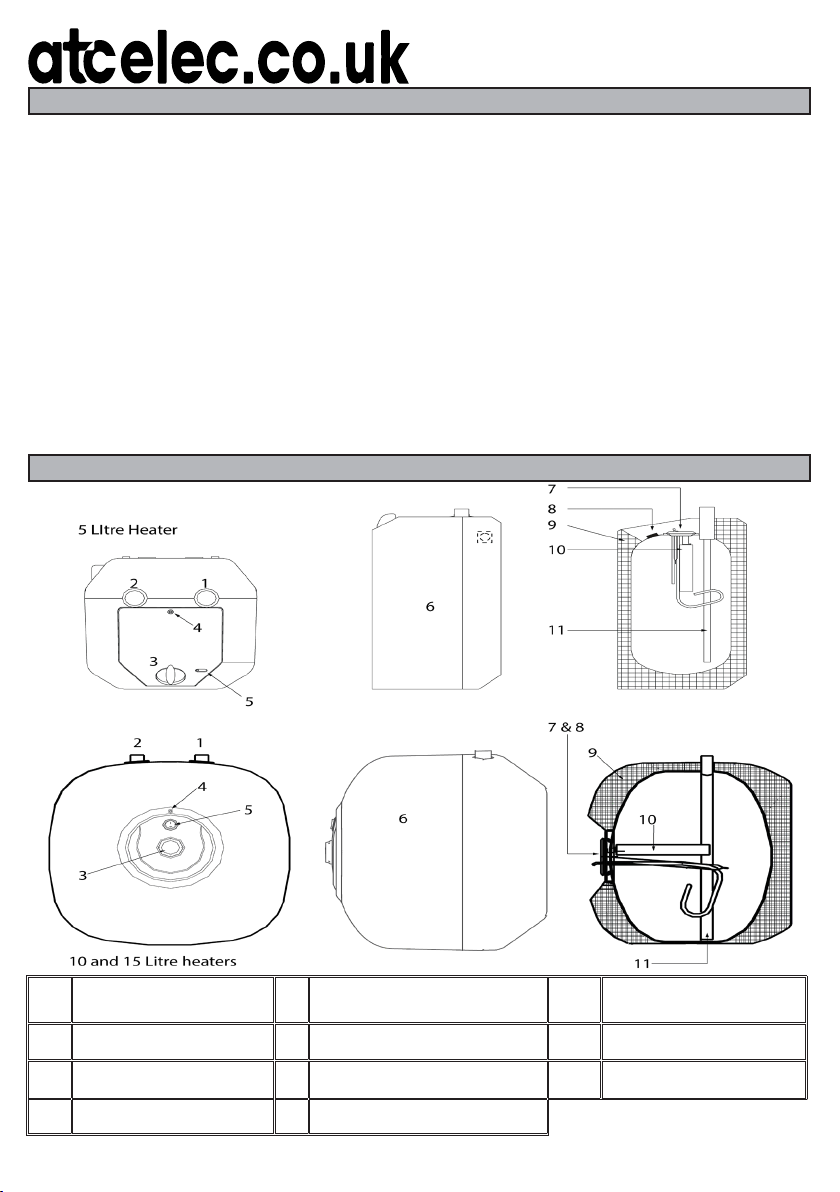

-7-

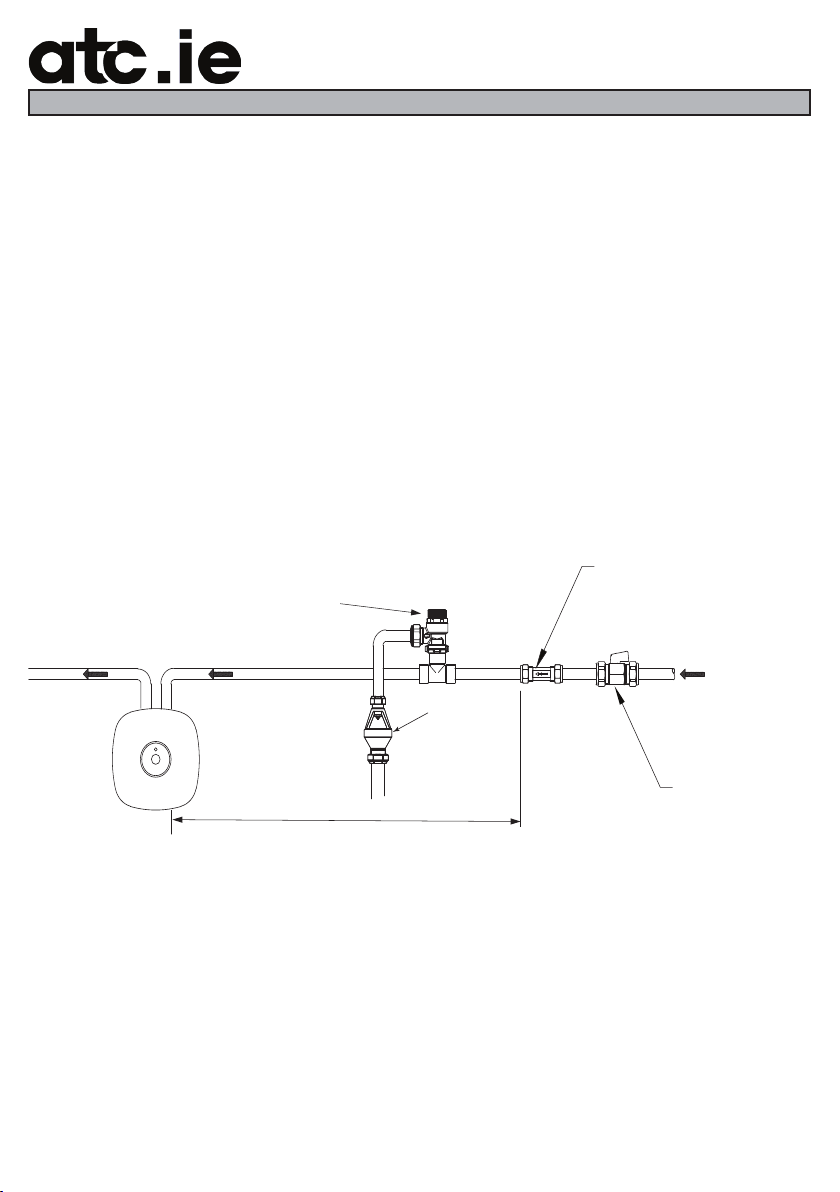

When water is turned o, reverse flow should be prevented using an appropriate non
return valve. This is to prevent the element from operating without water in the tank.
Note: The outlet of the Pressure relief valve should be kept free of obstruction; it should
be installed with the outlet pointing down and plumbed to waste. A tun dish (Kit-C) is
available for this purpose
A 2 Ltr. Expansion vessel (Kit-A) and a Pressure Reducing Valve (Kit-B) are also avail-
able as optional accessories.
OPERATING INSTRUCTIONS
• The water heater can be used by children of at least 8 years (as well as by per-
sons with reduced physical, sensory or mental capabilities, or lack of experience or
required knowledge) provided that they are under supervision, or after they have
been instructed relating to the safe use and have understood the potential dangers.
• Children should not play with the water heater.
• Cleaning and maintenance must be performed by the user and not by unsupervised
children.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/o the water
heater provided that it has been installed in its intended normal operating position
and they have been given instruction concerning use of the heater in a safe way and
understand the hazards involved, children should always be supervised.
• Children aged from 3 years and less than 8 years shall not plug-in, regulate, clean the
water heater or perform maintenance.
• Before connecting the water heater make sure that the voltage is the same as indi-
cated on the device rating label.
• Do not use in presence of gas, inflammable or explosive liquids or substances as
defined in BS5345.
Start Up and Testing
Before connecting the power, fill the tank and system with water and check all the plumb-
ing for leaks. Ensure that all air is out of the water system; open the hot water taps before
ELECTRICAL CONNECTION
All ATC Pacific water heaters come pre-wired with 1.5mm22 core and earth. The heater
should be connected by a suitably qualified electrician in accordance with IEE wiring
regulations.
A suitable termination to the fixed wiring of the premises must be provided adjacent to
the heater using a suitably rated double pole disconnection switch with a minimum of
3mm contact gap and protected by an appropriately rated circuit breaker or RCD.
If this heater is installed in a bathroom it must be supplied from a circuit that is protected
by a high sensitivity RCD with a maximum rating of 30mA.
