AT-620 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
AT-620 Quick Start Guide
ISSUE 1.0
2009-7-6
AT-620 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1、Installation and access.................................................................................................................3
2、Configure AT-620 to make VoIP calls.........................................................................................4
A、WAN Config ..............................................................................................................................4
B、SIP Config..................................................................................................................................5
C、IAX2 config................................................................................................................................5
AT-620 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1、Installation and access
Installation:

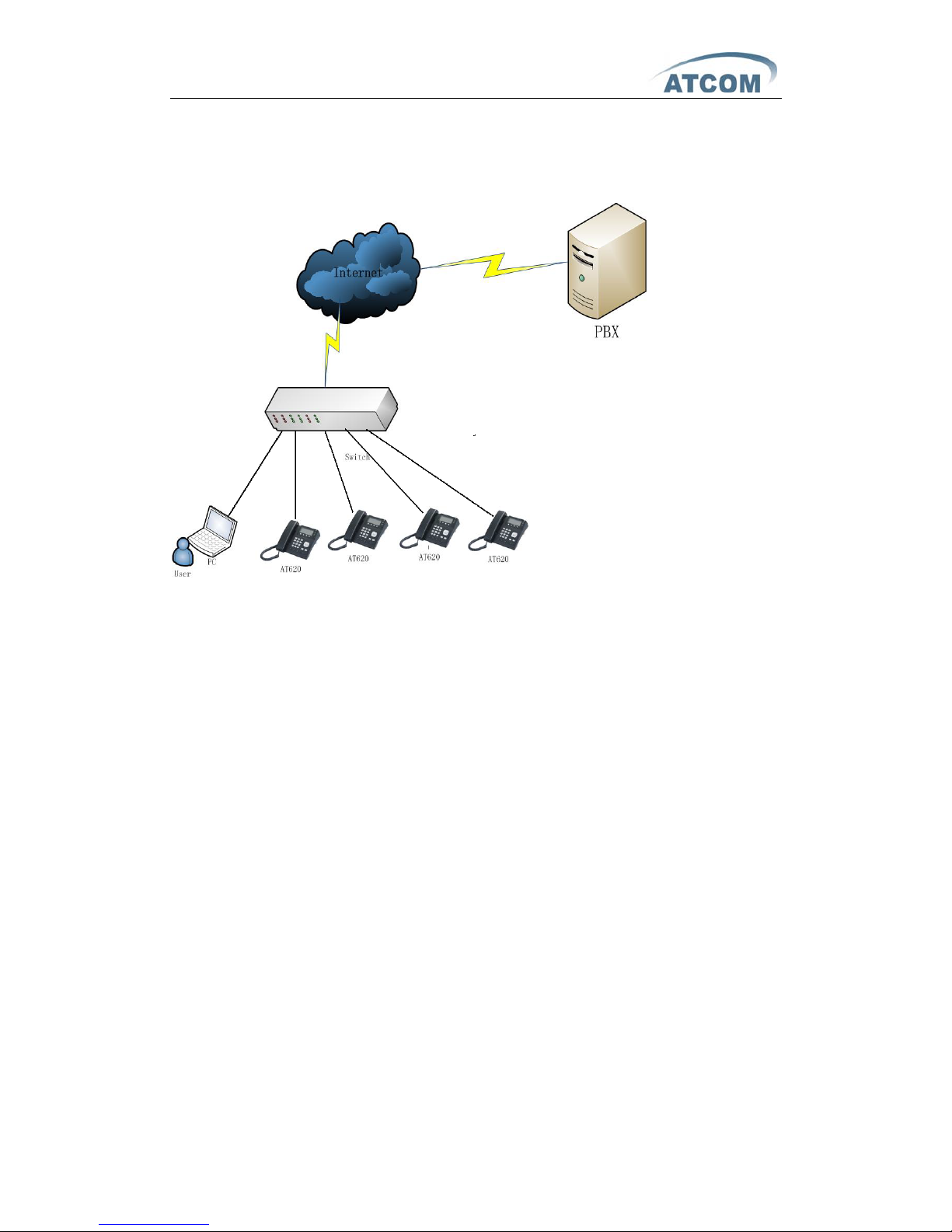

Set up AT-620 as below:
If AT-620 is connect to your network. Press Navigation button up or down to get
the WAN IP address.
Modify your computer’s IP address to the same network as AT-620
Key in AT-620’s IP address in the web browser and press enter, then you can
access AT-620’s web manage interface. Remember the account is admin/admin
for administrator and guest/guest for user.
AT-620 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
2、Configure AT-620 to make VoIP calls
A、WAN Config
Enter Network
Æ
WAN Config to set the WAN setting:
AT-620 supports three different IP types: Static IP, Dynamic obtain IP (DHCP)
and PPPoE. You can use either of these IP types to connect the internet.
Use Static IP:
----Select “Static”;
----Enter the AT-620’s IP address in the “IP address” field.
----Set the “Net mask”, default 255.255.255.0
----Enter the AT-620’s upper gateway IP address (for example: Router) in the
“Gateway” field
----Key in the DNS information in the “Primary DNS” and “Alter DNS” fields.
Use DHCP:
----Select DHCP
If you have a DHCP server in your network, AT-620 will automatically obtain the
network information from your DHCP server.
Use PPPoE:
----Select PPPoE
----Type your PPPoE dialup information in the PPPoE setting fields: PPPoE server
(option), Username and password.
Then the AT-620 will connect to the internet through PPPoE, and automatically
obtain the IP address, Net mask, Gateway, Primary DNS and Alter DNS
information.
AT-620 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
B、SIP Config
Enter VoIP
Æ
SIP Config setting page and set the sip information
----Register ServerAddr: sip server address;
----Register Server Port : sip server register port;
----Register Username : username of your sip account;
----Register Password : password of your sip account;
----Register Number : Phone number of your sip account; the same as username
if none
----check Enable Register；
Then you can make VoIP calls if the WAN and SIP config is correct.
Notice: Please go to the “Config Manage” and save the config, otherwise you will lose the setting
after device reboot.
C、IAX2 config
AT-620 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
9Above is the IAX server configuration page
9IAX Server Addr: Register address of public IAX server
9IAX Server Port: Register port of public IAX server，default port is 4569
9Account Name: Username of your SIP account (Always the same as the
phone number)
9Account Password: Password of your IAX account.
9Local port: Signal port of local, default port is 4569
9Phone Number: Phone number of your IAX account.
9Voice mail number: If the IAX support voice mail, but your username of the
voice mail is letters which you cannot input with the ATA , then you use the
number to stand for your username.
9Voice mail text: if IAX support voice mail, config the domain name of your
mail box here.
9Echo test number: If the platform support echo test , and the number is test
form , the config the test number to replace the text format The echo test is
to test the error status of terminals and platform
9Echo test text: echo test number in text format
9Refresh time: IAX refresh time
9Enable Register: enable or disable register
9Enable G.729: Using G.729 speech coding mandatory consultations
