ATCOM Nimbus CQ400 Bedienungsanleitung

CQ400 User Guide

Content

Contents

Contact CQ Simple ............................................................................ 4

Contact Sales................................................................................ 4

1. Overview of CQ400 .................................................................... 5

1.1 Interface ............................................................................ 6

1.2 Hardware ............................................................................. 6

1.3 Software ............................................................................. 6

1.4 Network .............................................................................. 7

1.5 Management and Maintenance ........................................................... 7

1.6 Protocol ............................................................................. 7

1.7 Compliant and Certified Standard ..................................................... 8

1.8 Packing list ......................................................................... 8

1.9 Installation ............................................................................ 9

2. CQ400 Keypad .............................................................................13

2.1 Description of Buttons and Screen .......................................................14

2.2 Line Keys ...............................................................................16

2.3 Status Indicator ........................................................................16

2.4 Memory Keys .............................................................................16

2.5 LCD screen icons .....................................................................17

3. Call Functions ............................................................................20

3.1 Answer the calls .....................................................................20

3.2 Make Calls ...........................................................................21

3.3 Pre-dial ................................................................................22

3.4 Multiple line dial-up ................................................................22

3.5 Call Hold ............................................................................23

3.6 Call Transfer ........................................................................23

3.7 Mute calls ...........................................................................24

3.8 3-Way Conference .....................................................................24

3.9 Hang up the phone ....................................................................24

3.10 Voicemail ..............................................................................25

4. Keypad and GUI ............................................................................25

4.1 Starting ................................................................................25

4.2 Standby .................................................................................25

Contact CQ Simple

Contact Sales

Address

5113 Eastman Ave Suite125

Midland, MI 48640

Tel

855-344-2774

E-mail

kim@cqsimple.com

Contact Technical Support

Tel

855-344-2774

E-mail

support@cqsimple.com

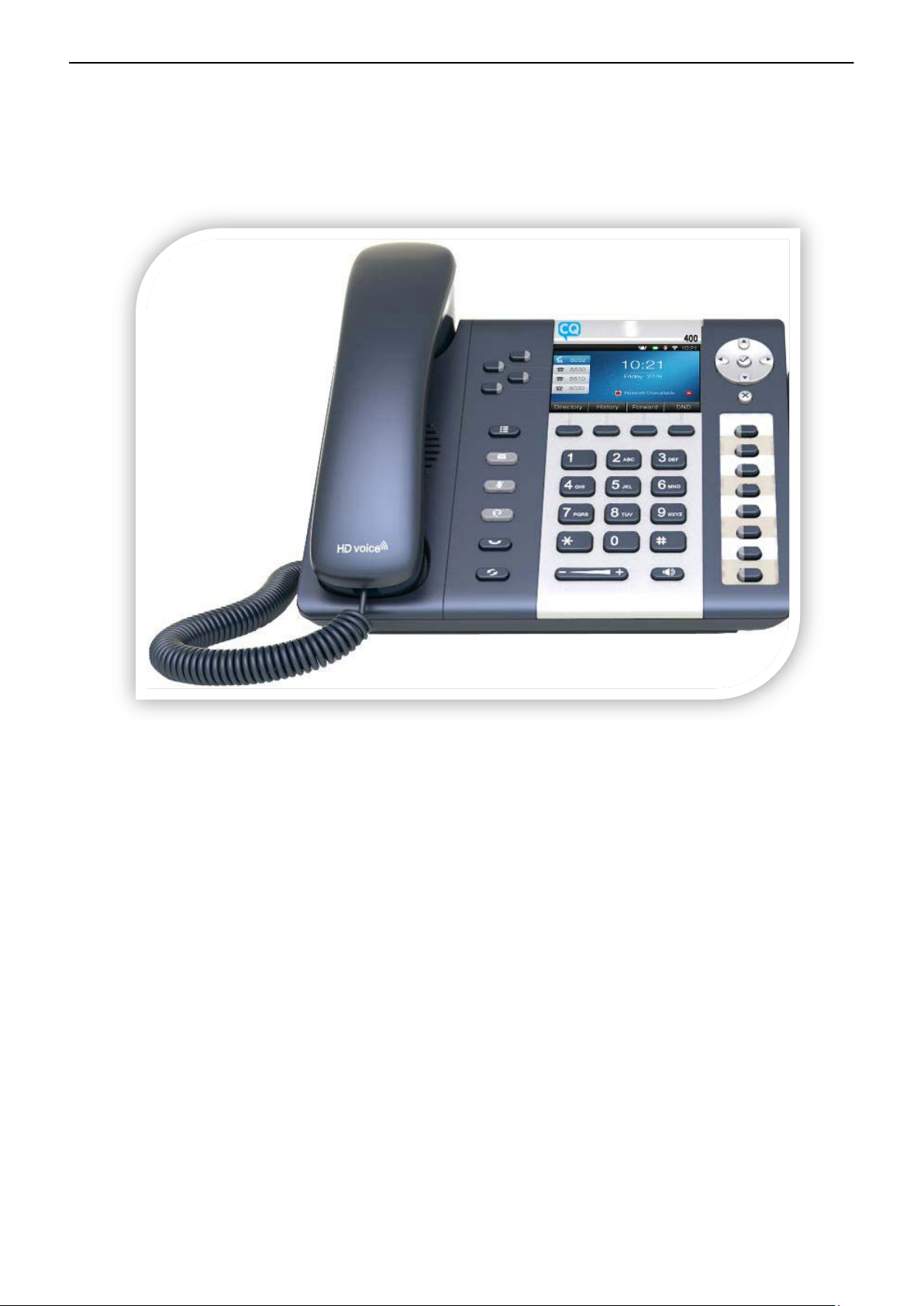

1. Overview of CQ400

1.1 Interface

Power Input

DC 5V-2000mA or PoE

LAN Port

RJ45

PC Port

RJ45

EXPAN Port

RJ45

Headset Jack

RJ9

Handset Jack

RJ9

1.2 Hardware

LCD

461*278 4.3” TFT

FLASH

64M

RAM

64M

CPU

CQ400 262MHz Dual-Core

CQ400 393MHz Dual-Core

LED Indicator

1 Status Light , 4 line indicators, 8 BLF indicators, 1 voicemail

indicator, 1 headset indicator, 1 mute indicator

1.3 Software



Sip 2.0 (RFC3261) and other related SIP RFCs



4 SIP lines registration



STUN



Jitter Buffer, VAD,CNG



G.711A/u, G722, G.723, G.726-16, G.726-24, G.726-32, G.726-40, G.729, Lin16-16, iLBC



Echo Cancellation



SIP Domain name, Authentication and Backup SIP Server



DTMF（Inband, RFC2833, SIP INFO)



Call transfer, Call forward, 3-way conference, Call hold, Call back



DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous call, Dial

plan, IP call



Phone book with 200 records, 200 answered calls, 200 missed calls, 200 dialed calls



Auto update via HTTP, FTP, TFTP, PNP



Syslog



SNTP,NTP



Customized Ringtone



Daylight Saving time



VLAN, VPN



WEB access with different login level



Multi-language: English, Chinese, Farsi, French, German, Hebrew, Italian, Portuguese,

Russian, Spanish, Turkish

1.4 Network



LAN/PC：Support Bridge mode



Support VLAN



Support L2TP VPN



Support DHCP, STATIC, PPPoE



Primary/Secondary DNS Server



Support QoS



Web access via HTTP&HTTPS

1.5 Management and Maintenance



Support safe mode and firmware updating under safe mode



Support different level user management



Configuration via web , keyboard



Support multi-language



Firmware and configuration file auto provision



Support system log

1.6 Protocol



IEEE 802.3 /802.3 u 10 Base T / 100Base TX



PPPoE: PPP over Ethernet



DHCP: Dynamic Host Configuration Protocol



SIP RFC3261, RFC3262, RFC3263, RFC3264, RFC3265, RFC2543, RFC3489, RFC3842,

RFC3515, RFC2976, RFC3428, RFC2327, RFC2782, RFC1889



TCP/IP: Transfer Control Protocol/Internet Protocol



RTP: Real-time Transport Protocol



RTCP:RTP Control Protocol



DNS: Domain Name Server



TFTP: Trivial File Transfer Protocol



HTTP:Hypertext Transfer Protocol



FTP:File Transfer Protocol

1.7 Compliant and Certified Standard



CE:AGC01180140201E2，AGC01180140202E2



Comply with ROHS in EU



Comply with ROHS in China



Operation temperature: lower than 60° C



Storage temperature: lower than 60° C



Humidity: 10 to 90% no dew

1.8 Packing list

Model

CQ400

Telephone

1Unit

Handset

1 Unit

Handset cable

1 Unit

Stand bracket

1Unit

Power adapter

Optional

Network Cable

1 unit

，

1.5 meters

1.9 Installation

The CQ400 is able to be connected with network via LAN port. Under the Bridge mode, other

devices

(Laptop, CQ400) is able to access network via the PC port of CQ400.

1. Stand bracket installation instruction

Put the bottom side of the CQ400 upside and press one-side joints of stand bracket

into the slot, please refer the picture as below

Press the other side joints into the slot according to the direction of the arrow:

Disassemble the stand bracket:

Push the spring joint of stand and pull the stand according to the direction of the arrow. When

the joints are pulled out of the slot, you can take off the stand bracket
