ATCOM Rainbow1 Bedienungsanleitung
Rainbow1 Quick Start Guide
Version 1.0
2014-03-21
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
Content
1. Installation and access.................................................................................. 3
1.1 Connection...................................................................................................... 3
1.2 Installation instruction................................................................................3
1.3 Check IP........................................................................................................... 9
1.4 Login to web................................................................................................... 9
2. Configure phone to register SIP account................................................9
2.1 Network Configuration................................................................................9
2.2 Account Configuration..............................................................................10
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1. Installation and access
1.1 Connection
Set up Rainbow1 as below:
1.2 Installation instruction
1. Desktop installation
A. Put the bottom side of the IP phone upside and press the plate into the slot,
please refer the picture as below:
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
B. Press the other plate into the slot according to the direction of the arrow

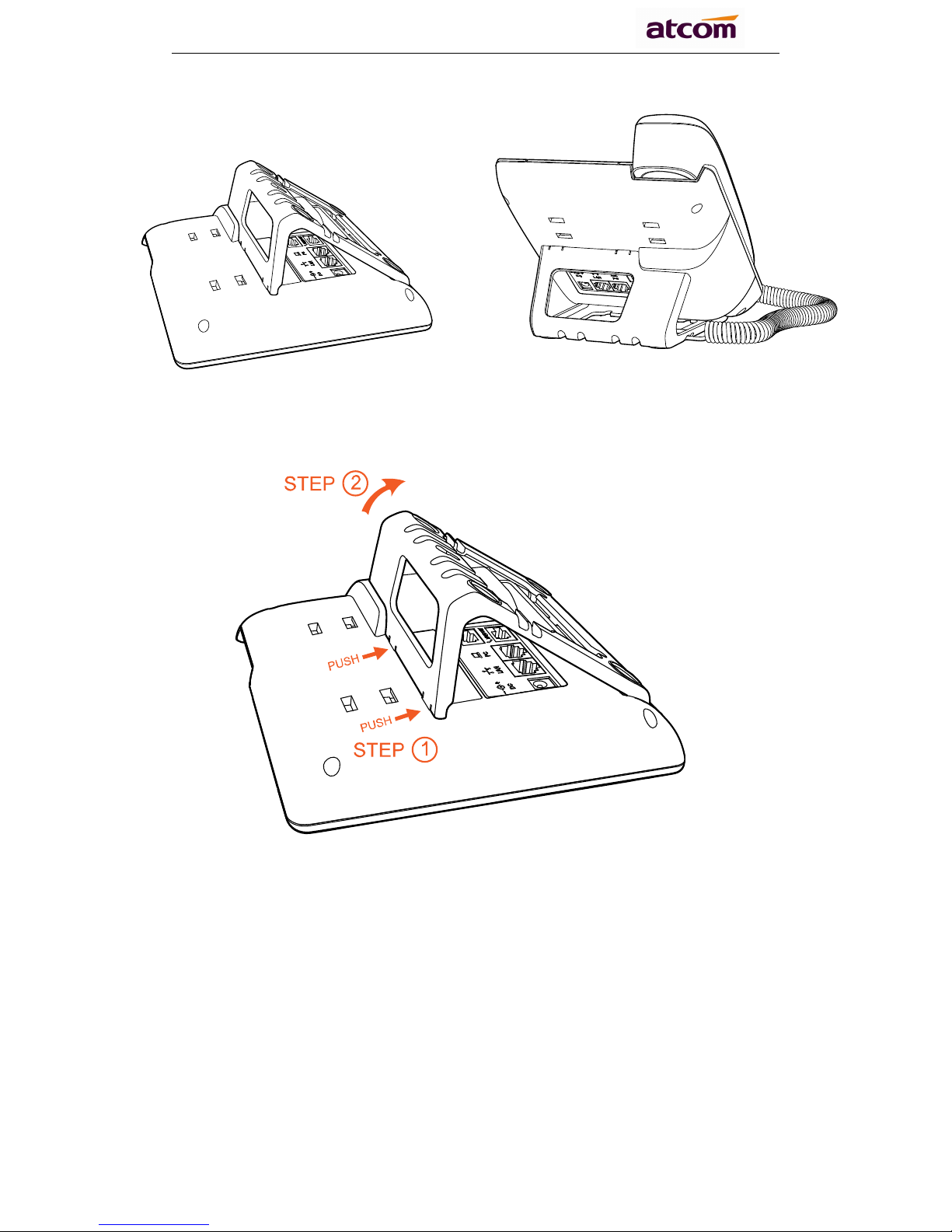

C. It is the right picture after fixing the feet below:
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
D. Disassemble the feet:
Push the plate and pull the feet according to the direction of the arrow. When the
plate is pulled out of the slot, you can take off the feet
2. Wall-hung Installation
A. Put the bottom side of the IP phone upside and press one-side joints of
wall-hung stand bracket into the slot, please refer the picture as below:
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
B. Press the other side joints into the slot according to the direction of the arrow
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED

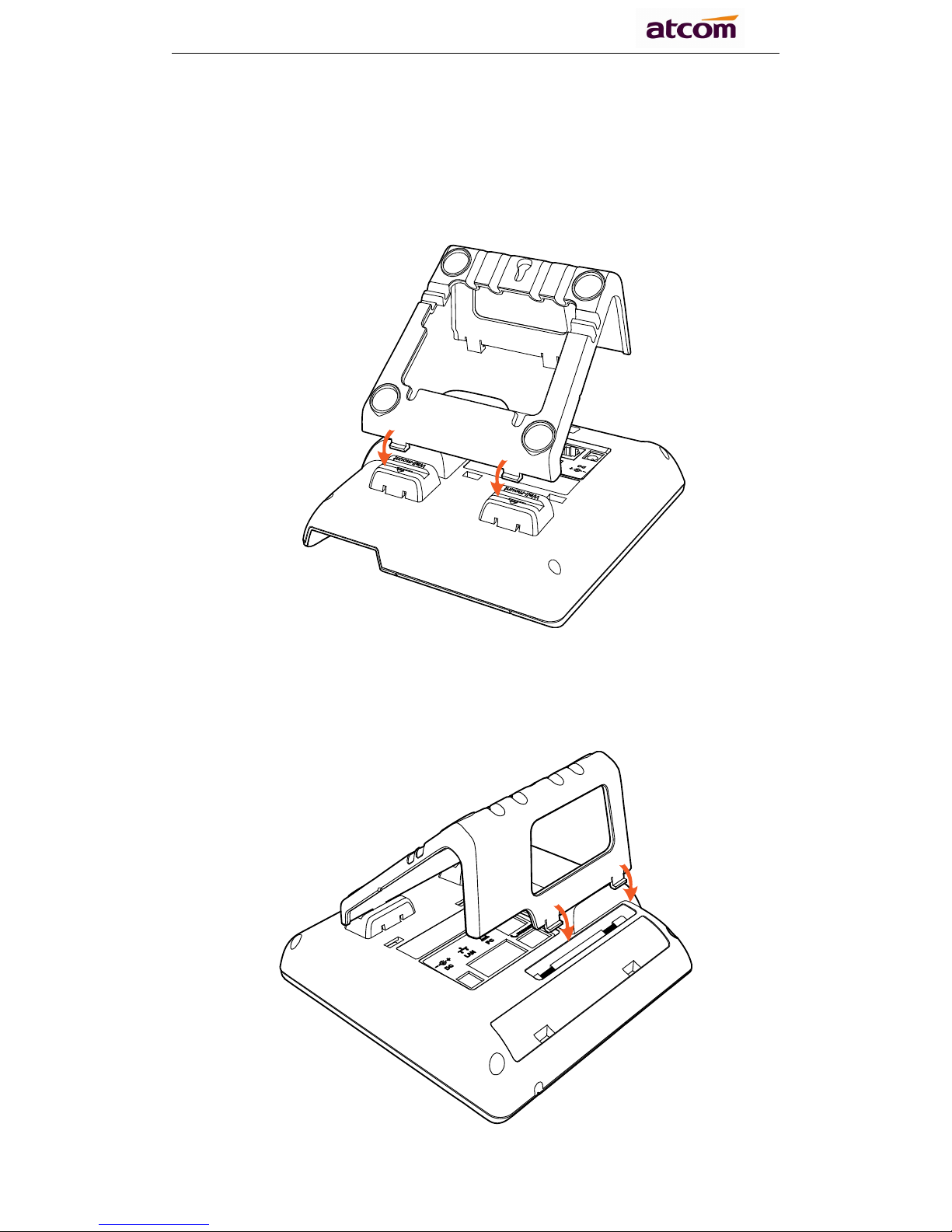

C. After install the wall-hung stand bracket, press one-side joints of stand
bracket into the slot, please refer the picture as below:
D. Press the other side joints into the slot according to the direction of the arrow
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
E. Knock in nails or screws on the wall according to the proportion of the
distance between the hanging holes as below:
F. It is the right picture after fixing the stand bracket below:
G. Disassemble the stand bracket:
Push the spring joint of stand and pull the stand according to the direction of the
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
arrow.
1.3 Check IP
Rainbow1 use DHCP mode by default, and you can review its current IP address
by pressing
key when it is powered on and connected to the network.
1.4 Login to web
Modify your computer’s IP address to the same network as Rainbow1. Enter
Rainbow1’s IP address in the web browser and press Enter, then you will access
to Rainbow1's user webpage without password.
Click ‘admin’ which is on the right corner to enter administrator webpage.
2. Configure phone to register SIP account
2.1 Network Configuration
LAN Port Configuration
Enter "Network" -> "Basic" page.
There are 3 ways to connect to internet DHCP, Static and PPPoE, please choose
Rainbow1 Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
one according to your own situation.
Network mode: you can choose DHCP, Static and PPPoE
DHCP: Rainbow1 default to use DHCP to obtain IP from DHCP Server.
Static: If you want to set the IP as static, you should fill IP, Netmask,
Gateway and DNS information.
PPPoE: If Rainbow1 is connected to the modem, you should fill ADSL
account and password which are assigned by your network service provider.
Password Configuration
Enter "Network" -> "Advance" page.
There are 2 modes to set the authority of web accessing and command line:
User mode and Admin mode. All the parameters can be visible and changed in
Admin mode while part of them can be visible in User mode.
Enable Web Server: enable or disable web access. If choose "no", you can
not access Rainbow1’s webpage.
Admin password: set admin webpage access password.(username:admin)
User password: set user webpage access password.(username:user)
2.2 Account Configuration
Enter "Account" -> "SIP" page to configure SIP account which is provided from
the SIP Server.
