AtlonA

VGA & Stereo Audio CAT5 Extender

With Chainable Output

MODELS: AT-2VGA300SL,

AT-4VGA300SL, AT-VGA300RL

User Manual

TABLE OF CONTENTS

1. Introduction .................................................. 1

3. Installation .................................................. 2

4. Switch Settings .................................................. 3

5. Specications .................................................. 4

6. Installation Tips .................................................. 5

7. Safety Informations .................................................. 6

8. Warranty .................................................. 7

Introduction

AT-2VGA300SL, AT-4VGA300SL (sender units ) are designed to transfer VGA & Stereo Audio

signal over cost effective CAT5 cable. AT-VGA300RL ( receiver unit ) has built in chainable output

to cascade the other receiver for working range over 1000ft (300 meters).

This AV Extender is the smart, fast and cost-effective solution, eliminating costly and bulky VGA

and Audio cables for the most efcient way to move multimedia content from player to display.

AT-2VGA300SL 1 x 3 VGA wiTh STereo Audio CAT5 exTender (Sender uniT) &

diSTribuTion AmpLifier - ChAinAbLe funCTion

• ExtendsVGAandstereoaudiooveroneUTPCAT5cable.

• NeedstobeusedinpairwithAT-VGA300RL(receiverunit)

• Supportsanalogstereoaudio.

• Supportsresolutionsupto1600x1200@85Hz.

• Longrangetransmissionupto300meters(Max.)

• Dualoutput:1VGAloopoutputforlocal,plus2xCAT5RJ45outputforremoteside.

• Builtinequalization,gainadjustment,chainableCAT5outputonreceiverunit.

• ReceiverunitcanbedaisychainedtoanotherAT-VGA300RLreceivertoextendedworkingrange

 over300metersandmultipledisplays.

• Receiverunitlocaloutput:supportsDDC,DDC2,DDC2B,andprovidesvirtualDDC,DDCbackup

 function,toavoidthewrongsettingathighresolution/frequency.

• Applicationforairports,train&busstations,windowdisplay,tradesshowsandexhibitions.

AT-4VGA300SL 1 x 5 VGA wiTh STereo Audio CAT5 exTender ( Sender uniT) &

diSTribuTion AmpLifier - ChAinAbLe funCTion

• NeedstobeusedinpairwithAT-VGA300RL(receiverunit)

• Dualoutput:1VGAloopoutputforlocal,plus4xCAT5RJ45outputforremoteside.

• EachVGAdisplayrequiresoneAT-VGA300RLreceiveratremoteside.(Orderseparately).

• UseCAT5cableinsteadofVGAcable.

• Longrangetransmissionupto300meters(Max.).

• Builtinequalization,gainadjustment,chainableCAT5outputatAT-VGA300RLreceiverunit.

• Supportsupto1600x1200@85Hz.

opTionAL modeL:

AT-VGA300rL VGA wiTh STereo Audio CAT5 exTender ( reCeiVer uniT )

- ChAinAbLe funCTion

• WorkwithAT-2VGA300SL,AT-4VGA300SLasreceiverforextraremoteVGAdisplays

• ItcanbedaisychainedforanotherAT-VGA300RLtoextendedworkingrangeover300M(1000ft)

• Builtinequalization,gainadjustment.

• Supportsupto1600x1200@85Hz.

1

Installation

2

CABLE:

Video Link cable using hi quality CAT5E UTP/STP or CAT6 UTP cable. Recommended wiring 568-B

Please note STP cable can enhance noise rejection, as well less transmissionrange and picture

sharpness quality.

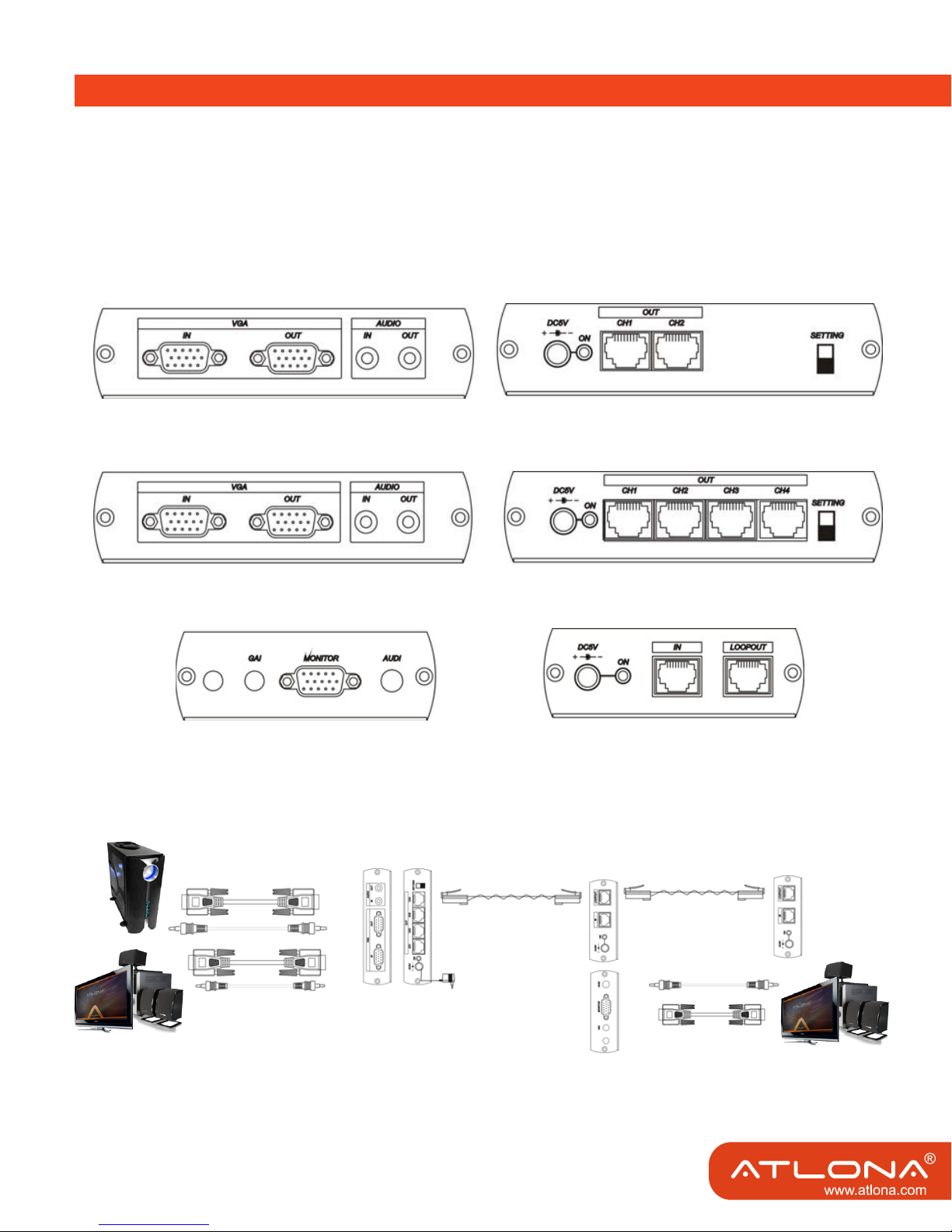

PANEL VIEW:

AT-2VGA300SL

AT-4VGA300SL

AT-VGA300RL

VIEW OF INSTALLATION:

Total 300M Total 300M

CAT 5 cable

Source

Display Display

AT-4VGA300SL

AT-2VGA300SL

AT-VGA300RL

CAT 5 cable

AT-2VGA300SL/AT-4VGA300SL Switch Settings:

2 3

DIP Switcher Setting

1 2

setup built in DDC (1280x1024@75Hz Max)

setup DDC of local monitor

setup DDC backup of local monitor

backup DDC of local monitor

AT-2VGA300SL LED:

Blue (front panel): power on/off

RJ45 LED (Link cable connector) :

Yellow LED status indication:

No light: Normal

Light: Waiting local Monitor connection (duplication DDC mode)

Blink one time: Finish DDC backup (duplication DDC mode)

Blink two times: Monitor DDC reading error (duplication DDC mode)

Blink three times: DDC check sum error

Blink four times: Memory read error

Blink ve times: Memory writes error

Blink six times: Memory verify error

AT-2VGA300SL/AT-4VGA300SL Duplicate DDC step:

1. Dip switch 1 & 2 at “down” position, if the Sender already connected to the local monitor; please jump

to the third step.

2. If Sender has not connected with local monitor yet, the yellow LED will keep lit to wait local monitor

connection.

3. After few seconds DDC duplication will nish, then yellow LED will be off.

4. If the duplication is successful, the yellow LED will blink one time. If failed, yellow LED will blink several

times, please refer to above “Yellow LED status indication”

5. Please unplug the local monitor after nishing the DDC duplication, and move dip switch 2 at “down”, 1

at “up”, then start to use DDC data which have beenduplicated.

AT-VGA300RL Remote unit adjustment:

EQ equalization (sharpness)

Gain signal boost (brightness)

AT-VGA300RL LED:

Blue (front panel): power on/off

RJ45 LED (Link cable connector):

Green: power on/off

Caution:

The cabling must keep away from any equipment with electromagnetic wave, i.e.:microwave, radio equip-

ment, high voltage lines.

Specifications

ITEM NO. AT-2VGA300SL AT-4VGA300SL

Resolution Up to 1600 x 1200

Video Bandwidth Sender 750MHz / Receiver 350MHz-3db

Video Input / Output RGB Analog, 75Ω, 0.7Vp-p

Sync Input / Output H/V Separated, 5V TTL

Horizontal Frequency 30-95 KHz

Vertical Frequency 50-180 Hz

VGA Connector 15-pin Mini D-Sub (High Density)

Analog Audio Input / Output 10KΩ, 3Vp-p (Max)

Analog Audio Bandwidth 20-20KHz-3dB

Analog Audio Connector 3.5mm Stereo Phone jack

Link Connector 2 x RJ-45 4 x RJ-45

Max Distance Up to 1000 ft. (300M)

Power Supply 5V DC 2000mA Regulated (External)

Power Consumption 500mA (Max) 500mA (Max)

Dimensions (mm) 125x 95 x 30 125x 95 x 30

Weight (g) 280 280

ITEM NO. AT-VGA300RL

Resolution Up to 1600 x 1200

Video Bandwidth 150MHz

Video Output RGB Analog, 75Ω, 0.7Vp-p

Sync Output H/V Separated, 5V TTL

Horizontal Frequency 30-95 KHz

Vertical Frequency 50-180 Hz

VGA Connector 15-pin Mini D-Sub (High Density)

Analog Audio Output 10KΩ, 3Vp-p (Max)

Analog Audio Bandwidth 20-20KHz

Analog Audio Connector 3.5mm Stereo Phone jack

Link Connector RJ-45

Max Distance Up to 1000 ft. (300M)

Power Supply 5V DC 2000mA Regulated (External)

Power Consumption 600mA (Max)

Dimensions (mm) 88x 95 x 30

Weight (g) 200

4

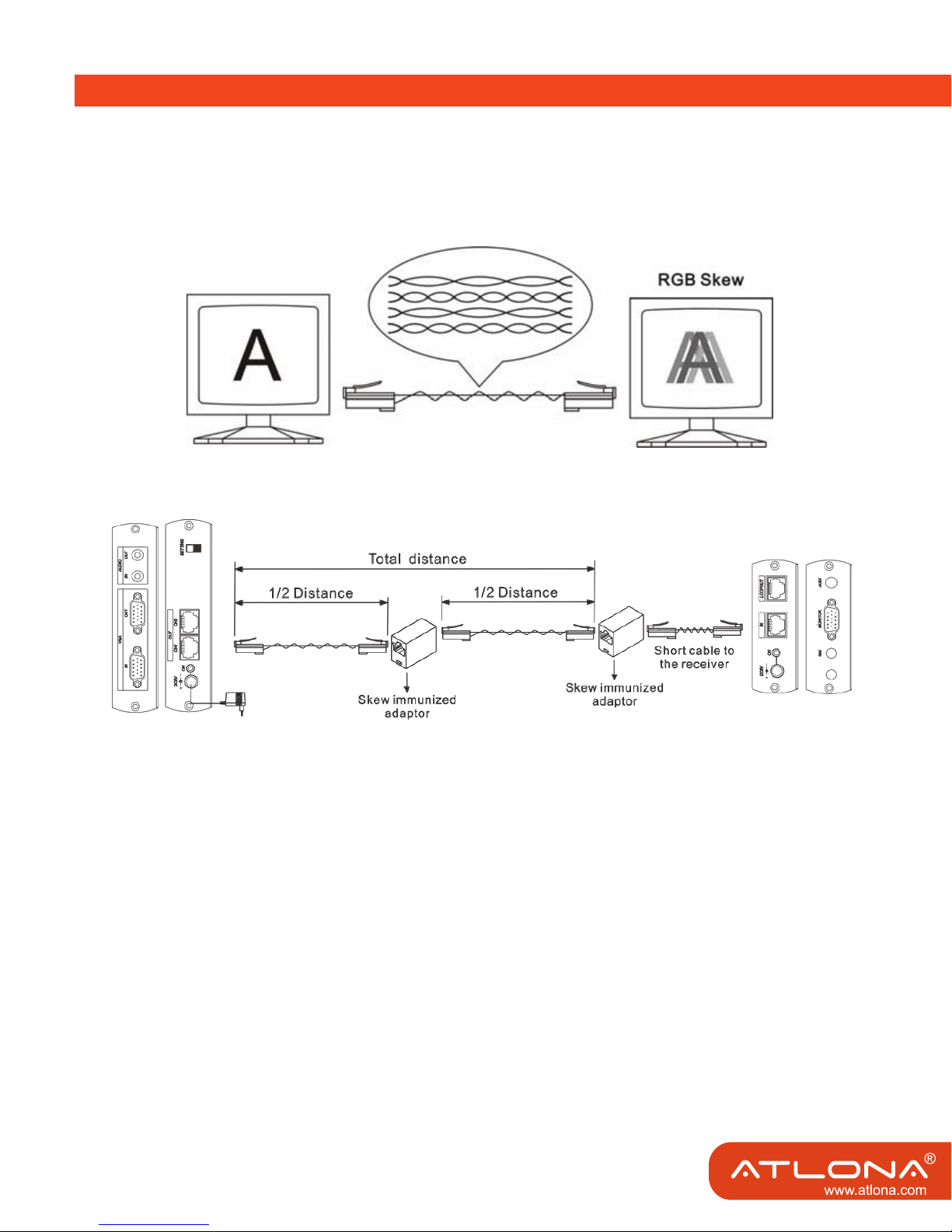

Installation Tips

1. Due to the inside of CAT5 cable containing pairs of wires twisted at different rates, and the

different quality on the cable itself and installation, different signal arrival time may occur at each-

pair. If there is a big difference at arrival time, that will cause RGB skew status.This is seen onthe

monitor as separation, or lack of convergence in colors. Normally it happens on long CAT 5 cable

runs.

2. Recommend to use following cabling design to reduce skew status, and to add special made

“skew immunized adaptor” (2 pieces included at the package).

4 5

6

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not t into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accessible in case it requires

disconnection.

Precautions

FCC Regulations state that any

unauthorized changes or modications to

this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the

included external power supply. Use of

other power supplies could impair

performance, damage the product or cause

res.

In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.

Keep this product away from wet locations

such as bathtubs, sinks, laundries, wet

basements and swimming pools.

Use only accessories recommended by

ATLONA to avoid re, shock or other

hazards.

Unplug the product before cleaning. Use

a damp cloth for cleaning. Do not use

cleaning uid or aerosols, which could

enter the unit and cause damage, re or

electrical shock. Some substances may

also mar the nish of the product.

Never open or remove unit panels or make

any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other

hazards. It may also cause damage to your

AT-2VGA300SL, AT-4VGA300SL,

AT-VGA300RL. Opening the product will

void the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorised

ATLONA reseller or contact ATLONA

directly.

WARRANTY

76

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the

accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be

free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event

applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of

receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation

may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-

gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet

this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited

Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-

uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-

ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES

CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-

RISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-

GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-

TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS

OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER

PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA

TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA

TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT

SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-

RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ATLONA

2151 O’toole Ave, Ste D

San Jose CA 95131

Toll Free: 1-877-536-3976

International: 408-954-8782

FAX: 408-954-8792

Website: www.atlona.com

E-MAIL: [email protected]

Andere Handbücher für AT-2VGA300SL

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Atlona Extender Handbücher

Atlona

Atlona AT-AVGA-SR Bedienungsanleitung

Atlona

Atlona AT-DVI4-100SR Bedienungsanleitung

Atlona

Atlona AT-VGA-RS300SRS Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-100CE-KIT Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-70-KIT Bedienungsanleitung

Atlona

Atlona AT-DVI50S Bedienungsanleitung

Atlona

Atlona AT-HD-RG100SR Bedienungsanleitung

Atlona

Atlona AT-HDF30SR Bedienungsanleitung

Atlona

Atlona AT-DVIF20SR Bedienungsanleitung

Atlona

Atlona AT-HD4-V110SR Bedienungsanleitung

Atlona

Atlona AT-PRO3HDREC Bedienungsanleitung

Atlona

Atlona AT-HDMI40SR Bedienungsanleitung

Atlona

Atlona AT-HD4-V40SRS Bedienungsanleitung

Atlona

Atlona AT-HD4-SI40SR Bedienungsanleitung

Atlona

Atlona AT-2VGA300SL Bedienungsanleitung

Atlona

Atlona AT-80120HD Bedienungsanleitung

Atlona

Atlona AT-COMP300SL Bedienungsanleitung

Atlona

Atlona AT-UHD-EX-100CE-TX Bedienungsanleitung

Atlona

Atlona AT-PRO2HDREC Bedienungsanleitung

Atlona

Atlona AT-COMP300SR Bedienungsanleitung

Atlona

Atlona AT-HDMI40SRS Bedienungsanleitung

Atlona

Atlona AT-HD50SS Bedienungsanleitung

Atlona

Atlona AT-HD4-SI40SR Bedienungsanleitung

Atlona

Atlona AT-DVI40SRS Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung

SECO-LARM

SECO-LARM ENFORCER EVT-PB1-V1TGQ Bedienungsanleitung
