Atmel CryptoAuthentication Starter Kit

Atmel AT88CK101BK8

Hardware User Guide

Features

8-lead SOIC socket

Supports the Atmel ATSHA204 CryptoAuthentication IC

Supports communication protocols

-I2C

-SWI (Single wire interface)

Power LED

Test points header

Contents

Atmel AT88CK101BK8 daughterboard

1. Introduction

Atmel®AT88CK101BK8 is a daughterboard that interfaces with a mcu board via a 10-pin header. The

daughterboard has a single 8-pin SOIC socket which can support the Atmel ATSHA204. This kit uses a

modular approach, enabling the daughterboard to connect directly to an STK series AVR development

platform to easily add security to applications. An optional adapter kit is also available when the 10-pin

header on the daughterboard requires a different pinout. The AT88CK101BK8 also provides a test point

header for the I2C, SWI, and SPI signals. The AT88CK101BK8 is sold with the Atmel AT88Microbase

module to form the Atmel AT88CK101STK8 starter kit. The AT88Microbase AVR base board comes with a

USB interface that lets designers learn and experiment on their PCs.

Figure 1-1. Atmel AT88CK101BK8 Crypto daughterboard

Pin 1 indicator

Test point

header

Standoff hole

communication

protocol selector

2Atmel AT88CK101BK8 Hardware User Guide

8741A–CRYPTO–3/11

1.1. Atmel AT88CK101STK8 starter kit

The AT88CK101BK8 is sold with the Atmel AT88Microbase module to form the Atmel AT88CK101STK8

starter kit. For additional information on the AT88Microbase, See Atmel doc8723A, Atmel AT88Microbase

Hardware User Guide.

Figure 1-2. Atmel AT88CK101STK8 starter kit

Figure 1-3. The Atmel AT88CK101BK8 daughterboard with the Atmel AT88Microbase

Atmel AT88CK101BK8 Hardware User Guide 3

8741A–CRYPTO–3/11

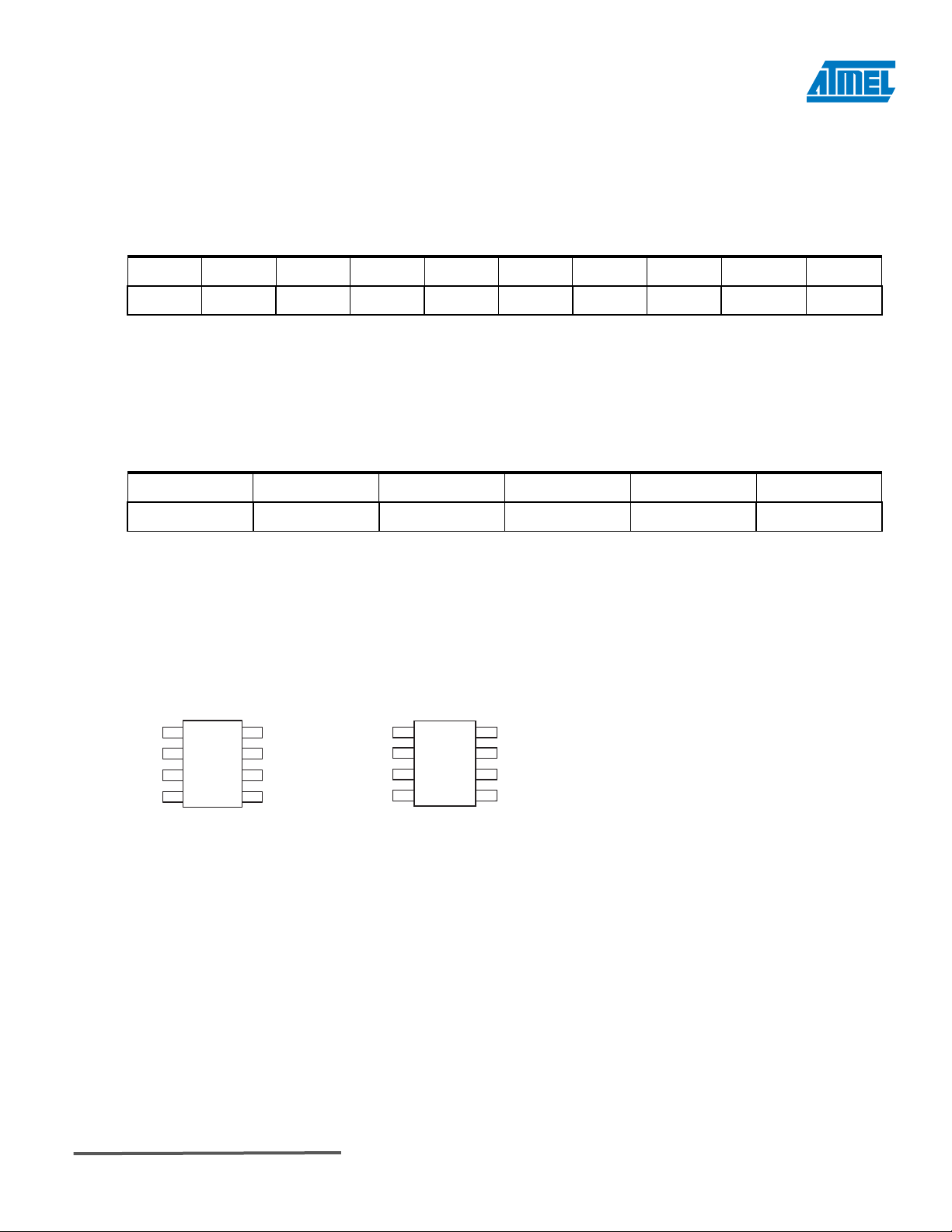

2. Board configuration

2.1. 10-pin interface header

Table 2-1. 10-pin interface header

P10

VCC

GND

MISO

MOSI

SDA/SCLK

SCL /CS

Note: I2C Pins: SCL, SDA

SPI Pins: /CS, SCLK, MOSI, MISO

2.2. 6-pin test header

Table 2-2. 6-pin test header

/CS

SCL

SI/SDA

VCC

GND

SPI chip select

SPI-CLK

MOSI/SDA

MISO

VCC

GND

Note: I2C Pins: SCL, SDA

SPI Pins: /CS, SCLK, MOSI, MISO

2.3. Supports 8-lead SOIC and SPI interfaces with the following pinout

Figure 2-1. Pinout configurations

GND

8-lead SOIC VCC

SCL

SDA

/CS

GND

8-lead SOIC VCC

SCK

/CS

GND

8-lead SOIC VCC

SCK

4Atmel AT88CK101BK8 Hardware User Guide

8741A–CRYPTO–3/11

2.4. Configurations

Table 2-3 describes the how to configure the AT88CK101BK8 with respect to the AT88Microbase and the

STK/EVK development platforms.

Table 2-3. Atmel AT88CK101STK8 starter kit configuration guide

Atmel AT88CK101STK8 starter kit configuration guide

Communication interface

Atmel AT88Microbase

(K1 switch)

Atmel AT88CK101BK8

(K1 switch)

Atmel AT88CK101BK8

jumper (H5)

TWI

uBase

Open

SPI

uBase

Mounted

SWI (UART)

─

SPI

Mounted

SWI (GPIO)

SPI

uBase

Open

Atmel AT88CK101BK8+ STK/EVK platforms configuration guide

Communication interface

─

Atmel AT88CK101BK8

(K1 switch)

Atmel AT88CK101BK8

jumper (H5)

TWI

─

TWI

Open

SPI

─

SPI

Open

SWI (UART)

─

SPI

Mounted

SWI (GPIO)

─

TWI

Signal on Px1

(x-denotes the port)

Open

Note: X = Don’t care

Figure 2-2. Atmel AT88CK101BK8 adapter board mounted to STK600

Atmel AT88CK101BK8 Hardware User Guide 5

8741A–CRYPTO–3/11

2.5. AT88CK301ADP adapter kit

An optional adapter kit is also available when the 10-pin header on the daughterboard requires a different

pinout.

Figure 2-3. Atmel AT88CK301ADP adapter kit

Figure 2-4. Atmel AT88CK101BK8 and Atmel AT88CK301ADP with the Atmel AT91SAM7S-EK board

Table 2-4. 10 pin squid cable

10 pin squid cable

P10

black

white

gray

purple

blue

green

yellow

orange

red

brown

6Atmel AT88CK101BK8 Hardware User Guide

8741A–CRYPTO–3/11

3. References and further information

Schematics, Gerber files, bill of materials (BOM), development and demonstration software is conveniently

downloadable from the Atmel website at www.atmel.com/cryptokits.

4. EVALUATION BOARD/KIT IMPORTANT NOTICE

This evaluation board/kit is intended for ENGINEERING, DEVELOPMENT, DEMONSTRATION or

EVALUATION PURPOSE ONLY. It is not a finished product and may not (yet) comply with some or

any technical or legal requirements that are applicable to finished products, including, without limitations,

directives regarding electromagnetic compatibility, recycling (WEEE), FCC, CE or UL (except as may be

otherwise noted on the board/kit). Atmel®supplied this board/kit “AS IS,” without any warranties, with

all faults, at the buyer’s and further users’ sole risk. The user assumes all responsibly and liability for

proper and safe handling of goods. Further, the user indemnifies Atmel from claims arising from the

handling or use of goods. Due to open construction of the product, it is the user’s responsibility to take

any and all appropriate precautions with regard to electrostatic discharge and any other technical or legal

concerns.

EXCEPT TO THE EXTENT OF INDEMNITY SET FORTH ABOVE, NEITHER USER NOR ATMEL SHALL BE

LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

No license is granted under any patent right or other intellectual property right of Atmel covering or

relating to any machine, process, or combination in which such Atmel product or services might be or are

used.
