Atom Lytespan CAMWRC Bedienungsanleitung

Addressable Track Wall Remote Control

( ) Denotes Dimensions in MM

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Description

Used to control Addressable Track Dimming & Non-Dim On/Off Modules in order

to activate programs in the system from a wall location. The wall remote will

allow the user to run multiple programmed lighting scenes and to begin and end

cycles. A Track Master Module must be used with the Wall Remote Control, in

order for it to communicate with the system.

Features

1. Illuminated Scene-Select Push Buttons: One piece silicone membrane

with precise laser-etched engraving, finished with light grey ink for easy-to-

read viewing. Activated buttons have an illuminated indication.

2. Face Plate: Screw-less for clean look. Finished in either White or Ivory.

Electrical

Input: 108-132 VAC, 60Hz, + - 3Hz

Operating Temp: 0˚-40˚ Celsius

Storage Temp: -25˚- 85˚ Celsius

Options & Accessories

ATOM Laser Remote Control (CAMLRC): Used to program and operate

modules.

ATOM Addressable Track Dimming, Non-Dim On/Off, & Track Master

Modules (CAM250VA, CAM250ND, & CAMTM): Receive commands from

Wall Remote Control.

Lightolier Controls COMPOSETM PLC In-Line Filter (CPLCILF20):

Recommended for each track circuit with an ATOM installation. Reduces

unwanted electrical noise on track circuit.

Lightolier Controls COMPOSE™ Firewall, 4 & 8 circuit (CPLCFW4,

CPLCFW8): Used when multiple circuits are to be controlled.

Lightolier Controls COMPOSE™ Master Control Station (CP5ESPLC):

Ellipse Series 5 Scene Master.

The ATOM System is compatible with all Lightolier Controls COMPOSE™ PLC

system.

Labels

UL, cUL

Lytespan®Track Lighting System CAMWRC

Page 1 of 2

Patent Pending

Ordering Information

Catalog No. Finish Mounting Compatibility

CAMWRCWH Matte White Standard Wall mounting In the system, a Track Master Module (CAMTM)

CAMWRCI Ivory is needed in order to communicate with

ATOM Addressable Track Dimming & Non-Dim On/Off Modules.

Addressable Track Dimming Module

Will dim or switch power ON or OFF to a luminaire from a remote loca-

tion. Module will function with incandescent line voltage and low voltage

luminaires, 250W MAX. Module attaches anywhere along track. Accepts

commands from Laser Remote Control and Wall Remote Control units.

Can be combined with Track Master Module to create several different

lighting effects.

See separate specification sheet for additional details before specifying this unit.

CAM250VAWH (Matte White)

CAM250VABK (Matte Black)

Addressable Track Non-Dim On/Off Module

Will switch power ON or OFF to a luminaire from a remote location.

Module will function with incandescent line voltage, incandescent low

voltage, fluorescent and metal halide track luminaires, 250W MAX. Module

attaches anywhere along track. Accepts commands from Laser Remote

Control and Wall Remote Control units. Can be combined with Track

Master Module to create several different lighting effects.

See separate specification sheet for additional details before specifying this unit.

CAM250NDWH (Matte White)

CAM250NDBK (Matte Black)

Track Master Module

Sends control signals along the track to other modules from a single loca-

tion on the track. Used to cycle scenes, create lighting effects, and dim,

raise, or turn on or off the light levels on all modules on the track simulta-

neously. Use one track master per track branch circuit. Accepts com-

mands from Laser Remote Control and Wall Remote Control units.

See separate specification sheet for additional details before specifying

this unit.

CAMTMWH (Matte White)

CAMTMBK (Matte Black)

Laser Remote Control

Used to program the system and change light levels from a remote loca-

tion. Equipped with a laser and infrared (IR) transmitters. The visible laser

signal, when pointed at a module, places the module in program mode. The

laser signal accuracy allows a single unit to be selected easily when multi-

ple modules are on the track. Once in program mode, the IR signal is used

to program the desired functions. The remote will allow the user to set the

light level, turn modules on or off, set and run multiple lighting scenes, set

fade rates, set cycle times, and begin and end cycles. The remote operates

the Dimming Module, Non-Dim On/Off Module, and Track Master Module.

See separate specification sheet for additional details before specifying this unit.

CAMLRC

Scene Setting: Lighting effects and light levels can be stored in each

module for use at any time. Each group of stored settings is called a scene.

Each module can store six programmable and on/off scenes.

Fading Effects: The time transition between scenes can be programmed

into each module. Modules are pre-programmed with a 3-second fade rate

between scenes that may be extended to 30 minutes or reduced to

1.5 seconds.

Cycling Effects: The modules will cycle through scenes with programmed

fade and timed delays in a continuous loop or a single cycle.

This function requires a Track Master Module.

Addressing: Allows you to set and address individual modules to run

several completely separate ATOM systems on the same Track.

Setting an address will also allow you to communicate with the Compose

PLC line of controls.

For a detailed explanation of operation, please see the ATOM Operations

Manual.

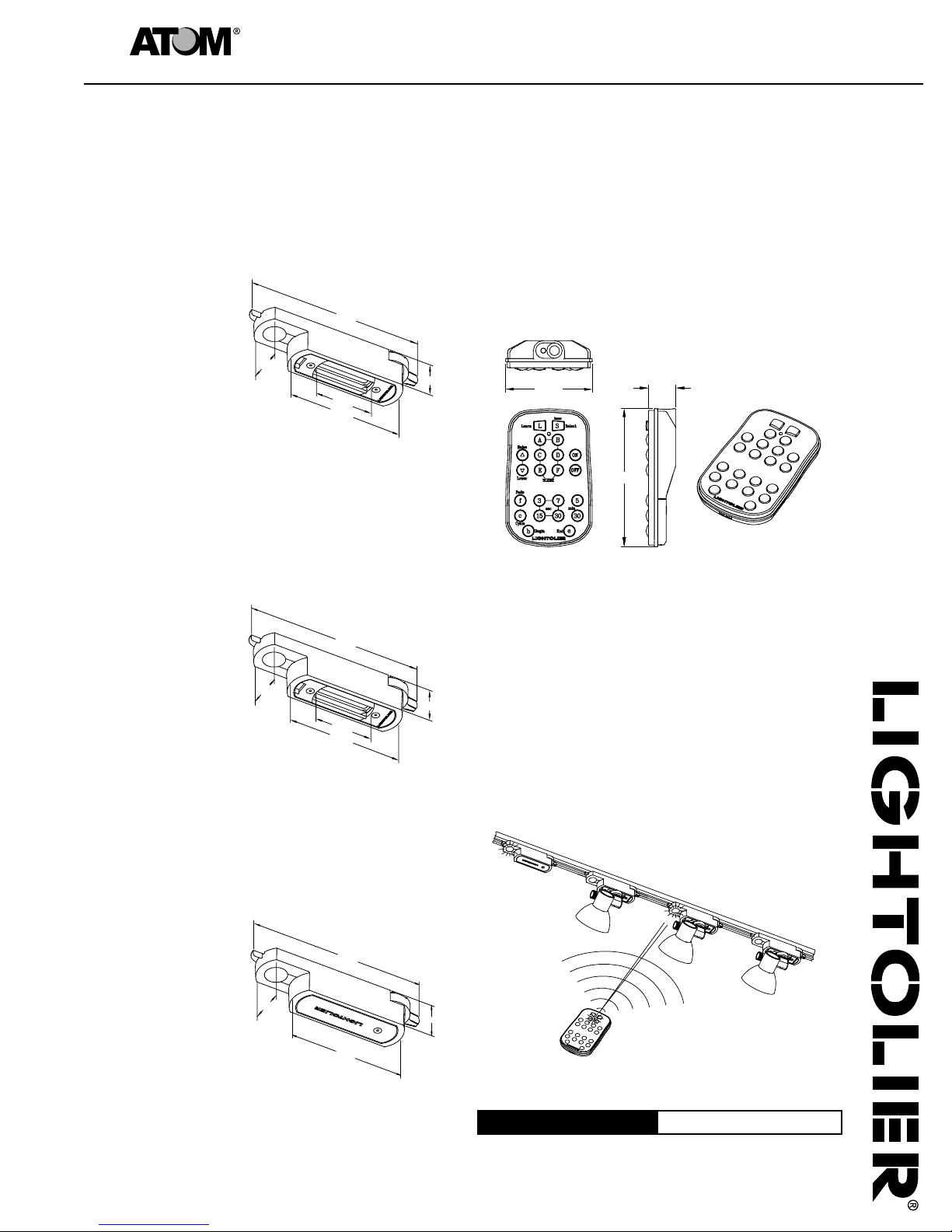

ATOM Addressable Track Module System

7 1/4"

1 9/16"

2 1/16"

4 11/16"

1 7/16"

2 1/16" 5/8"

3 1/4"

ATOM MODULE EFFECTS

7 1/4"

1 9/16"

2 1/16"

4 11/16"

1 7/16"

7 1/4"

1 9/16"

4 11/16"

1 7/16"

Lytespan®Track Lighting System CAMWRC

Page 2 of 2

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Addressable Track Wall Remote Control
