ATOMSTACK Air Assist Kit User Manual
Note: The picture is for reference only, the actual product shall prevail. F03-0046-0AA1 Version:C
For more information, please scan the QR code
English
Deutsche
Français
Parts List
NO. 1 2pcs
This is parts collection for various models, not each model will use all parts in the sheet.
Pump trachea M3 self-tapping
screws
Inner hexagon
screwdriver
PH1 Phillips
screwdriver
Set screw
NO. 1-1 NO. 1-2 NO. 1-3 NO. 2 NO. 2-1
Power
Adapter
Foot pad 2pcs
11
Atomstack A5 10W
Atomstack A5 20W
Atomstack A5 30W
Atomstack A5 Pro Installation of Air Guide Hood for Four Models
1. Remove the current acrylic
shields 2. Rotate the laser backward 180° 3. Remove the set screw 4. Rotate the current air guide hood
counterclockwise to remove it.
5. Find NO.1 from the accessories.
Install it as shown
The air
guide
hood tube
mouth is
on the left
6. Tighten the self-tapping screws
with a PH1 Phillips screwdriver
7. Find NO.1-1 from the accessories
and install it as shown.
8. Insert the tube and fixed
it with a tie
11
Installation of Air Guide Hood
for Eight Models
Atomstack A5
M50 Pro AtomStack P9 M40 Atomstack X7 Pro AtomStack P9
M50
AtomStack A10 PRO Atomstack A5 M50 Atomstack S10 Pro Atomstack X7
1. Remove the set screw
from the right side of the
laser and remove the
current filter glass or
acrylic shield.
2. Remove the
current air guide
hood.
3. Find NO.1 and NO.1-2 from the
accessories and install them at the
same time as shown.
4. Fix the air guide
hood as well as the
filter glass.
5. Insert the tube.
11
1. Remove the
set screw from
the right side of
the laser and
remove the
current filter
glass or acrylic
shield.
2. Remove the
current air guide
hood.
5. Insert the tube.
NO. 1 NO. 1-3 NO. 2 NO. 2-1
Combination one Combination two
locate the
combination which
contains the wind
deflector matches
your model( If the
bottom surface of
the glass and the
laser is flush after
assembly, proves
this wind deflect
matches your
model), choose this
combination.
3-1 3-2
4. Install the
combination matches
your model, mount the
air guide hood and the
glass at the same time.
If your model is AtomStack A5 Pro+ or AtomStack P7 M40, you need to choose one of
the following 2 combinations to support your model.
Equipment installation and use
11
1. Tear off the adhesive protect
paper from the silicone pad, align
the positioning posts on the
silicone pad with the mounting
holes on the pump, and paste the
silicone pad to pump body.
2. Insert the air tube into the
air pump port
3. The tube on the machine needs
be fixed with the connecting line by
the nylon tie. Be careful not to fix it
too tight to block the tube.
DC power
interface
Speed-
adjusting(switch)
knob
Precautions for Use
Be careful not to get the tube stucked by the
wheels.
Please do not bend the tube too
much to make the tube blocked.
Please note the tube cannot be bent
too much to make the tube blocked.
After using the air guide hood of air assist ,please clean the adhesions on the air outlet to prevent
from accumulating for a long time to affect the further use.
Customer Service:
Ø For detailed warranty policy,please visit our official
website at: www.atomstack.com
Ø For technical support and service,please email
:
support@atomstack.com
Manufacturer: Shenzhen AtomStack Technologies Co., Ltd.
Address: 17th Floor, Building 3A, Phase II, Intelligent Park, No. 76,
Baohe Avenue, Baolong Street, Longgang Dist., Shenzhen, 518172,
China.
Scan the code to enter the discussion group.
Scanner APPLICATION:
QR code reader/ Barcode scanner or any APP with scanner.
ATOMSTACK Air Assist Kit Benutzerhandbuch
Hinweis: Das Bild dient nur als Referenz, das tatsächliche Produkt hat Vorrang
Für weitere Informationen scannen Sie bitte den QR-Code
English
Deutsche
Français
Liste der Einzelteile
NEIN. 1 2St
Dies ist eine Teilesammlung für verschiedene Modelle, nicht jedes Modell verwendet alle Teile im Blatt.
Pumpe Luftröhre
M3
selbstschneiden
de Schrauben
Innensechskant-
Schraubendreher
PH1Kreuzschlitzs
chraubendreher
Feststells
chraube
NEIN. 1-1 NEIN. 1-2 NEIN. 1-3 NEIN. 2 NEIN. 2-1
Netzteil
Fußpolster 2St
Dieses Handbuch passt für folgende Modelle
7
Inhaltsverzeichnis
Sprachen:
Andere ATOMSTACK Graveur Handbücher
ATOMSTACK
ATOMSTACK M100 Bedienungsanleitung
ATOMSTACK
ATOMSTACK X20 Pro Bedienungsanleitung
ATOMSTACK
ATOMSTACK A 5 Pro Bedienungsanleitung
ATOMSTACK
ATOMSTACK A5 10W Bedienungsanleitung
ATOMSTACK
ATOMSTACK X7 Pro Series Bedienungsanleitung
ATOMSTACK
ATOMSTACK P7 Series Bedienungsanleitung
ATOMSTACK

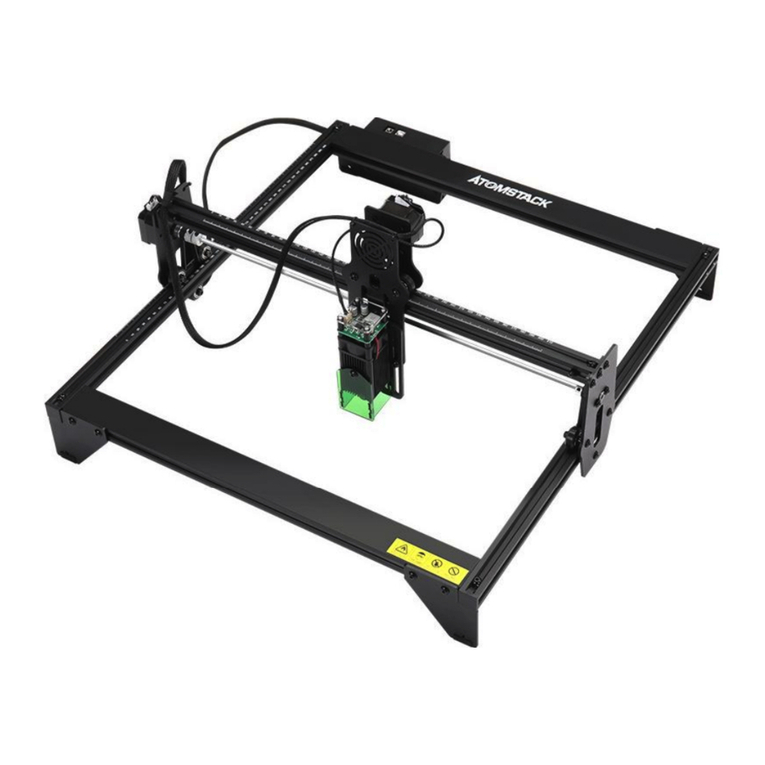

ATOMSTACK A5 Bedienungsanleitung
