ATOMSTACK M40 Service-Handbuch

note: (The picture is for reference only, the actual product shall prevail)

English

Deutsche

Français

Before Using the laser engraving, please read this safety guide carefully, it mentions situations that require special

attention and includes warnings of unsafe practices that can cause damage to your property or even endanger your

personal safety.

1. This product is a laser engraver system components, must be installed in other manufacturers of laser engraver for

use.And the product belongs to Class 4 laser products, the laser system itself must meet the requirements of IEC 60825-1

latest version, otherwise the product is prohibited to be used.

2. Your laser engraver shall have a protective housing which, when in place, prevents human access to laser radiation.

3. If a protective housing is equipped with an access panel which provides "walk-in" access then:

a)means shall be provided so that any person inside the protective housing can prevent activation of a laser hazard that is

equivalent to Class 3B or Class 4.

b）a warning device shall be situated so as to provide adequate warning of emission of laser radiation equivalent to Class

3R in the wavelength range below 400 nm and above 700 nm, or of laser radiation equivalent to Class 3B or Class 4 to any

person who might be within the protective housing.

c)󵿎where “walk-in” access during operation is intended or reasonably foreseeable, emission of laser radiation that is

equivalent to Class 3B or Class 4 while someone is present inside the protective housing of a Class 1, Class 2, or Class 3R

product shall be prevented by engineering means.

NOTE Methods to prevent human access to radiation when persons are inside the protective housing can include

pressure sensitive floor mats, infrared detectors, etc.

Part 1： Security Statment and warning

4. The laser itself has a protective cover, the protective cover is fastened by screws. When the laser is installed on the laser

engraver, the protective cover should be checked to be reliably locked, and can not be removed in the energized state.

5. The housing of the laser engraver should have an interlock function. When the housing is opened or removed, the laser

can be automatically turned off.

6. The laser engraver should have an emergency stop button, which can immediately stop the output of the laser when

pressed under unexpected circumstances.

7. The laser engraver should have a reset button, which can resume work under the condition of confirming safety after

lifting the interlock or emergency stop.

8. Laser engraver should use physical keys, dongle, password system and other ways to manage and control, to prevent

personnel without security training operation of this kind of equipment.

9. On the laser engraver any window or channel that can actively observe or passively receive the laser radiation should be

set up warning marks.

10. If the laser burns the skin or eyes, please go to a nearby hospital for examination and treatment immediately.

Part 2: Disclaimer and warning

This󵿎product󵿎is󵿎not󵿎a󵿎toy󵿎and󵿎is󵿎not󵿎suitable󵿎for󵿎people󵿎under󵿎15󵿎years󵿎of󵿎age.󵿎Do󵿎not󵿎allow󵿎children󵿎to󵿎touch󵿎the󵿎laser

Module.󵿎Please󵿎be󵿎careful󵿎when󵿎operating󵿎in󵿎scenes󵿎with󵿎children.

This󵿎product󵿎is󵿎a󵿎laser

module,󵿎visit󵿎http://www.atomstack3d.com/laserengraverdownload󵿎for󵿎complete󵿎"user󵿎manual"󵿎and󵿎the󵿎latest󵿎instructions󵿎and󵿎w

arnings.󵿎Shenzhen󵿎AtomStack󵿎Technologies󵿎Co.,󵿎Ltd.󵿎(Atomstack)󵿎reserves󵿎the󵿎right󵿎to󵿎update󵿎this󵿎Disclaimer󵿎and󵿎Safe󵿎Operatio

n󵿎Guidelines.

Please󵿎be󵿎sure󵿎to󵿎read󵿎this󵿎document󵿎carefully󵿎before󵿎using󵿎the󵿎product󵿎to󵿎understand󵿎your󵿎legal󵿎rights,󵿎responsibilities󵿎and󵿎safe

ty󵿎instructions;󵿎Otherwise,󵿎it󵿎may󵿎bring󵿎property󵿎loss,󵿎safety󵿎accident󵿎and󵿎hidden󵿎danger󵿎of󵿎personal󵿎safety.󵿎Once󵿎you󵿎use󵿎this󵿎pr

oduct,󵿎you󵿎shall󵿎be󵿎deemed󵿎to󵿎have󵿎understood,󵿎accepted󵿎and󵿎accepted󵿎all󵿎terms󵿎and󵿎contents󵿎of󵿎this󵿎document.󵿎User󵿎undertak

es󵿎to󵿎be󵿎responsible󵿎for󵿎his󵿎or󵿎her󵿎actions󵿎and󵿎all󵿎consequences󵿎arising󵿎therefrom.󵿎User󵿎agrees󵿎to󵿎use󵿎the󵿎Product󵿎only󵿎for󵿎legiti

mate󵿎purposes󵿎and󵿎agrees󵿎to󵿎the󵿎entire󵿎terms󵿎and󵿎contents󵿎of󵿎this󵿎document󵿎and󵿎any󵿎relevant󵿎policies󵿎or󵿎guidelines󵿎that󵿎AtomS

tack󵿎may󵿎establish.

You understand and agree that AtomStack may not be able to provide you with the cause of the damage or accident and

provide you with AtomStack's after-sale service unless you provide the original engraving or cutting files, engraving software

configuration parameters used, operating system information, video of the engraving or cutting process, and operational steps

prior to the occurrence of a problem or failure.

AtomStack󵿎is󵿎not󵿎liable󵿎for󵿎any󵿎and󵿎all󵿎losses󵿎arising󵿎from󵿎the󵿎user's󵿎failure󵿎to󵿎use󵿎the󵿎product󵿎in󵿎accordance󵿎with󵿎this󵿎manual.

Atomstack󵿎has󵿎the󵿎ultimate󵿎right󵿎to󵿎interpret󵿎the󵿎document,󵿎subject󵿎to󵿎legal󵿎compliance.󵿎Atomstack󵿎reserves󵿎the󵿎right󵿎to󵿎updat

e,󵿎modify,󵿎or󵿎terminate󵿎the󵿎Terms󵿎without󵿎prior󵿎notice.

Part 3：Laser Module Instruction

Plum blossom

handle

Laser slide

Protective cover

Slide mounting

hole

Signal input

Wavelength：455±5nm

Beam Divergence：0.2

Pulse Duration：1ms

Frequency：1kHz

Maximum power output：5W

Laser emitter

Part 4: Function description of adapter board

⑦.3PIN signal

output: the

3PIN signal line

is output to the

laser of the

machine

⑧. High and low signal trigger switch:

when not pressed down, the adapter

board works normally, after pressing

down, the laser continues to work

⑨.12V fan

interface: two

different 2PIN

fan interfaces

⑩.4PIN signal input: 4PIN

input for other manufacturers

(such as Neje, etc.)

.3PIN signal input is the

3PIN signal input of other

manufacturers (such as Ortur,

etc.)

⑤. Ground wire

⑥.TTL signal

input

④.12V input

①. Power

switch: the

on/off button

of the adapter

board

③.2PIN signal input:

2PIN signal input from

other manufacturers

②.DC auxiliary power terminal: when the auxiliary laser

power is insufficient, the compensation power is 12V 3A,

this interface is for power compensation, and it is

connected to the backup power supply when needed.

⑦

W h e n w o r k i n g , f i r s t l o o s e n t h e l o c k n u t , t h e n m o v e t h e l a s e r u p a n d d o w n t o a n

a p p r o p r i a t e h e i g h t ( t h e d i s t a n c e f r o m t h e f i x e d f o c u s o f t h e o b j e c t t o b e e n g r a v e d ) , a n d

t h e n l o c k t h e l o c k n u t , a n d t h e l a s e r p r e p a r a t i o n i s c o m p l e t e .

①②③

①.Install the slider

screw and tighten it

②.Tighten the slide rail

locking screws

③.Insert the laser into

the slider

④.Tighten the laser lock

nut

⑤. Connect the 3pin signal from

the switch board and insert the

3pin port of the laser

⑥.2 Auxiliary power supply: It is

recommended that the power adapter

below 12V3A should be plugged into the

auxiliary power supply, and the auxiliary

power supply is not required for 12V 3A

(inclusive) and above. Of course, this may

be different depending on the specific

model, as long as the laser power can

reach the maximum output power, there

is no need for an external auxiliary power

supply

⑥.1. Insert 3PIN signal

output terminal

⑥.3. According to the number of input

signals, insert the corresponding input

terminals (see Part 4 for details)

⑦.Fix the 3PIN signal

output line with a cable

tie

④

⑤

P a r t 5 : i n s t a l l a t i o n s t e p s

⑥

Laser Light can damage the human eyes and skin. Do not expose the eye or skin to laser light directly. This Laser product

has an optical lens and emits a collimated laser beam. The light from this product, both direct and reflected, is very harmful

as it can propagate a long distance while maintaining high optical density. When handling the product, wear appropriate

safety glasses (OD5+) to protect eyes from laser light including reflected and stray light. The reflected and stray light

spilling into an unintended area should be attenuated and/or absorbed.

P a r t 6 ： C a u t i o n s

L A S E R B E A M C A N D A M A G E E Y E S

P a r t 7 ： M a i n t e n a n c e i n s t r u c t i o n s a n d w a r n i n g

T his p ro du ct u se s a hi gh ly i nt e g r at ed d es ig n an d re qu ir es n o ma i nt en an ce . Ho we ve r, i f th e

la se r sy st em i ns ta ll ed w it h t hi s pr od uc t ne ed s to b e re pa ir ed o r tu ne d, p le ase :

1. U np lu g th e po we r co rd o n th e la se r, so t ha t th e la se r is i n a s ta te o f po we r fa il ur e;

2. I f yo u ne ed l as er a s si st an ce f or t un in g, p le ase :

1. A ll p re se nt p er so nn el w ea r pr ot ec ti ve g las se s, OD 5+ p ro te ct iv e gl as s i s ne ed ed ;

2. M ak e su re t he re a re n o fl amm ab le o r ex pl os iv e ma te ri al s ar o un d;

3. T he p os it io n an d di re ct io n of t he l ase r ar e fi xe d to e ns ur e th at t he l ase r wi ll n ot

ac c i de nt al ly m ov e an d sh in e on p eo pl e, a n im al s, f la mm ab le , ex p lo si ve a nd o th er

d a ng er ou s an d va lu ab le o bj ec ts d uri ng d eb ug gi ng .

4. D on 't l oo k at l as er s

5. D o no t sh in e th e la se r on t he m ir r o r o b j ec t , l es t th e la se r re fl ec ti on c au se ac c id e nt al

i n j u r y .

Customer Service:

Ø For detailed warranty policy,please visit our official

website at: www.atomstack3d.com

Ø For Laser Engraver technical support and

service,please email

[email protected]

Scan the code to enter the engraving machine

discussion group

Scanner APPLICATION:

QR code reader

/ Barcode scanner

or any APP with scanner

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ATOMSTACK Messgerät Handbücher

ATOMSTACK

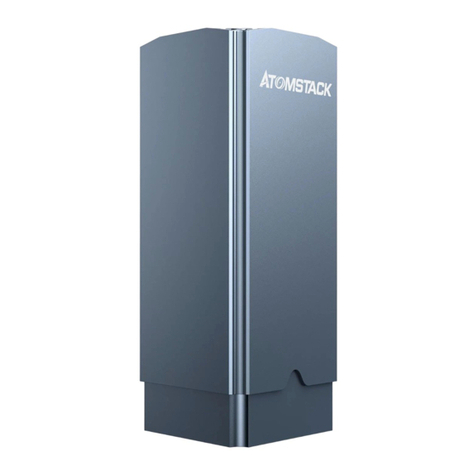

ATOMSTACK R30 Bedienungsanleitung
