ATTO Celerity Fibre Channel Host Adapters

Installation and Operation Manual

Celerity FC-84EN

8-Gb FC quad channel PCIe 2.0 host adapter

Celerity FC-82EN

8-Gb FC dual channel PCIe 2.0 host adapter

Celerity FC-81EN

8-Gb FC single channel PCIe 2.0 host adapter

Celerity FC-44ES

4-Gb FC quad channel PCIe host adapter

Celerity FC-42ES

4-Gb FC dual channel PCIe host adapter

Celerity FC-41ES

4-Gb FC single channel PCIe host adapter

Celerity FC-41EL

4-Gb FC single channel PCIe host adapter

Celerity FC-42XS

4-Gb FC dual channel PCI-X host adapter

Celerity FC-41XS

4-Gb FC single channel PCI-X host adapter

ATTO Technology, Inc.

155 CrossPoint Parkway

Amherst, New York 14068 USA

www.attotech.com

Tel (716) 691-1999

Fax (716) 691-9353

Sales support: [email protected]

Technical support: Monday -- Friday, 8am-8pm EST

[email protected]

holders. No part of this manual may be reproduced in any form or by any means without the express written

permission of ATTO Technology, Inc.

8/2008

.......................................................................................................,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,.

PRMA-0344--000

Contents

1 ATTO Provides Fibre Channel Solutions .........................................................1

Getting started

Celerity FC-84EN Adapter

Celerity FC-82EN Adapter

Celerity FC-81EN Adapter

Celerity FC-44ES Adapter

Celerity FC-42ES Adapter

Celerity FC-41ES Adapter

Celerity FC-41EL Adapter

Celerity FC-42XS Adapter

Celerity FC-41XS Adapter

2 Install Drivers .....................................................................................................13

Windows

OS X

Linux

Specialized configurations

3 Hardware Installation .........................................................................................17

Bracket details

Adapter board details

4 Updating Hardware Flash, Drivers ...................................................................25

5 Troubleshooting .................................................................................................27

General suggestions

Mac OS X

Windows Server 2008, 2003, 2000; Vista, XP

Linux

Appendix A Glossary ............................................................................................i

Appendix B Accessories ......................................................................................iv

Appendix C ATTO Adapter Selection Guides ....................................................v

Appendix D Standards, Compliances: 8Gb adapters ........................................viii

FCC standards: radio and television interference

Canadian standards

European standards

Appendix E Standards, Compliances: 4Gb adapters ........................................ix

Appendix F Safety, Warranty ...............................................................................x

Safety

ATTO Technology, Inc. limited warranty

1 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

1 ATTO Provides Fibre Channel Solutions

The ATTO Celerity Fibre Channel family of storage products provides connectivity, intelligence and scalability.

Celerity FC host adapters simplify advanced storage

networking needs such as switching, backup and data

management. Specifically designed to enhance the

functionality of third party fabric hardware and

software, Celerity FC products are the industry-

leading platform for storage connectivity.

Fibre Channel is a serial communications technology

designed to transfer large amounts of data among a

variety of hardware systems over long distances. It is

a key technology for applications that require shared,

high bandwidth access to storage.

Fibre Channel provides a logical, point-to-point, serial

channel for the transfer of data between a buffer at a

source device and a buffer at a destination device. It

moves buffer contents from one port to another,

without regard to the format or meaning of the data so

different upper level protocols are able to run over

Fibre Channel hardware.

The Fibre Channel architecture is structured as a

hierarchical set of protocol layers. Defined within these

layers are rules for signal interfaces, serial encoding

and decoding, error control, frame format and

communications protocols.

Getting started

In general, to install the ATTO Celerity FC host

adapter, you must:

1 Ensure you have the equipment and software

you need for the installation:

• Celerity FC adapter

• ATTO Celerity CD including drivers, user

manuals and utilities (Installation CD)

• A computer with an available expansion slot

• Storage, cables and connectors

2 Install drivers from the Installation CD for your

operating system. Refer to Install Drivers on

page 13.

3 Install the configuration software, the ATTO

Configuration Tool, found on the Installation

CD.

4 Install the Celerity adapter. Refer to Hardware

Installation on page 17.

5 Attach storage.

6 If required, configure your storage and adapter

using the ATTO Configuration Tool.

Note

Default settings are appropriate for most

systems but you may change settings using

the ATTO Configuration Tool.

Celerity FC-84EN Adapter

The ATTO Celerity FC-84EN leverages two next-

generation storage technologies: PCIe 2.0

interconnect and 8-Gigabit Fibre Channel.

With 8-Gb FC speeds of up to 1600 MB/sec. per

channel, the Celerity FC-84EN supports the most

demanding application requirements, including high-

definition video, rich content databases and other

high-bandwidth environments.

ATTO Celerity host adapters are an integrated family

of advanced storage connectivity solutions that are

designed to provide reliable connectivity, intelligence

and scalability.

Technical specifications

• 4 independent Fibre Channel ports

• 8-Gigabit data transfer rates

• 1600 MB/sec. maximum full-duplex throughput

per channel

• Supports all FC topologies: fabric, arbitrated

loop and point-to-point

• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-

AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 support

• Local management and diagnostics

• Buffer credits: 41

• ATTO Advanced Data Streaming (ADS™)

Technology

Advanced FC capabilities

• Supports SNIA HBA API

• Backward compatible with 4-Gb and 2-Gb Fibre

Channel

• Supports target and initiator modes

• Supports Windows® FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express

interconnect

• Conforms to PCI Express Base Spec 2.0

• Conforms to PCI Express CEM Spec 2.0

• PCI Hot Plug spec 1.0

Environmental & physical specifications

• Length: 6.6 inches

• Height: 3.987 inches

• Operating temperature: 0-40 ºC (32-113 ºF)

• Storage temperature: -40 to 70 ºC (-40 to 158 ºF)

• Relative humidity: 10 to 90% non-condensing

• 7.8 W (typical)

• 100 lf/m (minimum) airflow recommended

• RoHS compliant

External connectivity

• Easy to install full height connection bracket

• External LEDs for on-line and speed status for

each channel

• Four pluggable 8-Gb optical LC SFP+ modules

included

Software specifications

• Windows Server 2008, 2003; Vista, XP

• Mac® OS X (10.4.x, 10.5.x)

• Red Hat Linux® (2.6 kernel)

• SUSE Linux (2.6 kernel)

• Fedora Linux (7 & 8)

3 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

Celerity FC-82EN Adapter

The ATTO Celerity FC-82EN leverages two next-

generation storage technologies: PCIe 2.0

interconnect and 8-Gigabit Fibre Channel.

With 8-Gb FC speeds of up to 1600 MB/sec. per

channel, the Celerity FC-82EN supports the most

demanding application requirements, including high-

definition video, rich content databases and other

high-bandwidth environments.

ATTO Celerity host adapters are an integrated family

of advanced storage connectivity solutions that are

designed to provide reliable connectivity, intelligence

and scalability.

Technical specifications

• Two independent Fibre Channel ports

• 1600 MB/sec. maximum throughput per channel

in full-duplex mode

• 8 GB/sec. FC data-transfer rate

• Conforms to PCI Express Low Profile form-

factor specifications

• Supports all FC topologies: fabric, arbitrated

loop and point-to-point

• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-

AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 support

• Local management and diagnostics

• Buffer credits: 41

• Advanced Data Streaming (ADS) Technology

Advanced FC capabilities

• Supports SNIA HBA API

• Backward compatible with 4-Gb and 2-Gb Fibre

Channel

• Supports target and initiator modes

• Supports Windows® FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express

interconnect

• Conforms to PCI Express Base Spec 2.0

Conforms to PCI Express CEM Spec 2.0

• PCI Hot Plug spec 1.0

Environmental & physical specifications

• Length: 6.6 inches

• Height: 2.731 inches

• Operating temperature: 0-40 ºC (32-113 ºF)

• Storage temperature: -40 to 70 ºC (-40 to 158 ºF)

• Relative humidity: 10 to 90% non-condensing

• 5.9W (typical)

• 100 lf/m (minimum) airflow recommended

• RoHS compliant

External connectivity

• Easy to install full height connection bracket;

low-profile bracket included in finished goods

packaging

• External LEDs for on-line and speed status for

each channel

• Two pluggable 8-Gb optical LC SFP+ modules

included

Software specifications

• Windows Server 2008, 2003; Vista, XP

• Mac OS X (10.4.x, 10.5.x)

• Red Hat Linux (2.6 kernel)

• SUSE Linux (2.6 kernel)

• Fedora Linux (7 & 8)

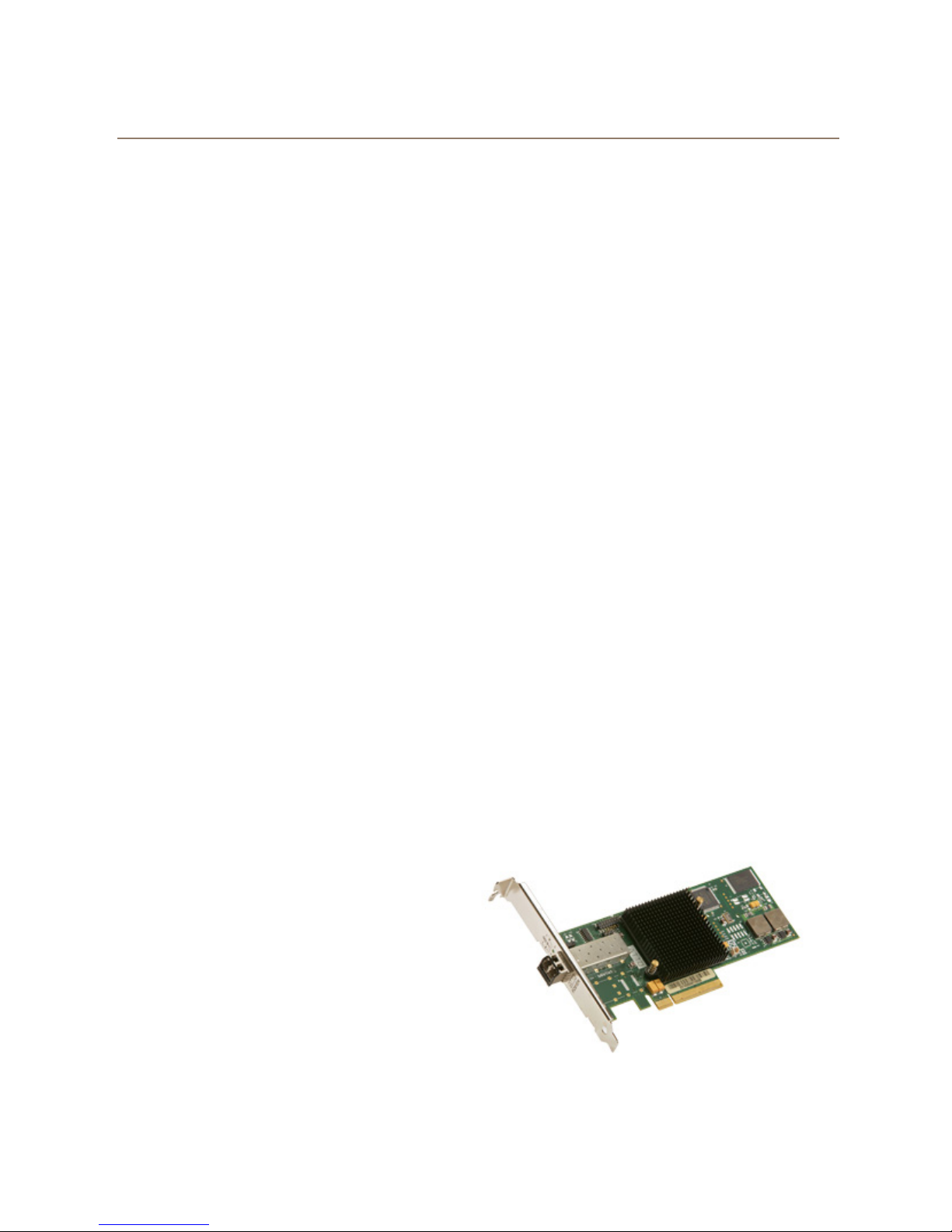

Celerity FC-81EN Adapter

The ATTO Celerity FC-81EN leverages two next-

generation storage technologies: PCIe 2.0

interconnect and 8-Gigabit Fibre Channel.

With 8-Gb FC speeds of up to 1600 MB/sec. per

channel, the Celerity FC-81EN supports the most

demanding application requirements, including high-

definition video, rich content databases and other

high-bandwidth environments.

ATTO Celerity host adapters are an integrated family

of advanced storage connectivity solutions that are

designed to provide reliable connectivity, intelligence

and scalability.

Technical specifications

• One independent Fibre Channel port

• 8-Gigabit FC data transfer rates

• 1600 MB/sec. throughput in full-duplex mode

• Supports all FC topologies: fabric, arbitrated

loop and point-to-point

• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-

AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 support

• Local management and diagnostics

• Buffer credits: 41

• Advanced Data Streaming (ADS) Technology

Advanced FC capabilities

• Supports SNIA HBA API

• Backward compatible with 4-Gb and 2-Gb Fibre

Channel

• Supports target and initiator modes

• Supports Windows FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express

interconnect

• Conforms to PCI Express Base Spec 2.0

• Conforms to PCI Express CEM Spec 2.0

• PCI Hot Plug spec 1.0

Environmental & physical specifications

• Length: 6.6 inches

• Height: 2.731 inches

• Operating temperature: 0-45ºC (32-113ºF)

• Storage temperature: -40 to 70ºC (-40 to 158ºF)

• Relative humidity: 10 to 90% non-condensing

• 5.3 W (typical)

• 100 lf/m (minimum) airflow recommended

• RoHS compliant

External connectivity

• Easy to install full height connection bracket;

low-profile bracket included in finished goods

packaging

• External LEDs for on-line and speed status for

each channel

• One pluggable 8-Gb optical LC SFP+ module

included

Software specifications

• Windows Server 2008, 2003; Vista, XP

• Mac OS X (10.4.x, 10.5.x)

• Red Hat Linux (2.6 kernel)

• SUSE Linux (2.6 kernel)

• Fedora Linux (7 & 8)

5 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

Celerity FC-44ES Adapter

The Celerity FC-44ES uses PCI Express Interconnect

and 4-Gigabit Fibre Channel to provide 4-Gb FC

speeds of up to 800 MB/sec. per channel. The FC-

44ES supports high-definition video, rich content

databases and other high bandwidth environments.

The FC-44ES uses PCI Express, a serial, high-speed

connection that supports aggregate throughput up to 4

GB/sec. (x8 PCIe) full-duplex. Software compatible

with existing PCI and PCI-X products, the FC-44ES

uses the same device drivers as other Celerity FC

family products, simplifying installation and support.

Hardware specifications

• 4 independent Fibre Channel ports

• 4-Gigabit data transfer rates per channel

• 800 MB/sec. maximum full-duplex throughput

per channel

• Supports all FC topologies: fabric, arbitrated

loop and point-to-point

• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-

AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 support

• Local management and diagnostics

• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes

Advanced FC capabilities

• Supports SNIA HBA API

• On-demand automatic negotiation among 4-Gb,

2-Gb and 1-Gb Fibre Channel

• Supports target and initiator modes

• Supports Windows FDMI and WMI

• Supports exclusive ATTO Advanced Data

Streaming (ADS) Technology

Host bus specifications

• x8 mechanical and x8 electrical PCI Express

Interconnect

• Conforms to PCI Express Base Spec 1.0a

• Conforms to PCI Express CEM Spec 1.0a

• PCI Express to PCI/PCI-X Bridge spec 1.0

Environmental & physical specifications

• Conforms to PCI standard height, half length

form-factor specifications

• Length: 6.525 inches

• Height: 3.81 inches

• Operating temperature: 0-45ºC (32-113ºF)

• Storage temperature: -40 to 70ºC (-40 to 158ºF)

• Relative humidity: 10 to 90% non-condensing

• 12V@ 2.1A (max.)

• 3.3V @ 3.0A (max.)

• 100 lf/m (minimum) airflow recommended

• RoHS compliant

External connectivity

• Easy-to-install full height connection plate

• External LEDs for on-line and speed status for

each channel

• 4 pluggable optical LC SFP transceivers

included

Software specifications

• Windows Server 2008, 2003, 2000; Vista, XP

• Mac OS X (10.4.x, 10.5.x)

• Red Hat Linux (2.4 and 2.6 kernel)

• SUSE Linux (2.6 kernel)

Celerity FC-42ES Adapter

The Celerity FC-42ES is a dual-channel host adapter

providing port density for Enterprise server and

workstation applications. With 4-Gb FC speeds of up

to 800 MB/sec. per channel, the FC-42ES supports

the most demanding application requirements.

Additionally the FC-42ES uses the latest in host

interconnect technology, PCI Express, a serial, high-

speed connection that supports aggregate throughput

up to 4 GB/sec. (x8 PCIe) full-duplex.

The FC-42ES is software compatible with existing PCI

and PCI-X products using the same device drivers as

other Celerity FC family products, simplifying user

installation and support. It is backward compatible with

existing 2-Gb and 1-Gb Fibre Channel infrastructure,

protecting existing technology.

Hardware specifications

• 2 independent Fibre Channel ports

• 4-Gigabit data transfer rates per channel

• 800 MB/sec. maximum full-duplex throughput

per channel

• Supports all FC topologies: direct fabric,

arbitrated loop and point-to-point

• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-

AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 support

• Local management and diagnostics

• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes

Advanced FC capabilities

• Supports SNIA HBA API

• On-demand automatic negotiation among 4-Gb,

2-Gb and 1-Gb Fibre Channel

• Supports target and initiator modes

• Supports Windows FDMI and WMI

• Supports exclusive ATTO Advanced Data

Streaming (ADS) Technology

Host bus specifications

• x4 mechanical and x4 electrical PCI Express

interconnect (RoHS compliant)

• Conforms to PCI Express Base Spec 1.0a

• Conforms to PCI Express CEM Spec 1.0a

• PCI Express to PCI/PCI-X Bridge spec 1.0

Environmental & physical specifications

• Operating temperature: 0-45ºC (32º-113ºF)

• Storage temperature: -40º to 70ºC (-40º to

158ºF)

• Relative humidity:10 to 90% non-condensing

• 100 lf/m (minimum) airflow recommended

• Conforms to PCI half height, half length form-

factor specifications

• 12V@ 04A (max.); 3.3V @ 1.5A (max.)

• Length: 5.6 inches

• Height: 2.712 inches

• RoHS compliant

External connectivity

• Easy-to-install full height connection plate

• External LEDs for on-line and speed status for

each channel

• 2 pluggable optical LC SFP transceivers

included

Software specifications

• Windows Server 2008, 2003, 2000; Vista, XP

• Mac OS X (10.4.x, 10.5.x)

• Red Hat Linux (2.4 and 2.6 kernel)

• SUSE Linux (2.6 kernel)

7 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

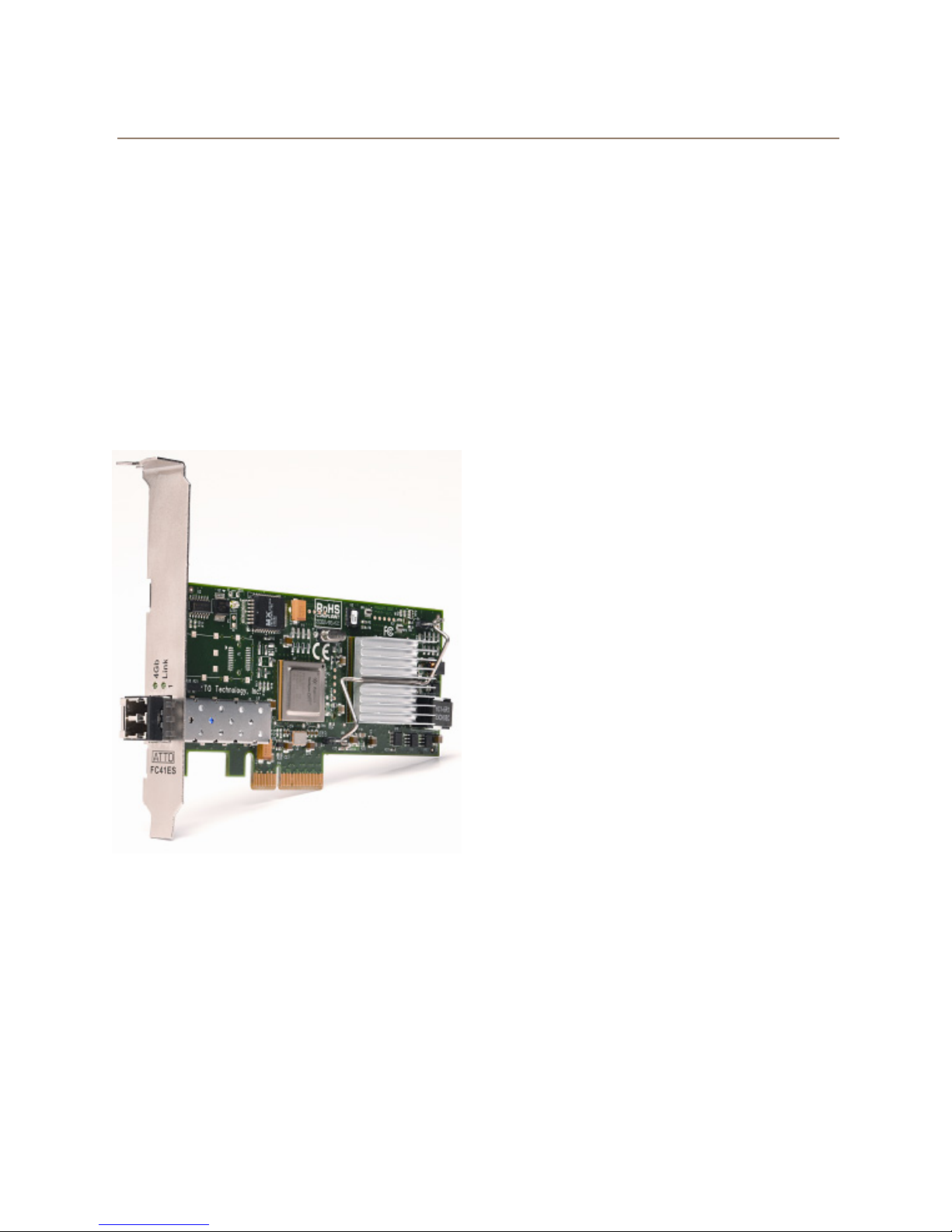

Celerity FC-41ES Adapter

The Celerity FC-41ES is a single-channel host adapter

providing support for the most demanding application

requirements. With 4-Gb FC speeds of up to 800

MB/sec. per channel, the FC-41ES is a cost effective

connectivity solution for environments requiring

maximum throughput.

The FC-41ES uses the latest in host interconnect

technology: PCI Express, a serial, high-speed

connection that supports aggregate throughput up to 2

GB/sec. (x4 PCIe) full-duplex. The FC-41ES is

software compatible with existing PCI and PCI-X

products using the same device drivers as other

Celerity FC products, simplifying user installation and

support. It is backward compatible with existing 2-Gb

and 1-Gb Fibre Channel infrastructure, protecting

existing technology investments.

Hardware specifications

• 1 Fibre Channel port

• 4-Gigabit FC data transfer rates

• 800 MB/sec. maximum full-duplex throughput

• Supports all FC topologies: fabric, arbitrated

loop and point-to-point

• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-

AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 support

• Local management and diagnostics

• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes

Advanced FC capabilities

• Supports SNIA HBA API

• On-demand automatic negotiation among 4-Gb,

2-Gb and 1-Gb Fibre Channel

• Supports target and initiator modes

• Supports Windows FDMI and WMI

• Features exclusive Advanced Data Streaming

(ADS) Technology

Host bus specifications

• x4 mechanical and x4 electrical PCI Express

interconnect

• Supports PCI Express Base Spec 1.0a and CEM

Spec 1.0a

• Supports PCI Express to PCI/PCI-X bridge spec

1.0

Environmental & physical specifications

• Conforms to PCIe low profile form factor

specifications

• Length: 5.600 inches

• Height: 2.712 inches

• Operating temperature: 0-45ºC (32º-113ºF)

• Storage temperature: -40º to 70ºC (-40º to

158ºF)

• Relative humidity: 10 to 90% non-condensing

• 100 lf/m (minimum) airflow recommended

• Power: 12V@ 0.4A max; [email protected] max.

• RoHS compliant

External connectivity

• Easy-to-install full height connection bracket

• External LEDs for on-line and speed status

• Pluggable optical LC SFP transceiver included

Software specifications

• Windows Server 2008, 2003, 2000; Vista, XP;

Red Hat Linux (2.4 and 2.6 kernel)

• SUSE Linux (2.6 kernel)

• Mac OS X (10.4.x, 10.5.x)

Andere Handbücher für Celerity FC-41EL

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ATTO Technology Hostadapter Handbücher

ATTO Technology

ATTO Technology Low-Profile SAS Host Adapter H308 Bedienungsanleitung

ATTO Technology

ATTO Technology Low-Profile SAS Host Adapter H308 Bedienungsanleitung

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3321 Bedienungsanleitung

ATTO Technology

ATTO Technology ExpressSAS R348 Bedienungsanleitung

ATTO Technology

ATTO Technology ATTO Celerity FC-81EN Bedienungsanleitung

ATTO Technology

ATTO Technology ATTO Celerity FC-81EN Handbuch

ATTO Technology

ATTO Technology UL5D PCI Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-82EN Bedienungsanleitung

ATTO Technology

ATTO Technology iPBridge 2600 Bedienungsanleitung

ATTO Technology

ATTO Technology ExpressPCI UL4D Handbuch

ATTO Technology

ATTO Technology ATTO XstreamCORE FC 7550 Bedienungsanleitung

ATTO Technology

ATTO Technology Low-Profile SAS Host Adapter H308 Bedienungsanleitung

ATTO Technology

ATTO Technology ATTO Celerity FC-81EN Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-164E Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-21PS Bedienungsanleitung

ATTO Technology

ATTO Technology ExpressPCI UL5D LP Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-41EL Bedienungsanleitung

ATTO Technology

ATTO Technology ExpressSAS H1208 HBA Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-84EN Bedienungsanleitung

ATTO Technology

ATTO Technology 6-Gb SAS/SATA Host Adapter H60F Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-41EL Bedienungsanleitung

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3342 Bedienungsanleitung

ATTO Technology

ATTO Technology Celerity FC-41EL Bedienungsanleitung

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3300 Handbuch

Beliebte Hostadapter Handbücher anderer Marken

Digital Equipment

Digital Equipment StorageWorks EK-KZPCM-UG Bedienungsanleitung

Sun Microsystems

Sun Microsystems Sun StorEdge Bedienungsanleitung

LSI

LSI LSI21320-R Bedienungsanleitung

LSI

LSI Ultra160 Bedienungsanleitung

Tekram Technology

Tekram Technology TR-824 Bedienungsanleitung

LSI

LSI S14037 Bedienungsanleitung

Sonnet

Sonnet Tempo Ultra ATA66 Bedienungsanleitung

Adaptec

Adaptec AHA-3940UW/OF Bedienungsanleitung

HighPoint

HighPoint RocketRAID 600L Bedienungsanleitung

Tekram Technology

Tekram Technology DC-820B Bedienungsanleitung

HighPoint

HighPoint RocketRAID 174x Bedienungsanleitung

Adaptec

Adaptec AHA-2944UW Bedienungsanleitung

IBM

IBM System Storage DS4000 Bedienungsanleitung

HP A8002A Gebrauchsanweisung

Yealink

Yealink VC400 Bedienungsanleitung

Sans Digital

Sans Digital HA-SAN-4ESPCIE Bedienungsanleitung

Adaptec

Adaptec AHA-2740 Bedienungsanleitung

Adaptec

Adaptec AHA-1540CP Bedienungsanleitung
