Audio Solutions AS-CM3260 Bedienungsanleitung
Model AS-CM3260 Wall Mount
Ceiling Mount Television Bracket
2
Introduction
Congratulaons on the purchase of your new Audio Soluons™ AS-CM3260 Television Ceiling Mount. For
maximum benet, please read the enre manual before beginning installaon.
NOTE: This wall mount has been designed to work with the Audio Soluons™ 2.1 or 3.1 Audio Mount™.
This mount will also work directly with most 32 to 60 inch Plasma, LCD and LED televisions with a
maximum weight of 132lbs (60kg).
Safety Instructions
Please read this enre manual carefully before mounng this bracket to avoid bodily injury and/or any
property loss. If you do not understand these direcons, or have any doubts about the safety of the
installaon, please call a qualied contractor or contact the Audio Soluons™ customer service department
@ 1-866-839-9187. Please check carefully to ensure there are no missing or defecve parts. Our
customer representaves can quickly assist you with installaon quesons and missing or defecve parts.
Replacement parts for products purchased through authorized dealers will be shipped to you directly. Do
not aempt to use any parts not provided by the manufacturer. Using other screws could cause injury or
property loss. Never use defecve parts, as improper installaon may cause damage or serious injury. Do
not use this product for any purpose not explicitly specied by Audio Soluons™. Audio Soluons™ cannot
be liable for damage or injury caused by incorrect mounng, incorrect assembly, or incorrect use.
• Read these instrucons.
• Keep these instrucons.
• Heed all warnings.
• Follow all instrucons.
• Besuretochooseaceilingconstructedusing2x4studsorsolidconcrete,orotherreinforcement
strongenoughtosupporttheweightoftheTV.Thelocaonshouldbesafefromhazardssuchas
waterorcrushableitems.DONOTATTEMPTTOMOUNTTHISUNITTOAHOLLOWCEILING!
Hollow Ceiling or Decorative Cardboard
NO!

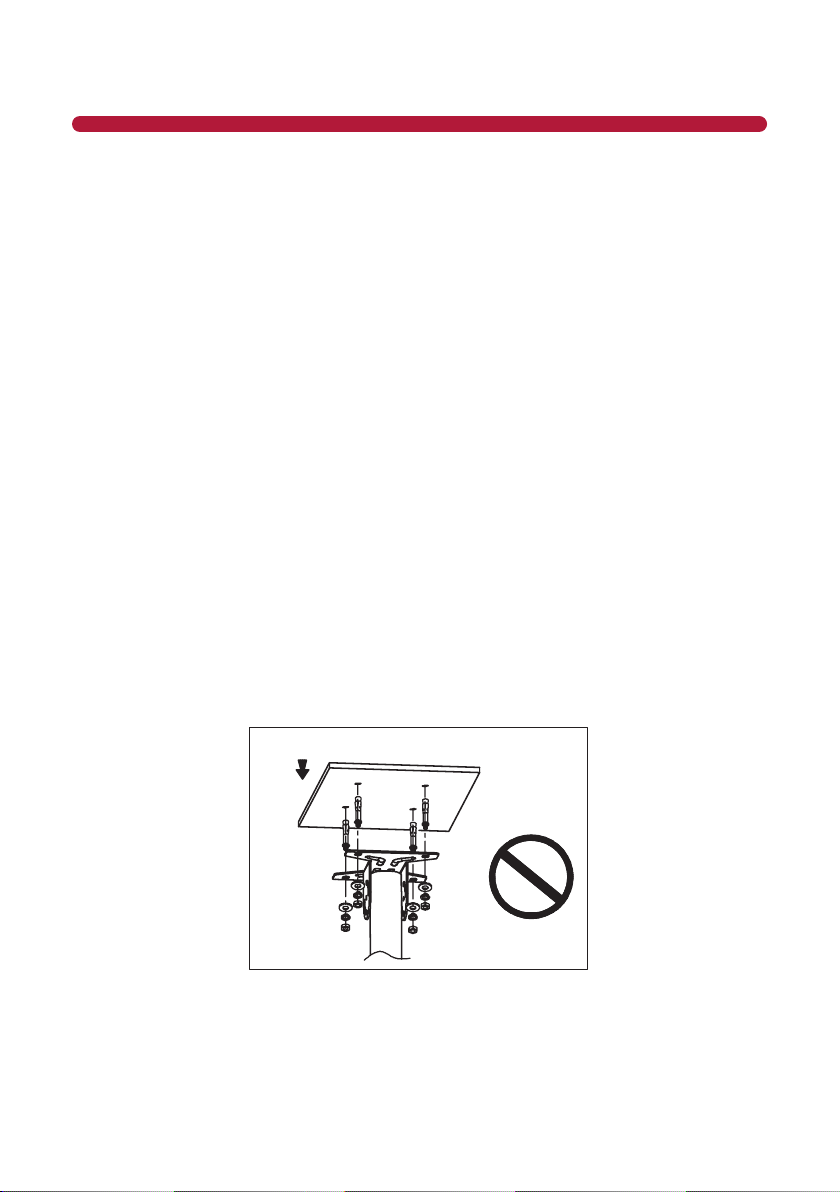

Figure 1 - Hollow Ceiling WARNING!
• WARNING: Use only the supplied screws intended for the current applicaon to avoid personal injury
or property damage.
GETTING STARTED
3
Opening the Package
The AS-CM3260 Television Ceiling Mount and accompanying hardware have been carefully packed in
a carton designed to protect it from transportaon damage. Aer opening the carton, check that the
components are in good condion and that all listed contents are included.
Package Contents
• Mounng Post
• Front Plate
• Bracket
• Plasc Cover
• Mounng/Assembly Hardware
• This User Manual
Mounting Instructions
Please read all enclosed instrucons and verify hardware contents carefully before mounng.
GETTING STARTED
4
Ceiling Mount Hardware
#PartImage Descripon Qty
1 M8 x 16 Bolt 8
2M8 Washer 4
3 M8 Nut 4
4M6 x 60 Bolt 2
5M6 Nut 2
6M4 x 16 2
7Concrete
Anchor
4
8Wrench 1
9 Allen Wrench 2
TV Bracket Assembly Hardware
#PartImage Descripon Qty
A M4 x 12 Bolt 4
BM5 x 12 Bolt 4
CM6 x 12 Bolt 4
DM8 x 16 Bolt 4
GETTING STARTED
#PartImage Descripon Qty
EM4 x 30 Bolt 4
FM5 x 30 Bolt 4
GM6 x 35 Bolt 4
HM8 x 40 Bolt 4
IM4/M5
Spacer
4
JM8/M6
Spacer
4
KM4/M5
Washer
4
LM6/M8
Washer
4
M M4 Washer 4
NM5 Washer 4
OM6 Washer 4
PM8 Washer 4
5
STEP 1
Read and understand all of the enclosed instrucons and verify that all parts are present and appear in
good working order before you begin.
STEP 2
Choose a locaon on the ceiling for your new Audio Soluons™ TV Mount. Ensure there is adequate
support in the ceiling to aach the ceiling plate with the supplied screws.
Wood Stud Mounting
Locate the studs and mark the center and edge locaons. Posion the Ceiling Plate over the marked
wooden stud areas and mark for drilling. Using the correct size drill bit, pre-drill a 2.5” deep hole in each
marked locaon. Aach the Ceiling Plate to the ceiling joists using 2.5” wood lag bolts and washers (not
included in installaon kit). The Ceiling Plate is shown in Figure 2.
NOTE: This installaon requires the use of addional support boards.
Concrete Ceiling Mounting
Choose a solid ceiling area that will support the weight of the television. Posion the Ceiling Plate and
mark for drilling. Using the correct size drill bit, pre-drill a 2.5” hole in each marked locaon. Remove the
nuts from the concrete bolts and insert a concrete anchor into each hole. Using the supplied wrench,
aach the Ceiling Plate to the ceiling using the nuts you removed from the concrete bolts (Figure 2).

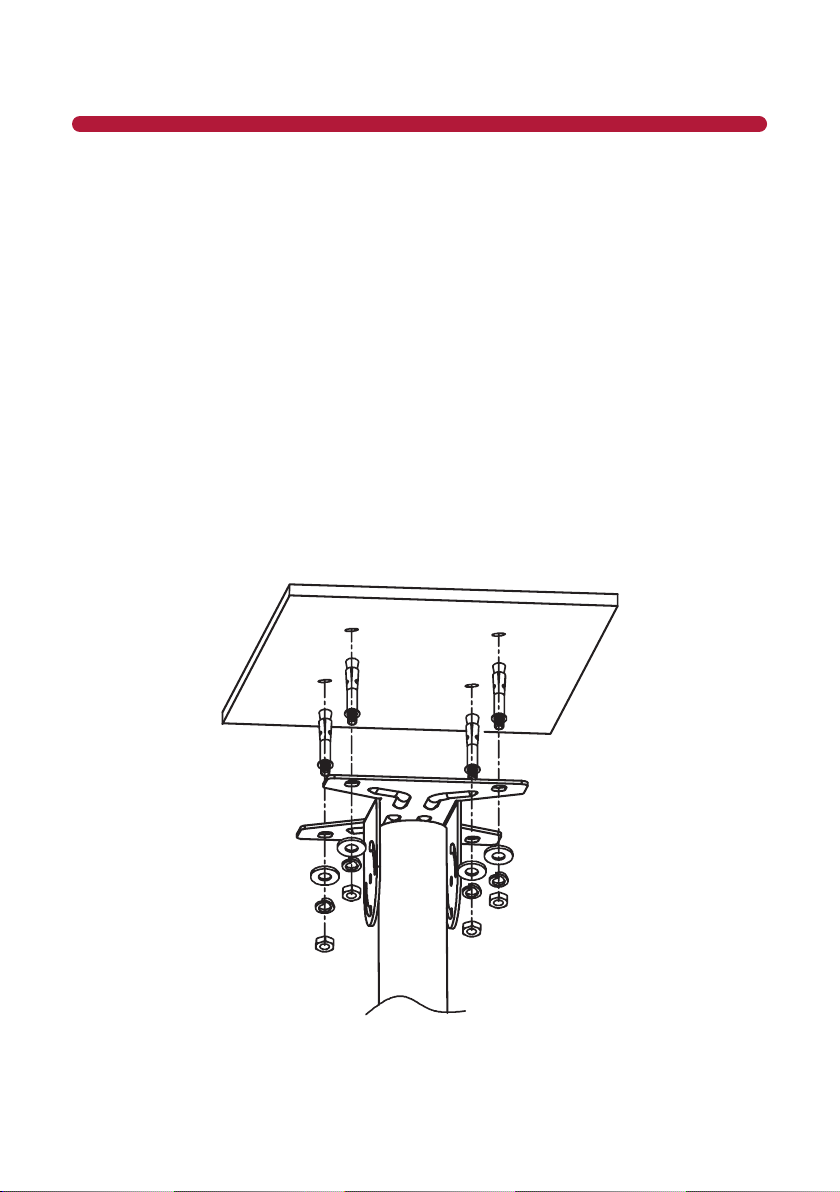

Figure 2 - Concrete Mounting
INSTALLATION
6
INSTALLATION
STEP 3
Slide the plasc cover over the pole unl ush to the ceiling and align the screw holes. Use the included
M6 x 60 bolts (Figure 3 - A) to secure the cover to the ceiling. For an angled ceiling, remove a side secon
of plasc at the opening around the pole before sliding over the pole. See Figure 3.
A
A

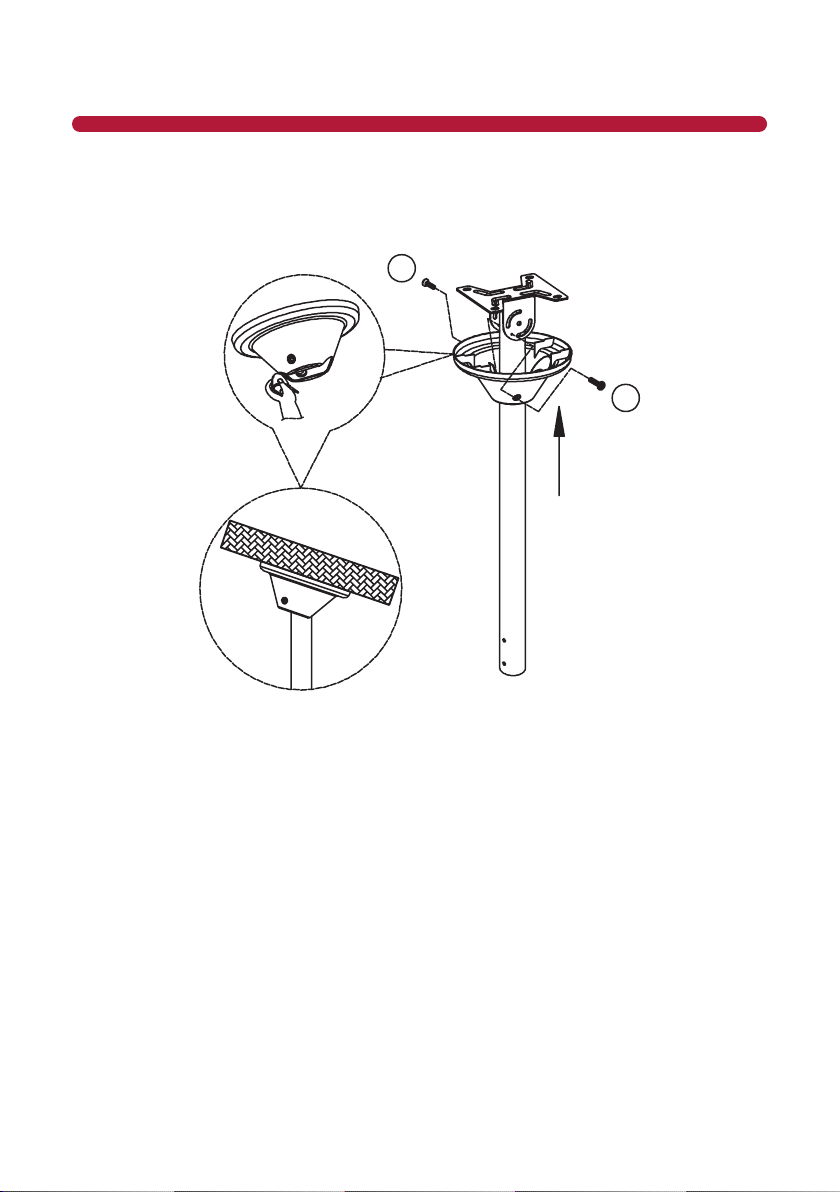

Figure 3 - Secure Plastic Cover Over Ceiling Plate
7
STEP 4
Adjust the pole height by removing the screws that connect the two secons together and sliding the pole.
Align the screw holes and secure at the desired height using the included screws (Figure 4 - A).
B
A

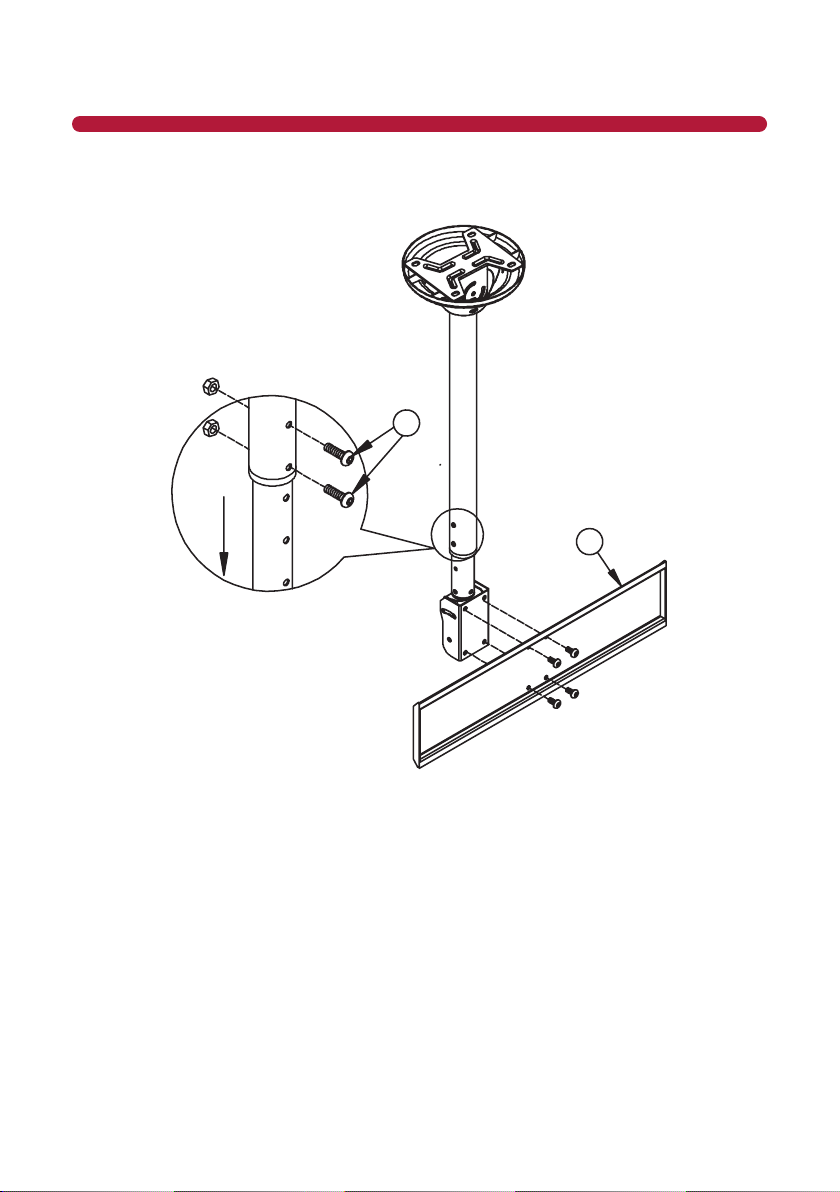

Figure 4 - Adjust Height/Install Front Plate
STEP 5
Aach the front plate to the pivong bracket (Figure 4 - B) using four M8 x 16 bolts.
INSTALLATION
8
STEP 6
In the hardware bag provided, locate the 4 pan head bolts that t the thread paern for your television or
Audio Mount™. With the two vercal brackets centered on the back of the TV or Audio Mount™, gently
thread the screws into the holes by hand, making sure to keep the brackets symmetrical. DO NOT USE AN
ELECTRIC OR BATTERY DRILL unl you are certain you have the right size thread. DO NOT OVER TIGHTEN
the screws (Figure 5). When installing an Audio Soluons™ Audio Mount™ 2.1 or 3.1, mount the television
to the Audio Mount™ as instructed in the Audio Mount™ Owner’s Manual and then mount the brackets to
the back of the mount.
NOTE: Use the proper bolts and washers that correspond to the mounng holes on the back of the TV.
Take care to ghten by hand rst or damage to the mounng holes can occur. Some TVs without a at
back may require the use of a spacer when aaching the brackets. If applicable, make sure the two TV
brackets are even and that they’re using the same mounng holes on the bracket. Uneven assembly will
cause the TV screen to slant.
Figure 5 - Attach Brackets to Television
NOTE: You will need at least 2 people to nish this mounng procedure. To avoid possible injury, do not
aempt to mount the TV alone.
NO!YES!

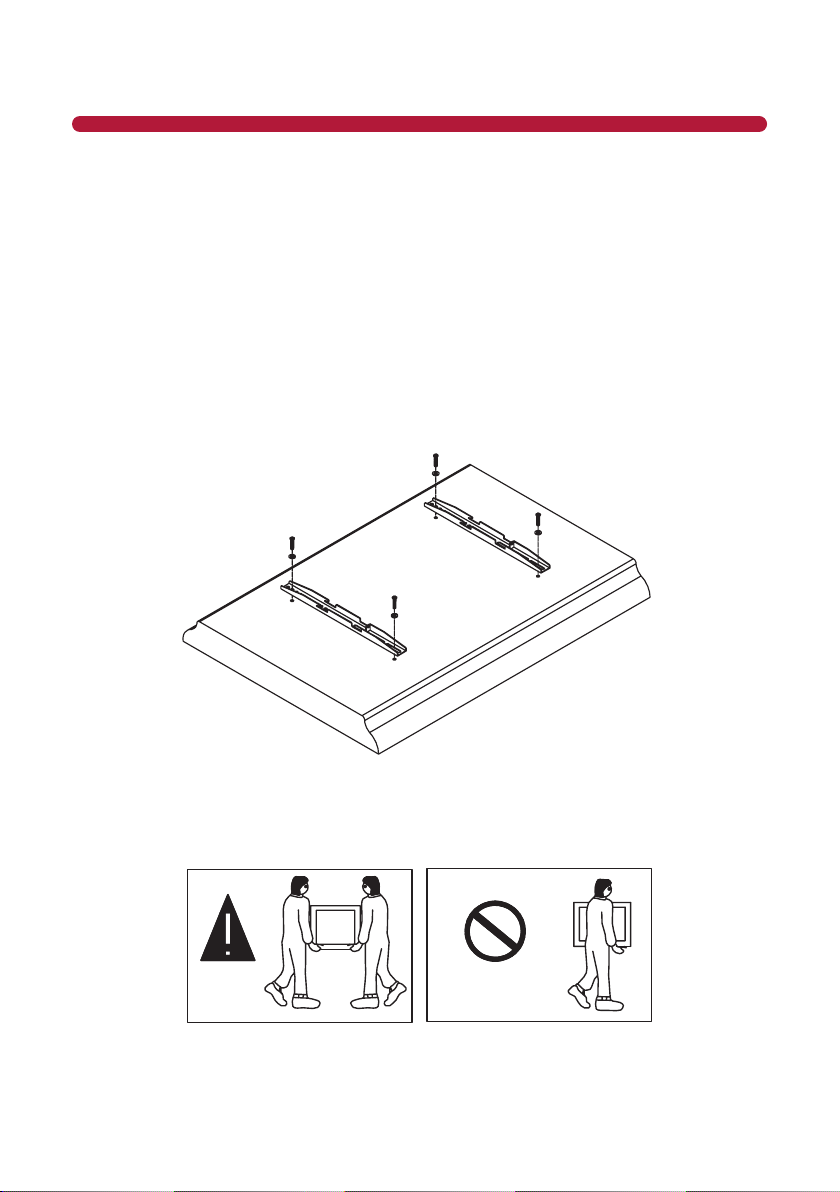

Figure 6 - Two Person Install WARNING!
INSTALLATION
9
STEP 7
Hang the pre-assembled TV unit on the front plate, as shown in Figure 7. Tighten the screws (A) to secure
the TV unit to the front plate. This wall mount is designed to conceal cables inside the pole. Run cables
through the ceiling and out through the hole at the boom of the pole for a clean look.
A

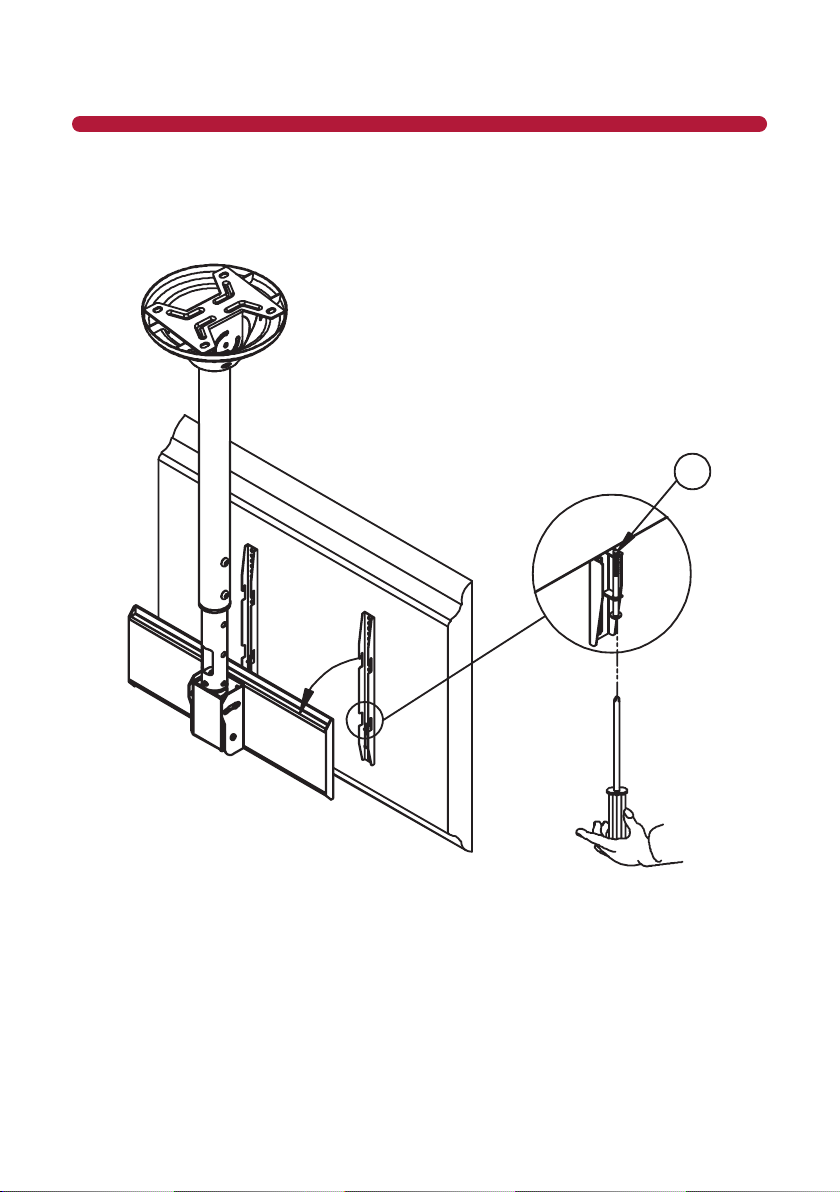

Figure 7 - Attach TV Assembly to Front Plate
INSTALLATION
10
STEP 8
NOTE: Angle/Height adjustment should be done by at least two people.
• (A) While another person is holding the television assembly, loosen the two screws on either side of
the mounng plate and lt the television up to 5 degrees back or 15 degrees forward. Tighten the
screws when the desired angle is achieved.
• (B) To adjust the height, remove the screws to separate the two secons of pole and slide the pole
up/down unl you reach an acceptable height that corresponds with screw holes. Replace the screws
and ghten to secure. A second person (or two) must hold the television during adjustment to avoid
damaging the television or mount. Use cauon when raising or lowering to avoid damaging the wires
inside the pole. WHILE THE SCREWS ARE LOOSE, THE BOTTOM POLE COULD SLIDE OUT.
B
A
Figure 8 - Adjust Angle/Height
INSTALLATION
