Audio Technica ES925C6/DS5 Bedienungsanleitung

■Introduction

Thank you for purchasing this product. Before using the product, read through

the user manual to ensure that you will use the product correctly. Please keep

this manual for future reference.

■Features

• Modular microphone system comprised of an ES Series capsule, gooseneck

assembly, and power module.

• RGB LEDs built into both the desk stand power module and gooseneck

assembly indicate the on/off status of the microphone.

• Includes external control function for device control from the capacitive touch

switch.

• The capacitive touch switch can be set to any of three operating modes:

“touch-on/touch-off”, “touch-to-talk” and “touch-to-mute”.

■Safety precautions

Although this product was designed to be used safely, failing to use it correctly

may result in an accident. To ensure safety, observe all warnings and cautions

while using the product.

■Cautions for the product

• Do not subject the product to strong impact to avoid malfunction.

• Do not disassemble, modify or attempt to repair the product.

• Do not handle the product with wet hands to avoid electric shock or injury.

• Do not store the product under direct sunlight, near heating devices or in a

hot, humid or dusty place.

■Notes on use

• Do not swing or pull the product. Doing so may cause disconnection or

damage.

• The circuitry in the microphone takes about 30 seconds to stabilize after power

is supplied. You may hear some audio disturbance during startup.

• The connectors are equipped with a special RFI-shielding mechanism. If you

remove or replace the connector, you may adversely affect the microphone’s RFI

immunity. The Audio-Technica Crimp Tool (ATCT) and shield parts are required to

shorten the cable and reinstall the connector while maintaining the RFI immunity.

• Install the microphone on a flat, unobstructed mounting surface. Make sure

that the sound source is not below the mounting surface.

• Depending on the surface finish of a table, the desk stand power module may

leave marks on the table.

• Do not excessively bend the gooseneck assembly, rotate the ends of the

capsule, or pull on them. Doing so may cause disconnection or malfunction.

• The product is a modular system comprised of a microphone element,

gooseneck assembly and power module. Make sure the parts are firmly

attached before use.

• Do not remove the rubber O-ring on the power module connecting part at the

lower section of the gooseneck assembly.

• When attaching parts, remove the black cap on the capsule connecting part

of the gooseneck assembly. Do not remove the silicone part at the end of

the capsule connecting part.

Silicone part

Do not remove

■Switch settings

To reduce low-frequency ambient noise (such as footsteps or air conditioning

noise), room reverberation, and mechanically coupled vibrations as much as

possible, turn on the low-cut filter switch ( ) on the bottom of the power

module.

ES925C6/DS5

ES925C12/DS5

ES925C15/DS5

ES925C18/DS5

ES925C21/DS5

ES925C24/DS5

User Manual

CARDIOID CONDENSER

MODULAR GOOSENECK MICROPHONE

WITH 5-PIN DESK STAND POWER MODULE

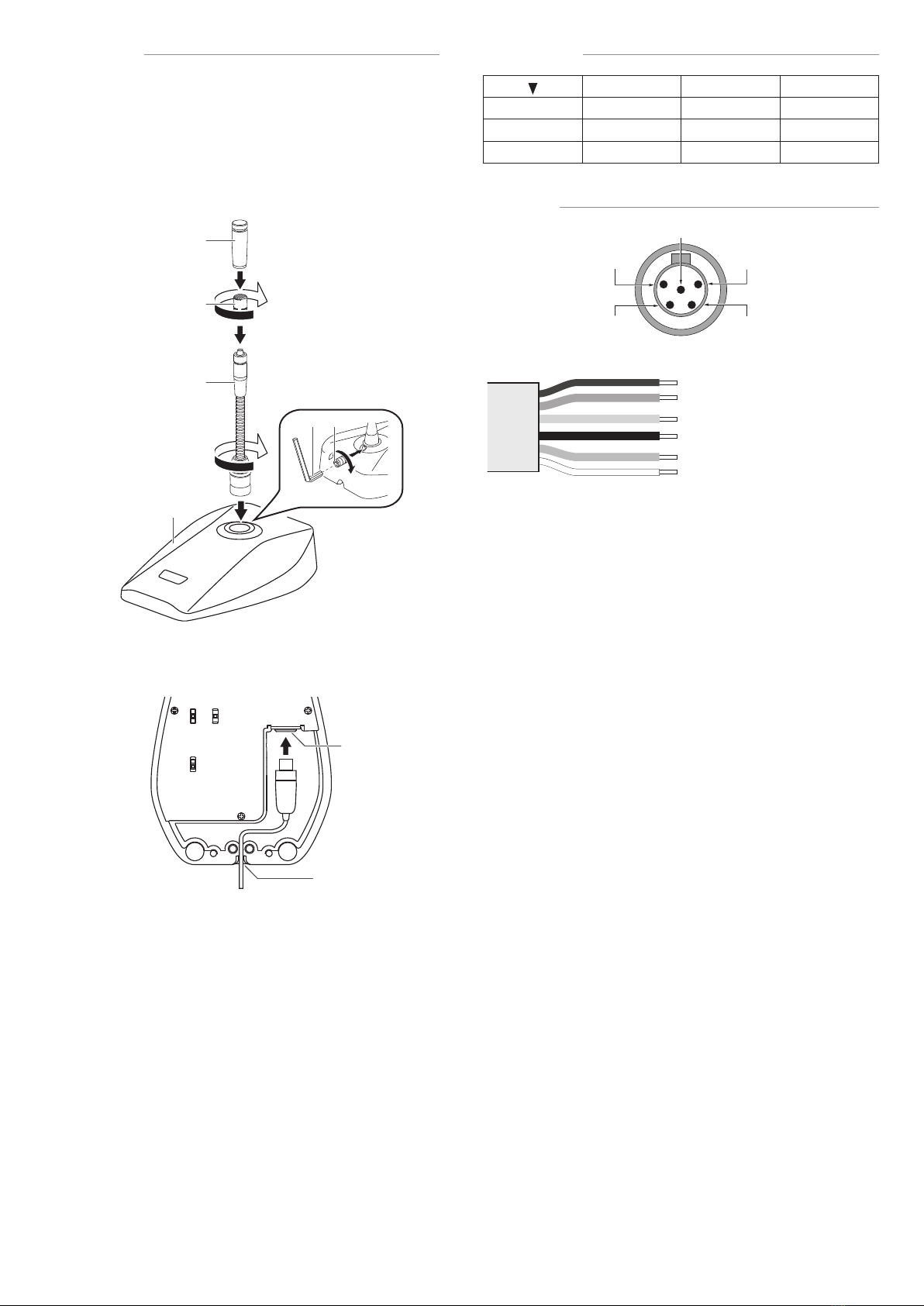

■Assembly

1. • Insert the gooseneck assembly (c) while rotating it into the desk stand

power module (d).

• Tighten until it does not rotate, and use the hex wrench (h) to tighten the

set screw (g) and set the gooseneck assembly in place.

• Connect the capsule (b) to the gooseneck assembly, and attach the

windscreen (a).

* If the parts are not sufficiently tightened together, problems may occur

such as the LED colors of the gooseneck assembly and power module

not matching or sound is not output.

2. Connect the included cable to the connector (e) on the reverse side of the

desk stand power module, and pass the cable through the wire slot (f).

■LED color

123

OFF RED GREEN

YELLOW

4567

BLUE

MAGENTA

CYAN WHITE

■Wiring

SHIELD : GND (PIN1)

YELLOW : HOT (PIN2)

RED : COLD (PIN3)

BLACK : GND (PIN1)

BLUE : CONTACT CLOSURE (PIN5)

WHITE : LED CONTROL (PIN4)

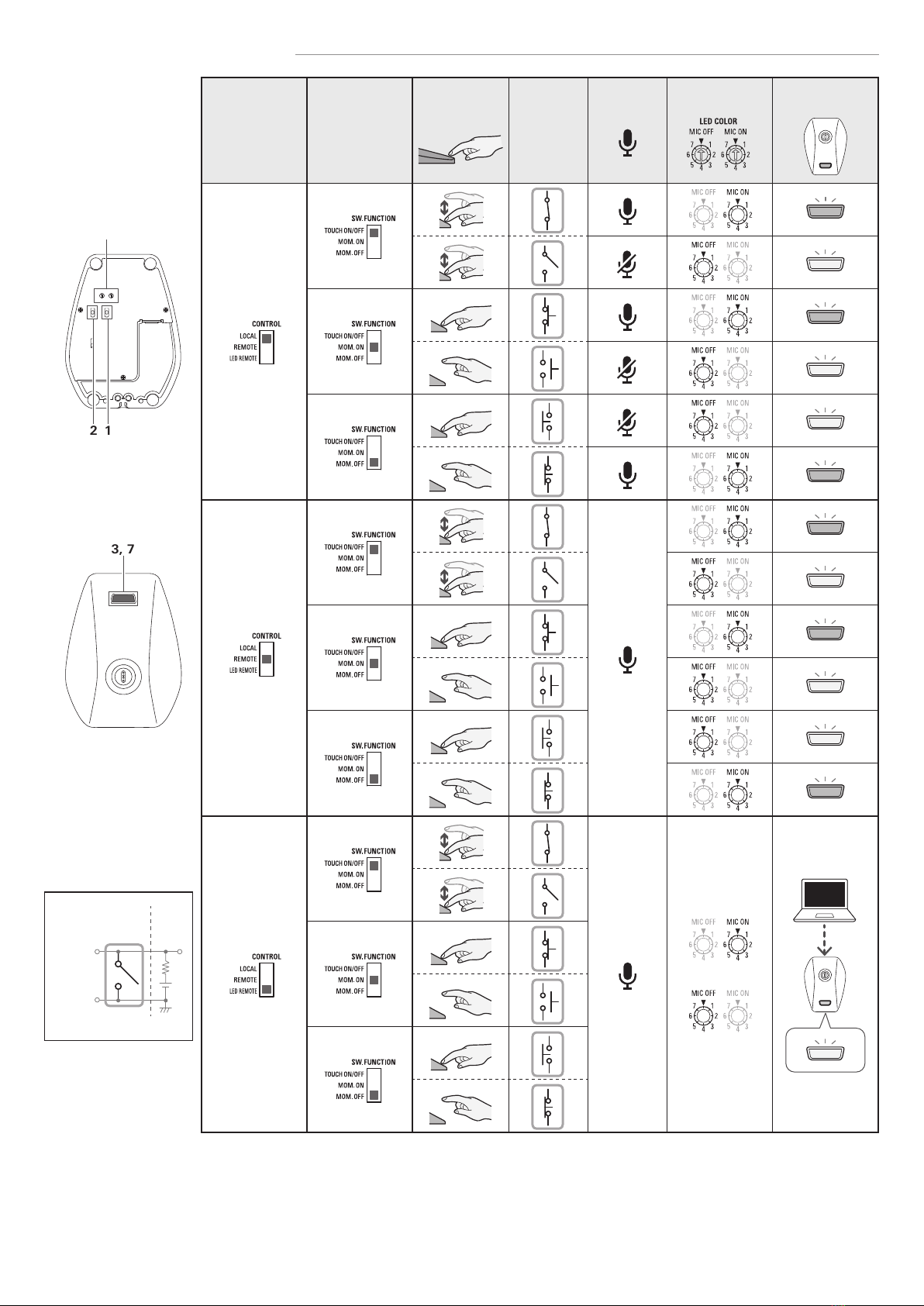

■Switch setting and functions

Contact

Closure

GND

MIC

3, 7

2 1

7. LED status

3. Action 4. Contact

closure

status

2. Switch

Function 6. LED color

Audio

status

1. Control

■Specifications

ES925Cx/DS5

Element Fixed-charge back plate, permanently polarized condenser

Polar pattern Cardioid

Frequency response 30 - 20,000 Hz

Low frequency roll-o 80 Hz, 18 dB/octave

Open circuit sensitivity -40 dB (10.0 mV) (0dB=1V/Pa, 1kHz)

Impedance 130 ohms

Maximum input sound level

140 dB SPL (1kHz at 1% THD)

Dynamic range 112 dB (1kHz at Max SPL)

Signal-to-noise ratio 66 dB (1kHz at 1Pa, A-weighted)

Switches

Low cut: on/o;

Switch function: touch on/o, momentary on, momentary o;

Control: local, remote, LED remote

Phantom power

requirements 22 - 52 V DC, 8 mA

Contact closure

Closure input voltage

Maximum permissible

power

On-resistance

-0.5 - 5.5 V

200 mW

100 ohms

LED control

Active low voltage

Maximum permissible

input power

Maximum permissible

power

Active high (+5 V DC) TTL compatible

1.2 V or lower

-0.5 - 5.5 V

200 mW

Weight

ES925C6/DS5: 674 g (23.8 oz)

ES925C12/DS5: 698 g (24.6 oz)

ES925C15/DS5: 703 g (24.8 oz)

ES925C18/DS5: 708 g (25.0 oz)

ES925C21/DS5: 713 g (25.2 oz)

ES925C24/DS5: 718 g (25.3 oz)

Dimensions

ES925C6/DS5: 150.6 mm (5.9“) x 97 mm (3.8“) x 130 mm (5.1“)

ES925C12/DS5: 258 mm (10.2“) x 97 mm (3.8“) x 130 mm (5.1“)

ES925C15/DS5: 334.2 mm (13.2“) x 97 mm (3.8“) x 130 mm (5.1“)

ES925C18/DS5: 410.4 mm (16.2“) x 97 mm (3.8“) x 130 mm (5.1“)

ES925C21/DS5: 486.6 mm (19.2“) x 97 mm (3.8“) x 130 mm (5.1“)

ES925C24/DS5: 562.8 mm (22.2“) x 97 mm (3.8“) x 130 mm (5.1“)

(H×W×D)

Output connector TB5M-type

Optional interchangeable

elements

ESE-Ha (100°), ESE-Oa (360°), ESE-MLa (90°)

Included accessories

7.6 m (24.9') Microphone cable (TA5F, unterminated),

Windscreen AT8109a,

Set screw (M2×4 mm (0.2“)) 2 pcs., Hex wrench (0.89 mm (0.04“))

■Polar pattern

240˚

180˚

210˚

270˚

300˚

330˚

0˚

150˚

120˚

90˚

30˚

60˚

SCALE IS 5 DECIBELS PER DIVISION

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

■Frequency response

5020 20k10k5k2k1k500200100

Response in dB

Frequency in Hertz

LEGEND

0°, 50cm

0°, 50cm, Low cut

■Dimensions

x = 6/12/15/18/21/24

142419740-02-01 ver.1 2019.06.01

Audio-Technica Corporation

2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan

Global Support Contact: www.at-globalsupport.com

Made in Japan

10dB

ES925C6/DS5

ES8766RC (DS5)

ES925C12/DS5 ES925C15/DS5 ES925C18/DS5 ES925C21/DS5 ES925C24/DS5

(unit: mm)

55.0

61.5

97.0

130.0

30.0 2-M3 P=0.5

150.6

258.0

334.2

410.4

486.6

562.8

φ8.4
