Audiovox D1888 Bedienungsanleitung

D1888

8” LCD MONITOR, DVD PLAYER

WITH BUILT-IN BATTERY

Notice:

This Product incorporates copyright protection technology that is

protected by method claims of certain U.S. Patents and other

intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only unless otherwise authorized by

MacrovisionCorporation.Reverseengineeringordisassemblyispro-

hibited.

Notice:

An LCD panel and/or video monitor may be installed in a motor

vehicle and visible to the driver if the LCD panel or video monitor is

used for vehicle information, system control, rear or side observation

or navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must

be installed so that these features will only function when the vehicle

is in “park” or when the vehicle’s parking brake is applied.

AnLCDpanel or video monitor used fortelevisionreception,videoor

DVD play that operates when the vehicle is in gear or when the

parkingbrakeisnotappliedmustbeinstalledtothe rear ofthedriver’s

seatwhereit will not be visible,directly or indirectly,to the operator of

the motor vehicle.

A. Introduction

Thank you for selecting the D1888 portable DVD player. The main

features include a 8" Screen (16:9 Aspect Ratio) Liquid Crystal

Display (LCD) monitor and a DVD player. The unit applies the latest

state of the art electronics and is designed for use in hotels, offices

home or vehicle. The unit is constructed to provide years of reliable,

trouble-free service, and is compact so that you can take it with you

anywhere and is designed for quick and easy use. Please read the

entire instruction manual supplied with this product prior to

operation. The documentation will assist you in installing the system

properlyto obtain the bestequipment performance. Please savethis

manuals for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Keep the unit away from strong magnets, heat

sources, direct sunlight, excessive dust. If the unit is brought

directly from a cold to a warm location, moisture may condense

inside the unit. When you move it from a cold to a warm loca-

tion, wait for about one hour before operating the unit, or remove

the disc and leave the unit turned on until the moisture evapo-

rates.

2. Installation

Ensure that the D1888 is used in accordance with the

instructions and illustrations provided in this manual.

3. Objects and Liquids

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

cover or block the slots and openings with a cloth or other

material. Keep the unit away from an open flame such as fire,

candle etc. Replace the battery only with the same or equivalent

type to prevent damage to the unit. In order to protect the environ-

ment please dispose of the battery properly. Do not use the unit in

temperatures higher than 104 degrees Fahrenheit or 40 degrees

Celsius.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of

electric shock and/or exposure to Laser Radiation. Contact

qualified service personnel if your system is in need of repair.

5. Cleaning Unit

Whencleaning,makesurethesystemis unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available.Also refer to the instructions supplied with the discs.

7. Regional Coding

Both the DVD player and disc are coded by region. These

regional codes must match in order for the disc to play. If the

codes don’t match, the disc won’t play. This unit’s code is region

1. DVD’s with other regional codes cannot be played in this unit.

C. Contents

1. 1 x 8 ” LCD Monitor and DVD Player

2. 1 x AC to DCAdapter

3. 1 x Remote Control w/Battery (CR2025)

4. 1 x InstructionManual

5. 1 x Audio/Video Cable

6. 1 x DC Power Adapter

D. Powering and installation

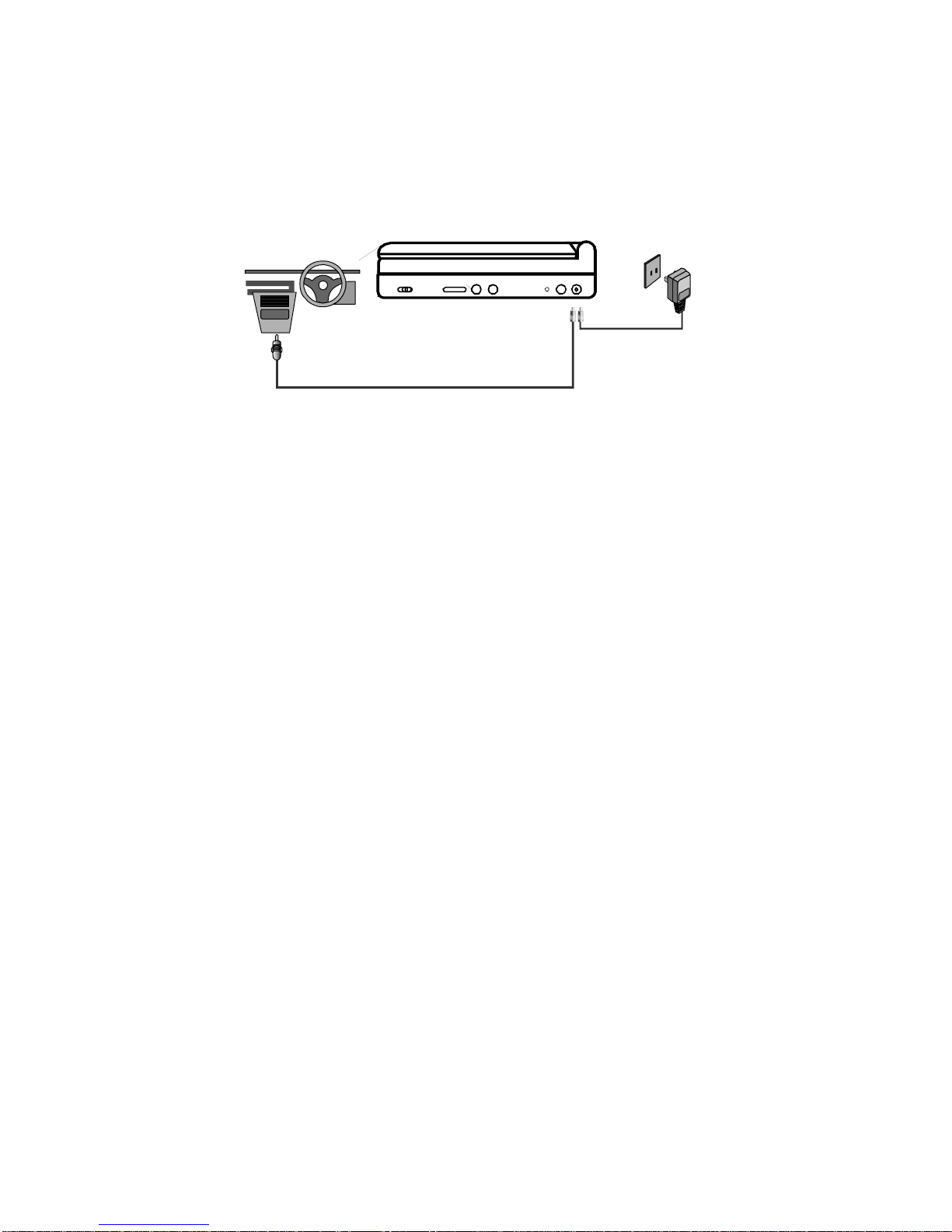

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9-12V jack on

the right side of the main unit, then plug the other end into the 100-

240VAC power receptacle.

2. Powering the system in a car (Refer to Figure 1)

Plug one end of the DC power adapter into the DC jack on the unit,

then plug the other end into the vehicle‘s DC power socket.

Figure 1

3. Built-in Battery

Slide the Power On/Off Switch to Off position. Plug one end of theAC

to DC adapter into the DC jack on the side of the player, then plug the

other end into the 100~240V AC power outlet. The charge light will

flash for about 3 seconds, then it turns to red. Once fully charged, the

LED indicator will be green. Then remove the AC to DC adapter wall

plug.

NOTE: Your new battery must be charged a minimum of 8 hours be-

fore the first usage. Each full recharge takes approximately five hours

and one full charge can provide power to the player for approximately 2

hours.

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 2)

Figure 2

1) LCD Panel Shut Off Switch

2) Wide Button

3) Stop Button

4) Previous Button

5) Next Button

6) Play Button

7) Menu Button

8) Up Button

9) Right Button

10) OK Button

11) Down Button

12) Left Button

13) Open Door Switch

14) IR Sensor

15) Power LED

16) Power on/off Switch

17) Volume Up/Down Control

18) Headphone 1*

19) Headphone 2

20) Charge Indicater

21)AV Out Jack

22) DC 9V Input Jack

*Using headphone jack 1 will disable the internal speakers

2. Remote Control View (Refer to Figure 3)

1) Setup Button

2) Up Button

3) Previous Button

4) Enter Button

5) Reverse Scan /Left Button

6) Down Button

7) Numeric Keypad

8) Display Button

9) Zoom Button

10) Subtitle Button

11) Next Button

12) A-B Repeat Button

13) Forward Scan /Right Button

14) 1/All Repeat Button

15) Stop Button

16) Menu Button

17) Audio Button

18) Angle Button

19) Play/Pause Button Figure 3

F. Loading and Playing a Disc

a. After connecting power to the unit, apply power to the DVD player

with the power switch. The power indicator will light.

b. Open the disc tray by pressing OPEN button and place a disc into

the tray with the label side facing up.

c. Close the tray by pressing the “PRESS” button. The unit will load

the disc and start playing.

d. Rotate the VOLUME control to adjust the DVD player’s

volume.

e. To stop playing a disc, press STOP.

f. To turn off the DVD player, slide the POWER ON/OFF switch to

OFF.

G. SETUP

Press ‘SETUP’ to display the Main screen of the SETUP Menu on the

screen. Press ‘SETUP’ again to exit the SETUP Menu.

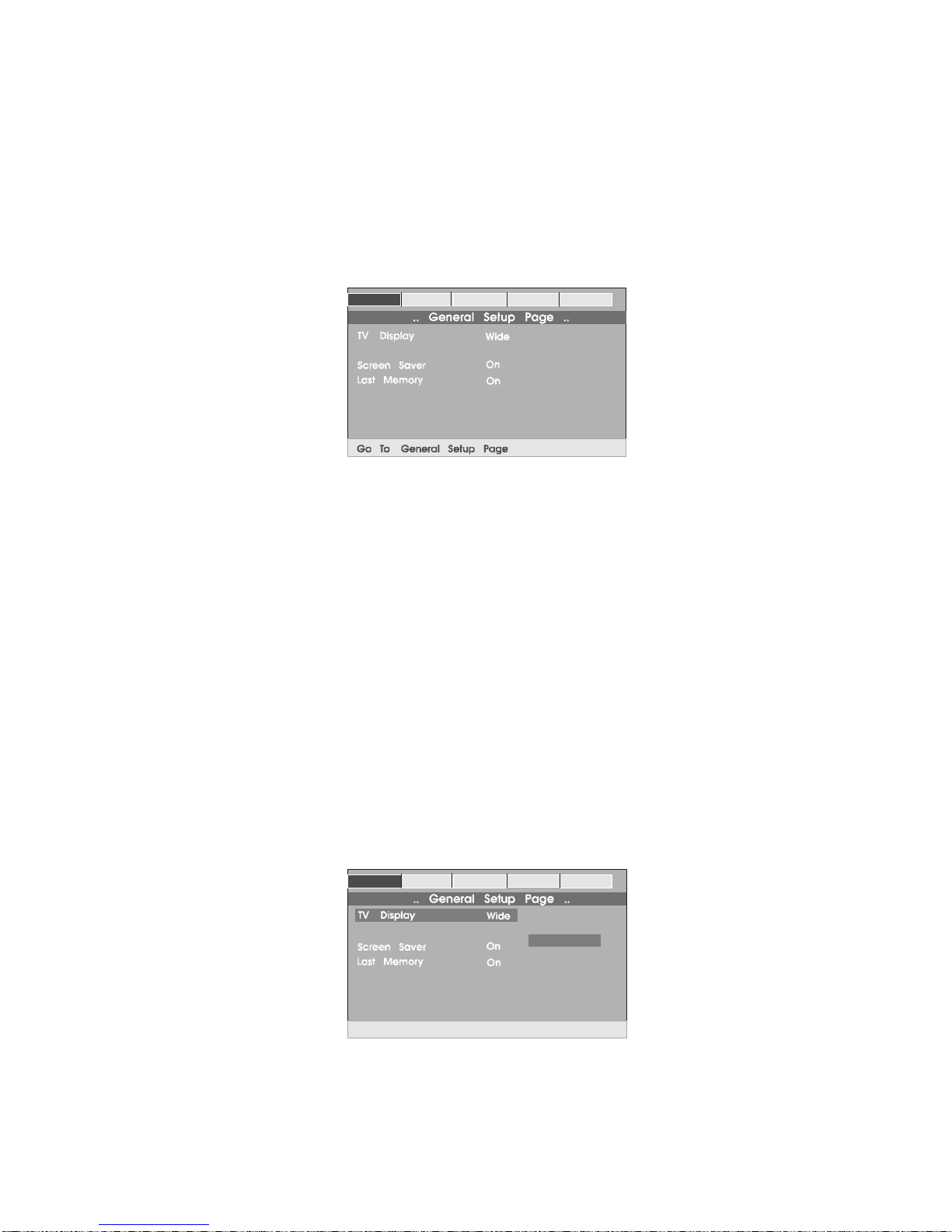

1) Press SETUP, the ‘GENERAL SETUP PAGE’ will display on

screen.

a).Select ‘TV DISPLAY’ using the DOWN button, and then press

‘ENTER’ to enter the submenu. Select the TV display mode on

the screen using UP/DOWN, and press ‘ENTER’ to confirm the

setting. Press LEFT to return.

* NORMAL/PS: When the player is connected to a normal TV,

and a wide picture is shown on the full screen.

* NORMAL/LB: When the player is connected to a normal TV,

and a wide picture is shown on the screen with a black strip

at both the top and bottom of the screen.

* WIDE: When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

General Video Password Preferen Exit

Angle Mark

Off

General Video Password Preferen Exit

Angle Mark

Off

Normal PS

Normal LB

Wide

Set TV Display Mode

TV Display Screen Display

Main Setup Menu Screen

b).Select ‘ANGLE MARK’ using the DOWN button, and then press

the ‘ENTER’button to enter the submenu. Choose Angle Mark

on or off using the UP/DOWN buttons and then press ‘ENTER’

to confirm the setting. Press the LEFT button to return.

* ON: The screen will show the angle mark icon. (*If an angle

optionisavailable).

* OFF: The screen will not display theAngle Mark icon.

NOTE: Not all discs contain above features.

General Video Password Preferen Exit

Angle Mark

Off

Set Angle Mark

Angle Mark Screen Display

c). Select ‘SCREEN SAVER’ using the DOWN button.

*ON: enables screen saver

*OFF: disables screen saver (off)

*NOTE: The DVD player will enter the Screen Saver mode after

approximately five minutes if the same image remains on the

screen.

d). Select ‘LAST MEMORY’ by using the DOWN button.

*ON: The unit will return to the last position on the disc.

*OFF: The unit will not return to the last position on the disc.

General Video Password Preferen Exit

Angle Mark

Off

Set Screen Saver

General Video Password Preferen Exit

Angle Mark

Off

Set Last Memory

Screen Saver Screen Display

Last Memory Screen Display

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Audiovox Tragbarer DVD-Player Handbücher

Audiovox

Audiovox D1500A Bedienungsanleitung

Audiovox

Audiovox D710 Bedienungsanleitung

Audiovox

Audiovox D8000XP Bedienungsanleitung

Audiovox

Audiovox D1812PK - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox VBP3800 Bedienungsanleitung

Audiovox

Audiovox DVD1500 Bedienungsanleitung

Audiovox

Audiovox MVDVD2 Bedienungsanleitung

Audiovox

Audiovox D1710 Bedienungsanleitung

Audiovox

Audiovox D1708 - DVD Player - 7 Bedienungsanleitung

Audiovox

Audiovox D1420 Bedienungsanleitung

Audiovox

Audiovox FLO TV DFL710 Bedienungsanleitung

Audiovox

Audiovox VBP620 Bedienungsanleitung

Audiovox

Audiovox MMDV2 Bedienungsanleitung

Audiovox

Audiovox DS7521PK Bedienungsanleitung

Audiovox

Audiovox DS9343TPK Bedienungsanleitung

Audiovox

Audiovox VBP70 Bedienungsanleitung

Audiovox

Audiovox DS9341 Bedienungsanleitung

Audiovox

Audiovox D1750T Bedienungsanleitung

Audiovox

Audiovox D1530 Bedienungsanleitung

Audiovox

Audiovox D1788ES Bedienungsanleitung

Audiovox

Audiovox D2010 - Widescreen Ultraslim Portable DVD... Bedienungsanleitung

Audiovox

Audiovox D1708ES Bedienungsanleitung

Audiovox

Audiovox D2017PK Bedienungsanleitung

Audiovox

Audiovox D1501 Bedienungsanleitung

Beliebte Tragbarer DVD-Player Handbücher anderer Marken

Philips

Philips PET718/77 Bedienungsanleitung

Impecca

Impecca DVP775 Bedienungsanleitung

NextBase

NextBase MULTI-VISION SET PRO Bedienungsanleitung

Impecca

Impecca DVP-1017 Bedienungsanleitung

Akura

Akura APDVD6008 Bedienungsanleitung

TV Star

TV Star TD3 LCD COMBO Bedienungsanleitung

LENCO

LENCO MES-202 Bedienungsanleitung

Philips

Philips PET940/98 Bedienungsanleitung

Philips

Philips PET702P Bedienungsanleitung

Philips

Philips PD7016 Bedienungsanleitung

Logik

Logik L7SPDVD11 Bedienungsanleitung

LG DP650 Bedienungsanleitung

Mustek

Mustek MVP850B Bedienungsanleitung

Insignia

Insignia NS-MDDVD10 Bedienungsanleitung

Philips

Philips PD9000/12 Bedienungsanleitung

LENCO

LENCO DVP-1027 Bedienungsanleitung

Philips

Philips PD7010/05 Bedienungsanleitung

Technika

Technika PDVDTWINSS10 Benutzerhandbuch
