Audiovox DT7 Bedienungsanleitung

DT7

7” PORTABLE

DVD PLAYER

128-7344

Operation

Manual

Important Notice

It is unlawful in most jurisdictions for a person to drive a motor vehicle which

is equipped with a television viewer or screen that is located in the motor

vehicle at any point forward of the back of the driver’s seat, or that is visible,

directly or indirectly, to the driver while operating the vehicle. In the interest

of safety, this system should never be installed where it will be visible,

directly or indirectly, by the operator of the motor vehicle.

Safety Precaution

For safety reasons, when changing video media, it is recommended that

the vehicle is not in motion, and that you do not allow children to unfasten

seat-belts to change video media or make any adjustments to the system.

Enjoy your entertainment system but always remember-safety of all

passengers remains the number one priority.

Introduction

Thank you for choosing the DT7 portable DVD player. The unit applies the

latest state of the art electronics and is designed to be used in a variety of

applications. It can be used as portable DVD player or when installed into

the available docking stations as a home or mobile DVD player. The DVD

Player is constructed to provide years of reliable, trouble-free service, and is

compact so that you can take it with you anywhere and is designed for quick

and easy setup. Please read all documentation prior to using this product.

The documentation will assist you in obtaining the best equipment

performance. Save this manual for later use.

Cautions And Warnings

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of un-insulated “dangerous Voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

1. Placement

To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place

the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the

DVD Player away from strong magnets, heat sources, direct sunlight, and excessive dust. If

the DVD Player is brought directly from a cold to a warm location, moisture may condense

inside the DVD Player. When you move it from a cold to a warm location, wait for about one

hour before operating the DVD Player, or remove the disc and leave the DVD Player turned

ON until the moisture evaporates.

2. Caution

Do not spill or spray liquid of any kind on or in the system (this may result in a fire or electric

shock). Do not place anything heavy on the DVD Player. To ensure proper ventilation and

proper operation, never cover or block the slots and openings with a cloth or other material.

Keep the DVD Player away from an open flame such as fire, candle etc.

It is hazardous to replace the battery incorrectly. Replace the battery only with the same or

equivalent type, in order to protect the environment, please dispose the dispose the battery

properly.

3. Warning

To reduce the risk of electric shock, do not perform any servicing other than that contained in

the operating instructions unless you are qualified to do so. There are no user-serviceable

parts inside. Refer all servicing to qualified service personnel. Servicing should be done only

by qualified service personnel.

4. Cleaning DVD Player

When cleaning, make sure the system is unplugged from the power source. Do not use liquid

cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior

of the system only.

5. Disc

Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the

DVD Player to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc

to direct sunlight or heat sources. Do not touch the surface of disc. Handle the disc by its edge.

Clean the disc by wiping the disc from the center out with a cleaning cloth. Remove the disc from

the DVD Player and store it in its case after playing. Software producers may intentionally fix

some playback operations of discs. Since this DVD Player plays discs according to the disc

contents the software producers designed, some playback features may not be available. Also

refer to the instructions supplied with the discs.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing ) instructions in the

literature accompanying the appliance.

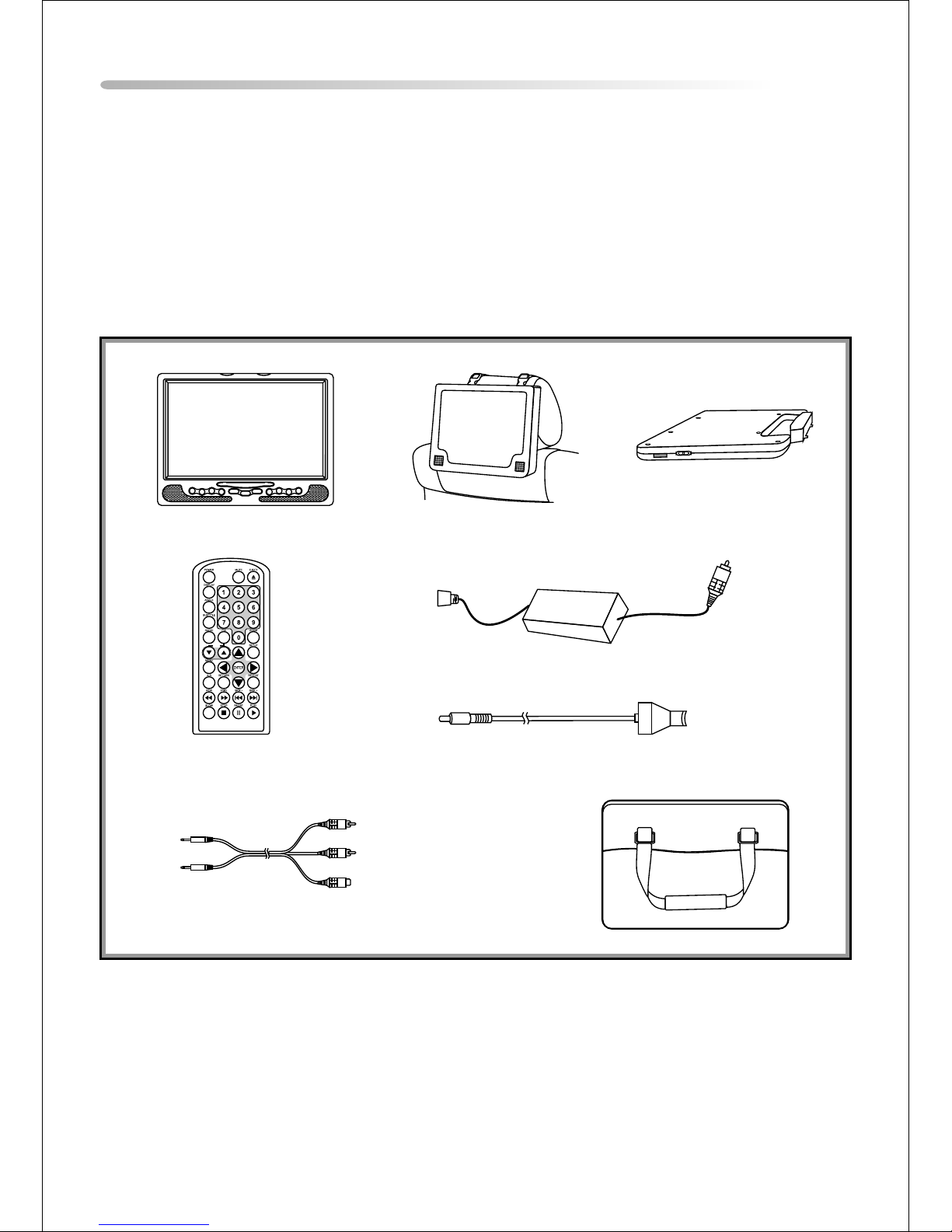

Materials Included In This Package

ON F

VOL

1.2.3.

4.5.

1) Shuttle Portable Player with 7" LCD Monitor (P/N: 136-3950) ~ 1pc

2) Headrest Mounting Bag (P/N: 126-1328) ~ 1pc

3) Rechargeable Lithium Polymer Battery Pack 4000mAH (P/N: 136-3951) ~ 1pc

4) Remote Control (P/N: 136-3887) ~ 1pc

5) AC to DC Power Adaptor Cable (P/N: 112-3513) ~ 1pc

6) DC Power Adaptor Cable (P/N: 112-3515) ~ 1pc

7) AV Adapter Cable (P/N: 112B3227) ~ 1pc

8) Canvas Carrying Bag (P/N: 126-1327) ~ 1pc

Main Features

•7” Active Matrix TFT LCD Monitor

•Built-in DVD Player

•DVD/CD/MP3 Compatible

•On Screen Display

•Selectable Screen Aspect Ratio 16:9, 4:3 & Screen Off

•AC and DC Power Adapters

•Last Position Memory for Disc Playback

•Switchable AUX AV In/Out

•Picture Controls

•IR Sensor

•Headphone Jacks

•Built-in IR Transmitter for Wireless headphone

•Full Function Remote Control

Main Features

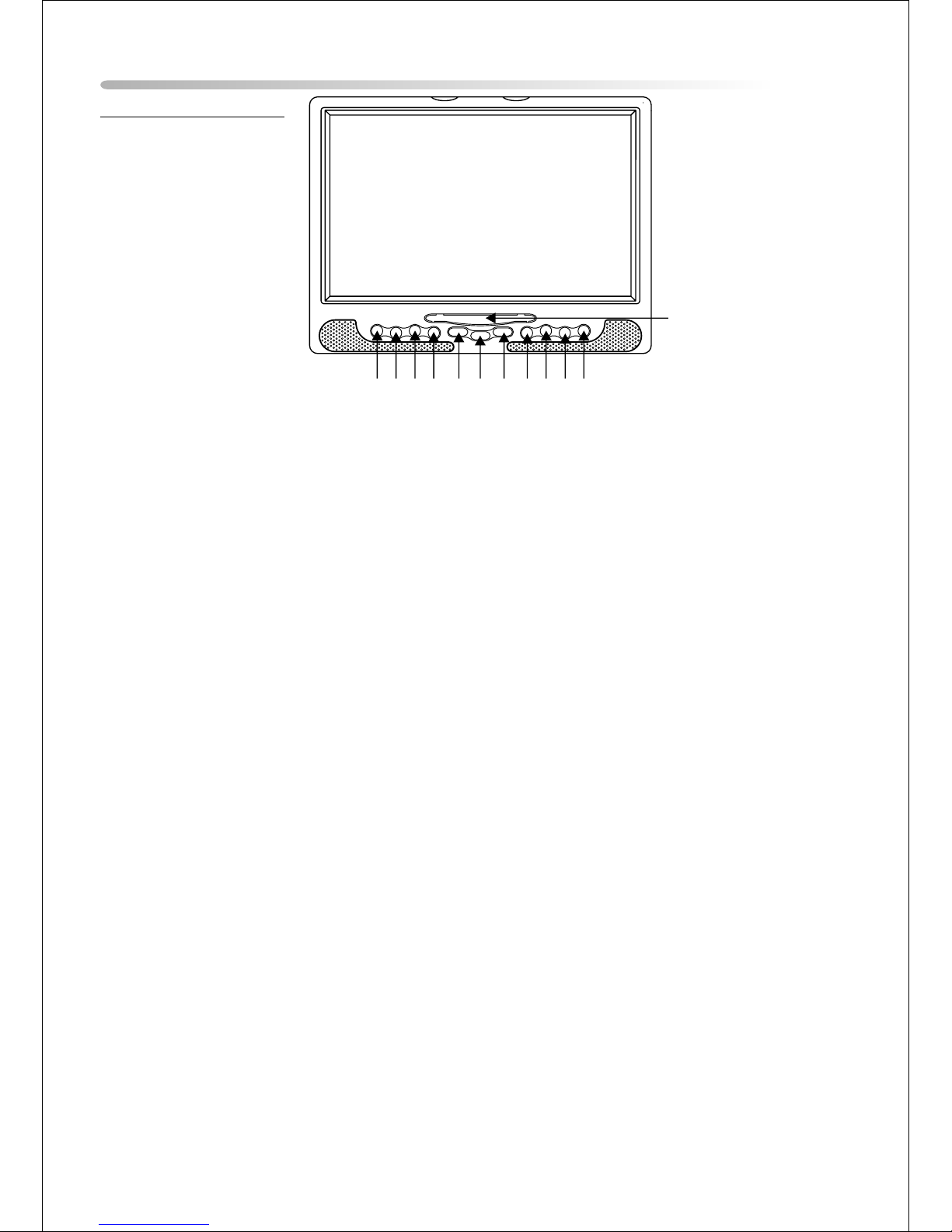

Front Panel Controls

1 2 3 4 5 6 7 8 9 1011

1. Power ON/OFF* — Press and hold for one second to switch the DT7 on or off.

2. Screen Mode — To select the screen mode aspect ratio and to turn the screen off (16:9, 4:3

or Off).

3. Pause — Allows the user to pause playback and move forward one frame at

a time (STEP). Press play to return to normal playback mode.

4. Previous — Go to the previous track / chapter.

5. Volume (-) — To decrease the volume of the speakers. Also used for reducing levels in the

Picture adjustment mode.

6. Picture Select — Used to access the DT7 picture adjustments, select from picture adjust,

volume level.

7. Volume (+) —To increase the volume of the speakers. Also used for reducing levels in

the picture adjustment mode.

8. Next — Go to the next track or Chapter.

9. Play — This button is used to enter the play mode.

10. Stop — This button is used to stop playback.

11. Eject* — Press and hold for one second to Eject the Disc.

12. Infrared Transmitter and sensor — Used to transmit audio to the optional wireless

Headphones. Also allows the remote control to operate the DT7.

Note: The power and eject function require the button to be pressed for one second to prevent

accidentally accessing these functions.

System Controls and Connections

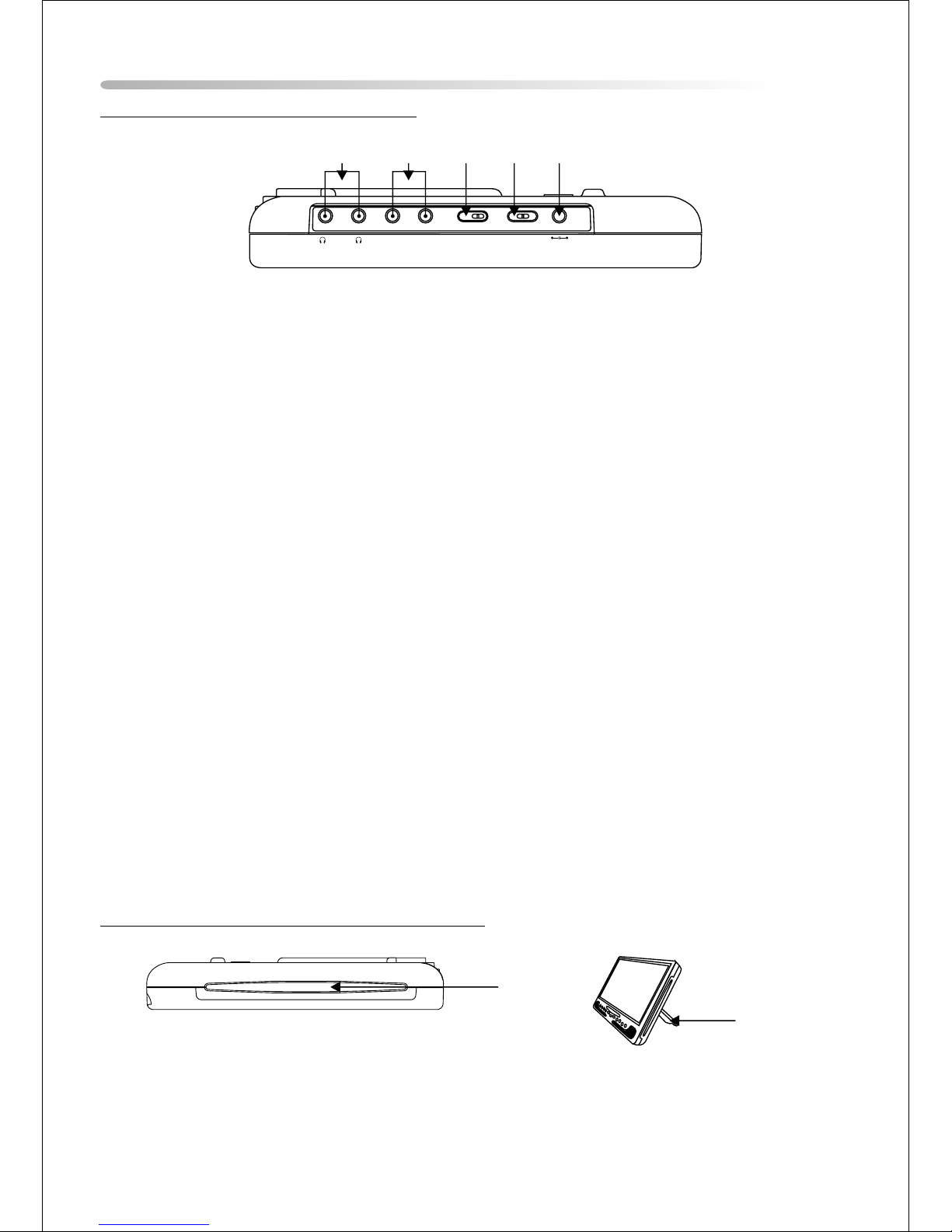

Left Side Controls and Connections

1. Headphone Jacks — Used to connect wired headphones. The sound from the speakers will

be automatically cut off when the headphones are connected.

2. AV In/Out Switch

Input Mode

When the AV In/Out switch is set to IN* the unit is ready to accept an auxiliary audio/video

signal via the audio video inputs.

*Note: The A/V input is auto-switching. Even though the switch is set to IN it will only be active

when a A/V source is connected. When an auxiliary A/V signal is input the OSD will display

“AUX”.

Connect an external A/V Source using the supplied A/V adapter cable to the A/V input jacks. The

source can be any external A/V device (i.e. Camcorder, digital camera video game etc)

Output Mode

This output will provide an audio/video signal that duplicates the signal displayed on the DT7.

This can be used to connect the DT7 to another monitor or amplifier.

3. IR Transmitter On/Off Switch — Used to turn the IR Transmitter on or off. When operating

the player with the battery if wireless headphones are not being used set this switch to the Off

position to increase the playback time.

4. 9V DC Input Jack — Used to connect power from either the supplied AC to DC adapter or the

vehicle power adapter.

Right Side Panel Controls and Connections

1. DVD Disc Slot — for loading and removing discs.

2. Built-in Stand — for desktop use when the battery is not being used.

1 2 3

AV DC 9V

IN OUT

IRT

ON OFFVIDEO

IN/OUT

AUDIO

IN/OUT

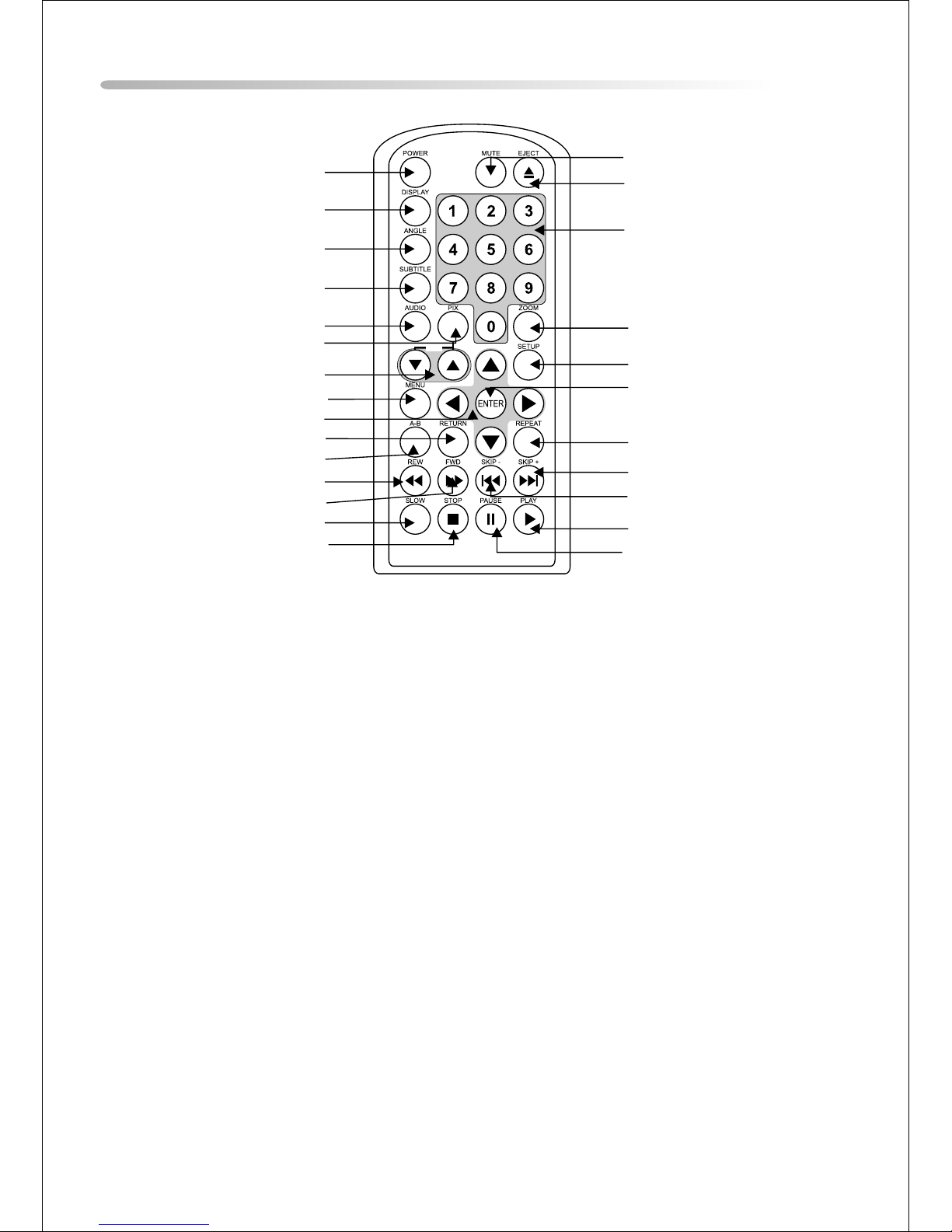

Remote Control

1. Power — Turn the DT7 on and off.

2. Display — Display disc information (title,

chapter, time, track, etc.)

3. Angle — Displays and selects the

available camera angles. Each time you

press the button, The angle changes. The

number of angles varies from disc to disc.

4. Subtitle — Display the subtitle language of

the DVD disc (if the disc was created with

subtitles). Each time you press the button,

the subtitle language will change.

5. Audio — Press to access the available

Audio languages, when the DVD

disc contains multiple audio languages.

6. PIX (Picture Select) — Each time this

button is pressed, the unit will display the

“adjustment bars” for Contrast, Brightness,

Color or Tint. Once the desired adjustment

bar is displayed, use the Volume Up and

Down buttons to adjust the setting. The

display will automatically turn off if no

adjustments are made within 6 seconds,

or if any other button is pressed.

7. Volume pq — To increase or decrease

the volume level and the picture levels in

the picture adjustment mode.

8. DVD Menu — Allows the user to access

the DVD root menu.

9. Cursor (3634) — Use these buttons to

Navigate the DVD menu and the set up

options.

10. Return — Not used in this model

11. A-B — Allows the user to repeat playback

of a DVD or CD from point A to point B.

12. Rew (7) — Allows the user to search in a

backward direction at 2, 4, 8 and 20 times

the normal playback speed of a DVD.

13. Fwd (8) — Allows the user to search in a

forward direction at 2, 4, 8 and 20 times the

normal playback speed of a DVD.

VOL

14. Slow — Allows the user to slow the

playback speed to 1/2,1/3, 1/4, 1/5, 1/6,

1/7 the normal playback speed of a DVD.

15. Stop (<) — Disc playback will be

Stopped.

16. Pause (;) — Allows the user to pause

playback and move forward one frame at

a time (STEP).Press play to return to

normal playback mode.

17. Play (4) — Press this button to start

Playback while a disc is loaded into the

disc compartment.

18. Skip - (9) — Allows the user to return to

the previous chapter or track.

19. Skip + (:) — Allows the user to skip to the

next chapter or track.

20. Repeat — Allows the user to repeat various

Sections of a DVD, CD or MP3.

21. Enter — Used to confirm a selected setting

or option.

22. Setup — Allows the user to select the DVD

player’s setup options (Display, OSD

Language, Defaults, Parental Control,

Password, Exit Setup).

23. Zoom — Press the zoom button

repeatedly to enlarge the displayed

Picture.

24. Numeric Keypad (0~9) — Allows the

user to enter the numbers 0 to 9 for

selection of CD tracks, DVD chapters, and

Password setting.

25. Eject ( ) — Use this button to eject a disc.

26. Mute — Press this button to mute the

audio. Press it again to restore the sound

to the previously set level.

Remote Control

Initial Use* and Battery Replacement

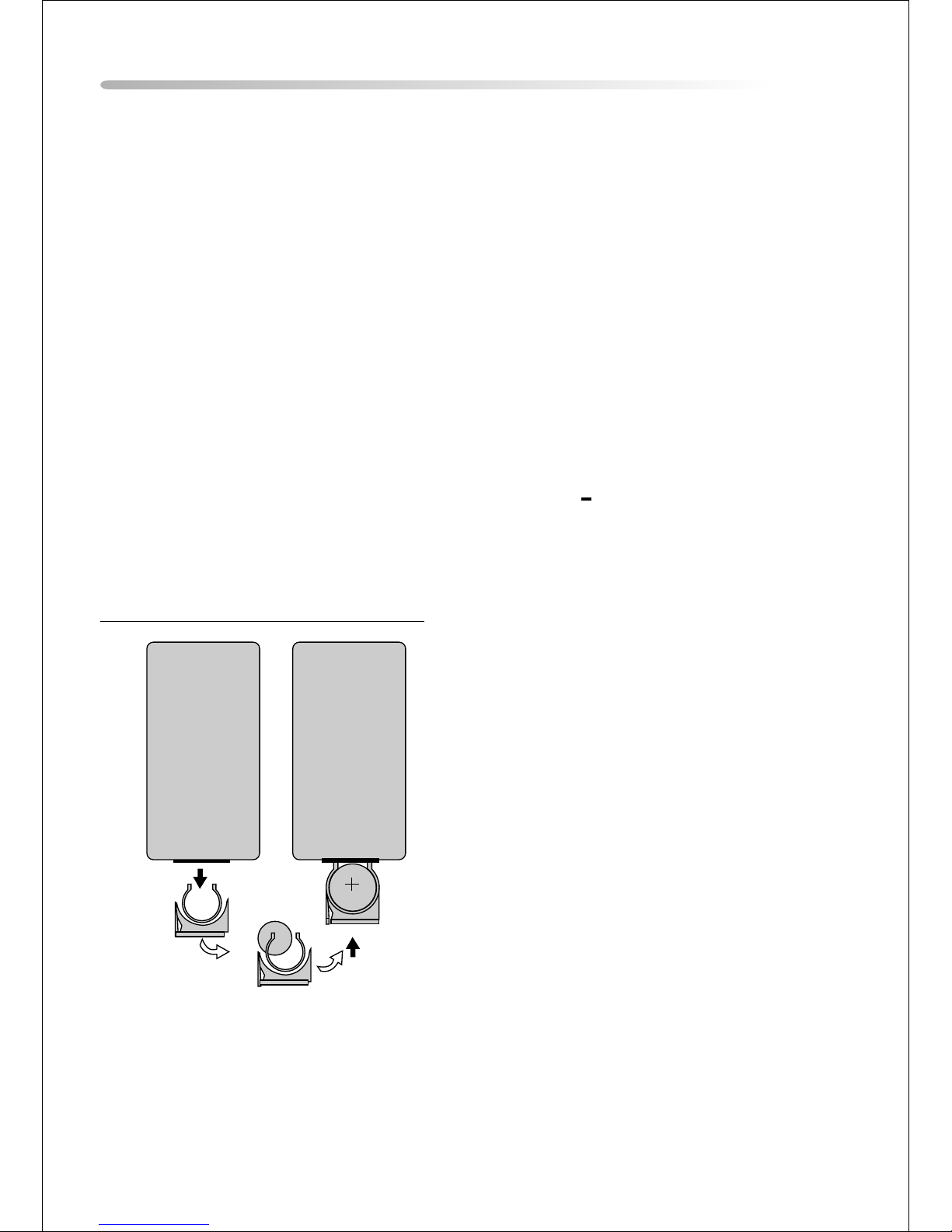

1. Remove the battery holder. Refer to the

drawing.

2. Insert the battery into the battery holder and

insert the battery holder into the remote. Be

sure to observe the correct polarity

3. For best results, aim the remote directly at

the remote receiver window within 10 feet,

and angles not exceeding 60 degrees.

4. The path between the remote control and

remote sensor should be free of obstructions.

5. Under normal use the battery will last for

approximately one year.

6. Remove the battery if the remote is not going

To be used for a long time or during

storage.

*When purchased the remote control

has a battery installed with a plastic insert

to prevent battery discharge. Remove the

plastic insert before attempting to use

the remote.

Power Supply

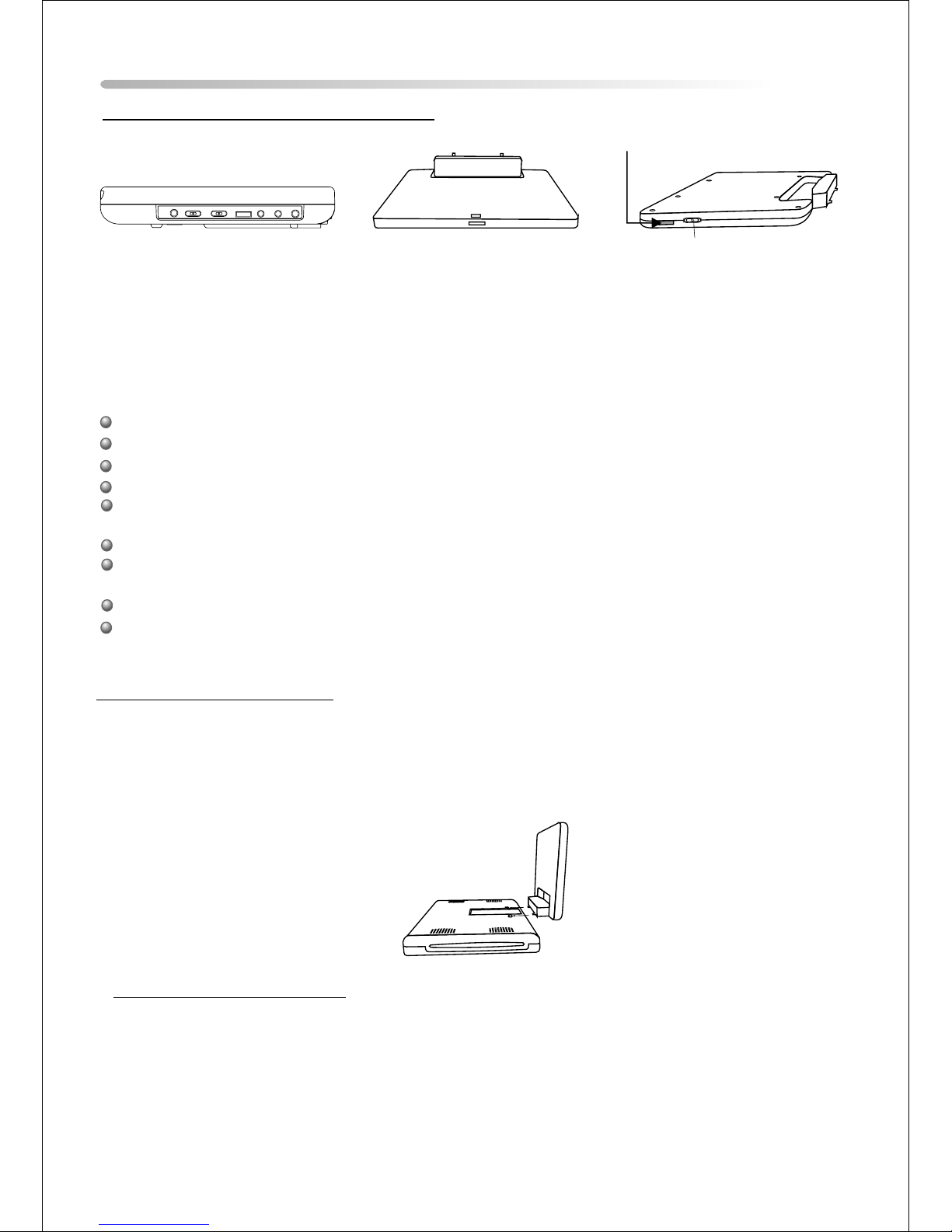

Attaching the Battery Pack

Refer to the following steps for attaching the Battery Pack:

Place the DVD Player on a soft and smooth surface to avoid scratching the screen with its back cover

facing UP. Position the Battery Pack directly toward the battery slot on the back cover of the DVD Player.

Align the pins on the battery pack with the slots on the back of the DT7. Then slide the Battery Pack

toward the back of the DVD Player until you hear it click and lock into place.

About the Rechargeable Battery Pack

Your portable DVD player comes with a lithium ion rechargable battery that attaches to the bottom of the

player. Your new battery must be fully charged before initial use. Charging time is normally about 6

hours. A fully charged battery delivers about 2.5 hours of use, but playback time will vary depending on

the playback settings and environmental conditions. If the battery will not be used for a long period of

time, fully charge the battery prior to storage.

Working conditions and precautions of the battery

New batteries MUST be fully charged before initial use.

Battery should only be used and charged when temperatures are between 32-80F.

Never put the battery in fire or water.

Do not expose the battery to high temperatures or store in hot, sunny places.

Maintain well-ventilated conditions around the product, avoiding heat. Don’t put the product on

bed, sofa or anything that may block ventilation to the product.

Do not disassemble the battery.

When charging the battery pack, the charge indicator on the battery will light red, when the

charging is complete the light will turn green.

Detach the battery when not in use.

The on/off switch on the battery must be in the on position for use and charging. The off position

will prevent accidental battery discharge

ONF

Battery charge indicator

Red – Charging

Green – Fully charged

Charging the Battery Pack

The battery must be attached to the DVD player to charge it and the battery switch must be in the ON

position. Plug the AC Power Adapter into the Player’s DC-IN 9 V Jack, which is located on left side of the

DT7. Plug the other end of the Power Cord into a wall Outlet.

Battery On/Off Switch

Dieses Handbuch passt für folgende Modelle

Andere Audiovox Tragbarer DVD-Player Handbücher

Audiovox

Audiovox DS9343TPK Bedienungsanleitung

Audiovox

Audiovox DS9341 Bedienungsanleitung

Audiovox

Audiovox DS2058 A Bedienungsanleitung

Audiovox

Audiovox DS7521PK Bedienungsanleitung

Audiovox

Audiovox D1809 - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox D1812 - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox DS2058 Bedienungsanleitung

Audiovox

Audiovox D1718ES - DVD Player - 7 Bedienungsanleitung

Audiovox

Audiovox Eddie Bauer PE702 Bedienungsanleitung

Audiovox

Audiovox VBP500 Bedienungsanleitung

Audiovox

Audiovox D1915 Bedienungsanleitung

Audiovox

Audiovox MVDV4A Bedienungsanleitung

Audiovox

Audiovox VOD1221 P Bedienungsanleitung

Audiovox

Audiovox D7000XP - DVD Player - 7 Bedienungsanleitung

Audiovox

Audiovox D1718PK - DVD Player - 7 Bedienungsanleitung

Audiovox

Audiovox D1817PK - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox DS7321 Bedienungsanleitung

Audiovox

Audiovox D1805 Bedienungsanleitung

Audiovox

Audiovox D1788PK Bedienungsanleitung

Audiovox

Audiovox FLO TV DFL710 Bedienungsanleitung

Audiovox

Audiovox D1500A Bedienungsanleitung

Audiovox

Audiovox D1700 Bedienungsanleitung

Audiovox

Audiovox D2017PK Bedienungsanleitung

Audiovox

Audiovox D7121ESK Bedienungsanleitung

Beliebte Tragbarer DVD-Player Handbücher anderer Marken

Philips

Philips PET718/77 Bedienungsanleitung

Impecca

Impecca DVP775 Bedienungsanleitung

NextBase

NextBase MULTI-VISION SET PRO Bedienungsanleitung

Impecca

Impecca DVP-1017 Bedienungsanleitung

Akura

Akura APDVD6008 Bedienungsanleitung

TV Star

TV Star TD3 LCD COMBO Bedienungsanleitung

LENCO

LENCO MES-202 Bedienungsanleitung

Philips

Philips PET940/98 Bedienungsanleitung

Philips

Philips PET702P Bedienungsanleitung

Philips

Philips PD7016 Bedienungsanleitung

Logik

Logik L7SPDVD11 Bedienungsanleitung

LG DP650 Bedienungsanleitung

Mustek

Mustek MVP850B Bedienungsanleitung

Insignia

Insignia NS-MDDVD10 Bedienungsanleitung

Philips

Philips PD9000/12 Bedienungsanleitung

LENCO

LENCO DVP-1027 Bedienungsanleitung

Philips

Philips PD7010/05 Bedienungsanleitung

Technika

Technika PDVDTWINSS10 Benutzerhandbuch
