A. Introduction

Thank you for choosing the D1915 portable DVD player. The main

features include a 9" Wide Screen (16:9 Aspect Ratio) Liquid Crystal

Display (LCD) monitor and a DVD player. The unit applies the latest

state of the art electronics and is designed for use in hotels, offices,

vehicles or your home. The unit is constructed to provide years of

reliable, trouble-free service, and is compact so that you can take it

with you anywhere and is designed for quick and easy installation.

Please read the entire instruction manual supplied with this product

prior to using. The documentation will assist you in installing the sys-

tem properly to obtain the best equipment performance. Please save

this manual for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod, bracket or table to prevent it from falling. Keep the unit away

from strong magnets, heat sources, direct sunlight, excessive dust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the D1915 is installed in accordance with the instruc-

tions and illustrations provided in this manual.

3. Caution

Do not push objects of any kind into the unit through openings;

do not spill or spray liquid of any kind on or in the system (this

may result in a fire or electric shock). Do not place anything

heavy on the unit. To ensure proper ventilation and proper

operation, never cover or block the slots and openings with a cloth

or other material. Keep the unit away from an open flame such as

fire, candle etc. It is hazardous to replace the battery incorrectly.

Replace the battery only with the same or equivalent type, in order

to protect the environment, please dispose of the battery properly.

Do not use the unit in temperatures higher than 95 degrees Fahr-

enheit or 35 degrees Celsius.

4.Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system needs repair.

5. Cleaning

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of disc. Handle the

disc by its edge. Clean the disc by wiping the disc from the center

out with a cleaning cloth. Remove the disc from the unit and store

it in its case after playing. Some playback operations of discs may

be intentionally fixed by software producers. Since this unit plays

discs according to the disc contents the software producers de-

signed, some playback features may not be available. Also refer to

the instructions supplied with the discs.

7.Regional Coding

Both the DVD player and discs are coded by region. These

regional codes must match in order for the disc to play. If the

codes don’t match, the disc won’t play. This unit’s code is region

1. DVDs with other regional codes can not be played in this unit

C. Contents

1. 1 x 9’’ LCD Monitor & DVD Player Combo

2. 1 x Remote Control with battery (CR2025)

3. 1 x Audio/Video Adapter Cable

4. 1 x AC to DC Adapter

5. 1 x DC Power Adapter

6. 1 x Instruction Manual

7. 1 x Rechargeable Battery

D. Powering and installation

1. Powering the system indoors

(Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC input jack on the

left side of the main unit, then plug the other end into a 110~240V

AC power receptacle.

2. Powering the system in a car

Plug one end of the DC power adapter into the DC input jack on

the left side of the main unit, then plug the other end into the

vehicle power outlet.

Figure 1

E. Controls, Indicators, and Connectors

1. Unit View

(Refer to Figure 2)

Figure 2

1) LCD Panel Shut Off Switch

2) Wide Button

3) Previous/Next/Pause/Stop

Play Button

4) Menu Button

5) Up/Down/Left/Right/OK

Button

6) Press to close

7) Headphone Jack 1

8) Headphone Jack 2

9) Volume Control

10) Brightness Control

11) Door Open Switch

12) Remote Control Sensor

13) Power LED

14) Power On/Off Switch

15) AV in/out SW

16) AV Jack

17) DC 9-12V Input Jack

18) Battery Release Button

2. Remote Control

(Refer to figure 3)

1) Setup Button

2) Up Button

3) Previous Button

4) Enter Button

5) Reverse Scan/Left Button

6) DOWN Button

7) Numeric Button

8) Display Button

9) Zoom Button

10) Subtitle Button

11) Next Button

12) A-B Repeat Button

13) Forward Scan/Right Button

14) 1/All Repeat Button

15) Stop Button

16) Menu Button

17) Audio Button

18) Angle Button

19) Play/Pause Button

F. Loading and Playing a Disc

a. After connecting power to the unit, turn on the DVD player with the

power switch. The power indicator will light.

b. Open the disc tray by sliding the OPEN switch to the right. Place

a disc into the tray with the label side facing up.

c. Close the tray by pressing the area marked “PRESS”. The unit will

load the disc and start playing.

d. Adjust the BRIGHTNESS and VOLUME to the desired levels.

e. To stop playing a disc, press STOP.

Figure 3

Basic Operation

Turn the unit on/off

Remove/load the disc

Start Play/Confirm item or setting

Play at 1/2, 1/4, 1/8 or 1/16 normal speed

Still Picture

(1 time) Stop at the present playing point /

(2 times) Stop playing

Go to the next chapter, track or scene dur-

ing play back

Go back to the previous chapter, track or

scene during play back

Scan forward at 2, 4, 8,16 or 32 times speed

Scan backward at 2, 4, 8, 16 or 32 times

speed

Used for Menu Navigation

Execute item or confirm setting

Select item or setting

Display the main menu of the disc

Repeat playing title, chapter, or track

Repeat a specific portion from point A to point

B of the disc

Display information (title, chapter, track,

time, etc.).

Change the viewing angles

Select the subtitle language and turn it on/

off

Select the audio language

Enlarge an image to 2, 3, or 4 times the

original size.

Display the setup menu to select and set

items, and exit the setup menu.

POWER

OPEN

PLAY

SLOW

PAUSE

STOP

FORWARD

REVERSE

LEFT/RIGHT/UP/DOWN

ENTER

NUMBERS

REPEAT

A-B

DISPLAY

ANGLE

SUBTITLE

AUDIO

ZOOM

SETUP

H. Menu

A DVD is divided into sections called titles and chapters. When you

play a DVD, a root menu of the disc will appear on the screen of your

TV or Monitor. The contents of the menu vary from disc to disc. Press

MENU during playback to display the menu. Some DVDs only allow

you to select disc playback options using the DVD root menu.

I. Display

1. PLAYING TIME AND REMAINING TIME

a. During playback press the ‘DISPLAY’ button to display the cur-

rent Title Number (1), the total Number of Titles (2), the current

Chapter Number (3), the total Number of Chapters (4), and the

Playing elapsed Time for the title (5). The heading will disappear

automatically after 3 seconds if DISPLAY button is not pressed.

Title, Chapter Number, and Time Screen Display

b. Press ‘DISPLAY’ repeatedly to choose from the options below :

Title Elapse

Title Remain Chapter Elapsed

Chapter Remain

Display Off

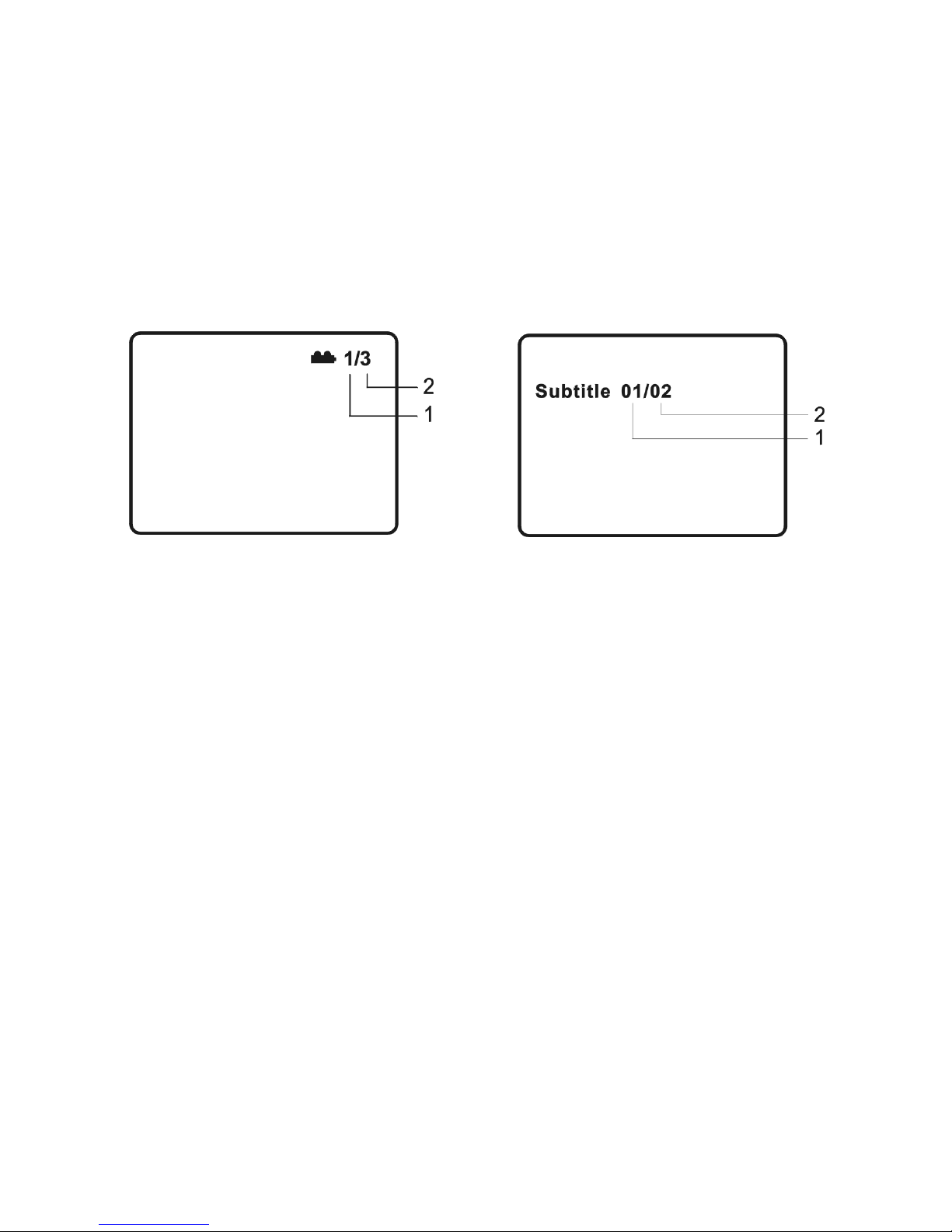

2. ANGLE

During playback of a disc, press ‘ANGLE’ to display the available angles

for discs containing multi-angles*, with the current angle number (1)

and the total number of angles (2) displaying. Press ‘ANGLE’ to select

another angle, then press again to exit and return to the normal view-

ing angle. The angle display will disappear automatically if the ‘ANGLE’

button is not pressed again within 3 seconds.

*NOTE: Not all discs contain this feature.

3. SUBTITLE

During disc playback press ‘SUBTITLE’ to select the subtitle language

you desire*, with the current Subtitle Language Number (1) and the

total Number of Subtitle Languages (2) displayed. If there are mul-

tiple languages press ‘SUBTITLE’ again to select another subtitle lan-

guage. To turn subtitles OFF, press the ‘SUBTITLE’ button until ‘Sub-

title Off’ is displayed. The Subtitle display will disappear automatically

if the ‘SUBTITLE’ button is not pressed again within 3 seconds.

* Some DVDs only allow access to this function through the DVD

4. AUDIO

During playback press ‘AUDIO’ to select the audio language you de-

sire*, with the current Audio Channel Number (1) and the total number

of Audio Channels (2) displayed. Press AUDIO again to select an

other audio language. The audio display will disappear automatically if

the ‘AUDIO’ button is not pressed within for 3 seconds.

*Some DVDs only allow access to this function through the DVD menu.

Angle Subtitle

Inhaltsverzeichnis

Andere Audiovox Tragbarer DVD-Player Handbücher

Audiovox

Audiovox D1500A Bedienungsanleitung

Audiovox

Audiovox D1917 Bedienungsanleitung

Audiovox

Audiovox VBP3800 Bedienungsanleitung

Audiovox

Audiovox DS7321 Bedienungsanleitung

Audiovox

Audiovox DS7521PK Bedienungsanleitung

Audiovox

Audiovox D1817PKG Bedienungsanleitung

Audiovox

Audiovox DS9341 Bedienungsanleitung

Audiovox

Audiovox D1809PK - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox D1830 Bedienungsanleitung

Audiovox

Audiovox D1809 - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox D1817PK - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox D1501 Bedienungsanleitung

Audiovox

Audiovox D2017PK Bedienungsanleitung

Audiovox

Audiovox D1750T Bedienungsanleitung

Audiovox

Audiovox D1708PK Bedienungsanleitung

Audiovox

Audiovox D8000IP Bedienungsanleitung

Audiovox

Audiovox D1810 - DVD Player - 8 Bedienungsanleitung

Audiovox

Audiovox VE1020 Bedienungsanleitung

Audiovox

Audiovox D1710 Bedienungsanleitung

Audiovox

Audiovox VBP800 Bedienungsanleitung

Audiovox

Audiovox VBP3900 Bedienungsanleitung

Audiovox

Audiovox D1708PK Bedienungsanleitung

Audiovox

Audiovox DT102 Bedienungsanleitung

Audiovox

Audiovox VBP50 Bedienungsanleitung

Beliebte Tragbarer DVD-Player Handbücher anderer Marken

Philips

Philips PET718/77 Bedienungsanleitung

Impecca

Impecca DVP775 Bedienungsanleitung

NextBase

NextBase MULTI-VISION SET PRO Bedienungsanleitung

Impecca

Impecca DVP-1017 Bedienungsanleitung

Akura

Akura APDVD6008 Bedienungsanleitung

TV Star

TV Star TD3 LCD COMBO Bedienungsanleitung

LENCO

LENCO MES-202 Bedienungsanleitung

Philips

Philips PET940/98 Bedienungsanleitung

Philips

Philips PET702P Bedienungsanleitung

Philips

Philips PD7016 Bedienungsanleitung

Logik

Logik L7SPDVD11 Bedienungsanleitung

LG DP650 Bedienungsanleitung

Mustek

Mustek MVP850B Bedienungsanleitung

Insignia

Insignia NS-MDDVD10 Bedienungsanleitung

Philips

Philips PD9000/12 Bedienungsanleitung

LENCO

LENCO DVP-1027 Bedienungsanleitung

Philips

Philips PD7010/05 Bedienungsanleitung

Technika

Technika PDVDTWINSS10 Benutzerhandbuch
