PORTABLE 5.8" LCD MONITOR & DVD PLAYER
A. Introduction
ThankyouforselectingtheDV1501portableDVDplayer.The main
featuresinclude a5.8"WideScreen(16:9AspectRatio)LiquidCrys-
tal Display (LCD) monitor and a DVD player.The unit applies the
latest state of the art electronics and is designed for use in hotels,
offices or your home. The unit is constructed to provide years of
reliable,trouble-freeservice,and iscompact so that youcan takeit
withyou anywhereand isdesignedfor quickandeasy installation.
Pleasereadtheentire instructionmanual supplied withthis product
priortooperation.Thedocumentationwillassistyouin installing the
systemproperlytoobtainthebestequipmentperformance. Allmanu-
alsshouldbestored forlater use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rainor moisture.Donot placetheset onan unstable cart,stand,
tripod,bracketortabletopreventitfromfalling.Keeptheunitaway
fromstrongmagnets,heatsources,directsunlight,excessivedust.
Iftheunit isbrought directlyfrom acoldtoa warmlocation, mois-
turemaycondenseinsidethe unit. Whenyoumove it fromacold
to a warm location, wait for about one hour before operating the
unit,orremovethediscandleavetheunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensurethat theD1501isinstalledinaccordancewiththeinstruc-
tionsandillustrationsprovidedinthismanual.
3. Object and Liquid
Donot pushobjectsofanykindintotheunit throughopenings;do
not spill or spray liquid of any kind on or in the system (this may
resultin afire orelectricshock). Do notplaceanythingheavy on
theunit.To ensureproperventilationandproper operation,never
coverorblocktheslotsandopeningswithaclothorothermaterial.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
2
5. Cleaning Unit
Whencleaning, makesurethesystem isunplugged fromthepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
C. Contents
1.1x5.8’’LCDMonitor&DVDPlayerCombo
2.1xACtoDCAdapter
3.1xRechargeableBattery
4.1xRemoteControl
5.1xInstructionManual
6.1xAudioCableP/N112B3082
7.1xVideoCableP/N112B3083
8.1xAudio/VideoCableP/N112B3267
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
PlugoneendoftheACtoDCadapterintothe DC9Vjack
ontherightsideofthemainunit,thenplugthe other endinto
the110V ACpowerreceptacle.
3
Figure 1
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 2)
Figure 2
4
1) CloseButton on Disccover
2) Openbutton
3) PreviousButton
4) StopButton
5) NextButton
6) PlayButton
7) Screen (WIDE)Button
8) PauseButton
9) RemoteControlSensor
10) DVD VideoOutputJack
11) DVDAudioL+R OutputJack
12) VideoInputJack
13) AudioL+R InputJack
14) VolumeUp/DownThumbwheel
15) BrightnessUp/DownThumbwheel
16) HeadphoneInputJack 1
17) HeadphoneInputJack 2
18) PowerOn/Off Switch
19) DC9V InputJack
5
2. Remote Control View (Refer to Figure 3)
1) DisplayButton
2) AngleButton
3) SubtitleButton
4) AudioButton
5) ZoomButton
6) Up/Down/Left/Right/EnterButtons
7) ReturnButton
8) A-BButton
9) ForwardButton
10) ReverseButton
11) Slow Button
12) StopButton
13) NumberButtons
14) SetupButton
15) MenuButton
16) RepeatButton
17) Previous Button
18) Next Button
19) Play Button
20) Pause Button Figure 3
F. Loading and Playing a Disc
a. Afterconnectingpower totheunit,slidethe POWERON/OFF
ontheright side toON, the DVDplayer’s POWERindicator
lights.
b. Openthe disctrayby pressingOPEN at thelower rightof the
disctray, and placea discintothetraywith thedisc’slabelfac-
ingup.
c. PressCLOSEattherightsideof thetraydooruntilitclicksshut.
Theunitwillloadthediscandstartplaying by pressing PLAY
locatedeitherontherightsideofthedisctrayorontheremote .
d. RotateBRIGHTandVOLUMEtoadjust the LCD’s brightness
and the DVD player’s volume.
e. Tostop playinga disc,pressSTOP.
6
f. Toturn offthe DVDplayer,slide POWERON/OFF toOFF.The
DVD player’s POWER indicator turns off.
g. Toremovethedisc,openthedisctray,then youwillseeapicture
on the right inner corner of the cover to indicate how to remove
the disc, just use your finger to access the right inner corner of
thedisctray andliftupthe discand removeitfromthe disc
tray.PleaserefertoFigure4.
Figure 4
7
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on
the screen. Press ‘SETUP’ again to exit the SETUP Menu and
the unit will resume it’s last playback or stop mode.
1) Select ‘GENERAL SETUP’ using the UP/DOWN buttons, then
press ‘ENTER’ to enter the GENERAL Setup screen.
a. Select TV DISPLAY using UP/DOWN, and then press RIGHT
to enter the submenu. Select the TV display mode on the
screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.
* NORMAL/PS: When the player is connected to a normal
TV, and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip at
both the top and bottom of the screen.
Figure 6. General SETUP Menu Screen
Figure 5. Main SETUP Menu Screen
8
* WIDE: When the player is connected to a wide screen
TV, a wide picture is shown on the full screen.
b. Select‘ANGLEMARK’usingUP/DOWN,andthenpress
the RIGHT button to enter the submenu. Choose Angle
Markon or off displayed onthe screen usingthe UP/DOWN
and then press ENTER to confirm the setting. Press the
LEFT button to return.
* ON: The screen will show angle mark.
(*If angle option is available)
OFF: The screen will not display theAngle Mark
c. Select‘MAINPAGE’usingUP/DOWN,andthenpressENTER
to return to the main page.
Figure 7. ANGLE MARK Screen Display
*NOTE: The DVD player will enter the Screen Saver mode after
5 minutes if the image on the screen remains the same for
more then 5 minutes.
9
2) Whenthereis no discinsidetheplayerselect ‘PREFERENCES’
usingUP/DOWN, thenpress‘ENTER’ to enter the preferences
page.
a. Select ‘AUDIO’ using UP/DOWN, then press ‘RIGHT’ to
enterthesubmenu.Selecttheaudiolanguageyoudesireusing
UP/DOWN, then press ‘ENTER’ to confirm the setting.
Press LEFT to return.
b. Select ‘SUBTITLE’ using UP/DOWN, then press RIGHT
toenter the submenu. Selectthe desired subtitlelanguage or
SUBTITLE OFF using UP/DOWN, then press ‘ENTER’
to confirm the setting. Press ‘LEFT’ to return.

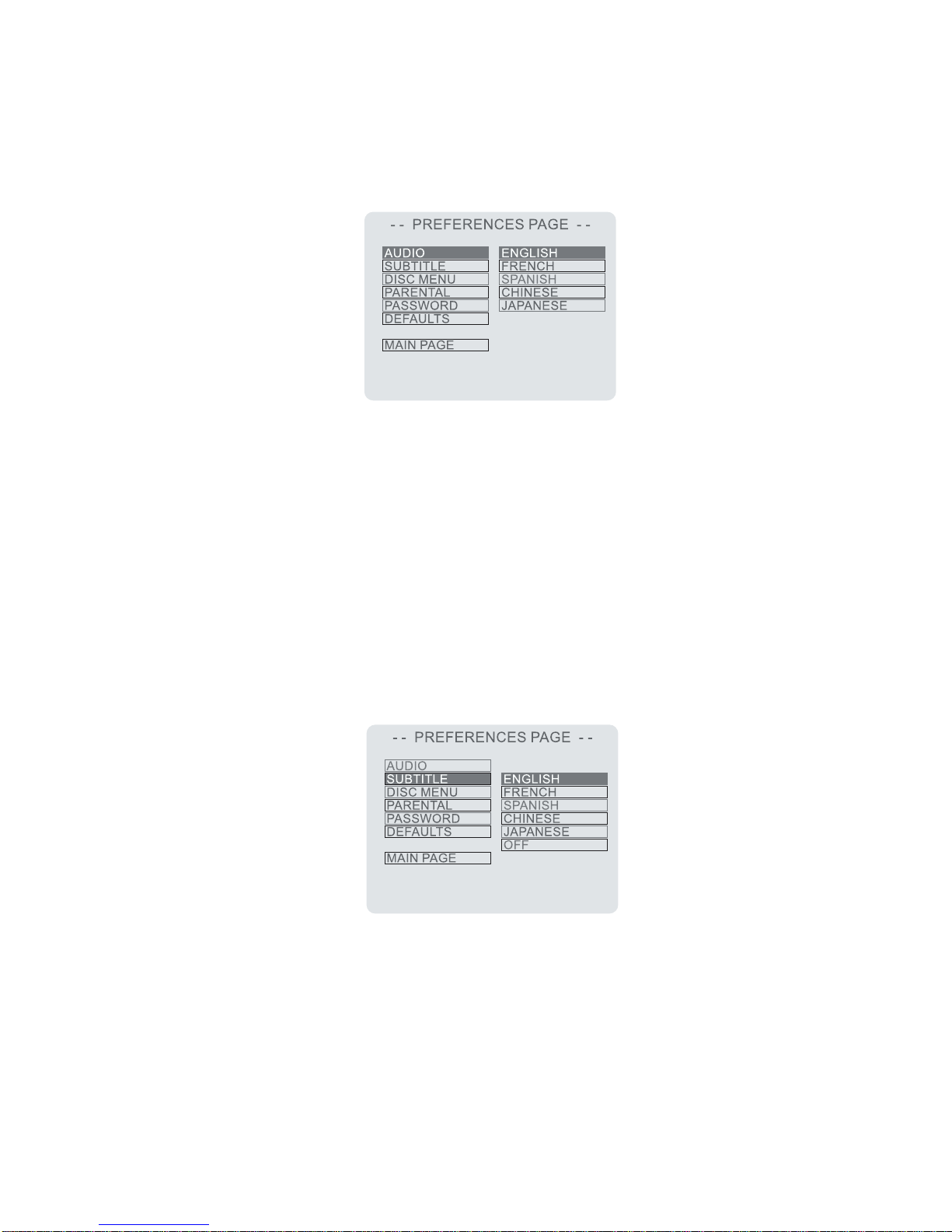

Figure 8. AUDIO Preference Screen Display
Figure 9. SUBTITLE Preference Screen Display
10
