Audiovox SIR-CK3 Bedienungsanleitung
128-7194
1 of 20
Vehicle Installation
Guide SIR-CK3
PNP3 SHUTTLE
Released: 8-9-04
JUMP
s.seek
p
.tune
Category A-112:00P
Artist
Song
001 ChannelNam e
128-7194
2 of 20
THISPAGELEFTBLANKINTENTIONALLY
-2-
128-7194
3 of 20
-3-
CONTENTS
Congratulations ........................................................................................ 4
Cautions and Warnings............................................................................ 5
Contents SIR-CK3 ................................................................................... 6
Hardware Kit................................................................................. 6
Installation/Wiring Precautions ................................................................. 7
Setting Up and Installing Your Kit.............................................................. 7
Interconnect Diagram ................................................................... 8
Installing the Cradle Using Double-Sided Tape ........................... 11
Using Other Manufacturer’s Mounts........................................... 11
InstallingtheShuttleIntotheCradle............................................ 11
Sirius Program Listening Options .......................................................... 13
MountingtheVehicleAntenna................................................................. 14
Warranty................................................................................................. 18
128-7194
4 of 20
You are one step closer to experiencing Sirius Satellite Radio. Sirius will revolutionize your in-home
or vehicle entertainment with:
•Over 120 channels of original programming, including –
65 channels of 100% commercial-free music – guaranteed,
Over 50 channels of world-class sports, news, talk and information.
YourModelPNP3AudiovoxShuttlemustbeusedwithanadapterkit,suchastheAudiovoxHomekit,
Boom Box or Vehicle Kit as required by your specific installation needs. These kits are available at
retailers where Audiovox main units are sold.
AudiovoxHomeKit:SIR-HK3
AudiovoxVehicleKit:SIR-CK3
AudiovoxBoombox:SIR-BB3
Accessories:
RCAAdapterCable, SAT-RCA
FM Switching Box, SAT-SWB
-4-
Congratulations
128-7194
5 of 20
Cautions and Warnings
1. Do not install the Shuttle in a position that hinders
your view through the windshield, or obstructs view
ing of the dashboard indicators and displays.
2. Do not install the unit where it may obstruct the
operation or deployment of safety devices, such
as airbags, etc.
3. Do not allow operation of the unit to detract from
safe driving practices; remember that you are
responsible as the vehicle operator to adhere to
all safe driving and traffic regulations.
4. This unit complies with the interference limits
relative to a Class B digital device, applicable
under Part 15 of the FCC Rules regarding
installation in a residential environment. If the unit
is not installed in accordance with these instruc-
tions, it could cause harmful interference to radio or
television reception. If this condition persists after
corrective action, consult your dealer or experi-
enced installation facility.
5. By adhering to these warnings and safety consider-
ations, serious accidents and/or personal injury can
be avoided.
-5-
128-7194
6 of 20

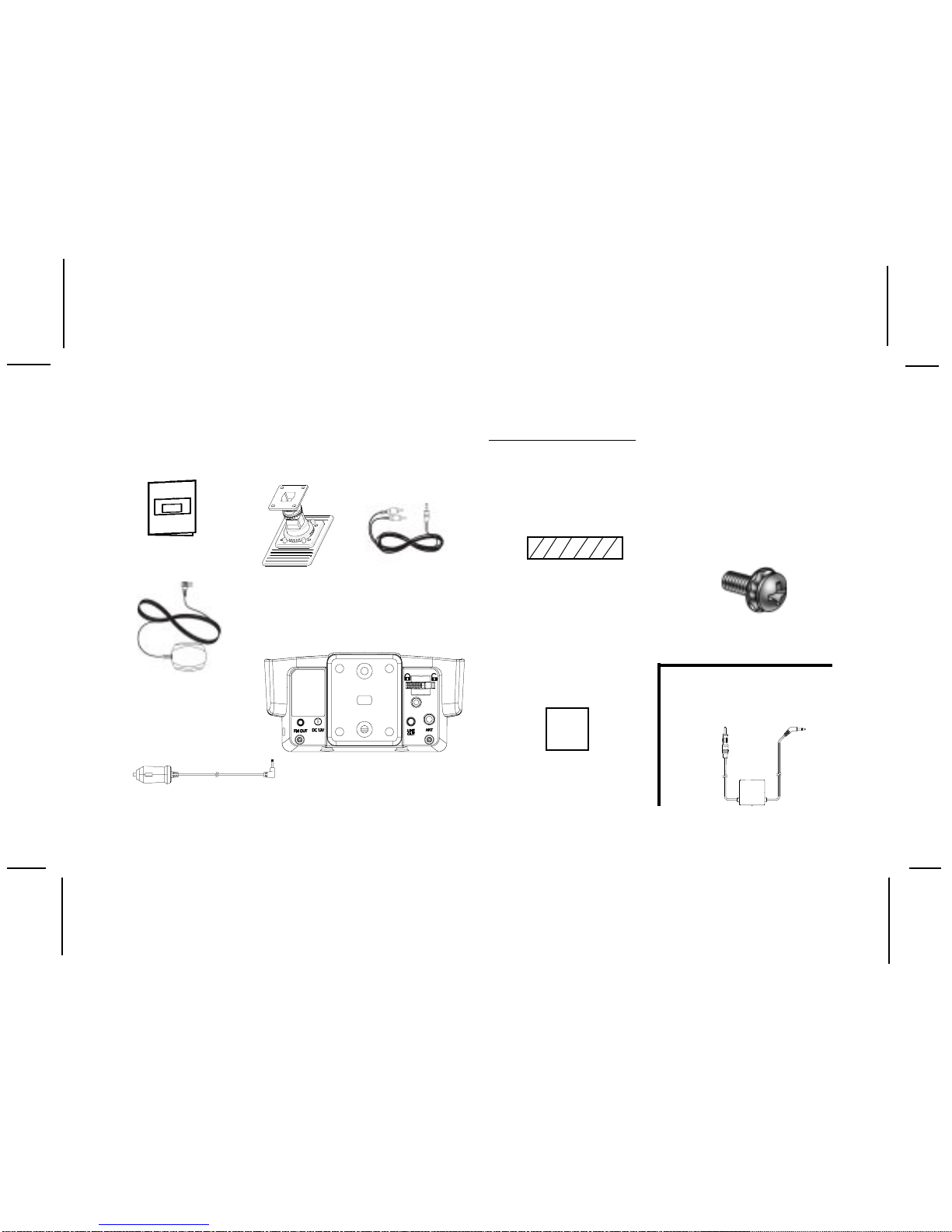

-6-
Base
(P/N 136-3804)
1 pc.
Contents SIR-CK3
Install Manual
(P/N 1287194)
Audio Cable
(Optional)
(P/N SAT-RCA)
1 pc.
DC Power Adapter
1 pc.
Antenna
1 pc.
(P/N 112-3459)
(P/N 118-1135)
Cradle CK3
(P/N 136-3801)
1 pc.
AlcoholSwab
(P/N 138-1189)
1 pc.
OPTIONAL
FMSwitchingBoxAssy
P/N SAT-SWB (6 Meter)
PhillipsMachine
Screw (M4 x 8mm)
WithCaptive Lock
and Flat Washer
(P/N 100-2329)
4 pcs.
HARDWARE KIT (P/N 150-1577)
1.6” W X 2”Long
DoubleSidedFoamTape
(P/N 138-1305)
1 pc
1 pc.
128-7194
7 of 20
Setting Up and Installing Your Kit
NOTE: The SIRIUS® signal can be received and
processed virtually anywhere as long as there
are no obvious satellite signal obstructions such
as nearby buildings, high terrain, parking
garages or tunnels.
1. Cabling Interconnections
You can begin to enjoy Sirius®Satellite Radio as
soon as the Shuttle and Vehicle Kit installation
are complete. Set up your Audiovox Shuttle using
the following installation instructions, or enlist the
help of a professional installer:
2. Installing the Cradle Mount Base Assembly
a. Interconnect all of the components as shown
on the adjacent page to verify that the system
operates normally.
b. Locatea firm,reasonably flat surface within your
car to permit optimum viewing and line-of-sight
access by the supplied remote control unit.
-7-
Installation/Wiring Precautions
1. To prevent a short-circuit, be sure to turn off the
ignition and remove the negative (-) battery cable
prior to installation. Connect power wires last.
2. Do not install the unit in the locations exposed to
direct sunlight or, in areas subject to extreme
temperatures.
3. Incorrect installation may cause damage to the
system. Mount the unit firmly in place, using
the supplied hardware.
4. Be careful not to damage the vehicle wiring.
5. Be sure to use the supplied screws and washers.
6. Be careful not to snag any wires when tightening
screws.
128-7194
8 of 20
-8-

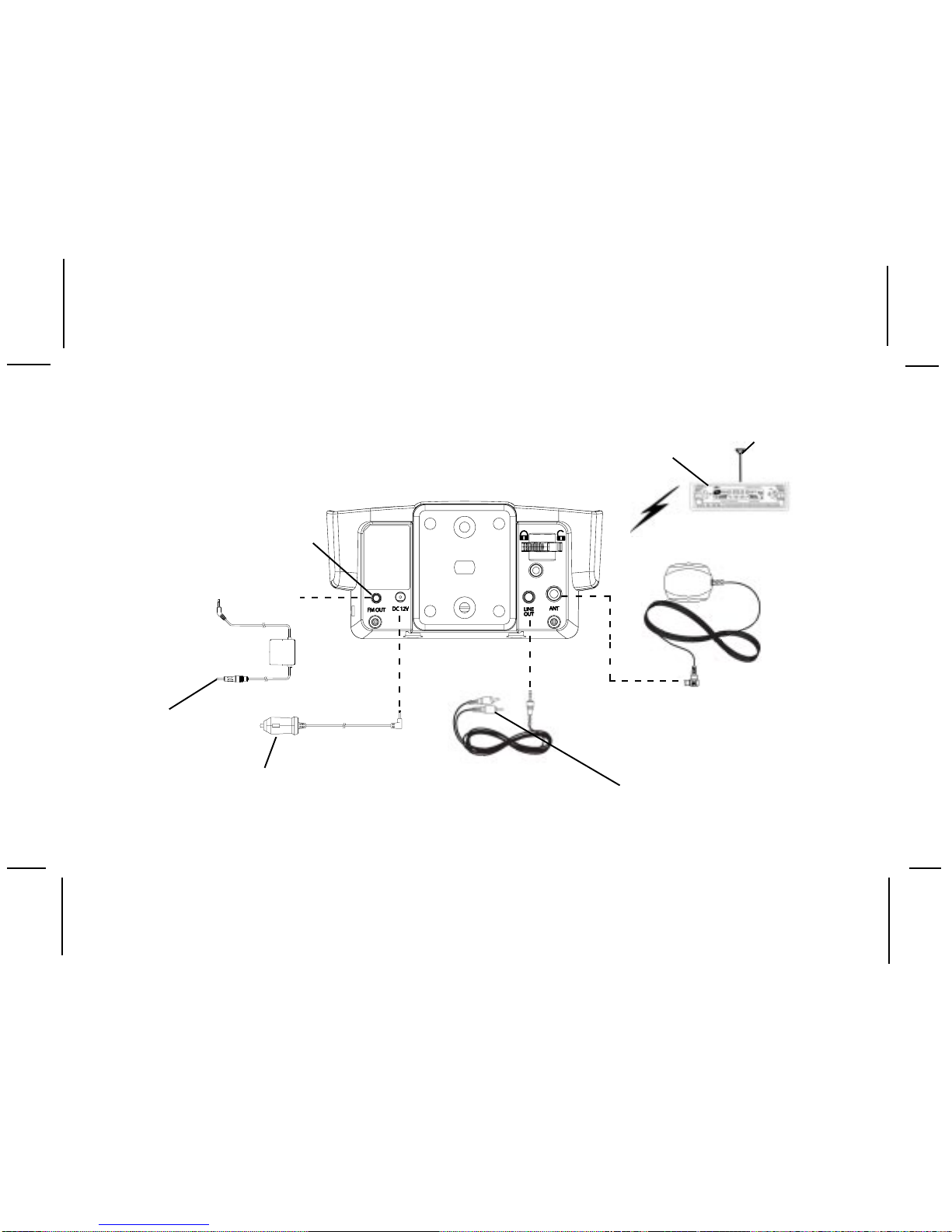

Interconnect Diagram
TO AUXILIARY AUDIO
INPUT OF RADIO OR
ENTERTAINMENT SYSTEM
DC POWER
ADAPTER
SHUTTLE CRADLE
CK3
(REAR VIEW)
NOTE:
1. THE FM TRANSMITTER OPTION
MUST BE SET TO ”FM ON” IN THE
SHUTTLE USER MENU. (REFER TO
THE OWNER’S MANUAL, PUBLICA-
TION NO.128-7193.)
2. IF THE SIR-CK3 IS INSTALLED
USING THE WIRELESS FM
SWITCHINGBOX, SAT-SWB,OPTION,
DO NOT CONNECT THE AUDIO
CABLE TO THE LINE OUT CONNEC-
TOR OF THE CRADLE.
SHUTTLE
ANTENNA
TO VEHICLE
+12 VDC POWER
RECEPTACLE
VEHICLE
RADIO
ANTENNA
VEHICLE
FM RADIO
WIRELESS FM SWITCHING
BOXSAT-SWB(PURCHASED
SEPARATELY)
TO VEHICLE
RADIO ANTENNA
JACK
OPTIONAL
AUDIO CABLE
(PURCHASED
SEPARATELY)
128-7194
9 of 20
-9-
CAUTION: Do not install the mounting base
on a leather or fabric surface, or
in a position that could impair
your vision, block air bag(s) or
obstruct vehicle dashboard
controls and/or radio CD/casette
operational displays.
NOTE: The adhesive backing on the base
will not permit easy repositioning once
it has been mated to the surface; use
extreme care and planning when
selecting the mounting location. If the
base is to be screwed to the surface,
make sure the area in back of the
mounting surface is clear of wires or
other items to prevent unintentional
damage.
c. Using the alcohol swab supplied with your kit,
clean the mounting surface and thoroughly wipe
the area dry with a clean lint-free cloth.

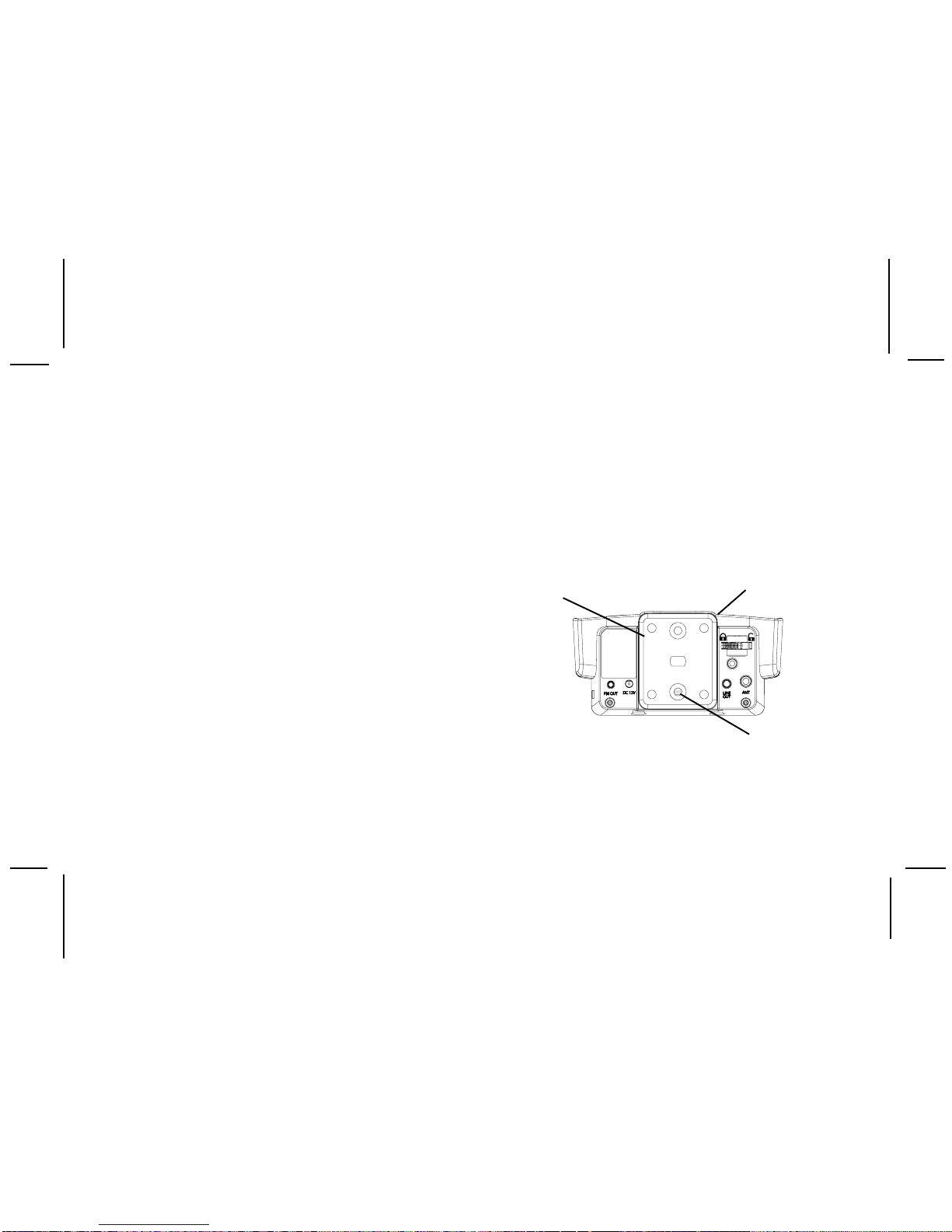

d. The cradle contains a rear mounting plate
After deciding the mounting configuration,
loosen and remove two flat-head screws
securing the plate to the cradle and remove
the plate. Save the two screws for reassembly.
FLAT-HEAD
SCREWS(2)
REAR
MOUNTING
PLATE
CRADLE
ASSEMBLY
(REARVIEW)
128-7194
10 of 20

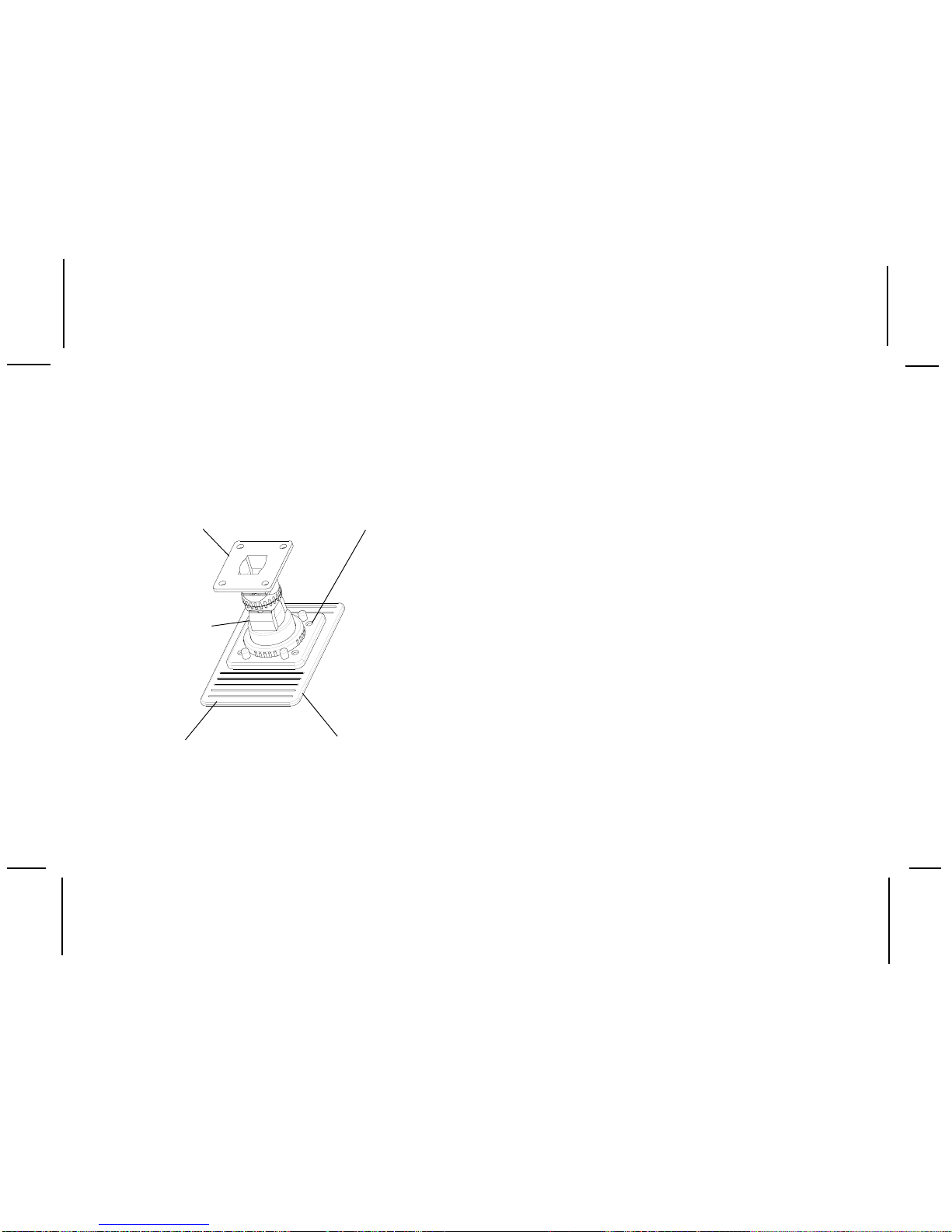

e. If the outside air temperature is cold, it may
be beneficial to warm the adhesive backing
on the base using a portable hair dryer, or
by holding the backing surface in front of a
vehicle heater vent.
f. Remove the plastic liner from the adhesive
backing on the base, and fix the base in
position on the surface; make sure the
mounting pad is accurately positioned on
the first try, since repositioning may be
difficult, if not impossible.
g. If the mount is to be screwed in place, do
not remove the plastic liner from the
adhesive backing. Use appropriate sheet
metal or machine screws for this purpose.
-10-
MOUNTING
PLATE PLASTICLINER
ANDADHESIVE
BACKING
MOUNTING
BASE
ASSEMBLY
SCREWHOLES
(4)FORDIRECT
HARDMOUNTING
BASE
ASSEMBLY
MOUNTING
PLATE
