Audiovox GMRS1100-2CH Bedienungsanleitung
General Mobile Radio Service (GMRS)General Mobile Radio Service (GMRS)
General Mobile Radio Service (GMRS)General Mobile Radio Service (GMRS)
General Mobile Radio Service (GMRS)
ModelModel
ModelModel
Model
::
::
:
GMRS1100-2CHGMRS1100-2CH
GMRS1100-2CHGMRS1100-2CH
GMRS1100-2CH
OwnerOwner
OwnerOwner
Owner’s Man’s Man
’s Man’s Man
’s Manualual
ualual
ual
© 2002 Audiovox Electronics Corp., Hauppauge, NY 11788 Customer Service
1-800-290-6650
EMG
F
PWR
NEVER ATTEMPT TO CHARGE ALKALINE OR DRY CELL BATTERIES, AS
BATTERIES MAY BURST CAUSING PERSONAL INJURY AND DAMAGE
TO THE PRODUCT. WHEN RECHARGING NICKEL METAL HYDRIDE (Ni-
MH) BATTERIES WITH THE SUPPLIED AUDIOVOX CHARGER AND WALL
ADAPTER, USE ONLY AUDIOVOX-APPROVED RECHARGEABLE BATTER-
IES. USE OF THE AUDIOVOX CHARGER WITH OTHER BRANDS OF BAT-
TERIES IS NOT RECOMMENDED, AS BATTERY CHARGING TIMES WILL
VARY WITH DIFFERENT BRANDS. REFER TO THE MANUFACTURER’S
INSTRUCTIONS FOR CHARGING OTHER BRANDS OF BATTERIES.
AVOID PLACING THE GMRS1100-2CH RADIO TRANSCEIVER FOR PRO-
LONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERATURES
BELOW -4° F (-20° C) OR ABOVE 140 ° F (60° C).
KEEP THE ANTENNA AT 1 INCH (2.5 cm) AWAY FROM YOUR HEAD AND
BODY. DO NOT USE YOUR GMRS1100-2CH RADIO TRANSCEIVER WITH
A DAMAGED ANTENNA.
PLACE THE RUBBER COVERS ON JACKS WHEN NOT IN USE.
GMRS LICENSE:
USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC
GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS
NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE
TOAPPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS
FROM THE FCC; FCC FORM 159 AND FCC FORM 605 MAIN FORM AND
SCHEDULE F. YOU CAN FIND THE FORMS ONLINE AT: HTTP://
WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676.
CAUTION
2
3

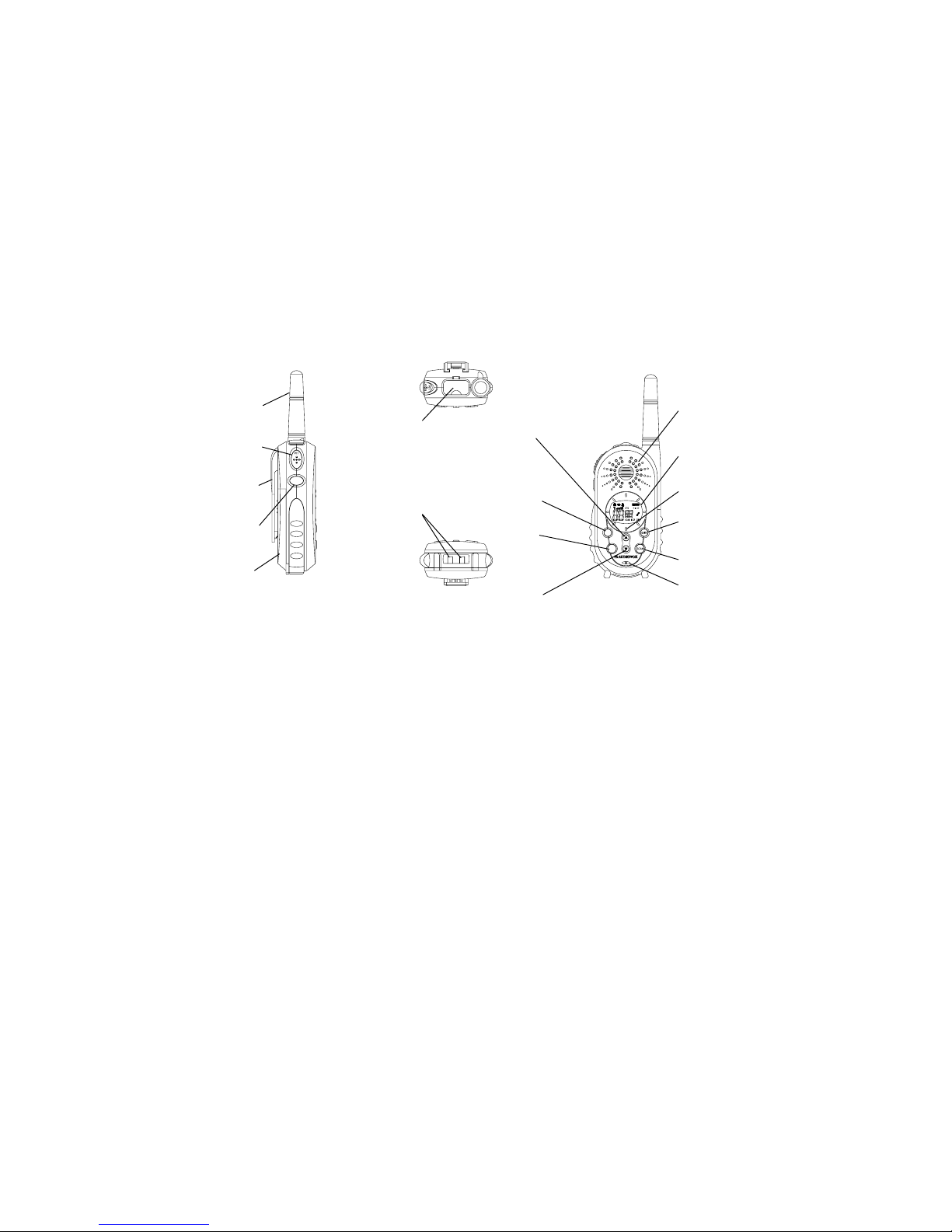

1. Battery Cover
2. Monitor/Function Confirmation
Button
3. Detachable Carry Clip
4. Push-To-Talk (PTT) and Func-
tion Confirmation Button
5. Antenna
6. External Speaker (SPK), Micro-
phone (MIC)/CHG Jacks
7. Built-in Speaker
8. Liquid Crystal Display (LCD)
Model GMRS1100-2CH (FCC License Required)
9. Combination Transmit Indi-
cator (Red)/Receive and
Monitor Indicator (Green)
10. Emergency (EMG) Button
11. Channel SCAN Button
12. Built-in Microphone
13. Down Channel/Volume
Button
14. Function (F) Button
15. Power (PWR) On/Off Button
16. Up Channel/Volume Button
17. Battery Charging Contacts
3
5
4
1
2
12
11
13
8
16
14
7
15
10
9
6
17
M
SP. MIC
CHG
EMG
F
PWR
4

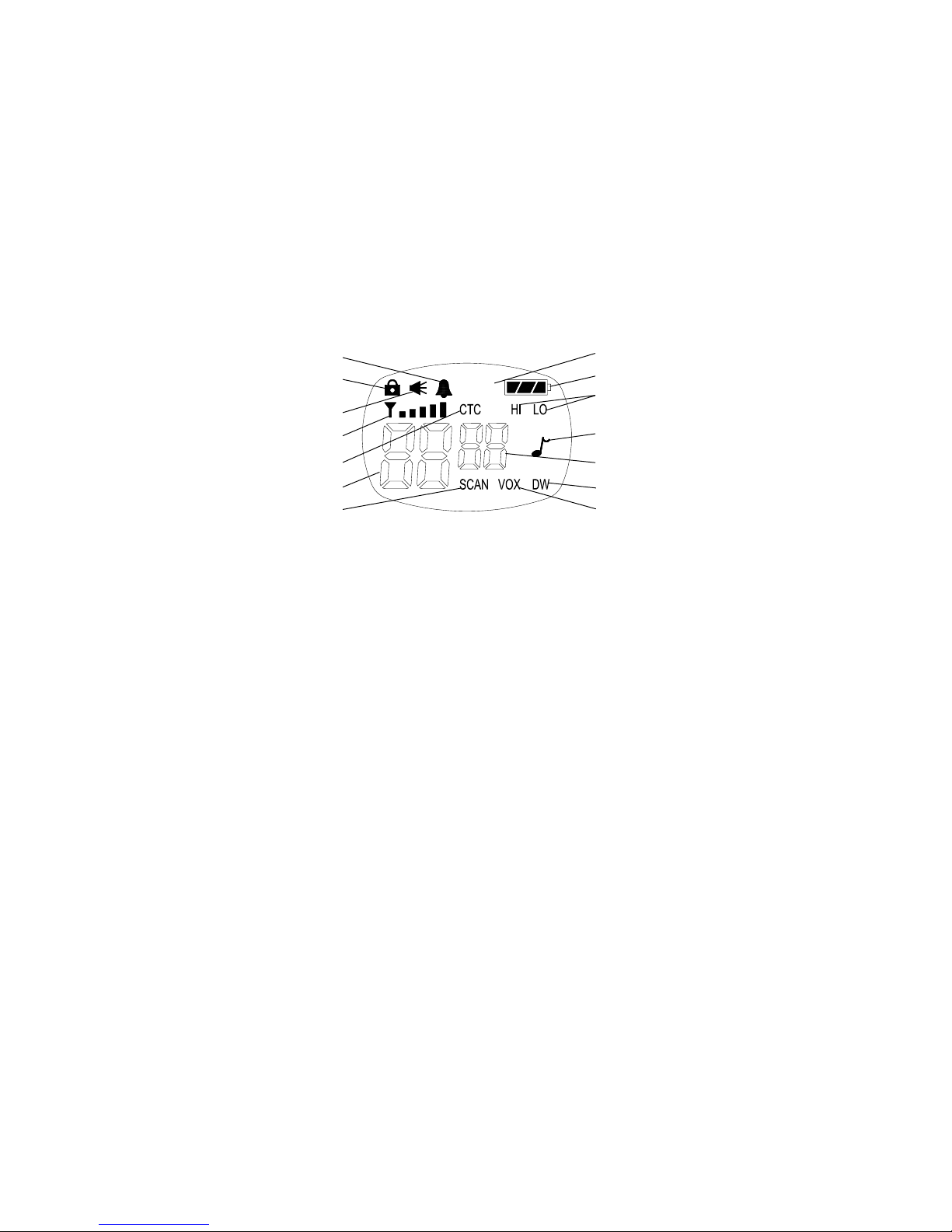

Model GMRS 1100-2CH DISPLAY
1. Beep Tone Indicator: Icon appears when beep button confirmation
tone is selected; icon disappears when tone is off.
2. Key Lock Indicator: Icon appears when the keypad is locked. This
function disables keys such as channel up/down and Function (F).
3. Monitor Indicator: Icon appears when the Monitor (M) button is pressed
and the channel monitor function is activated.
4. Signal Strength Indicator: Icon appears when a signal is being
received. The icon consists of five bars to indicate the received signal
level. The icon also represents transmit signal power during
transmission.
5. Coded Tone Controlled Squelch System (CTC) Indicator: Icon appears
when the CTCSS tone function is active.
6. Large Segment Display: Indicates the channel number in use between
1 and 22.
7. Scan Indicator: This function allows the user to scan a chanel and/or
a tone code every 0.5 second to search for a valid signal.
8. Emergency Indicator: The EMG icon appears when the EMG button is
pressed. (The frequency is NOT monitored by authorities.)
9. Battery Level Indicator: Icon indicates the battery charge level.
10.HI/LO Indicators: Appropriate icon appears when the transmit power
is set to desired output power.
10
11
12
8
9
1
2
4
3
5
6
7
13
14
EMG
5
11. Roger Beep Tone Indicator: This icon appears when the Roger Beep
tone is on, and disapppears when the tone is not in use.
12.Small Segment Display: Indicates the CTCSS tone code (1-38)
function is active for the main channel in use.
13. Dual Watch Mode Indicator: Icon appears when dual watch mode is
active.
14.Voice Activated Transmission (VOX) Indicator: This icon appears
when the VOX mode is activated.
Equipment and Accessories Supplied
1. Radio (2) GMRS1100-2CH
2. Owner’s Manual (1) 128-6297B
3. Rechargeable Batteries (8) NiMH, P/N SBGMRS11001
4. Dual Desk-Top Charger DTC1100-2CH
5. AC Wall Adapter UD-1201B
Powering the transceiver:
Your GMRS1100-2CH radio transceiver operates on four AAA batteries.
Alkaline batteries will provide slightly better performance than rechargeable
batteries. Only the supplied Audiovox-approved rechargeable batteries
can be recharged in the radio transceiver using the suppiled desk-top
charger and associated wall adapter. This will ensure optimum
performance for the GMRS1100-2CH. Battery charging time is typically
10-12 hours. Use of the Audiovox charger with other brands of rechargeable
batteries is not recommended as battery charging times will vary. Refer to
the manufacturer’s instructions for charging other brands of batteries.
Batteries
There are three methods of powering the GMRS1100-2CH:
1. Alkaline Batteries.
WARNING: Do not attempt to recharge Alkaline batteries.
2. Audiovox Rechargeable Ni-MH Batteries - (Rechargeable Ni-MH
batteries, Wall Adapter and Charging Stand included).
6
2. Slide the cover
down and then lift
cover at bottom to
open.Remove
cover.
3. Insert four AAA batteries
(positive (+) end toward
the top begining at left
side and alternating
positive terminals as
shown).
1. Using thumb,
press down on
battery cover at
arrow and slide
cover down to
open.
Use only Audiovox-approved rechargeable batteries and charger
when charging batteries internal to the unit.
NOTE: To extend battery life, avoid overcharging the batteries.
3. Various Brands of Rechargeable Batteries - Use of the
Audiovox charger with other brands of rechargeable batteries is not
recommended, as battery charging times will vary with different
brands of batteries. Refer to the manufacturer’s instructions for
charging other brands of batteries.

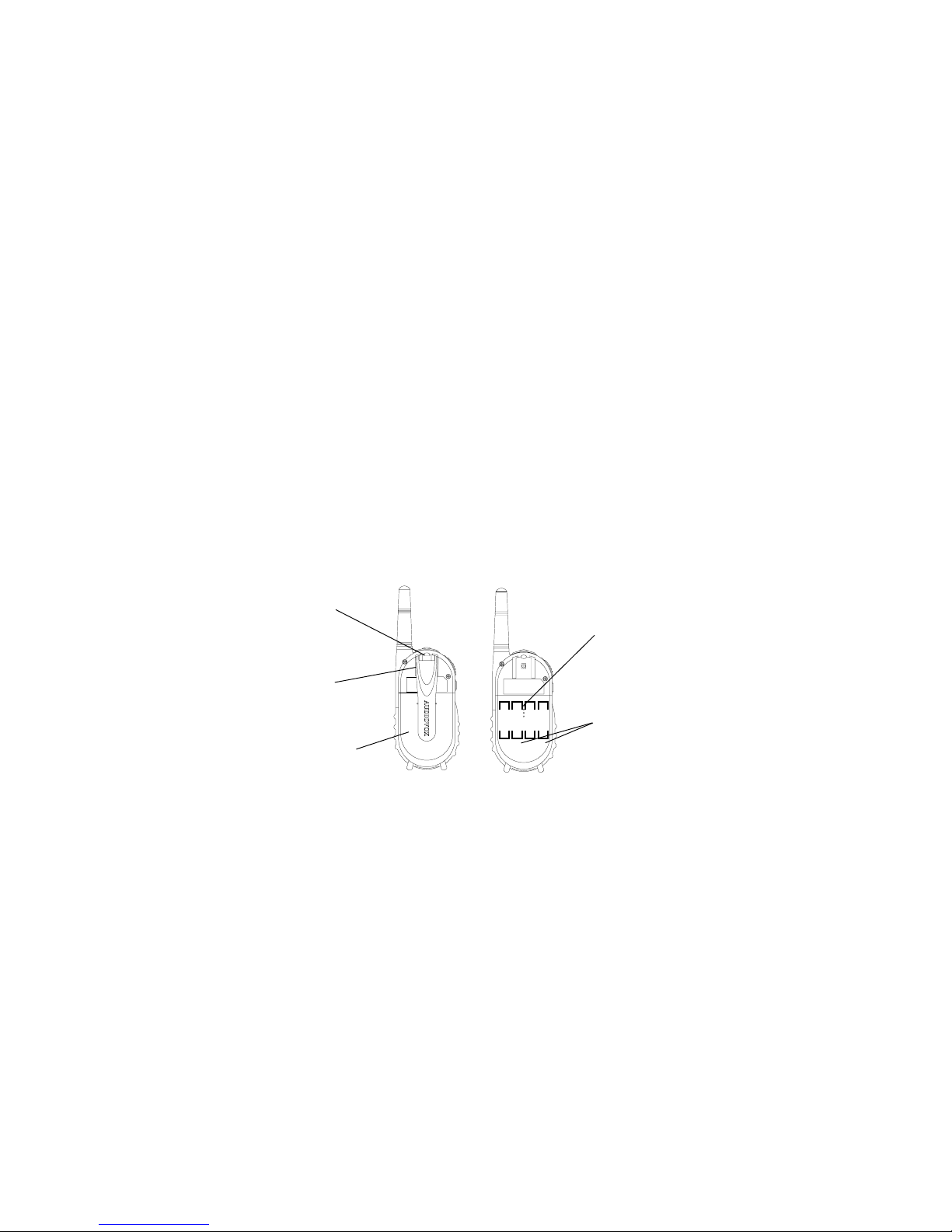

Installing the batteries:
Battery installation is made more convenient when the carry clip is removed.
To do this, release the spring clip securing the belt clip to radio and slide
the belt clip upward and away from the radio body. Next, press down with
the thumb at the embossed arrow, slide the battery cover down and lift off
the battery cover. Insert four AAA batteries (alternate positive ends (+) toward
the top of the transceiver, starting left-to-right.
SPRING
CLIP
BATTERY
COVER
CARRY
CLIP
COVER
ARROW
POSITIVE
TERMINALS
+ +
+ +
7
The following guidelines will improve performance and provide longer
operating times for the GMRS1100-2CH:
1. Do not mix old and new batteries.
2. The use of alkaline-type batteries is recommended to provide the
longest operating time.
3. Do not mix alkaline, standard (carbon-zinc) or rechargeable
batteries.
4. If the unit is not to be used for an extended period of time, remove the
batteries. Old or leaking batteries can cause damage to the unit and
will void the warranty.
AUDIO OX
LISTED
81J1
E81356
U
L
R

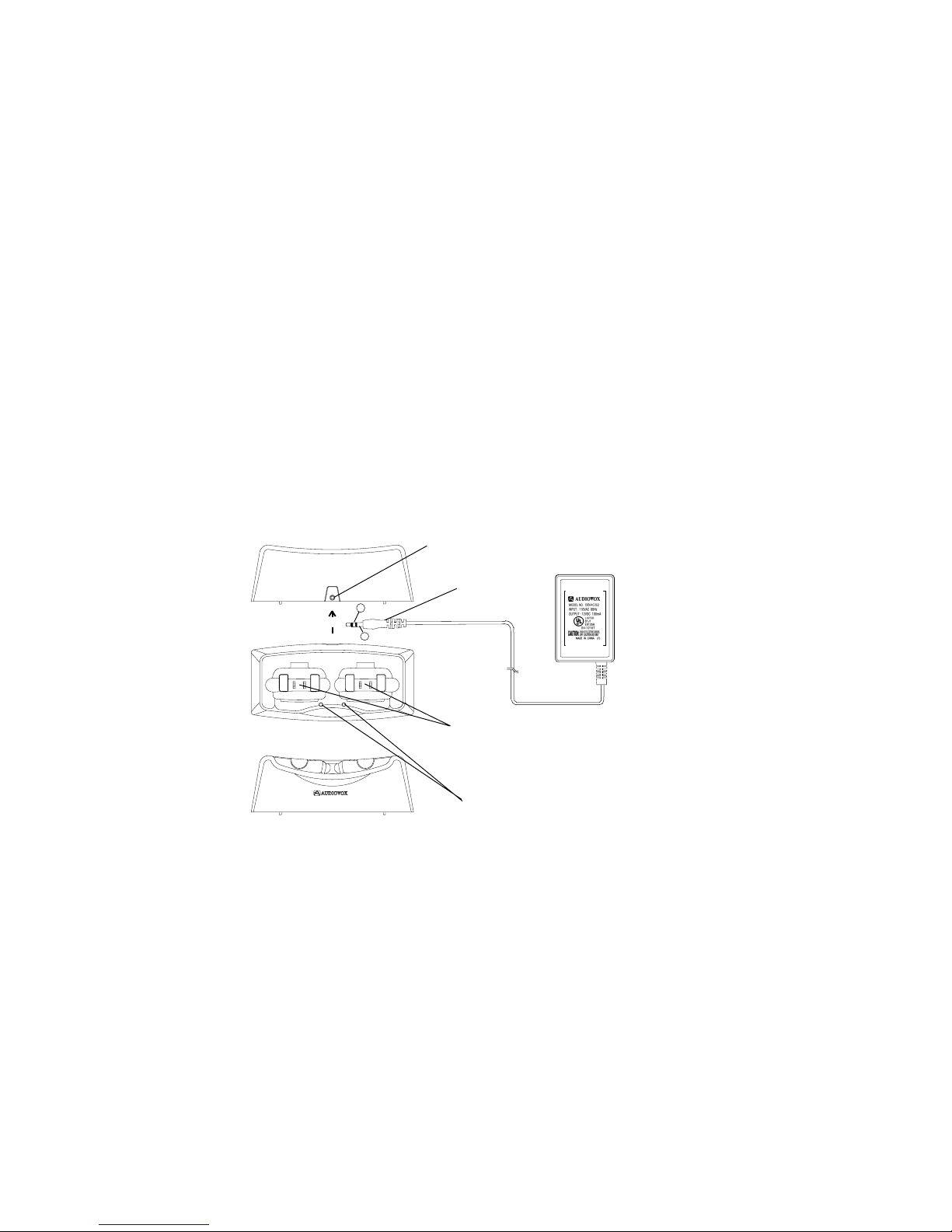

AC WALL
ADAPTER/
CHARGING
TRANSFORMER
MODEL: UD-1201B
INPUT: 110VAC
OUTPUT: 12VDC
DESKTOP CHARGING STAND
PART NUMBER DTC1100-2CH
CHARGING STAND
PWR JACK
ADAPTOR
POWER
PLUG
GMRS RADIO
CHARGING
COMPARTMENTS (2)
PWR
CHARGING
COMPARTMENT
LEDs:
RED---CHARGING
-
+
NOTE: Only Audiovox
approved rechargeable
batteries (P/N SBGMRS11001)
can be recharged in the radio
transceiver.
GMRS1100-2CH OPERATIONAL MODES
8
FUNCTION (F)
BUTTON
BUTTON
BEEP
DUAL
WATCH
VOX
SELECT
POWER
SELECT
CTCSS
SELECT
CHANNEL
SELECT
CALL
SELECT
NOTE: To differentiate between operating modes, look for HI or LO
indication below the battery power level indicator when in GMRS
mode.Refer to the appropriate section of this manual for de
tailed operating instructions for each mode. When in standby
mode, the transmit/receive indicator will flash once every 5 sec
onds, indicating the unit is in the power-save mode.
Controls:
Power (PWR) On/Off (15) Button
Press and hold the PWR on/off button for at least 2 seconds. You will hear
a confirming melody to indicate the unit is on. To turn the unit off, press and
hold the button for at least 2 seconds.
Adjusting the Volume (16, 13)
With the unit powered on, press the Up Channel/Volume button ( ) to
increase volume and the Down Channel/Volume button ( ) to decrease
ROGER
BEEP
9
volume. The display will indicate the current volume level (UL) followed by
the number (0-7). As volume is increased upward, the beep sound (if
enabled) also increases, and vice-versa. When the minimum and
maximum volume settings are reached, a unique tone will sound.
Monitor/Display Backlight Button (2)
This button is used to to check activity on the current frequency before
transmitting. Check activity by pressing the Monitor (M) Button longer
than 2 seconds; the icon will apppear on the display and you will hear
static if frequency is clear. Do not transmit if you hear conversation.
Hold down the Monitor Button again longer than 2 seconds and the
icon will disapppear from the display.
The monitor function will temporarily bypass the squelch setting and play
all signals on a given channel. This feature is useful when communicating
with other parties at extreme range.
By pressing the monitor button momentarily, the LCD backlight is turned
on; the LCD backlight will turn off automatically in about 5 seconds, unless
the monitor button is pressed momentarily once again.
Push To Talk (PTT) Button (4)
Pressing and holding this button will allow you to speak to any transceiver
that is set to the same channel and privacy code setting as yours. Hold the
transceiver approximately 1 to 2 inches from your face as you speak into
the built in microphone (12). After you have finished speaking, release the
PTT Button to allow reception of incoming signals. It is not possible to
transmit and receive at the same time. The dual Transmit/Monitor LED at
the upper right corner of the LCD Panel (8) will light red while the PTT
Button is pressed and the transmit signal icon ( ) in the upper left corner
of the display will display the relative strength of the transmitted signal.
Releasing the button allows the unit to revert to standby mode. When
receiving an incoming signal, the Transmit/Monitor LED indicator will light
green and the received signal strength indicator ( ) will display
the relative strength of the signal.
10
The PTT Button can also be used as a two-way call ringer. Pressing the
button twice quickly will call another party on the same channel. The transmit
LED will light red for approximately 3 seconds and then go out.
Up Channel/Volume Button (16)
In the standby mode, pressing this button will increment the listening
volume. When in function edit mode this button will be used to adjust the
unit’s settings.
Down Channel/Volume Button (13)
In the standby mode, pressing this button will decrement the listening
volume. When in function edit mode this button will be used to adjust the
unit’s settings.
Function (F) Button (14)
This button is used to select various feature settings in the GMRS and FRS
modes.
Emergency (EMG) Call Button (10)
This radio has a quick access button (EMG) to the Emergency and
Assistance Channel. This channel is not monitored by local authorities.
When using this channel, EMG appears on the display. Pressing this button
will set the transceiver to channel 20 (462.6750 MHz).
External Speaker (SPK) and Microphone (MIC)/CHG Jacks (6)
This set of jacks accepts both an Audiovox headset/microphone connector
(optional) and the supplied wall charging adapter. For additional optional
equipment and accessories for the GMRS1100-2CH, visit the Audiovox
web site at www.audiovox.com.
Scan/Lock Button (11)
Press this Button momentarily to enable or disable the scan mode. Press
and hold the button for more than 1 second to lock or unlock the key pad. All
buttons will be locked in the lock mode except PTT and Monitor (M). When
the keypad is locked, the ( ) icon will display in the top left corner.
Andere Handbücher für GMRS1100-2CH
1
Inhaltsverzeichnis
Andere Audiovox Radio Handbücher
Audiovox
Audiovox GMRS672 Bedienungsanleitung
Audiovox
Audiovox CD1180 Bedienungsanleitung
Audiovox
Audiovox GMRS-1545 Bedienungsanleitung
Audiovox
Audiovox XM CNP-1000C Bedienungsanleitung
Audiovox
Audiovox XAPH1 Bedienungsanleitung
Audiovox
Audiovox GMRS200 Bedienungsanleitung
Audiovox
Audiovox CommanderMT 128-7902A Bedienungsanleitung
Audiovox
Audiovox GMRS7001CH Bedienungsanleitung
Audiovox
Audiovox XMCK20P - XPRESSR XM Radio Tuner Bedienungsanleitung
Audiovox
Audiovox GMRS2VMK Bedienungsanleitung
Audiovox
Audiovox GMRS6000-2 Bedienungsanleitung
Audiovox
Audiovox XMp3i Bedienungsanleitung
Audiovox
Audiovox SIR-CK3 Bedienungsanleitung
Audiovox
Audiovox GMRS-1200CH Bedienungsanleitung
Audiovox
Audiovox GMRS122-2CH - 5 Mile GMRS Radio Bedienungsanleitung
Audiovox
Audiovox GMRS-1545 Bedienungsanleitung
Audiovox
Audiovox GMRS6000-2CH Bedienungsanleitung
Audiovox
Audiovox SIR-PNP1 Montage- und Bedienungsanleitung
Audiovox
Audiovox GMRS121-2 Bedienungsanleitung
Audiovox
Audiovox GMRS862 Bedienungsanleitung
